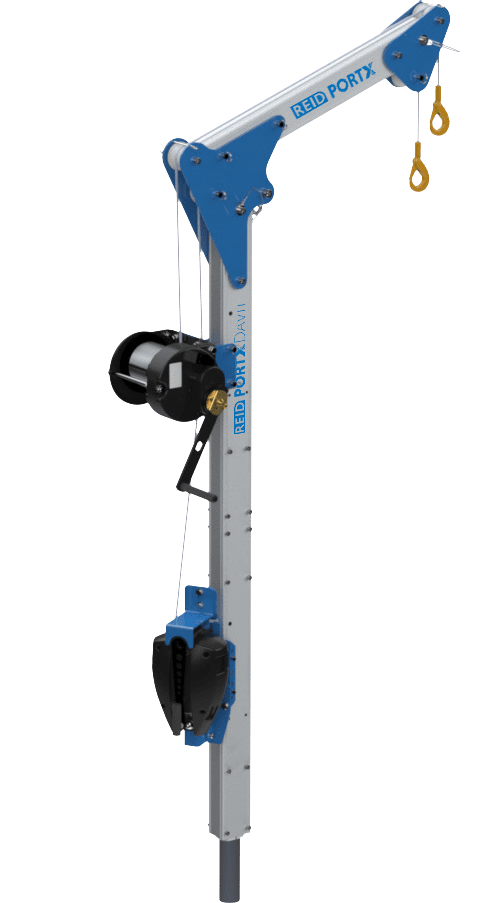

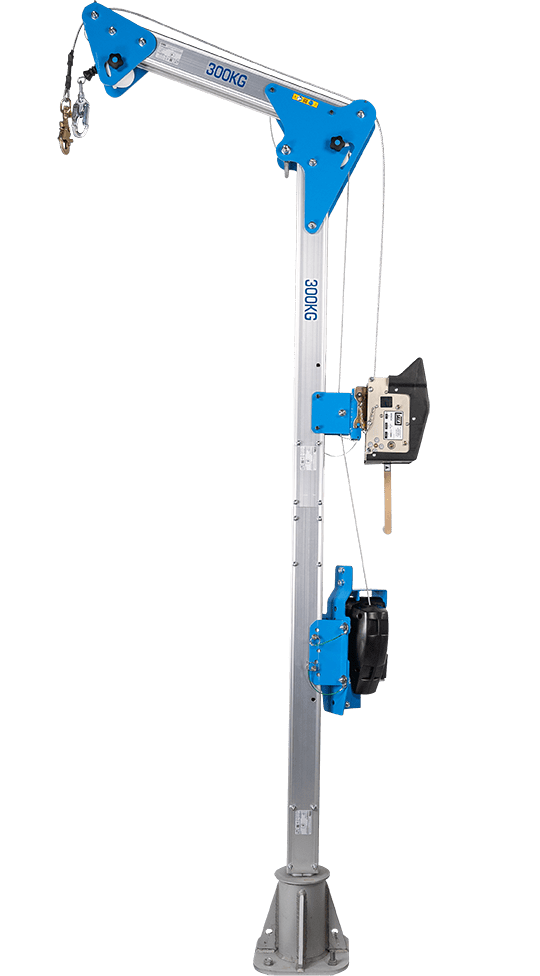

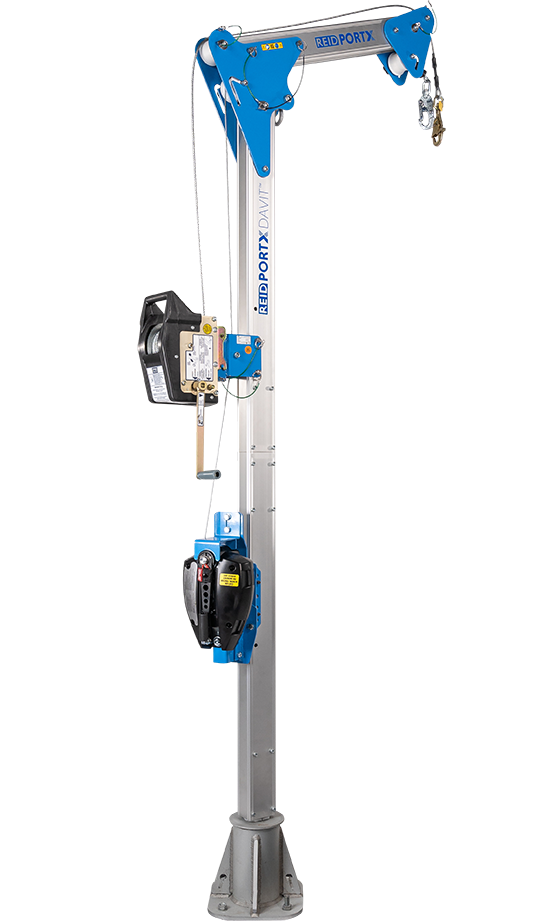

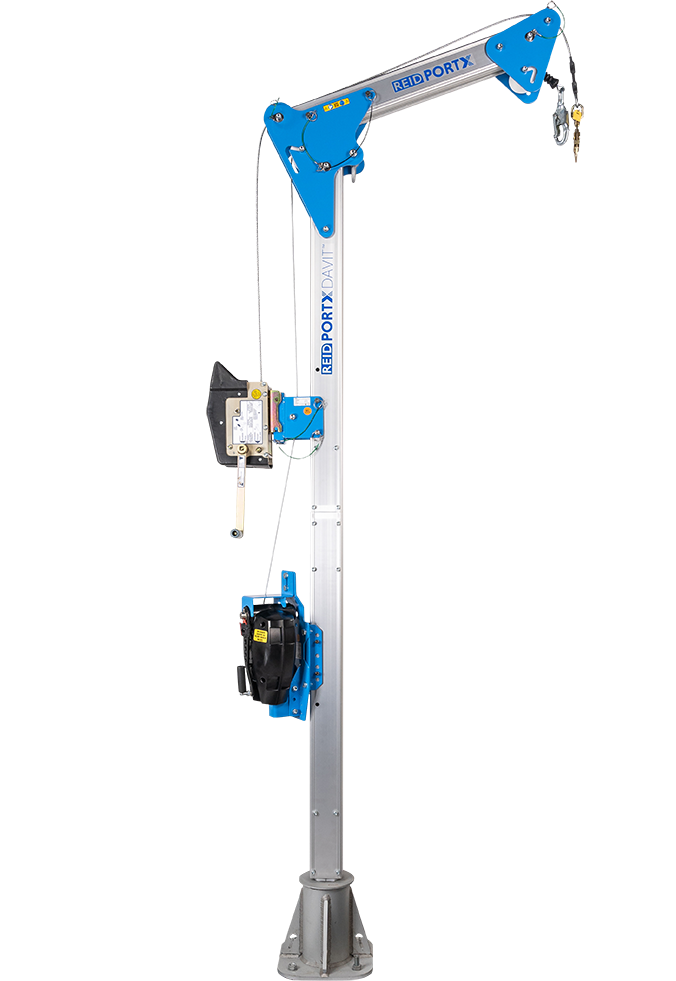

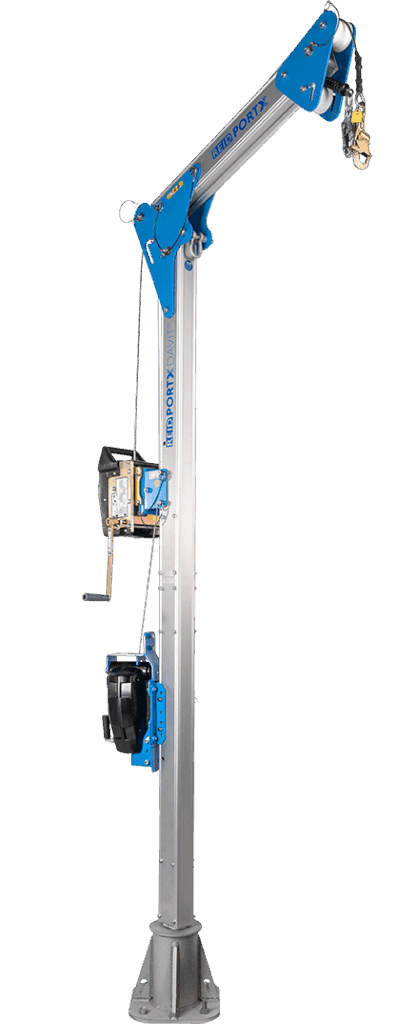

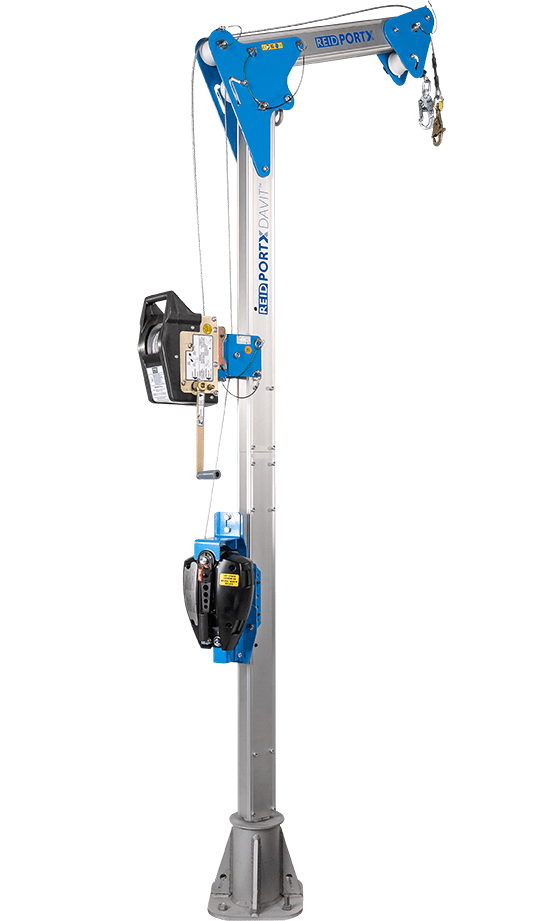

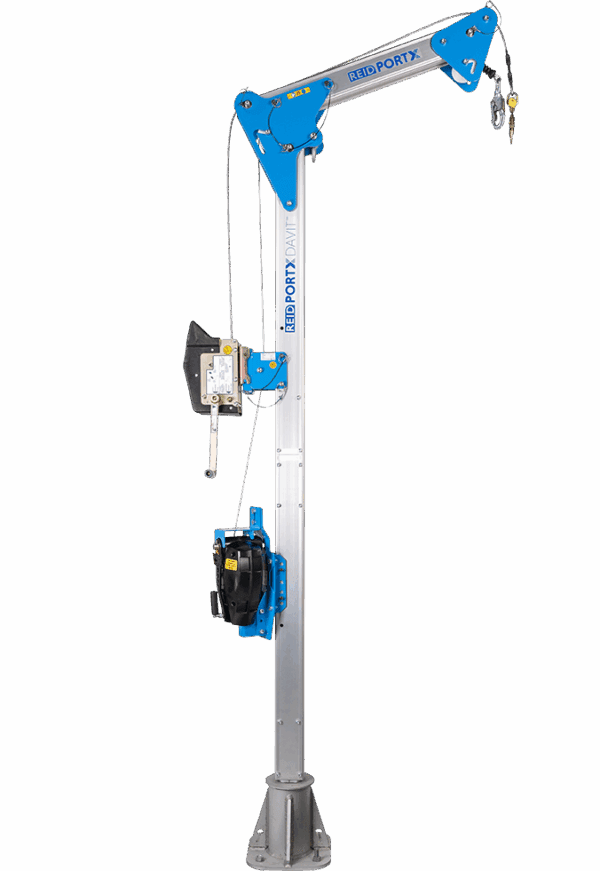

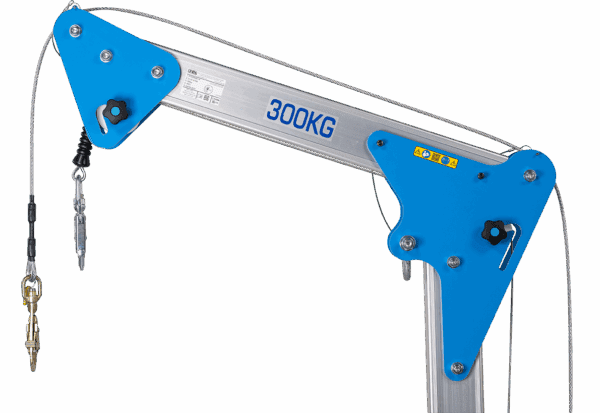

Davit Crane Aluminium PortX-Davit

PortX-Davit Cranes are a lightweight solution to heavy lifting.

Suitable for both cargo and personnel lifting applications, these devices are versatile, portable and constructed from high-strength aluminium.

When dismantled, they are easy to transport by a single person. The portable davit can be rapidly assembled for use in any location when it’s required.

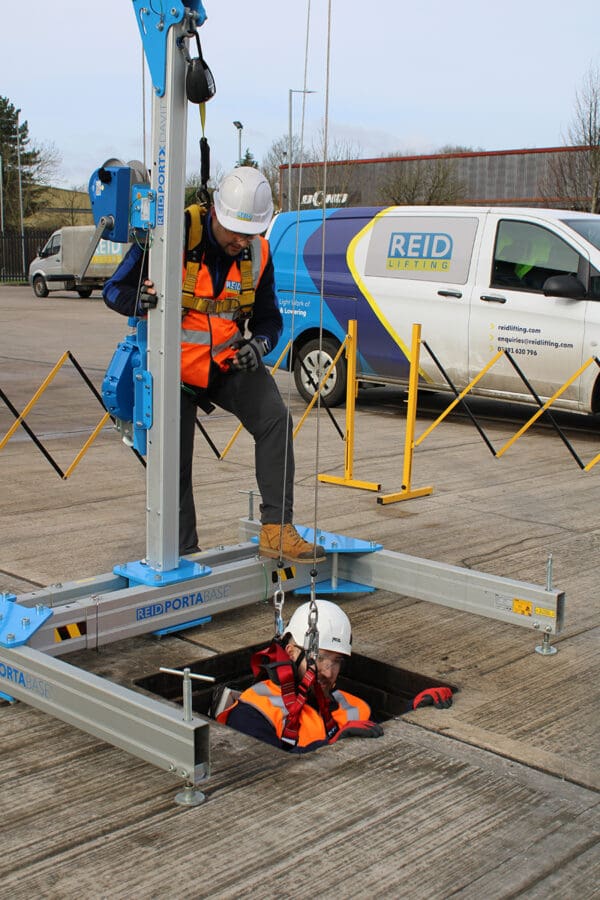

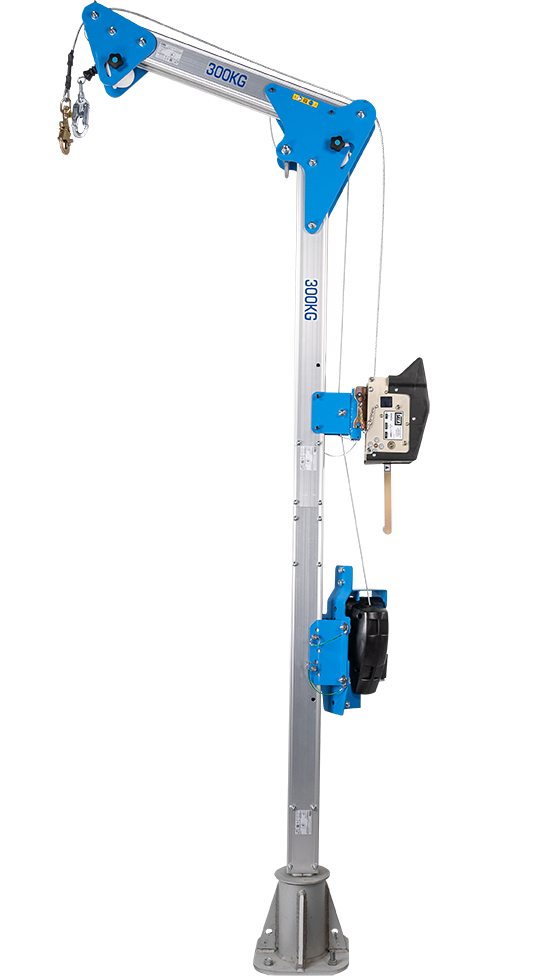

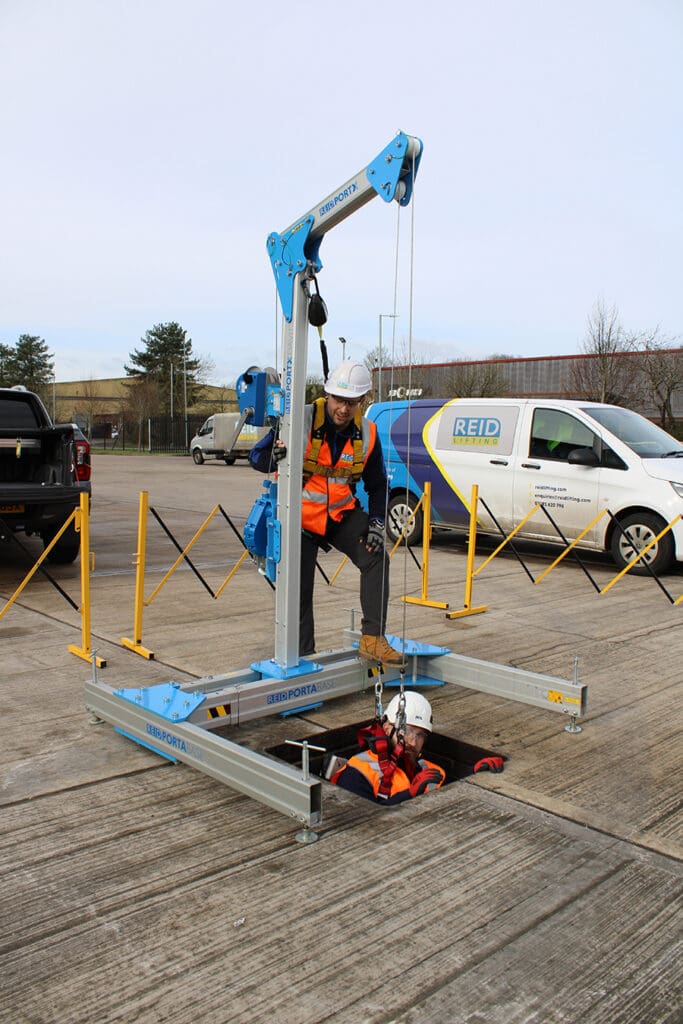

Designed for personnel safety applications, including shoring/trenching and confined space access. Fall protection devices are mounted on the rear of the column to avoid clashes with guardrails, walls or similar.

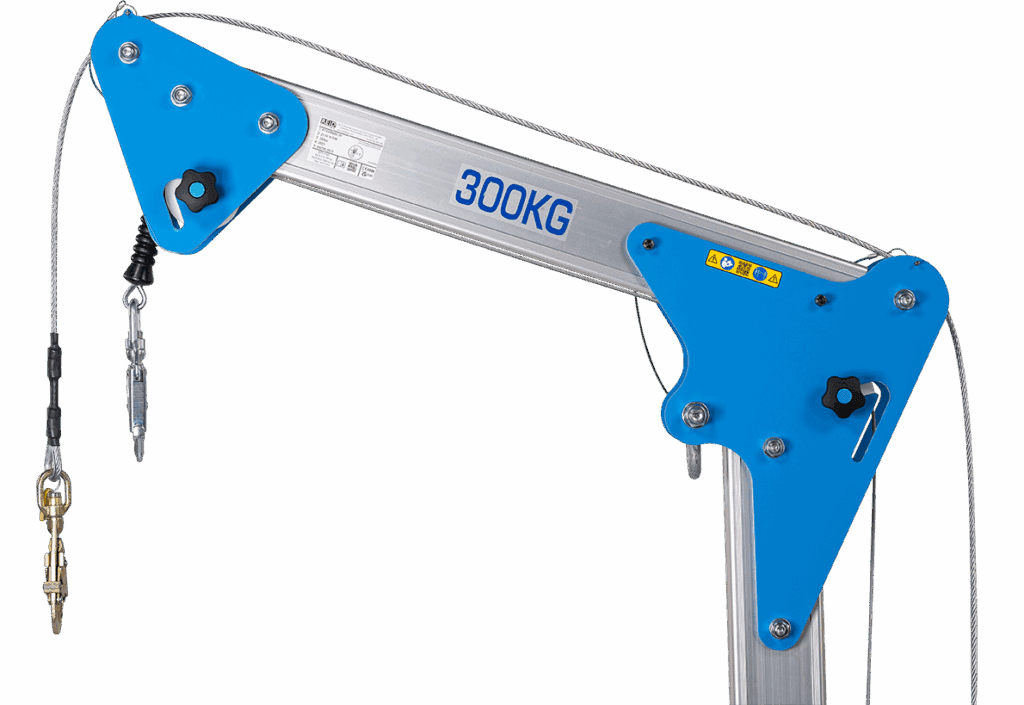

The Davit can be supplied with a winch fitted to the backstay. You can also add an SRL (Self-retracting Lifeline) and a recovery device (HRA) as required. The davit can be safely swung under load due to the rotation bearing.

Product Variation

Clear

Additional Information

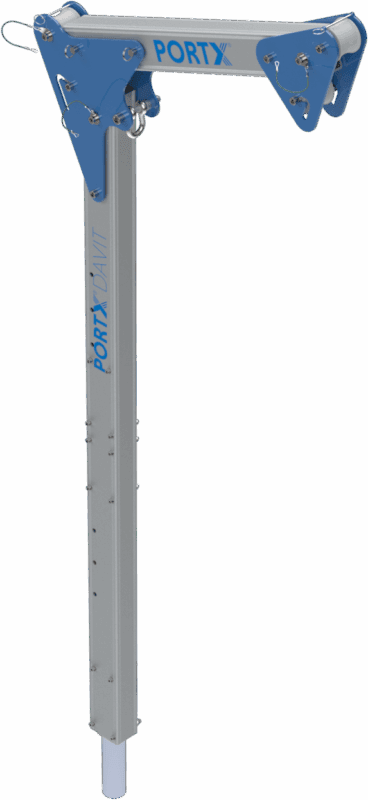

Lightweight and portable: ideal for confined space access

PortX-Davit Cranes are easy-to-operate, pickup-and-go lifting systems. They are uniquely designed to ensure rapid assembly to meet manual handling demands and requirements. Their anodised finish ensures they are virtually maintenance-free and resistant to corrosion and long-term wear.

Features

Conforms with EN795:2012 Anchor Devices (class B) and tested as a complete safety system, including brackets to EN1496:2017
Can support goods lifting up to 300kg and personnel lifting up to 150kg

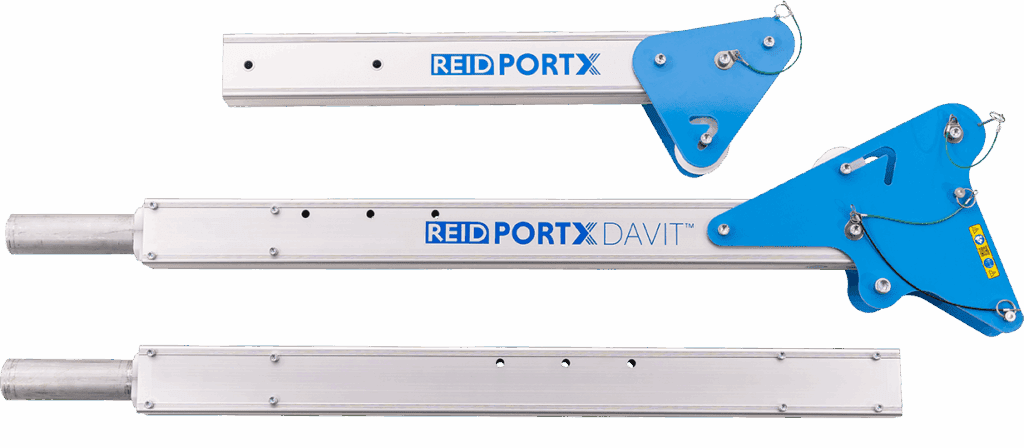

3-piece design for ease of transportation
Supplied with a carry bag
Ability to fix two safety or lifting devices on the rear column of the davit, enabling primary and secondary safety or a combination of personnel and goods lifting
Variable bracket mounting positions for better ergonomics
Additional fall protection anchor on the column for the winch operator
Can be assembled and operated by one person with no tools required

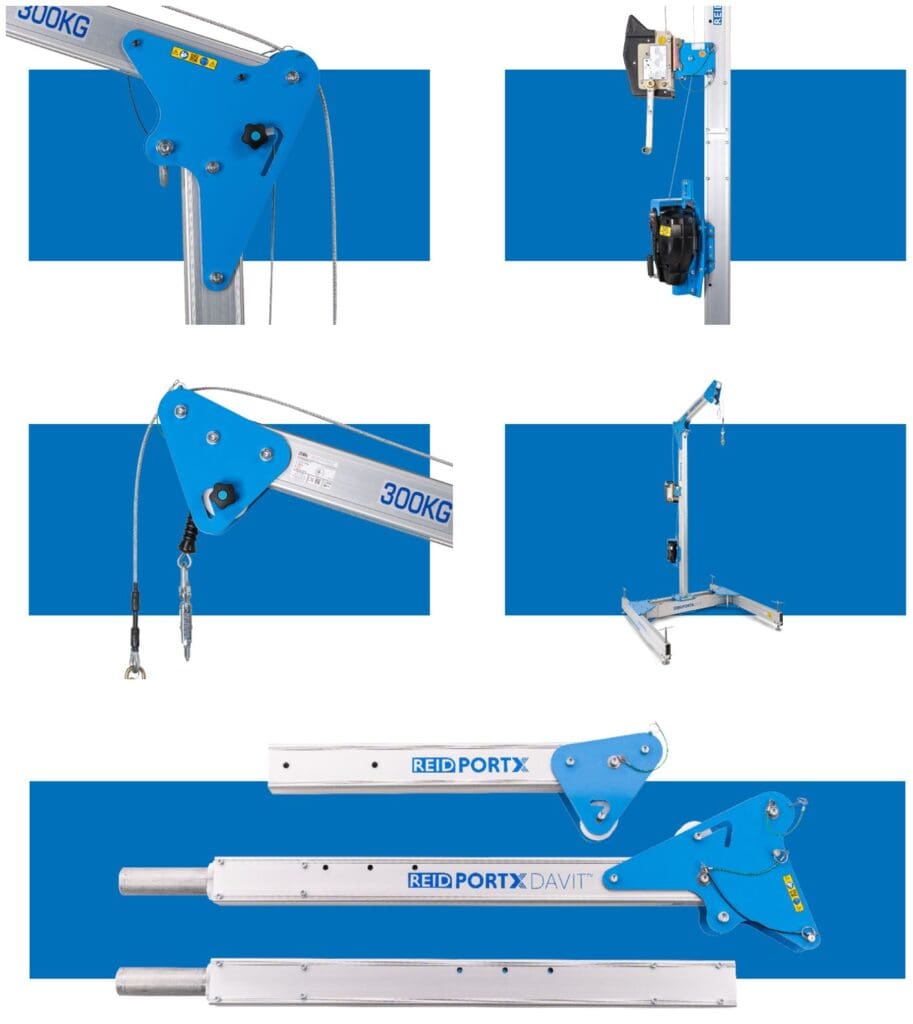

Sockets and Accessories

We offer a wide range of winch brackets for cargo lifting, personnel winches and Safety Retrieval Lifeline devices.

Choose your model

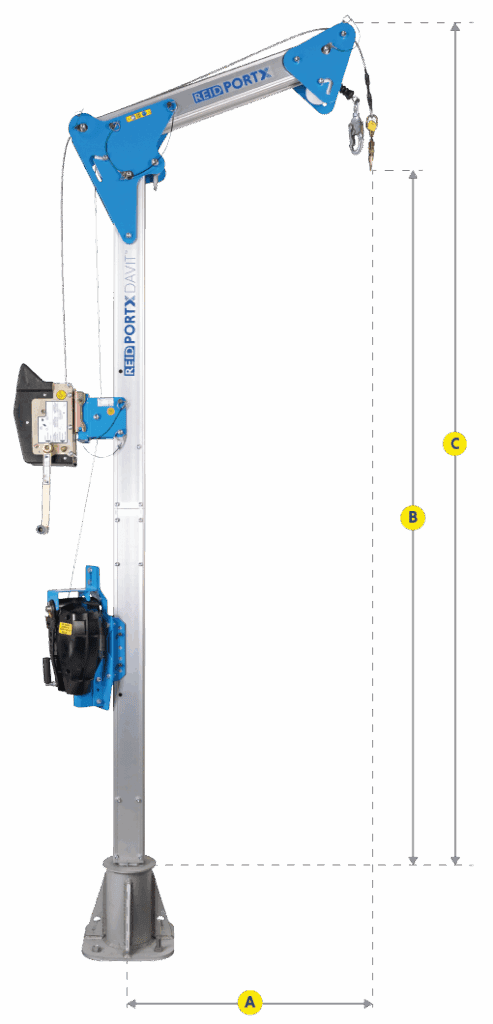

Model	A	B	C
PTXDR800-20	800	2000	2371
PTXDR800-24	800	2400	2771
PTXDR800-28	800	2800	3171

Need a different type of lifting solution?

Check out our other lightweight solutions, including the Porta-Gantry Rapide or the heavy duty Porta-Gantry

Click the PDF button to learn more.

Product Variations

Description	Product Code
PortX Davit Radius 800mm Height of Lift 2000mm WLL 300kg Personnel Rated	PTXDR800-20	Add to Quote Request
PortX Davit Radius 800mm Height of Lift 2400mm WLL 300kg Personnel Rated	PTXDR800-24	Add to Quote Request
PortX Davit Radius 800mm Height of Lift 2800mm WLL 300kg Personnel Rated	PTXDR800-28	Add to Quote Request

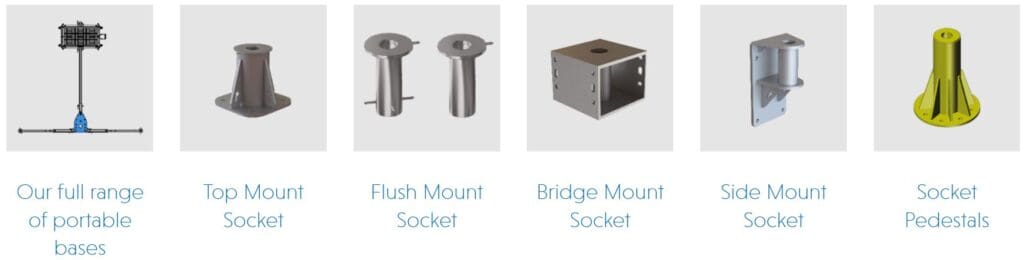

Davit top mount socket – 65mm	STMG0500V2	Add to Quote Request
Davit side mount socket – 65mm	SSMG0500V2	Add to Quote Request
Davit flush mount socket – 65mm	SFMG0500	Add to Quote Request
Porta Base Trench Mount Socket	PBTM00001	Add to Quote Request

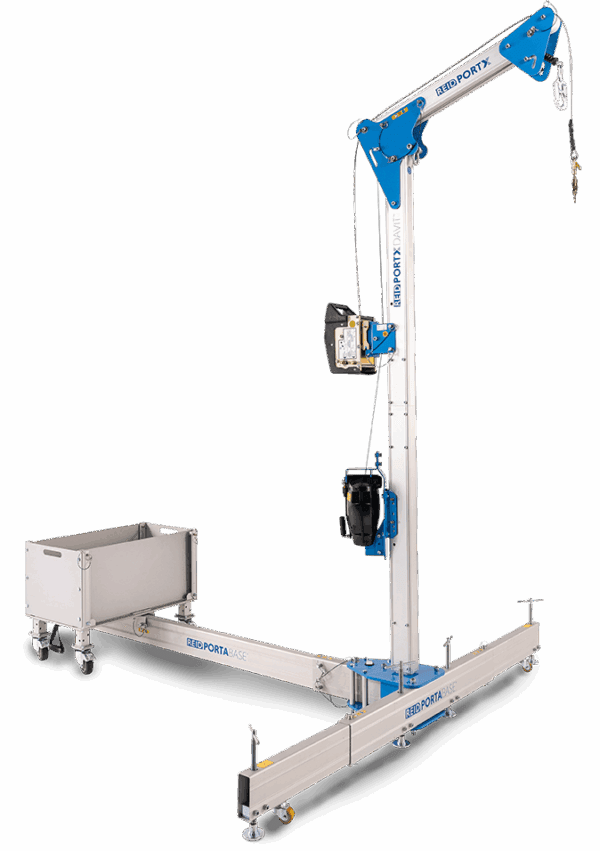

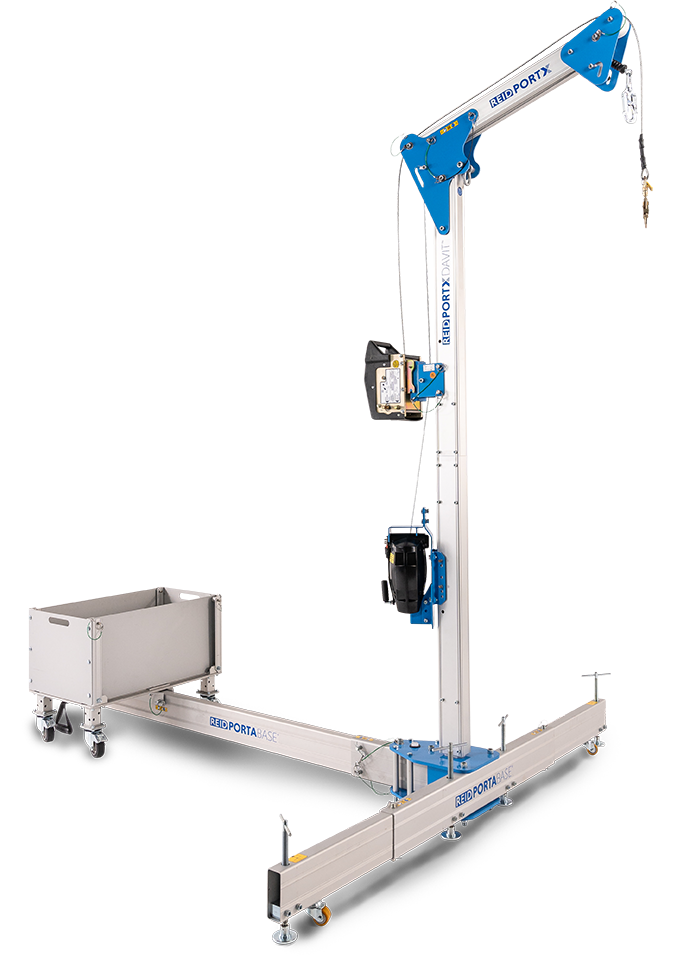

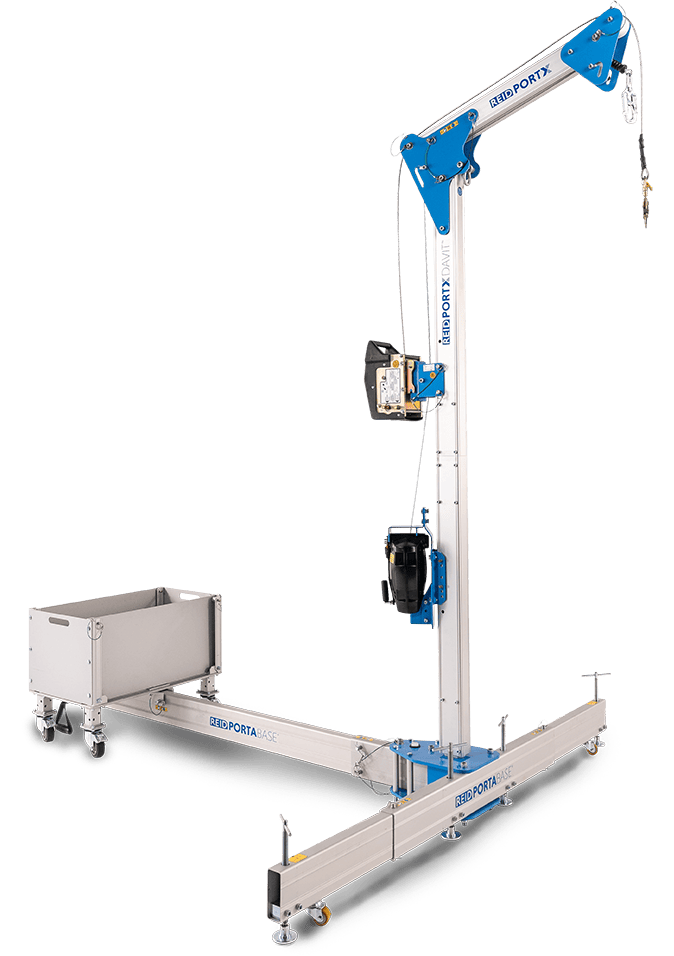

Porta Base Counterbalance	PBCB00001	Add to Quote Request
Porta Base H BASE	PBHB00001	Add to Quote Request
Bracket Kit to attach G-Winch to anchor device: PortX Column for Dual winch configuration (Allows SRL line devation)	RAWB005209	Add to Quote Request
Bracket kit IKAR HRA for davits and gantry winches	RAWB004000	Add to Quote Request

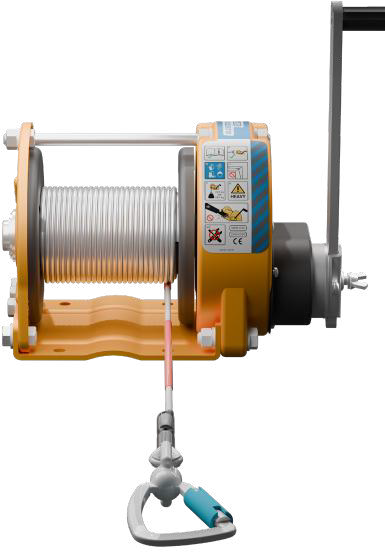

Manual Winch for Personnel and Cargo with 20m wire rope and aluminium karabiner WLL 250kg	RAWMP0250020G	Add to Quote Request
Manual Winch for Personnel and Cargo with 40m wire rope and aluminium karabiner WLL 250kg	RAWMP0250040G	Add to Quote Request
Manual Winch for Personnel and Cargo with 40m stainless steel wire rope and aluminium karabiner WLL 200kg	GSE070-40SSK	Add to Quote Request

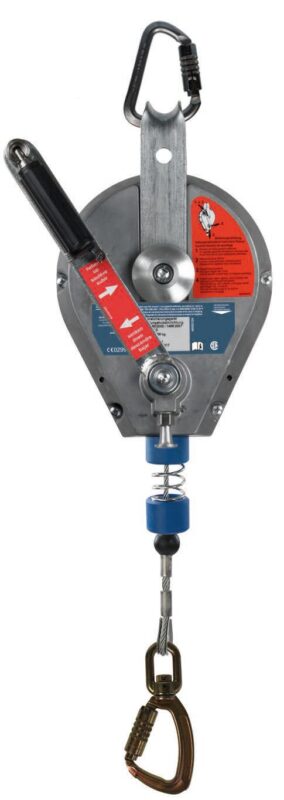

Self Retracting Life Line SRL Fall Arrester with Recovery 18M	HRA18	Add to Quote Request
