Porta-Gantry Rapide

+ Add to Quote Request

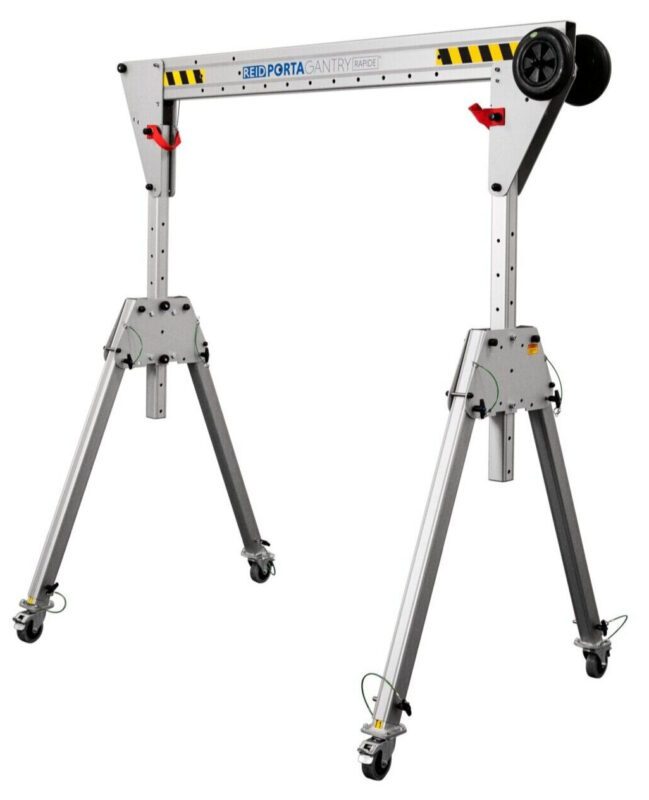

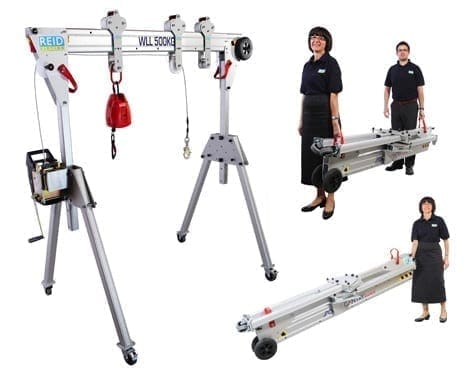

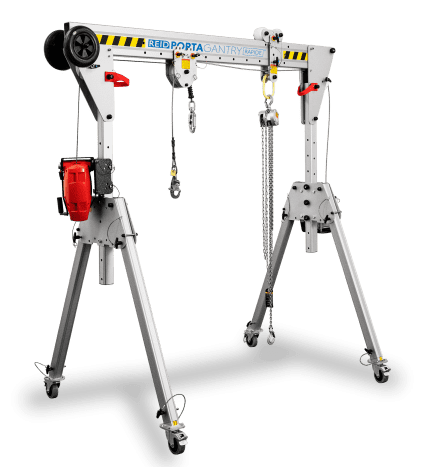

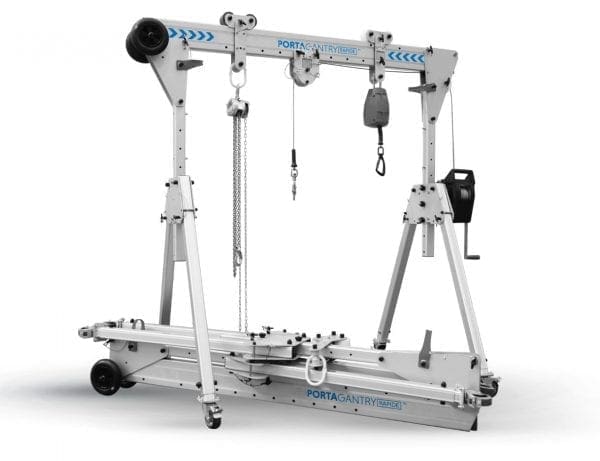

The Porta-Gantry Rapide is a height-adjustable, portable and foldable aluminium gantry. Designed for rapid deployment, it can be quickly assembled or disassembled by one person within a minute and without the need for any tools. Featuring an integrated wheel design, the system can be transported quite effortlessly. Its lightweight construction and low overall mass also ensure it can be safely carried by two people.

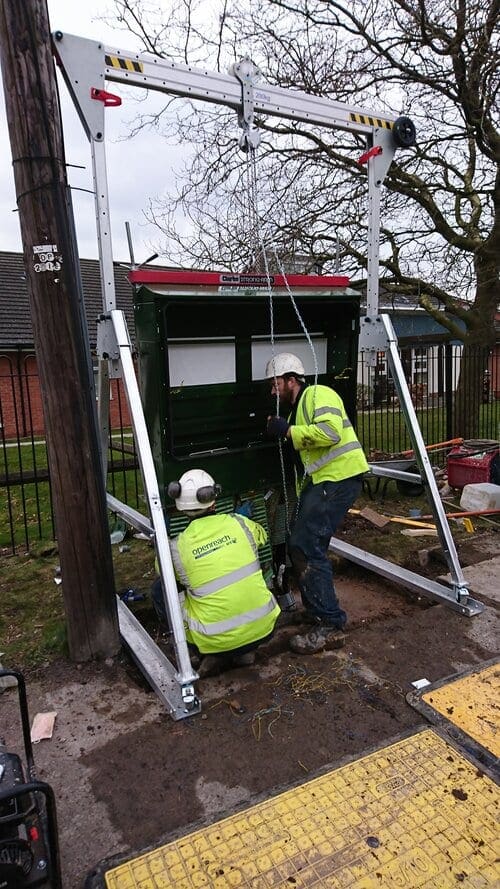

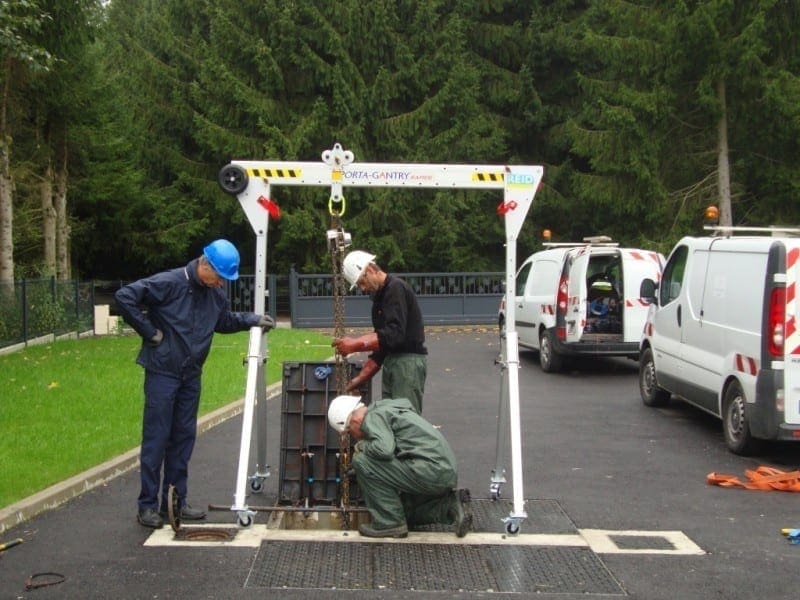

The Porta-Gantry has a patented design and suits both goods and personnel lifting applications. It provides an innovative solution for confined space access, heavy lifting, and rescue and entry scenarios, due to its unique abilities. The system is available in three versatile versions (with a lifting capacity up to 1000 kg). Furthermore, the system is anodised for corrosion resistance.

A high-quality, European made lifting gantry, this device can be customised to suit specific requirements.

Clear

Additional Information

A fast and rapid aluminium gantry!

European made with a high-quality build, the Porta-Gantry Rapide is light, adaptable and easy to use. Capable of lifting loads and equipment up to 1000 kg, its patented design accommodates a variety of configurations. Several adjustable beam lengths are available and the gantry can be customised to specific requirements, making it the perfect solution for quick lifting applications. Additionally, the system is fitted with load-bearing lockable castors for easy positioning.

Features:

  • Portable and lightweight aluminium gantry.
  • Supports goods (up to 1000 kg) and personnel lifting (up to 500 kg); depending on the model.
  • Suitable for up to 3 persons for fall protection applications.

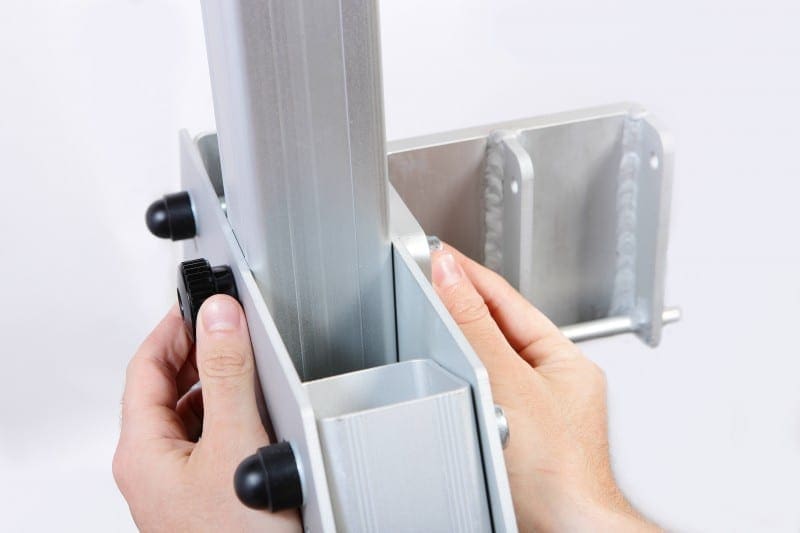

  • Can be assembled or disassembled in under a minute and by one person.

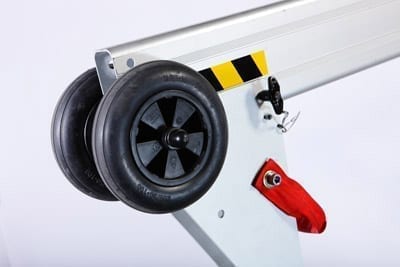

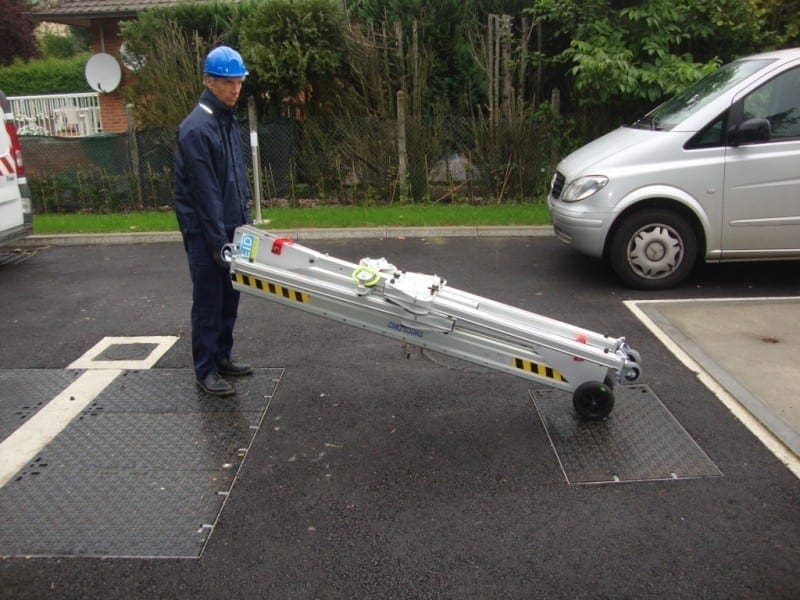

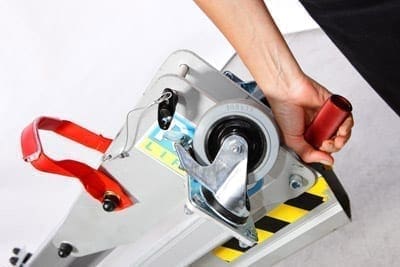

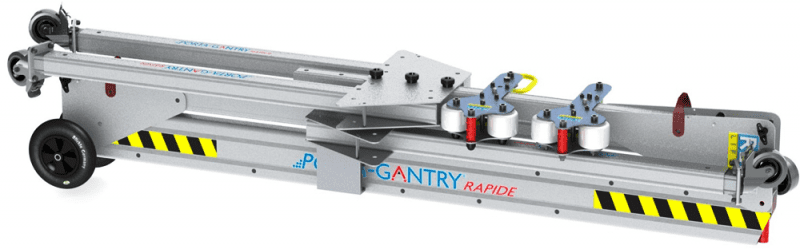

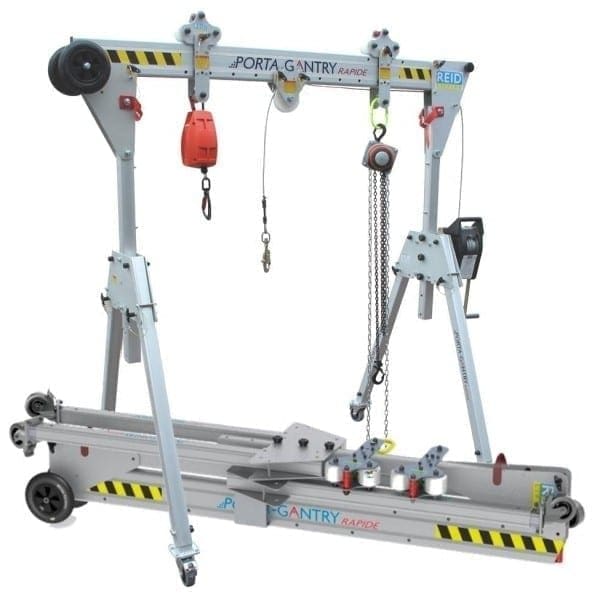

  • Integrated wheel design folds with the frame for easy transportation.
  • Compact storage between 33-62 kg in total weight.

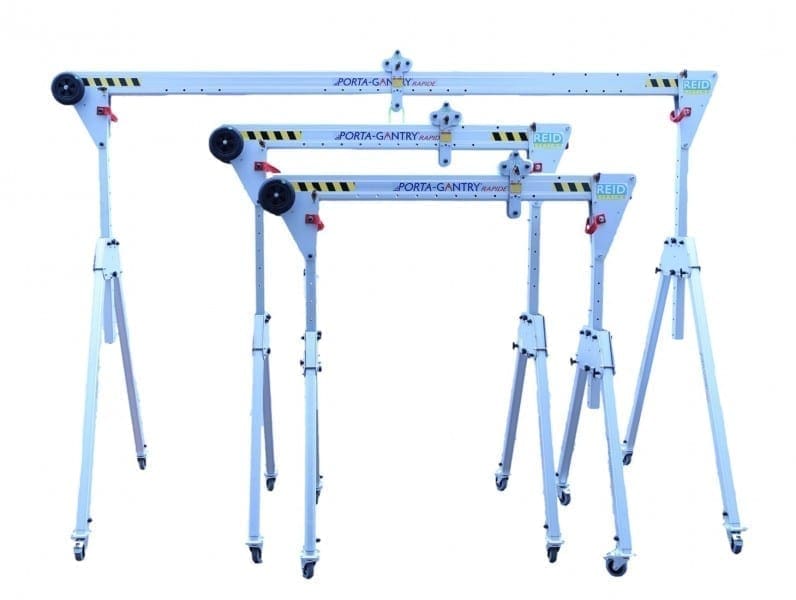

  • Available in three height-adjustable versions (up to 2.9 m to the lifting eye).
  • Can accommodate a range of beam lengths up to 4 metres.
  • Anodised construction for corrosion resistance.
  • Provides a lightweight, portable solution with an engineered design and bespoke sections for weight reduction.

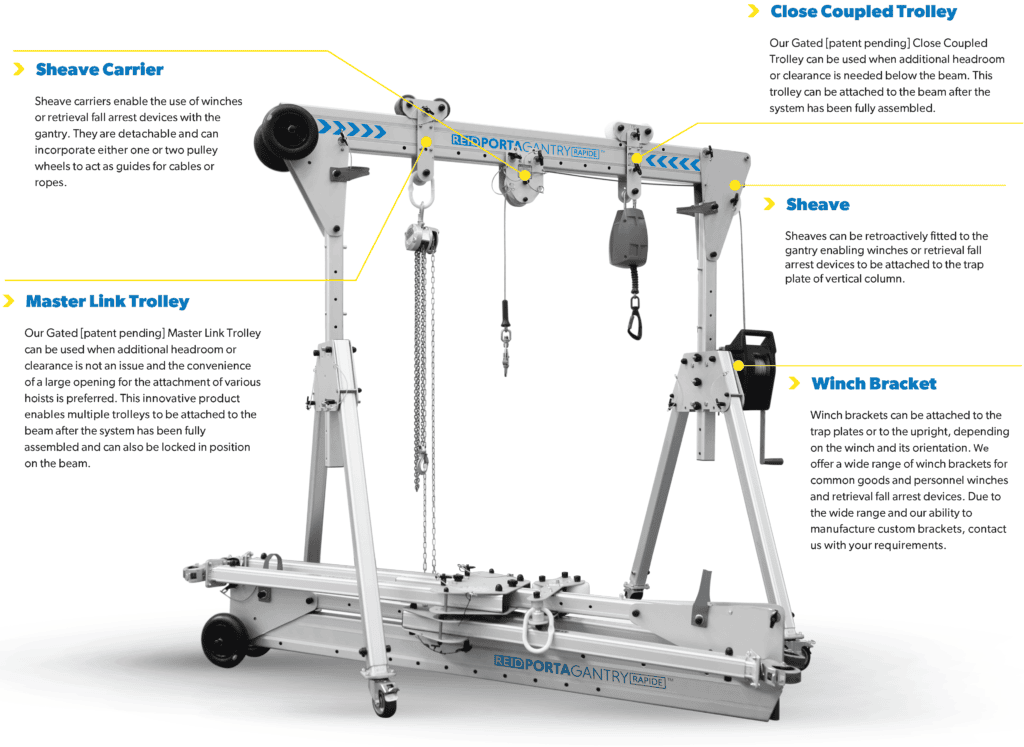

Porta Gantry Rapide Features

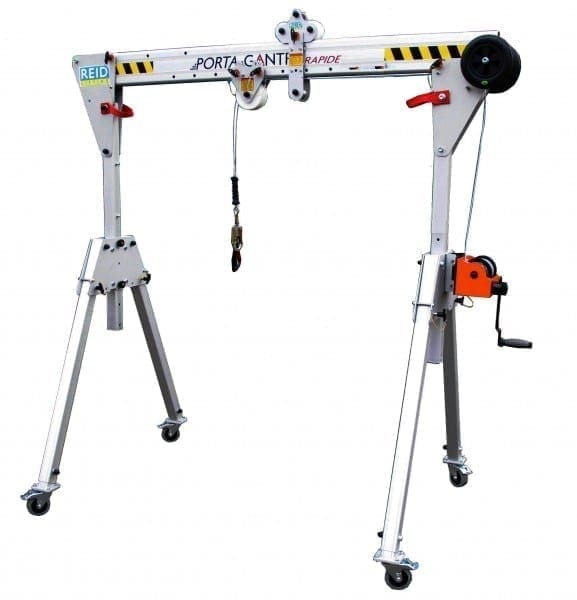

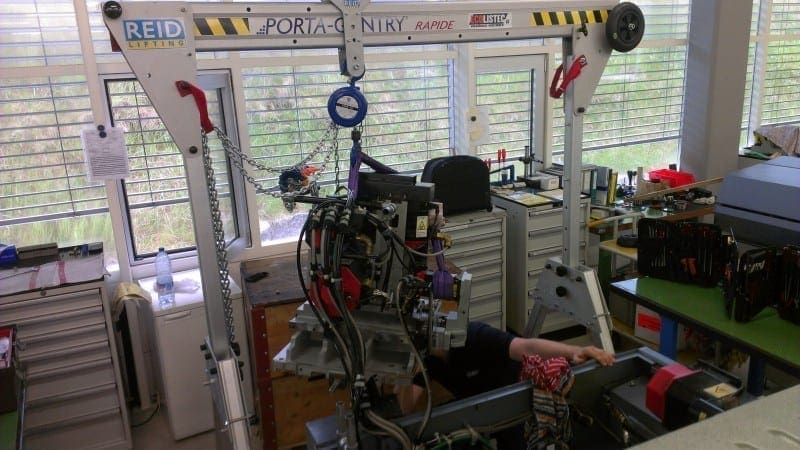

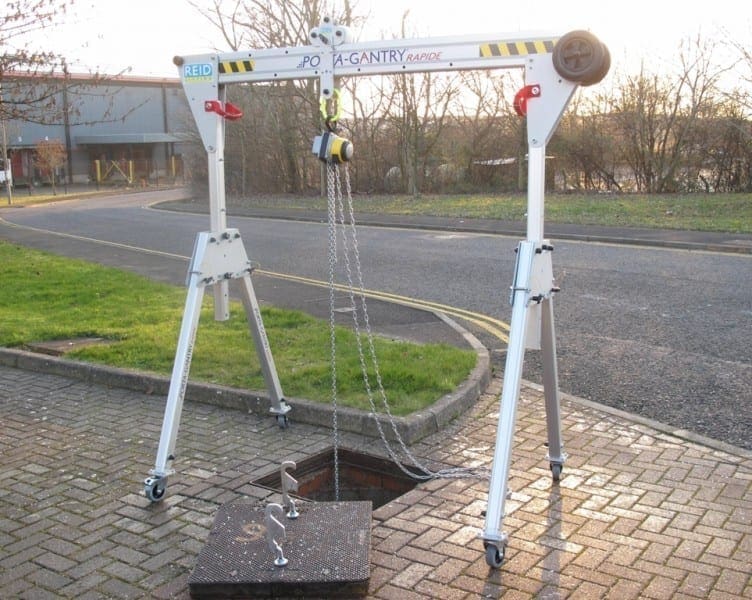

Porta Gantry Rapide Three Photos

Load Ratings:

Application Capacity
250-500 1000
Goods (kg) 500 1000
Fall Arrest 3 persons 3 persons
Maximum Personnel Lifting (kg) 250 500

Dimensions:

Model 250-500 1000
Min. Height of Lift (mm) 1450 1430
Max. Height of Lift (mm) 2920 2880
Download our PDF for further specifications.



Porta Gantry Rapide Display of ImagesA range of accessories are available and they are compatible with our Porta-Gantry systems. These include:

  • Lobed Cheek Plates for easy assembly when adjusting the operating span.
  • Wind-up Jack Legs, which provide a flat surface for mounting the gantry and offer additional height adjustment up to 250 mm.
  • Trolley Rope Control System for precise control over the movement of the load trolley from a safe location next to the A-frame,
  • Festoon System, which has been designed to keep electric hoist power cords away from lifting operations.



Porta Gantry Lobed Cheek Plates

Lobed Cheek Plates

Porta Gantry Wind Up Jack Legs

Wind-up Jack Legs

Porta Gantry Trolley Rope Control System

Trolley Rope Control System

Porta Gantry Festoon System

Festoon System

Need a larger lifting capacity?

View our Porta-Gantry Aluminium Gantry which lifts up to 5000 kg capacity.

    Click the PDF button to learn more.

    Product Variations

    Image Description Product Code Price (excl. GST)

    Porta-Gantry Rapide 250kg
    Tall frame 2m span
    Includes beam trolley

    LPGRT20

    Porta-Gantry Rapide 250kg
    Medium frame 4m span
    Includes beam trolley

    LPGRM40

    Porta-Gantry Rapide 500kg
    Standard frame 2m span
    Includes beam trolley

    LPGRS20

    Porta-Gantry Rapide 1000kg
    Medium frame 2m span
    Includes beam trolley

    LPGR1TM20

    Porta-Gantry Rapide 1000kg
    Medium frame 3m span
    Includes beam trolley

    LPGR1TM30

    Porta-Gantry Rapide 1000kg
    Medium frame 4m span
    Includes beam trolley

    LPGR1TM40

    Porta-Gantry Rapide 1000kg
    Tall frame 2m span
    Includes beam trolley

    LPGR1TT20

    Porta-Gantry Rapide 1000kg
    Tall frame 3m span
    Includes beam trolley

    LPGR1TT30

    Porta-Gantry Rapide 1000kg
    Tall frame 4m span
    Includes beam trolley

    LPGR1TT40

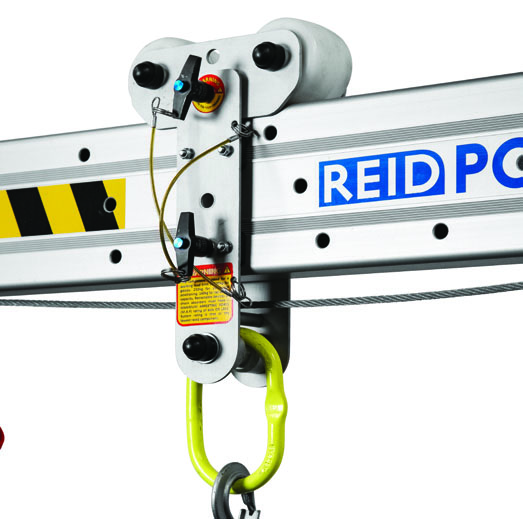

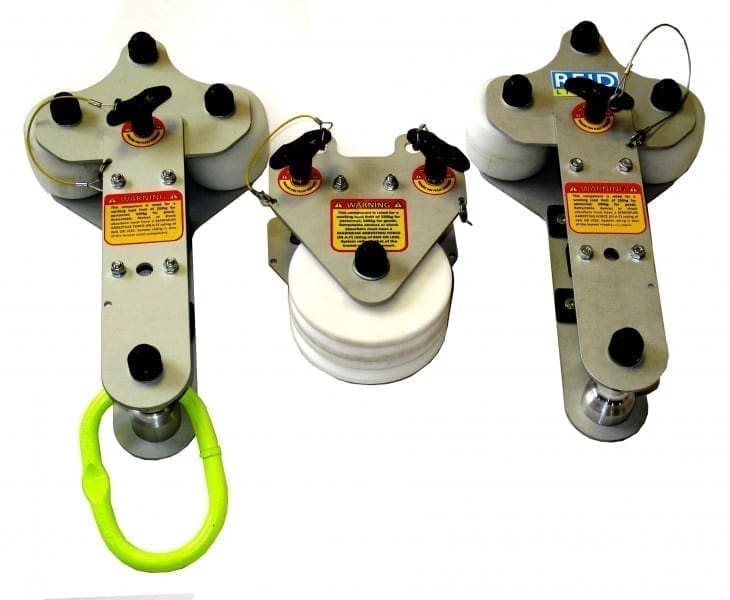

    Rapide Beam Trolley with Master Link 500kg

    LPGT-0.5T

    Rapide Beam Trolley with Master Link 1000kg

    LPGT-1.0T
