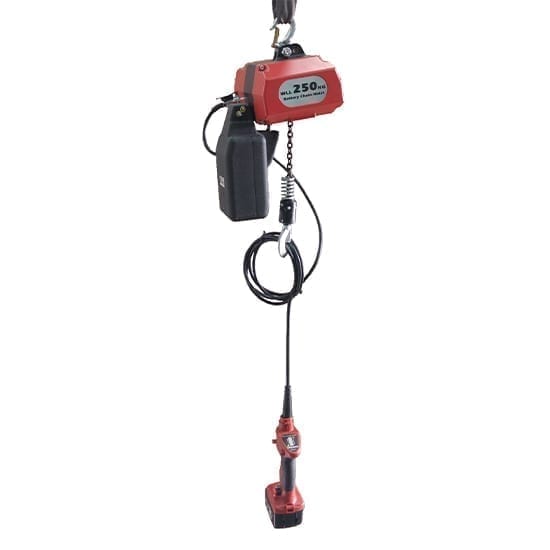

Electric Chain Hoists – Battery Powered
+ Add to Quote RequestOur Battery Hoists are portable, versatile and unlike any other product on the market. Their unique capabilities allow them to easily move around a workplace or between job sites. This makes them suitable for areas without power supply. Simply pack your device in its portable case and you’re ready to go.
Battery Hoists are suited to a range of industries because of their compact nature and clever design. They are commonly used for manufacturing, warehouse, construction, food/beverage and utility applications. The body of the hoist is die-cast for dust and water protection. The hoists also have variable lowering speed. As a result, they are incredibly user-friendly.
They’re available in two load capacities of either 250 kg or 500 kg. Standard lift height is 3 metres. However, they can be customised – up to 10 metres. All devices are powered by a rechargeable battery (provided as standard).
Additional Information
Our Portable Battery Hoists go wherever you go!
These devices are really innovative. Thanks to their user-friendly technology, they can be customised to suit your workplace (cord length and lifting height). They feature a small and efficient high-speed brush motor, with a friction clutch to avoid motor damage. Each unit has a nickel-plated load chain, with die-cast housing for protection. They also feature a highly efficient drive motor with variable lowering speed. These hoists are low voltage, suitable for use in restricted areas.

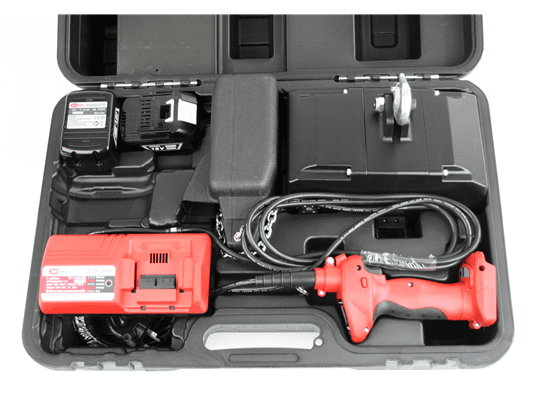

Ready for action in a Battery Hoists kit.

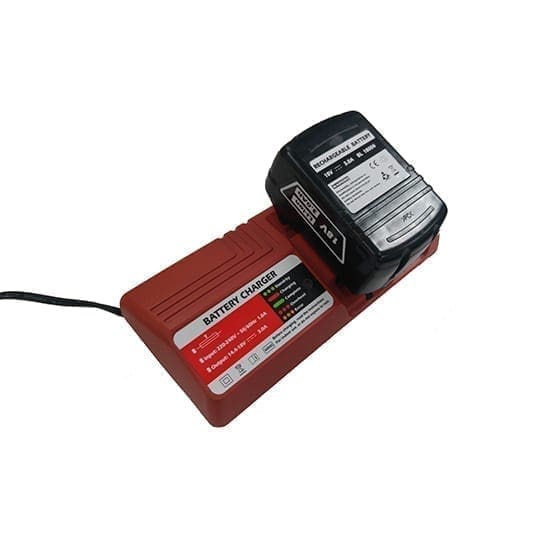

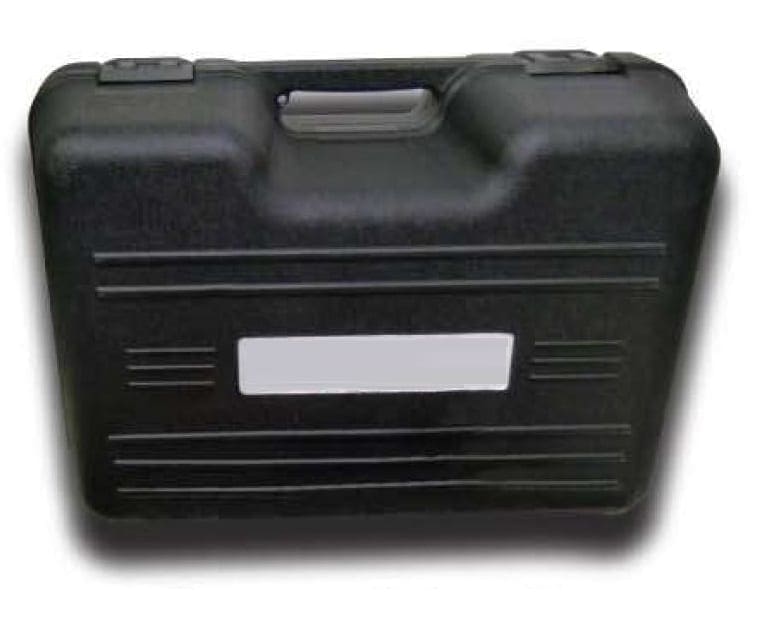

Each hoist kit is supplied with a quick connect control cable, LED battery display and overload warning alarm, trigger reverse switch, two battery packs, battery charger and a portable case for safe transport. Additional batteries and spare parts are available separately. All Battery Hoists can integrate into any existing or new crane system.
Product Features:
- Load Capacity – 250 kg or 500 kg
- Lift Height – 3 m (can be customised to 10 m)
- Standard control cord length – 2 m
- High-speed brush motor
- LED battery gauge
- Upper limit sensor
- Battery powered with automatic charger
- Easily removable pendant control
- Friction clutch to avoid motor damage
- 3-stage planetary gears and 2-stage speed reducing gears
- Low voltage – suitable for restricted areas
- Supplied with two battery packs, charger and plastic carry case
Product Variations
Image | Description | Product Code | Price (excl. GST) | |
---|---|---|---|---|
Battery Electric Chain Hoist |
LDCH-250 | |||
Battery Electric Chain Hoist |
LDCH-500 |
