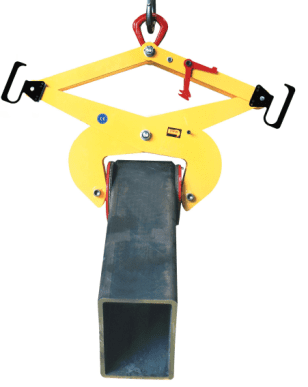

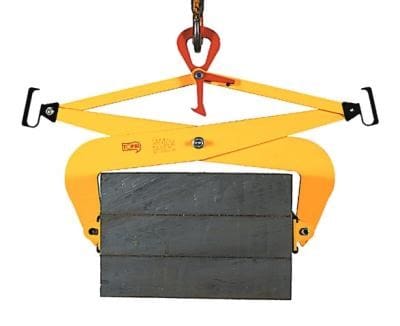

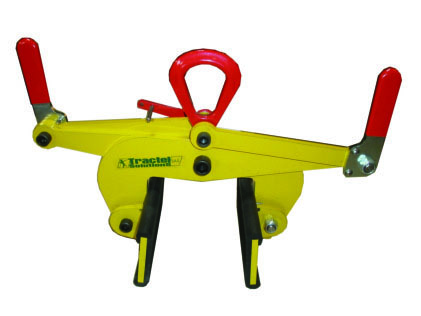

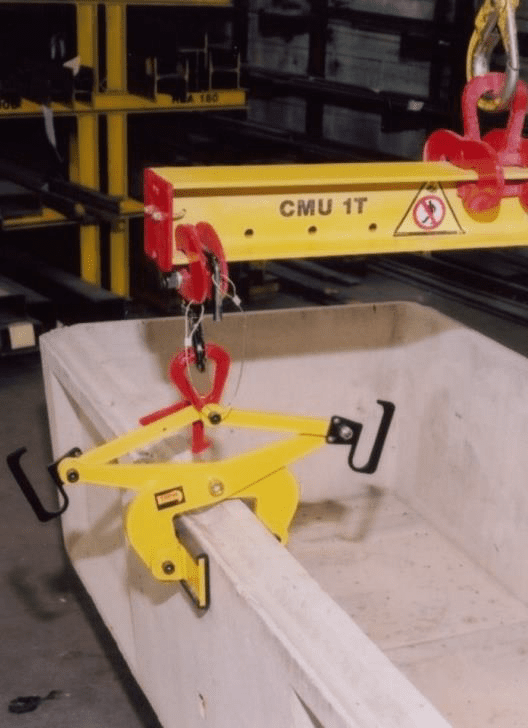

Lifting Clamps Scissor Grip

Lifting Clamps with a scissor-grip action fitted with an automatic locking mechanism. This locking mechanism allows the operator to lay down the load without any manual intervention with the lifting device.

Rubber-coated pads ensure good grip and avoid marking the workpiece. Transport handles make positioning the lifting clamp easier.

Clamping is proportional to the load – limiting the risk of damage to the product.

Product Variation

Clear

Additional Information

Click the PDF button to learn more.

Product Variations

Description	Product Code
Lifting Clamp Scissor Grip Opening: 0-100 mm WLL: 500 kg	LPB05-0-100	Add to Quote Request
Lifting Clamp Scissor Grip Opening: 100-250 mm WLL: 500 kg	LPB05-100-250	Add to Quote Request
Lifting Clamp Scissor Grip Opening: 200-500 mm WLL: 500 kg	LPB05-200-500	Add to Quote Request
Lifting Clamp Scissor Grip Opening: 0-200 mm WLL: 1000 kg	LPB1-0-200	Add to Quote Request
Lifting Clamp Scissor Grip Opening: 200-500 mm WLL: 1000 kg	LPB1-200-500	Add to Quote Request
Lifting Clamp Scissor Grip Opening: 500-800 mm WLL: 1000 kg	LPB1-500-800	Add to Quote Request
Lifting Clamp Scissor Grip Opening: 700-1000 mm WLL: 1000 kg	LPB1-700-1000	Add to Quote Request
Lifting Clamp Scissor Grip Opening: 200-500 mm WLL: 3000 kg	LPB3-200-500	Add to Quote Request
Lifting Clamp Scissor Grip Opening: 500-800 mm WLL: 3000 kg	LPB3-500-800	Add to Quote Request
