Lifting Beams – Roll Dispenser

Our Lifting Beams support heavy loads during overhead lifting applications.

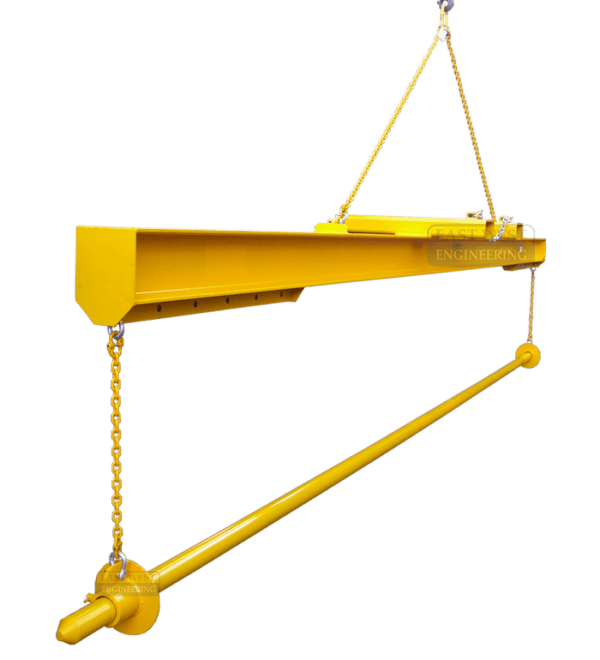

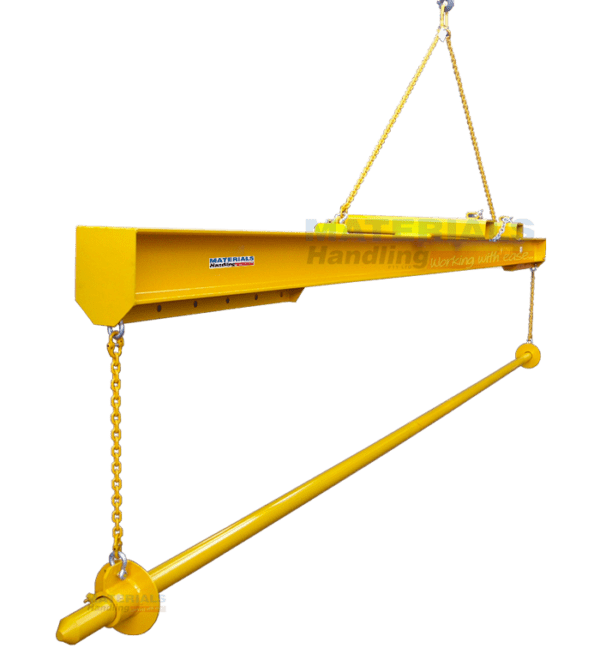

The Roll Dispenser Beam is designed to safely lift and lay rolls and liners such as those used in ground preparation work in construction, landscaping and farming applications.

This unit improves operational productivity and reduces manual handling of long, heavy rolls during installation.

Constructed in accordance with relevant Australian Standards, Lifting Beams are supplied with a user manual and certificate of conformity.

Product Variation

Clear

Additional Information

Suitable for dispensing rolled materials such as geotextiles
Adjustable lift positions
Beam to spindle link chains supplied
2 leg chain sling supplied standard
Fork pockets fitted to models RDB1.25X6 & RDB2X6 only
Customised units to suit your application available on request
Enamel paint finish

Model	Working Load Limit (WLL) kg	Min. Roll Width (mm)	Max. Roll Width (mm)	Max. Roll Diameter (mm	Min. Roll Hole Diameter (mm)	Axle Weight (kg)	Unit Weight (kg)
RDB1X6	1250	4000	6000	1500	80	69	460
RDB2X2	2000	600	2000	1500	80	29	110
RDB2X6	2000	4000	6000	1500	110	95	490
RDB3X3	3000	896	3000	1500	110	55	170

Require an alternative lifting solution?

View our Spreader Beams for Crane and Forklift use.

Product Variations

Description	Product Code	Price (excl. GST)
Roll Dispenser Beam WLL 1250kg 4000-6000mm wide	RDB1X6	$7,260.00	Add to Quote Request
Roll Dispenser Beam WLL 2000kg 600-2000mm wide	RDB2X2	$3,770.00	Add to Quote Request
Roll Dispenser Beam WLL 2000kg 4000-6000mm wide	RDB2X6	$9,430.00	Add to Quote Request
Roll Dispenser Beam WLL 3000kg 896-3000mm wide	RDB3X3	$4,370.00	Add to Quote Request
