Spreader Beams (for Crane or Forklift)

+ Add to Quote Request

Our  Spreader Beams can be used by either crane or forklift. They are a unique multi-tasking beam that is perfect for overhead lifting applications. Spreader Beams make light work of extremely heavy loads, lifting them with ease.

The Spreader Beams feature adjustable load suspension points. These hooking points can be moved along and set to three different positions – fully retracted, middle and fully extended. By moving the extendable arms, located at each end of the beam, the span is easily changed. The extendable arms are secured safely with locking pins.

All Spreader Beams are supplied with two safety swivel hooks. The extendable arms are zinc plated and the main body of the beam is painted in a visible ‘safety orange’ enamel. All Spreader Beams are safety certified in accordance with relevant Australian Standards.

Clear

Additional Information

Our Spreader Beams can be used by a forklift or crane!

When using a crane, loads can be lifted via the centre single hook point (middle position). This is now being used as a Lifting Beam. They can also be lifted using a two leg chain sling by hooking at each end. This is then being used as a Spreader Beam. If using a forklift, the slipper pockets allow for fast and safe connection to a fork truck.

Two models are available. There is the light version MCFB2439 that has a Maximum Rated Capacity of 9000 kg and the medium version MCFM2439 that has a Maximum Rated Capacity of 10,000 kg. Specifications are outlined below.

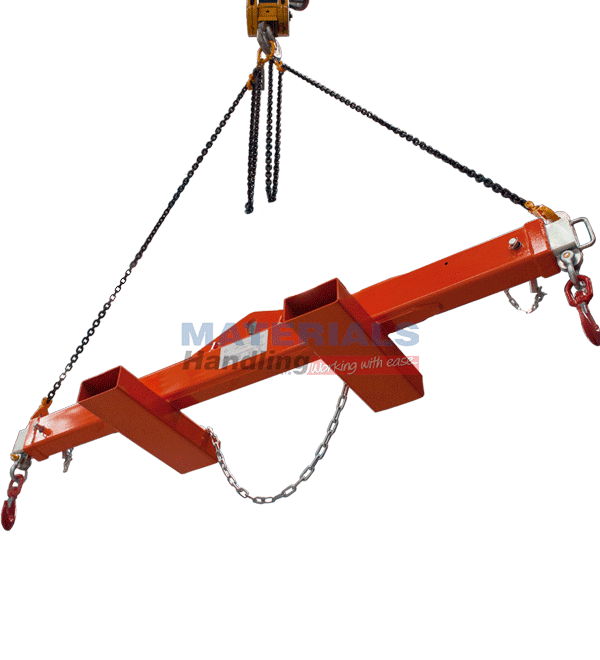

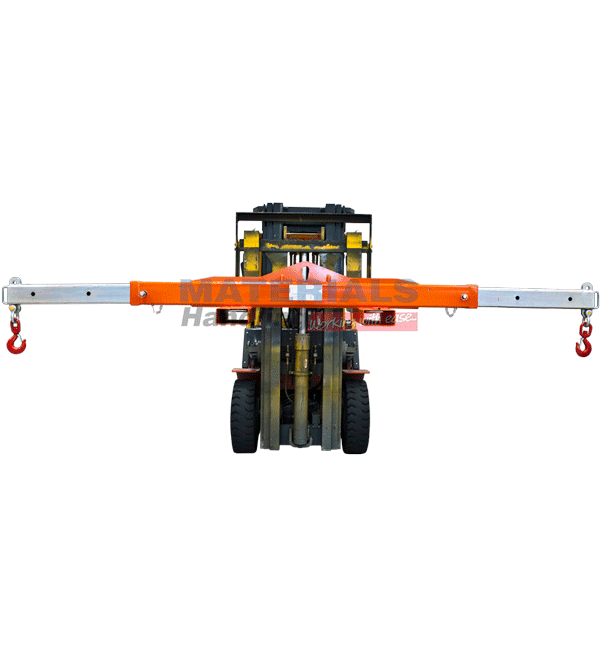

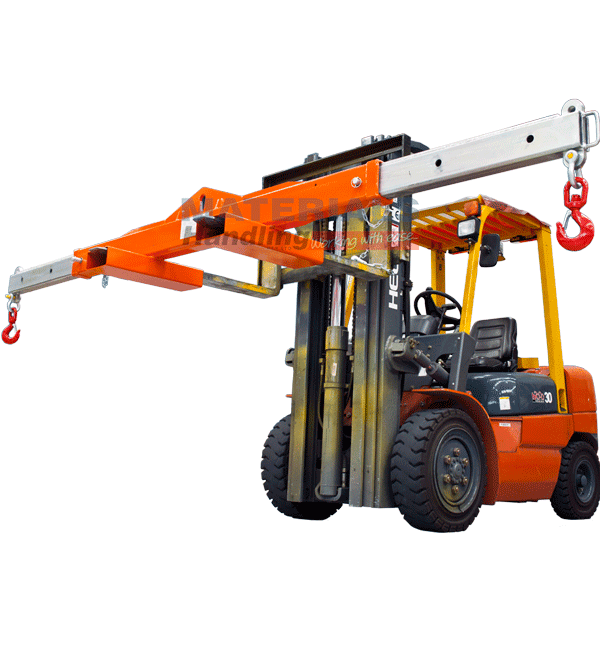

MCFB2439 Light Spreader Beam Specifications:

  • Weight Load Limit (WLL): 9000 kg
  • Load Centre: 2405 mm
  • Unit Weight: 172 kg
  • Fork Lift HCG: 300 mm
Rated Capacity (RC)
When Used As
Fully Retracted
(LC @ 2405 mm)
Middle Position
(LC @ 3165 mm)
Fully Extended
(LC @ 3925 mm)
Forklift Attachment 3500 kg 1500 kg 750 kg
Lifting Beam 4500 kg 2500 kg 1300 kg
Spreader Beam 9000 kg 7200 kg 5600 kg

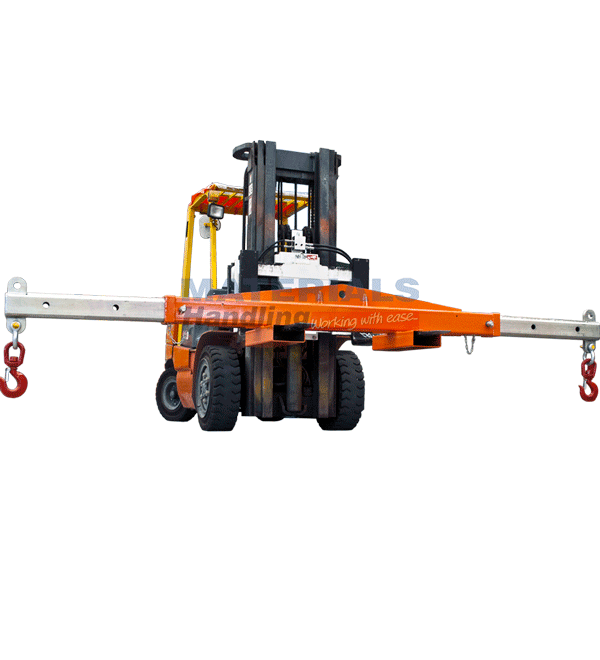

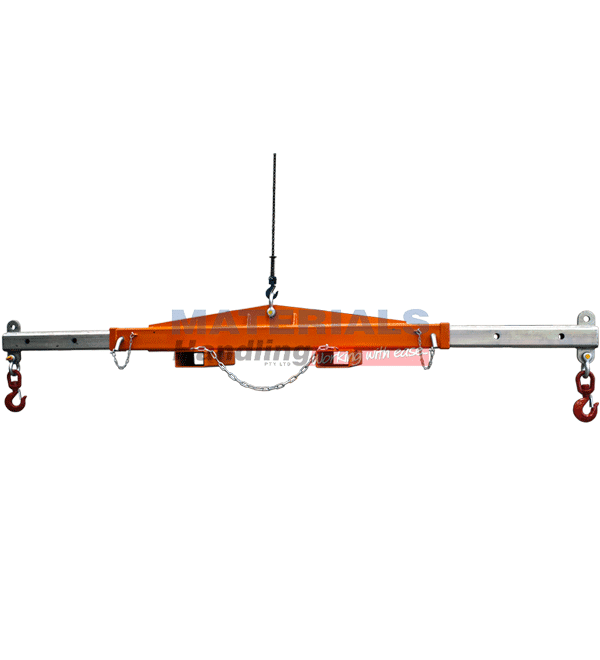

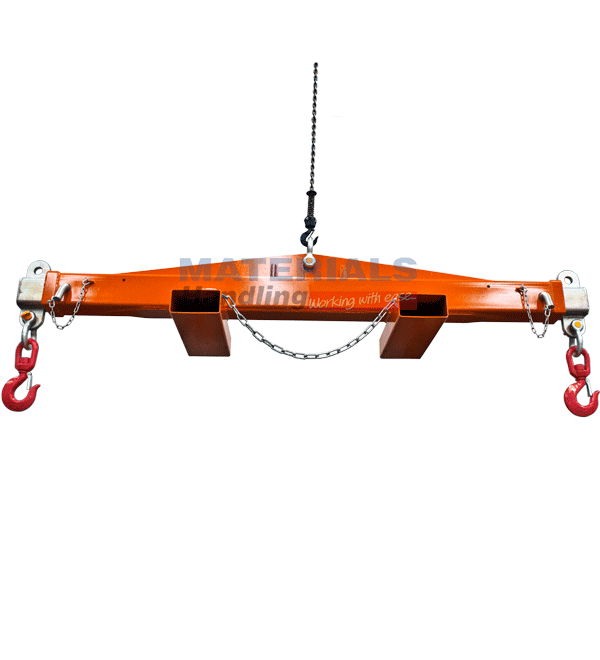

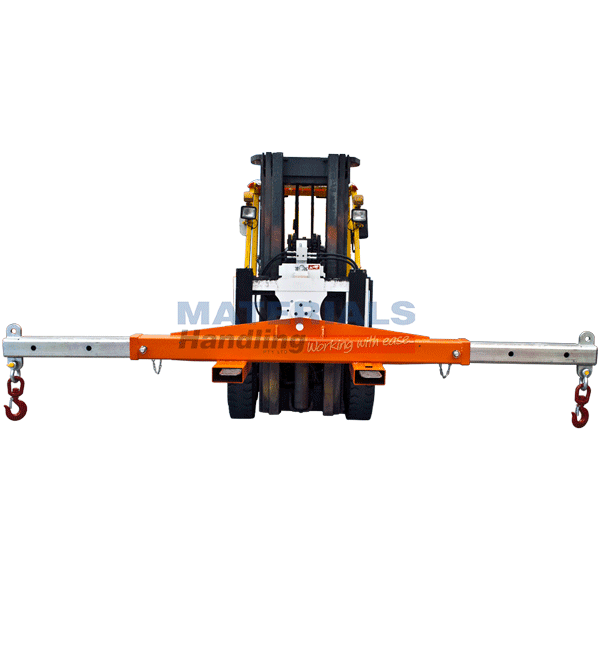

MCFM2439 Medium Spreader Beam Specifications:

  • Weight Load Limit (WLL): 10,000 kg
  • Load Centre: 3900 mm
  • Unit Weight: 260 kg
  • Fork Lift HCG: 300 mm
Rated Capacity (RC)
When Used As
Fully Retracted
(LC @ 2380 mm)
Middle Position
(LC @ 3140 mm)
Fully Extended
(LC @ 3900 mm)
Forklift Attachment 5600 kg 2900 kg 1400 kg
Lifting Beam 6000 kg 4500 kg 2400 kg
Spreader Beam 10,000 kg 10,000 kg 10,000 kg



For further information, please download the relevant specifications available above.

View more solutions!

We have a wide range of option, so check out our Spreaders range.



Product Variations

Image Description Product Code Price (excl. GST)

Crane and Forklift Spreader Beam (light)

MCFB2439

Crane and Forklift Spreader Beam (medium)

MCFM2439
