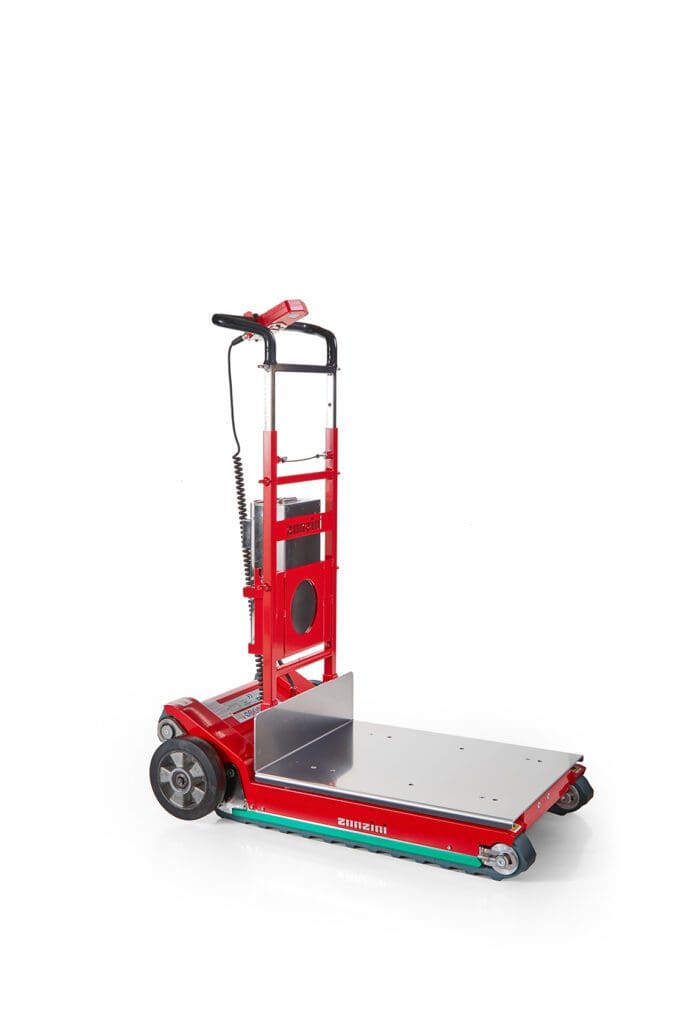

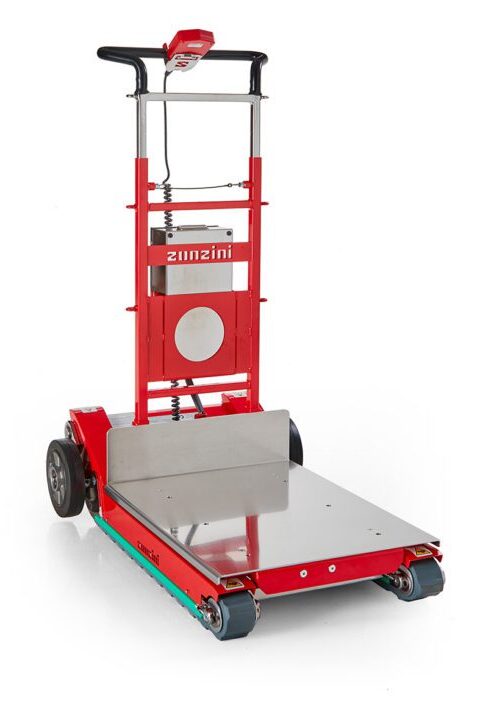

Domino Stair Climbing Robot

Additional Information

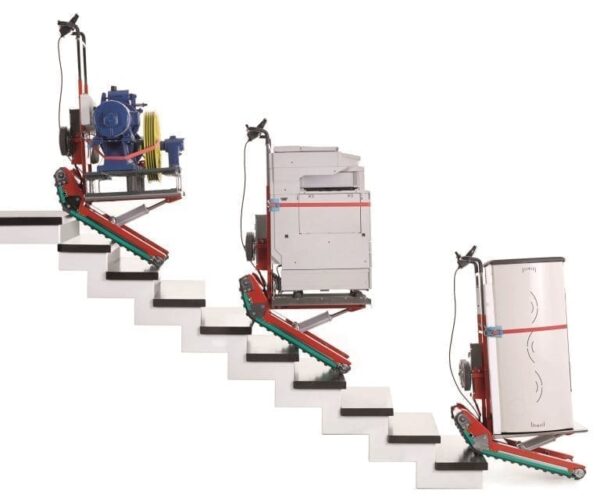

How does the Domino Stair Climbing Robot work?

The robot features an amazing automatic levelling mode to allow an operator to drive the unit via joystick with minimal effort.

When engaged, the Domino Stair Climbing Robot automatically adjusts the tilted load angle, making transport of goods easier, quicker but most importantly safe. The operator can choose to switch to manual mode at any time if required.

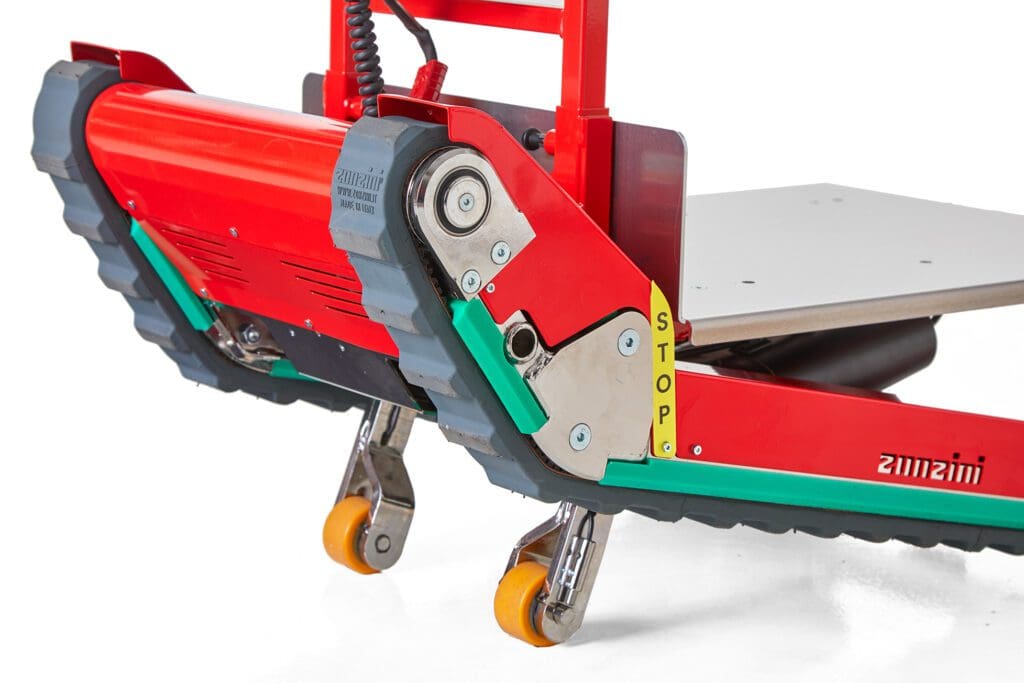

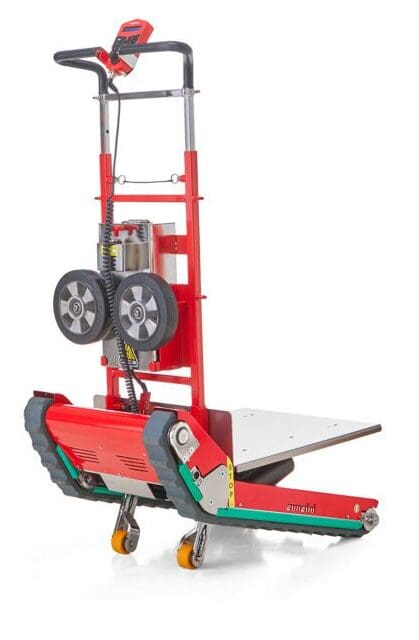

Innovative crawler tracks and operation

This stair climbing robot has independent crawler tracks for comfortable manoeuvring around narrow spaces. With a joystick, the unit can be controlled by the operator and with the dual electric motors this means the machine has enough get-up-and-go power to climb any staircase!

Thanks to the automatically evenly distributed weight across staircases and flat surfaces, the operator is no longer required to keep the trolley balanced – the smart function does that for you. The load always remains safe, with no risk of slipping.

A stair climbing robot that takes things to the next level

There is nothing in the world more user-friendly than the Domino Stair Climbing Robot! This intuitively designed stair climbing robot is safe to use and any employee can easily learn how to operate the device. Not only will this device help save you time, effort and stress, it will prevent workplace injuries:

• No more pushing.
• No more pulling.
• No more strenuous lifting.
• No more accidents.

Practical and versatile
The Domino Stair Climbing Robot can travel over any surface and can be used outdoors, indoors or over uneven terrain. Use it on stairwells, sloped planes, and other types of flooring, such as grass, gravel, dirt, etc. The scratch, mark and trace proof tracks will keep your stairs and floor spotless, sparkling and damage-free.

Automatic weight distribution
The Domino sure takes the weight off! With automatic weight distribution when climbing up or down stairs, you won’t need to balance the load yourself or help manually in carrying the items at all.

360 degree rotation
Thanks to a sophisticated double motor, the Domino can rotate completely within very narrow spaces. This means no matter how many landings your staircase has or how your stairs are structured, you can get your equipment where it needs to go.

The crawler tracks are anti-slip, non-scratching and rotate 360 degrees. The device is also made of a highly resistant unique composition, which allows you to easily and safely navigate any type and form of stairwell.

Optional modes
The automatic mode function adjusts the machine automatically to ensure that the load is tilted at an angle for safe stair ascension or descension. Additionally, the tilt is modifiable at any time. It’s the easier and safer way to carry heavy loads up flights of stairs.
A manual mode is available for use at any time with wheel handling enabled simply through the tilting of the load.

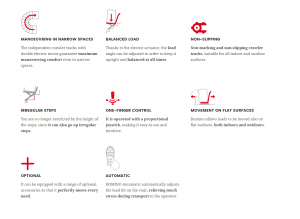

Benefits of the stair climbing robot

No space is too small
Navigating narrow spaces is easy with the heavy duty tracks and 360 degree rotation.

Effortless operation
With this handy stair climbing robot only a single person is needed to complete the task.

Automatic balance
The battery-electric actuator keeps the load balanced at all times.

Anti-slip technology
Crawler tracks ensure no slips or marking when operating.

No missteps
All surfaces can be conquered – even irregular steps.

Simple joystick control
Only minimal effort is required for operation thanks to the intuitive and ergonomically designed one-finger control joystick.

Moves across flat surfaces
Loads can be moved on flat surfaces as well as stairs so there’s no need to move heavy items from one machine to another.

Accessories available
There are a range of optional accessories available to help complete a variety of tasks.

No stress
Let the stair climbing robot relieve your stress by completing the work for you.



Select from a wide range of accessories

A variety of accessories are available to assist with this unique and robust lifting machine. Some options include:

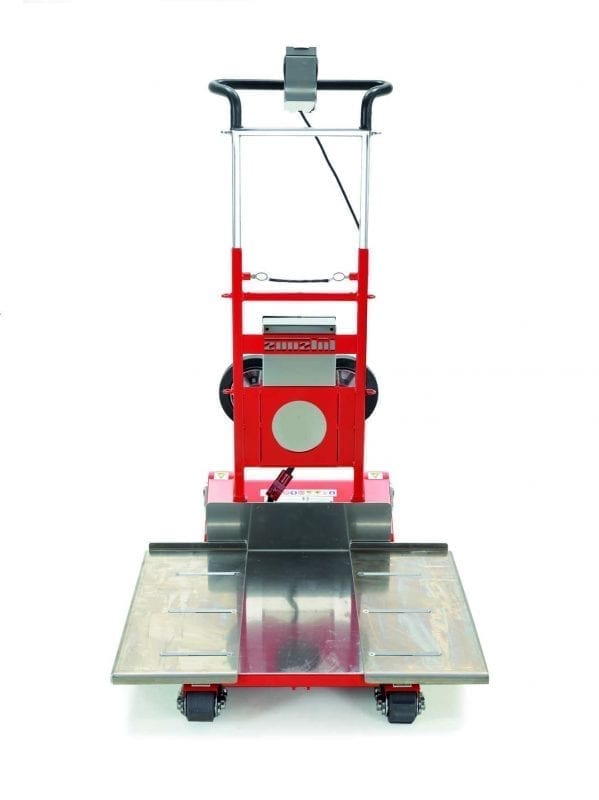

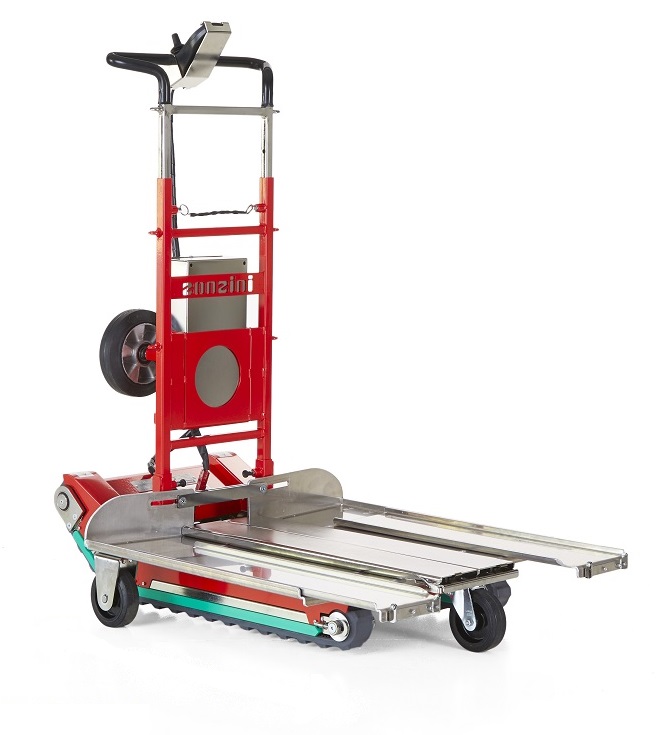

Adjustable width base
Stretchable up to 70cm, this adjustable base is perfect for bulky loads like photocopiers. Additional accessories include a sturdy and retractable ramp. Maximum weight capability is 400kg.

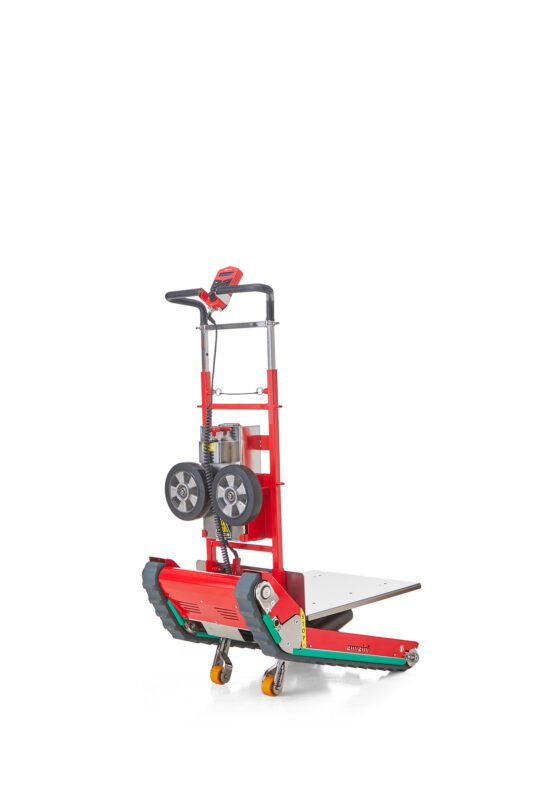

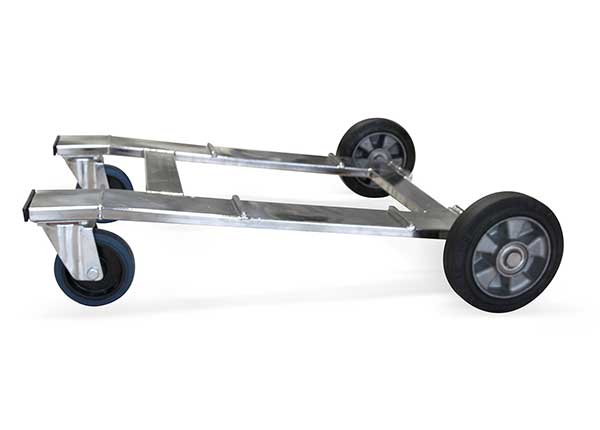

Wheeled bases
The wheeled base makes traversing long, flat areas easier than ever. The wheels are all load supported and can be used in combination with ramps and stairs.

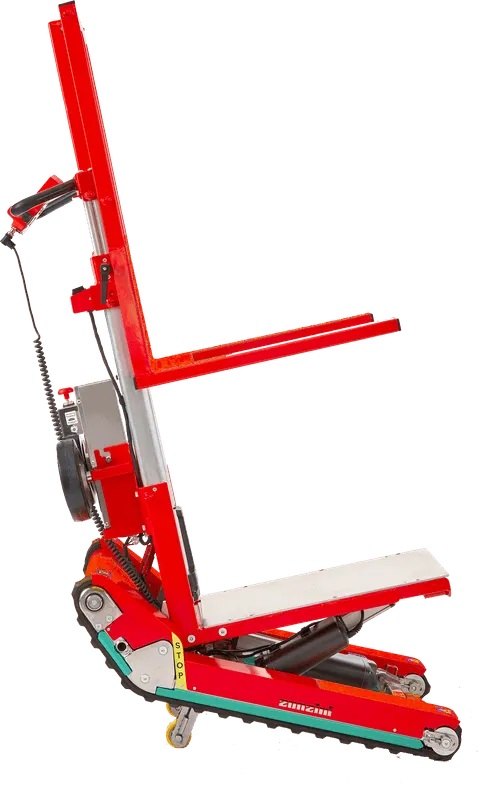

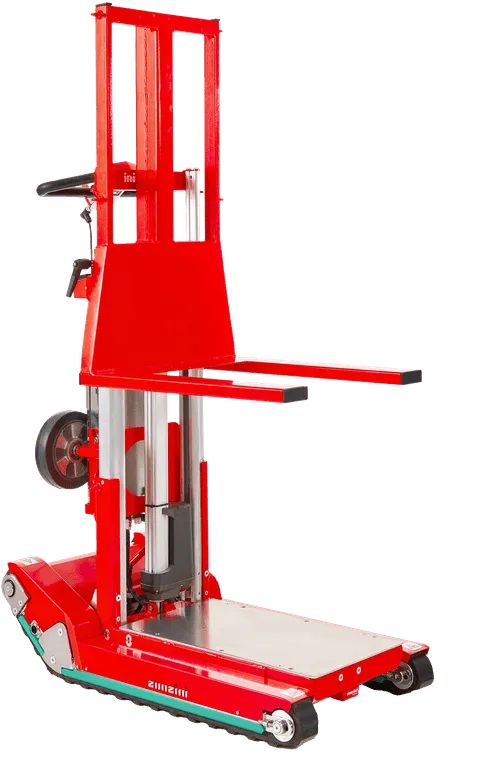

Lifting column
This nifty accessory allows for electronic lifting of up to 18cm for greater height. Maximum weight capacity is 400 kg.

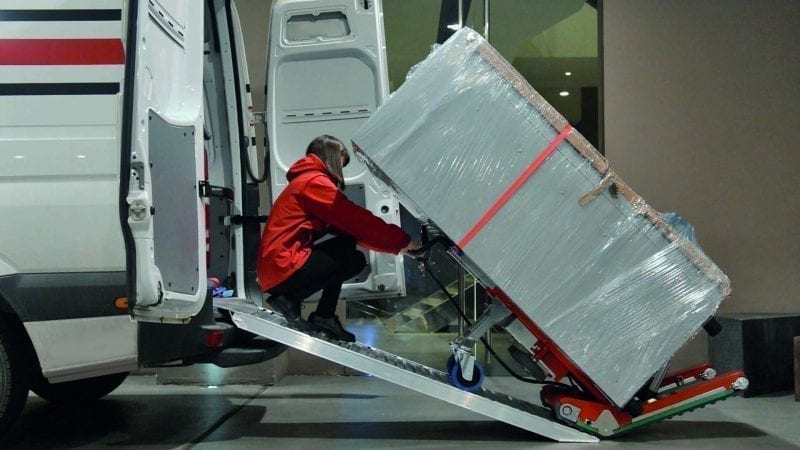

Aluminium ramp
This easy to move aluminium ramp is an easy solution for loading or unloading items from trucks or vans.

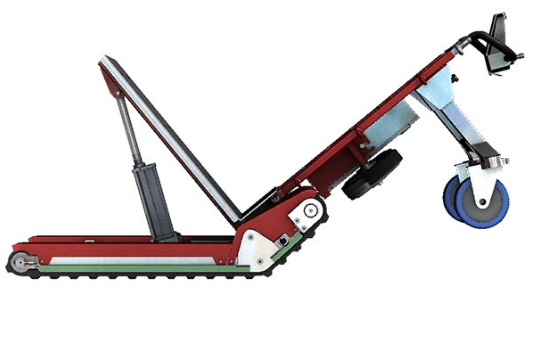

Central arm
The central arm accessory allows for tilting high loads and can be used in conjunction with vans or other vehicles.\

Additional accessories

– Narrow landings base

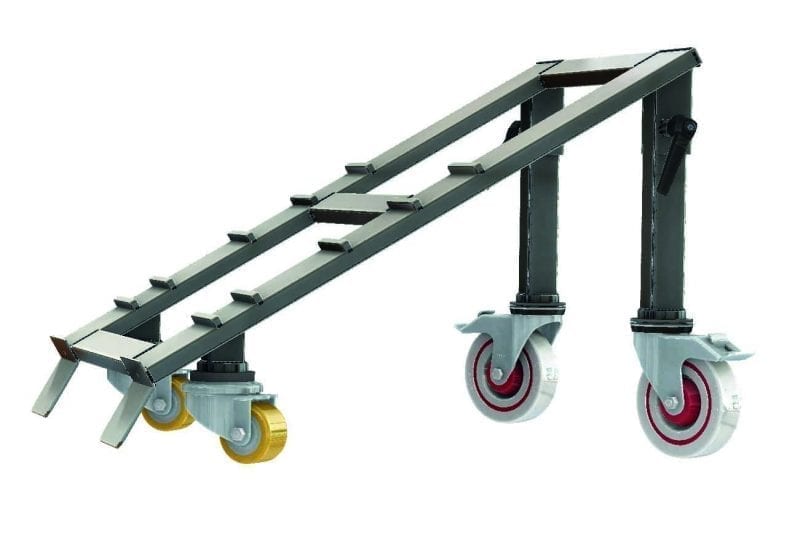

– Tilted base for photocopiers
– Frame for slabs and tops

Check out our handy video below to see the accessories in action.

Are you ready to get started with the Domino?

The Domino Stair Climbing Robot is innovative, easy to use and simple to operate. It’s a perfect solution to transport or move heavy items. It’s really simple to use and implement into any workplace.

Setting the robot up

To set the stair climbing robot:

1. Insert the vertical structure into the pre-set holes.
2. Connect the battery.
3. Click the joystick and control panel into place.

Golden Rules
Always make sure to follow these golden rules for safe and effective operation.

1. Only engage the wheels on flat surfaces.
2. Before ascending or descending staircases, make sure the crawler tracks are completely parallel to the staircase.
3. Engage the automatic function only at the start and end of the climb to avoid damage or injury.
4. When the robot is stopped, ensure there are at least two or three support points. NEVER leave only one support point.
5. Ensure that the weight is always balanced when in motion.

Battery safety
It’s important to monitor the battery level by checking the battery indicator frequently. Always fully charge the Domino after use and do not let the battery remain on low power for long.

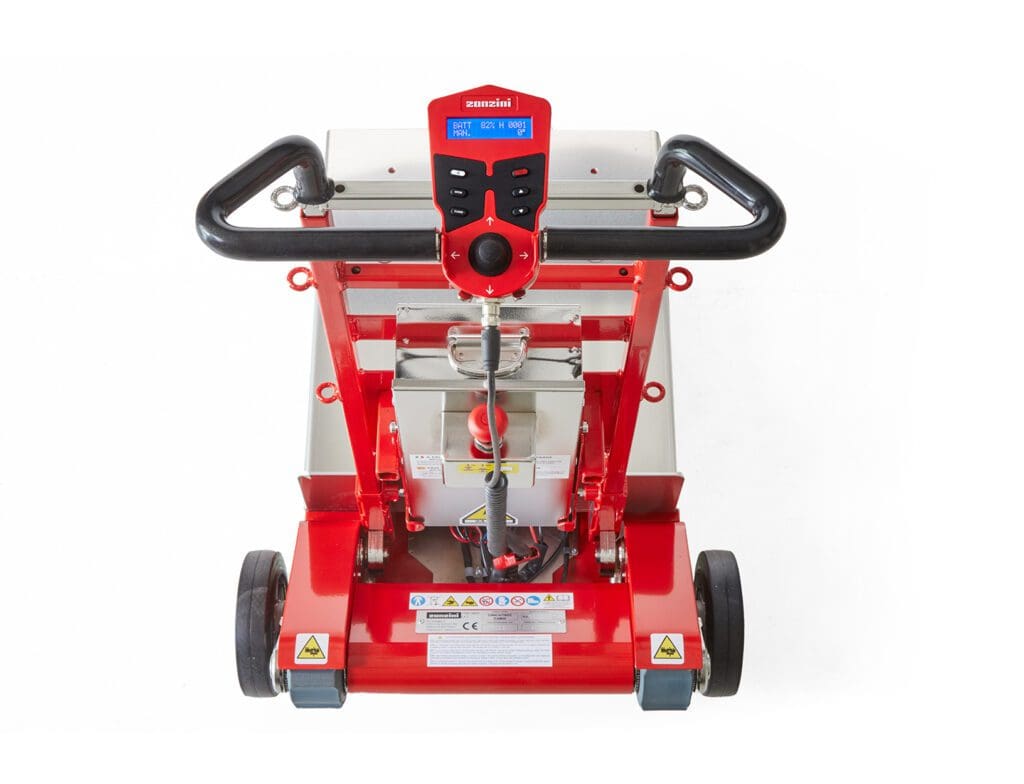

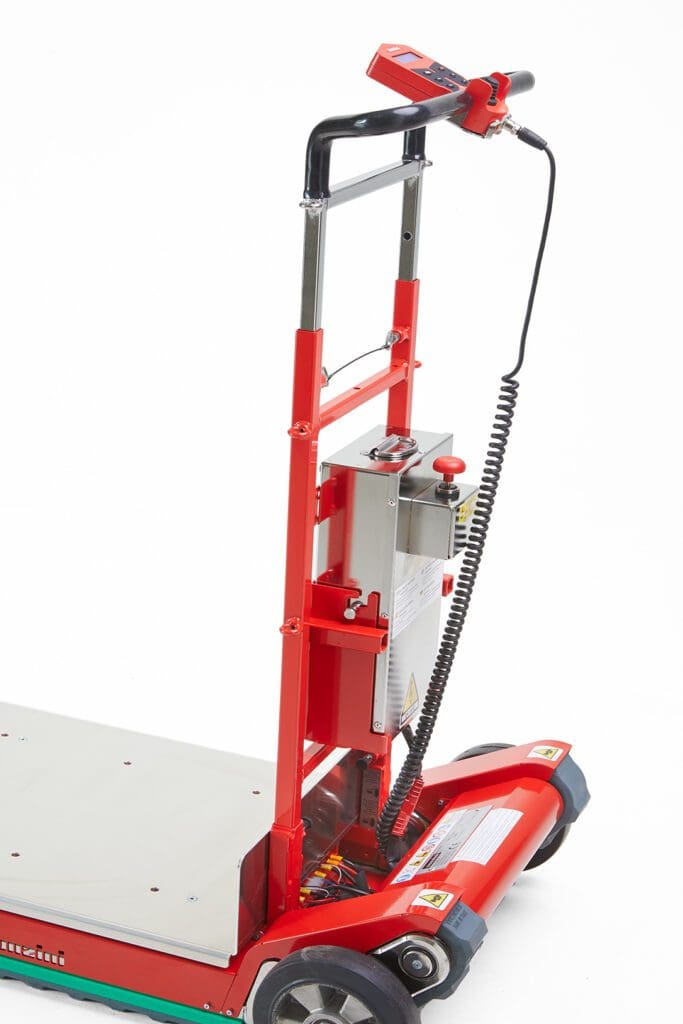

Control panel
The control panel is easy to use and features a simple on and off switch. The tilt position can be engaged through a simple press of the M button, with exiting the M function achieved by tapping the joystick to the right.

The automatic function is engaged when the red LED light is on. The tilt cannot be changed to lower than the set level by the automatic function. Greater angles can be selected for larger loads, as required.

Height adjustment
Adjust the height using the manual chain and ensure that all loads are secured with the safety belt.

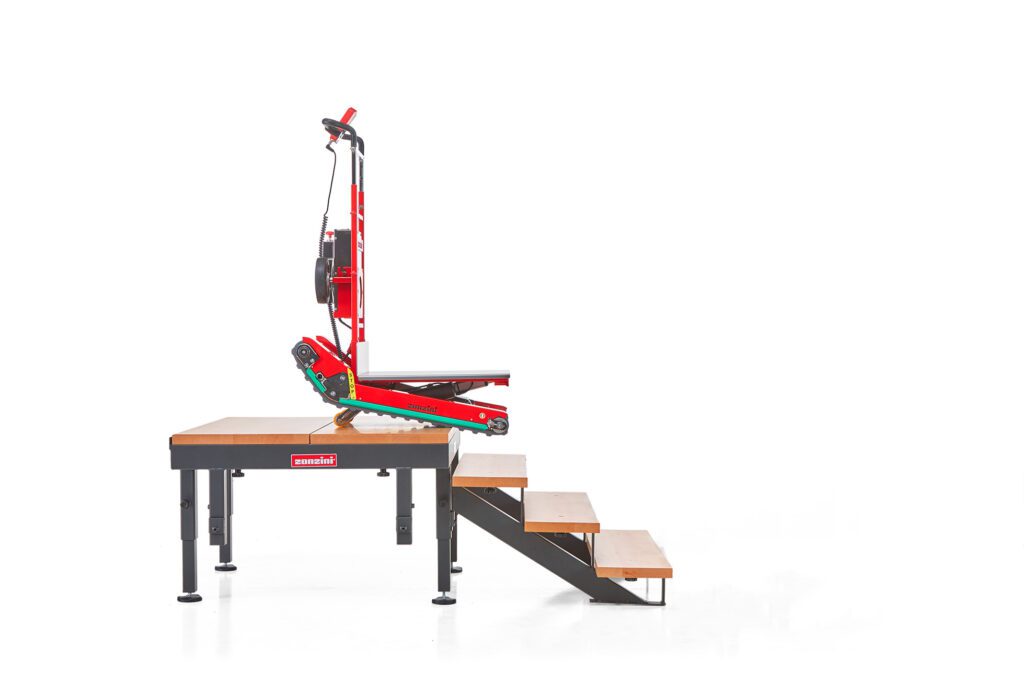

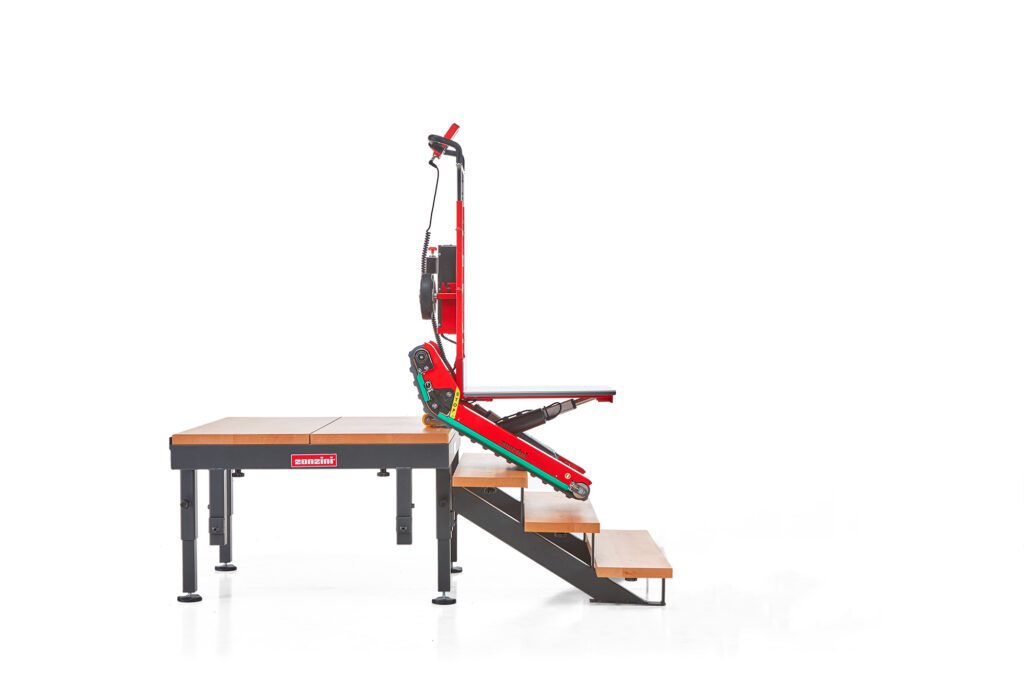

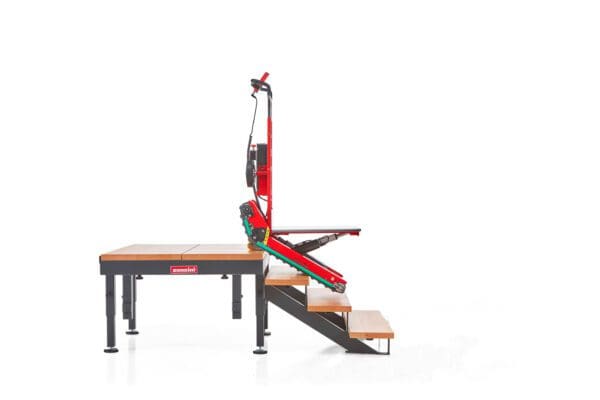

Usage climbing stairs
When climbing stairs ensure that the automatic function is only used at the beginning and end of climbing stairs.

1. Use the M button to find the load’s tilt.
2. Lever the Domino robot with your foot to the base of the staircase, keeping parallel.
3. Start climbing the staircase and adjust the speed with the joystick so the automatic tilt adjustment can happen. (Standard angle is suitable for most small and medium sized loads.)
4. Weight and angle needs to be adjusted based on dimensions. The automatic safety angle can be increased with the M button.
5. Stop at the top of the staircase when the curve of the track is against the edge.
6. Restart the automatic function and slowly back up to find the balance point.
7. Slightly pull the handgrip towards you and the track will automatically close.
8. Make sure you immediately back up on the landing and ensure it is safe to turn off automatic mode.
9. Perform a rotation with the joystick if required.

When descending stairs, the same process should be followed but in reverse.

1. Remove the wheels.
2. Turn on the stair climbing robot.
3. Start the auto function.
4. Move slowly forward until little effort is needed.
5. The crawler tracks will open automatically. When it reaches the second step, start climbing down and keep checking the position.
6. Turn off the automatic function.
7. Keep control of the machine as you descend.
8. Turn the automatic function back on once you reach the landing.

Remember to always stick to the instruction guide and rules to avoid danger, damage and injury. Keep the battery charged after every usage.

Use our handy instructional training video below to understand how our Domino Automatic works.
