MatHand Multilift

The MatHand Multilift is a revolutionary multi-purpose lifter that is ideal for a number of applications. This powerful machine can practically move, lift and turn just about anything. A range of tool attachments and variations are available, which transform the lifter into a customised lifting device. It’s a one-stop-shop for a number of industries.

Constructed from 304-grade stainless steel, it features a high-quality design that is built to last. The device is versatile, safe, operator intuitive and incredibly lightweight. European made, the Multilift features standard components and a huge catalogue of previously delivered solutions. Unlike any product of the market, the Multilift is an excellent choice that makes gripping, lifting and moving goods incredibly easy.

Product Variation	Clear

Additional Information

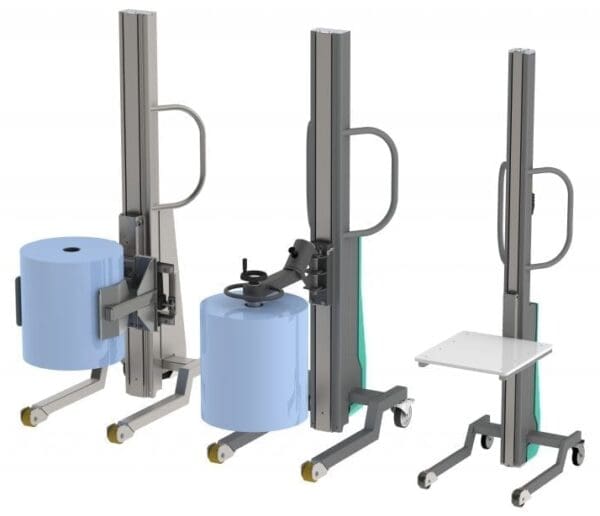

Introducing the MatHand Multilift…

The Multilift is a perfect handling solution:

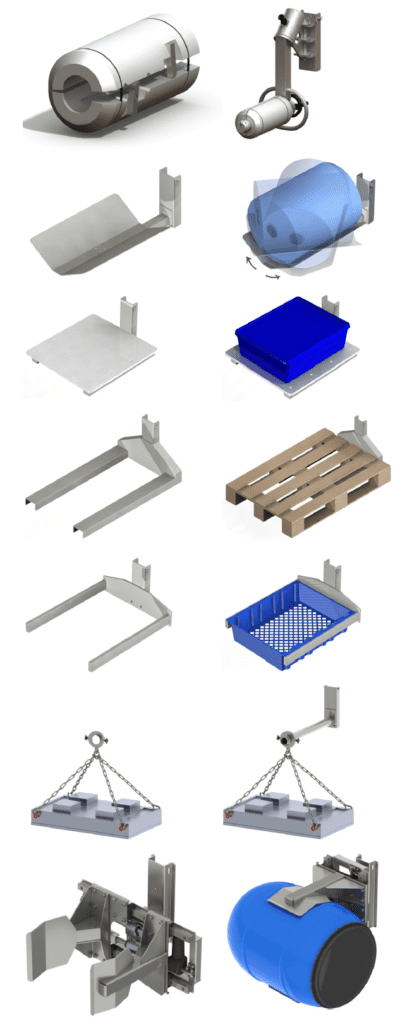

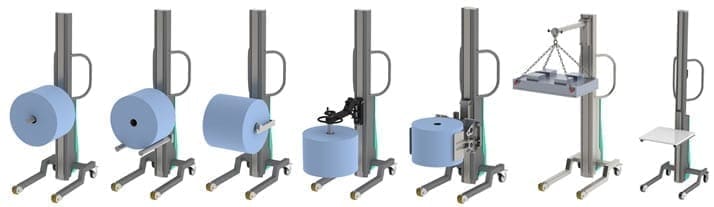

This device is capable of performing various lifting operations simply by exchanging attachments or customising the device to your requirements. Capacities from 80 kg up to 500 kg can be managed, depending on the model selected. Each unit is supplied with battery electric operation and durable stainless steel construction. However, optional hand winch and mild steel powder coated design is available. All devices include safety features to ensure operators are completing manual handling activities ergonomically and free from strain or injury.

Overall Features:

Choice of either Stainless Steel or Mild Steel Powder Coated construction
Choice of either battery electric or hand winch lifting operation

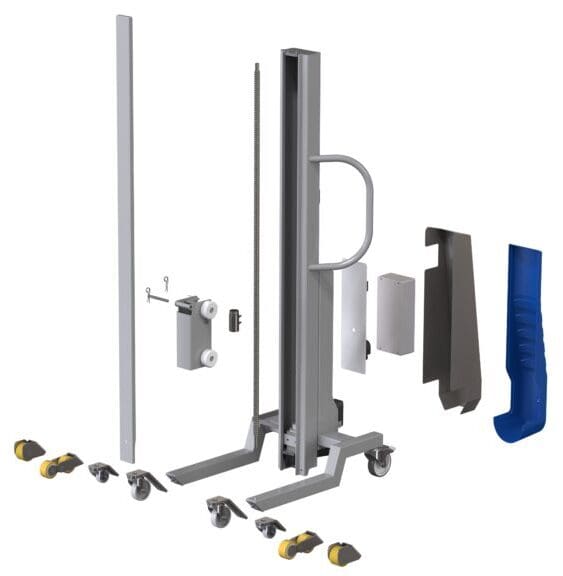

Covers can be removed for easy access and maintenance
All attachments and grippers can be quickly changed without tools
High-quality components provide long life and security

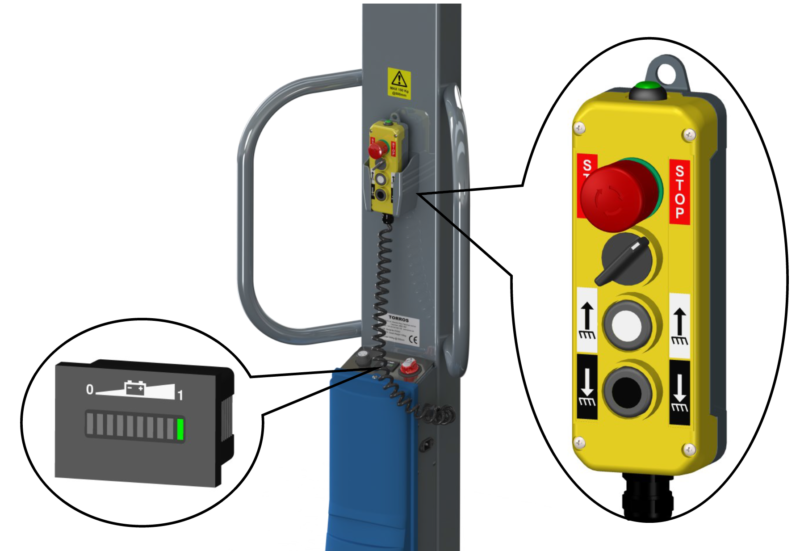

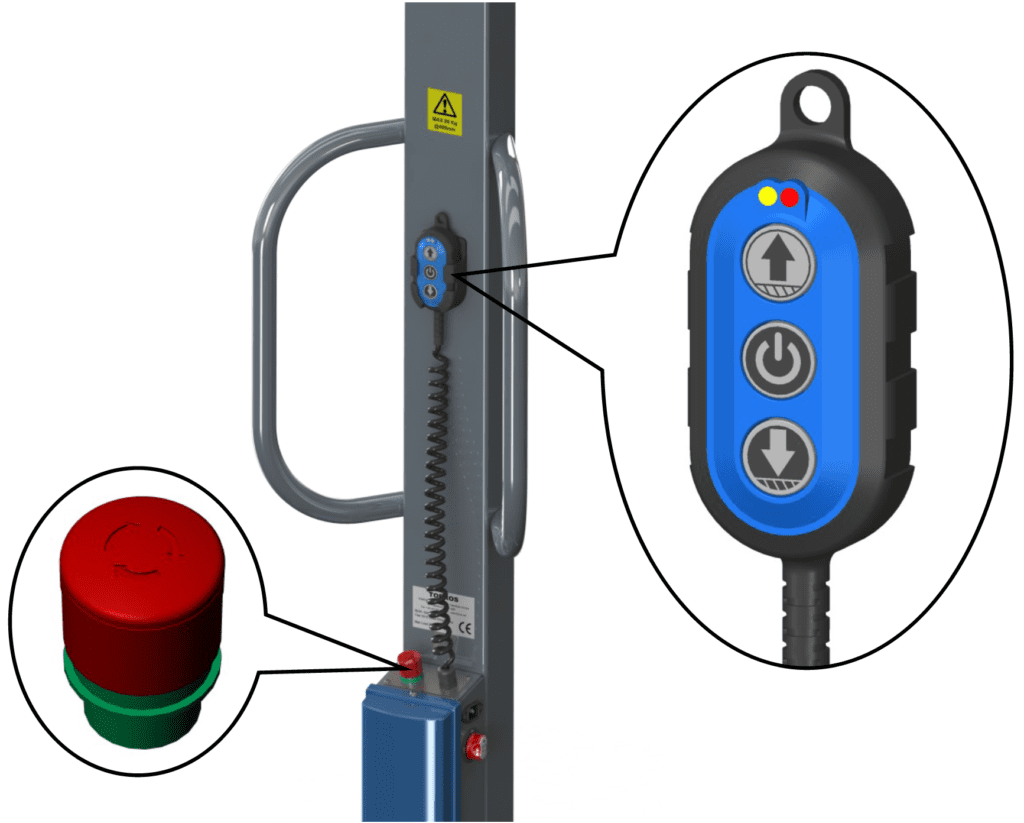

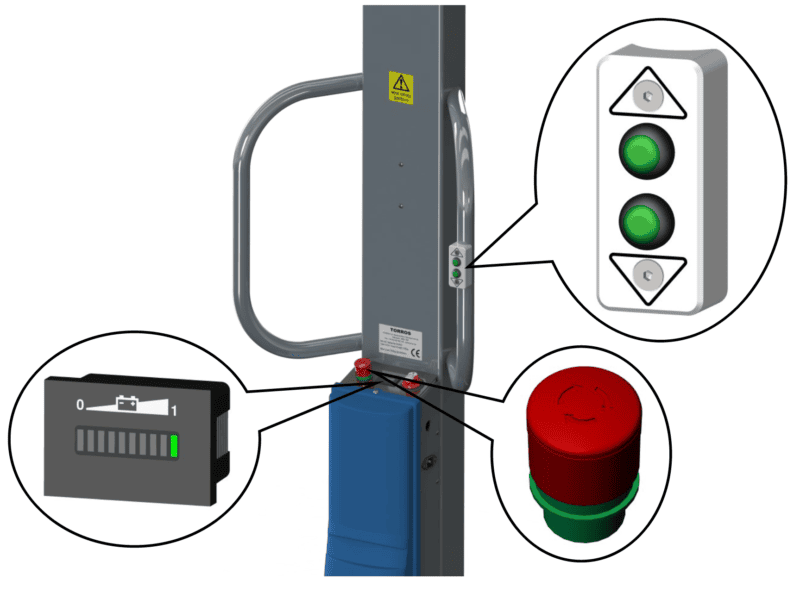

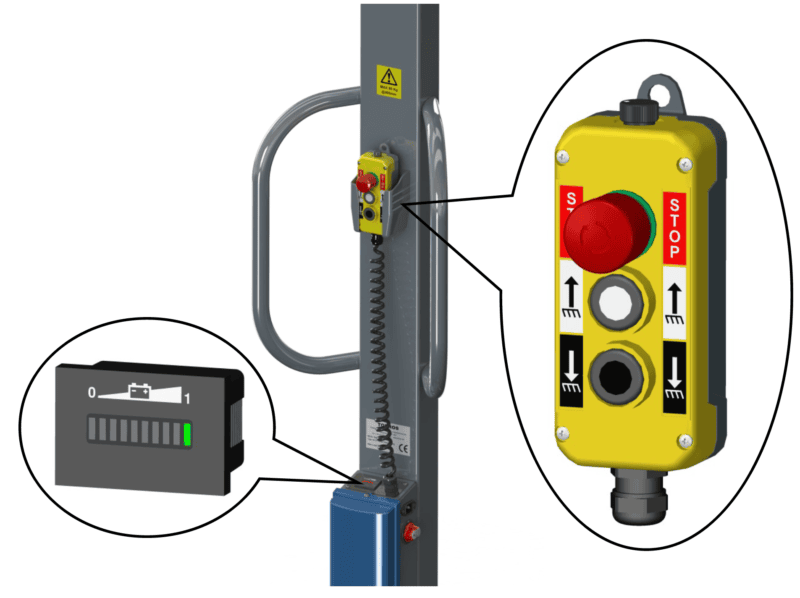

Push button control with battery indicator on spiral cable
Lifetime warranty on ball screw lift system
Braked motor and rear castors with foot brakes
Optionally sealed electrical enclosure for wash down applications
Choice of stainless or plastic rear cover
Supplied with automatic battery charger
Selection of interchangable front wheels and castors

State-of-the-art Multilift operation:

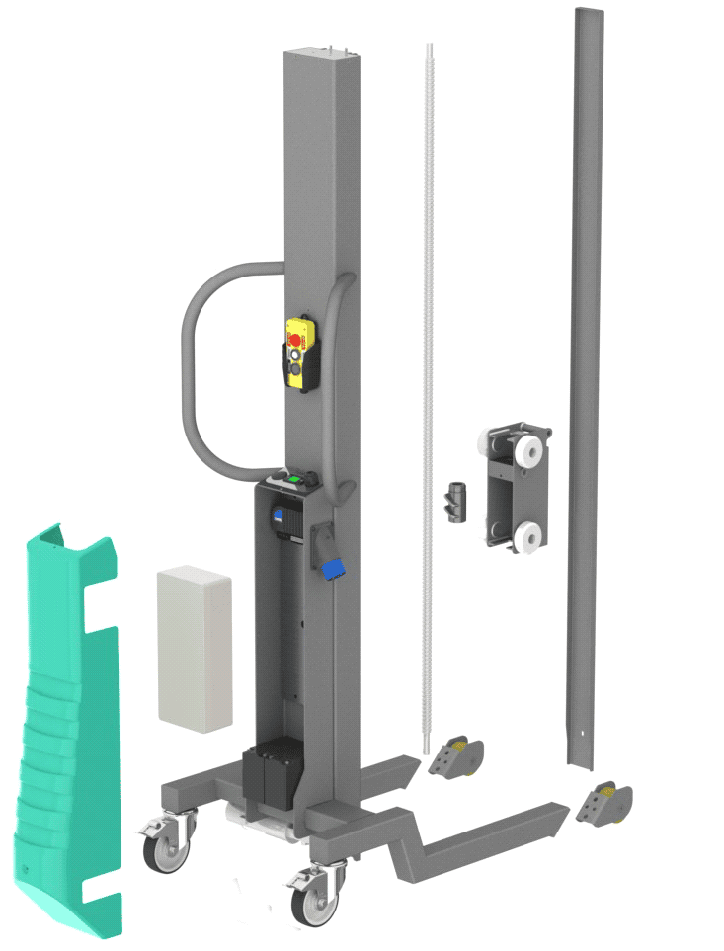

The Multilift features a unique ball screw lifting mechanism. Other similar lifting devices use a chain or wire rope to control the carriage. The strength of the ball screw ensures the device is 100% safe, high in quality and precise to control. The ball screw cannot fail and drop the load thanks to this innovative design. The lift mechanism is completely enclosed for safety – no operator pinch points (protective enclosure removed in image on the right).

Choose the right Multilift for your application!

Load Capacity	Stainless Steel Battery Electric	Powder Coated Battery Electric	Stainless Steel Hand Winch	Powder Coated Hand Winch
80 kg	ML80-000SS	ML80-000MS	ML80-000SS-W	ML80-000MS-W
150 kg	FA1001-150	FA1002-150	FM150-SS	FM150-MS
300 kg	FA1001-300	FA1002-300	FM300-SS	FM300-MS
500 kg	ML500-SS	ML500-MS	–	–

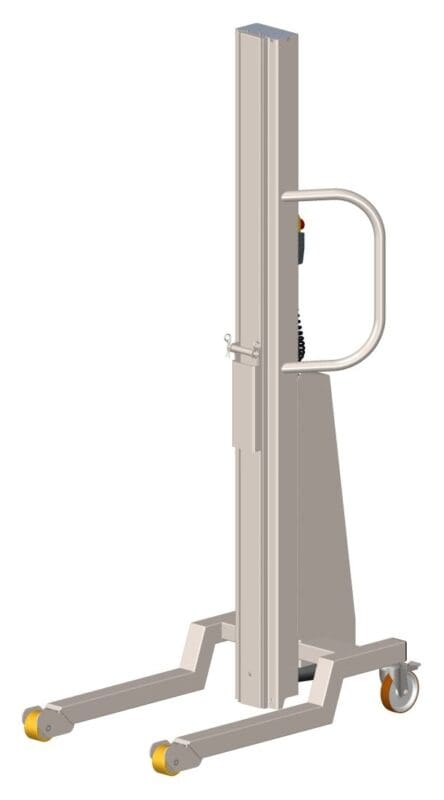

Multilift 80 kg Specifications:

Lifts a maximum of 80 kg at 400 mm load centre from mast
Lift Mechanism – Ball screw with a direct drive motor (self-locking)
Lift Speed – 100 mm / sec
Electrics – 24 V Motor Controller with soft start and Battery Status Indicator

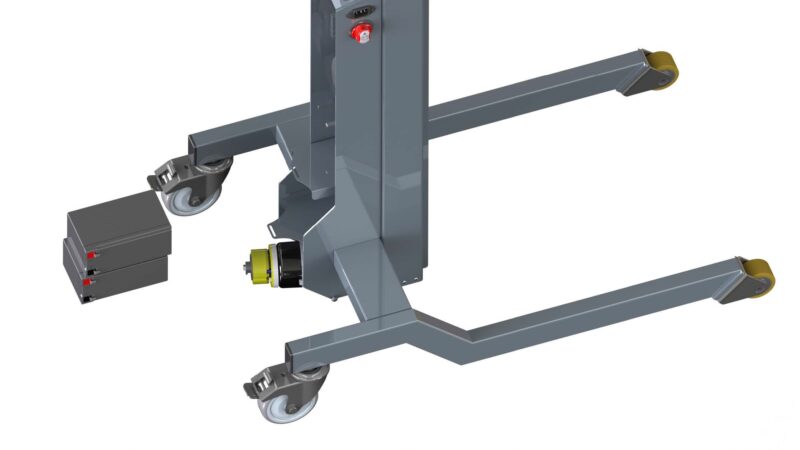

Batteries – Sealed Lead Acid Batteries with Automatic Charger (240 V)

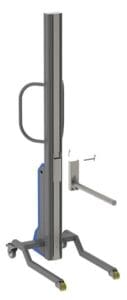

MatHand Multilift 80 kg

Multilift 150 kg Specifications:

Lifts a maximum of 150 kg at 600 mm load centre from mast
Lift Mechanism – Ball screw with a direct drive motor
Lift Speed – 65 mm / sec
Electrics – 24 V Programmable with diagnostics and Battery Status Indicator
Batteries – Sealed Lead Acid Batteries with on-board Automatic Charger (240 V)

MatHand Multilift 150 kg

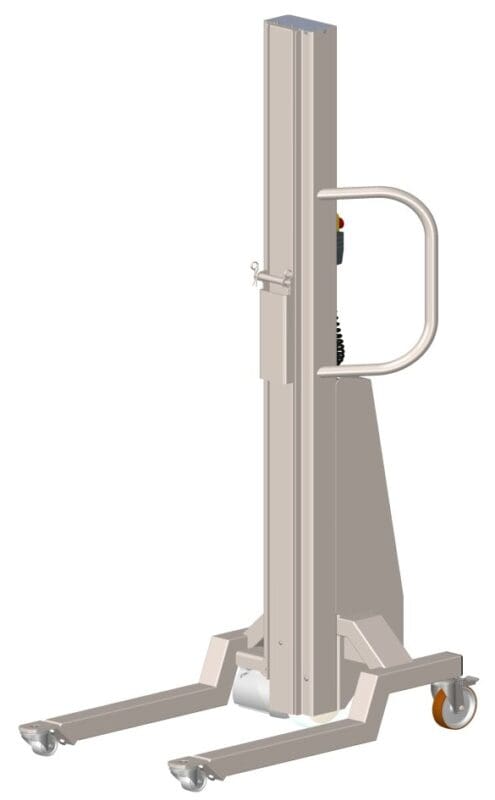

Multilift 300 kg Specifications:

Lifts a maximum of 300 kg at 500 mm load centre from mast
Lift Mechanism – Ball screw with a direct drive motor
Lift Speed – 65 mm / sec
Electrics – 24 V Motor Controller with soft start and Battery Status Indicator
Batteries – Sealed Lead Acid Batteries with on-board Automatic Charger (240 V)

MatHand Multilift 300 kg

Multilift 500 kg Specifications:

Lifts a maximum of 500 kg at 600 mm load centre from mast
Lift Mechanism – Ball screw with a direct drive motor
Lift Speed – 60 mm / sec
Electrics – 24 V Motor Controller with soft start and Battery Status Indicator
Batteries – Sealed Lead Acid Batteries with on-board Automatic Charger (240 V)

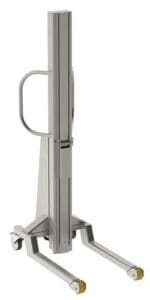

MatHand Multilift 500 kg

Click the PDF button to learn more.

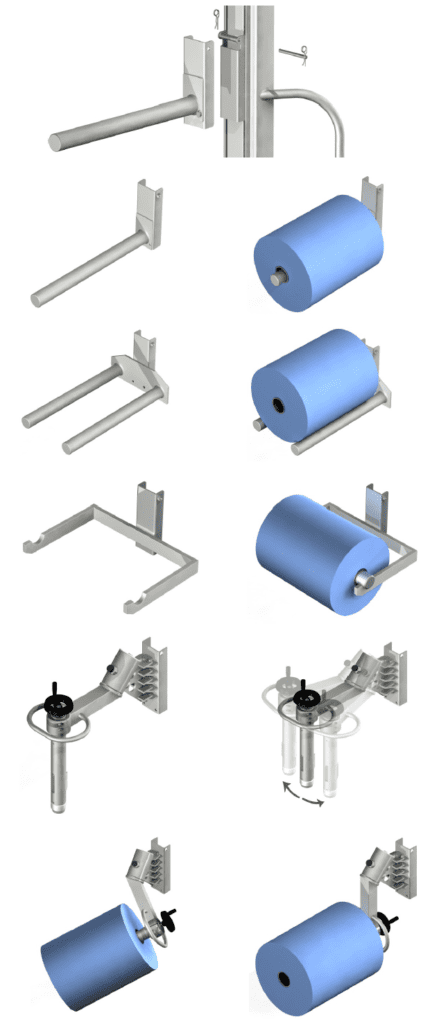

Product Variations

Description	Product Code
Single Round Arm Stainless Steel	ML80-100	Add to Quote Request

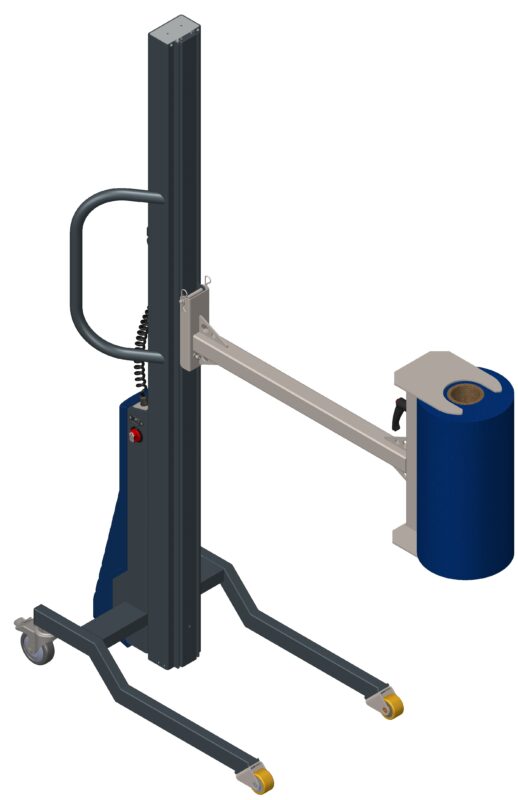

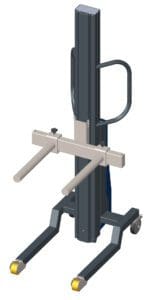

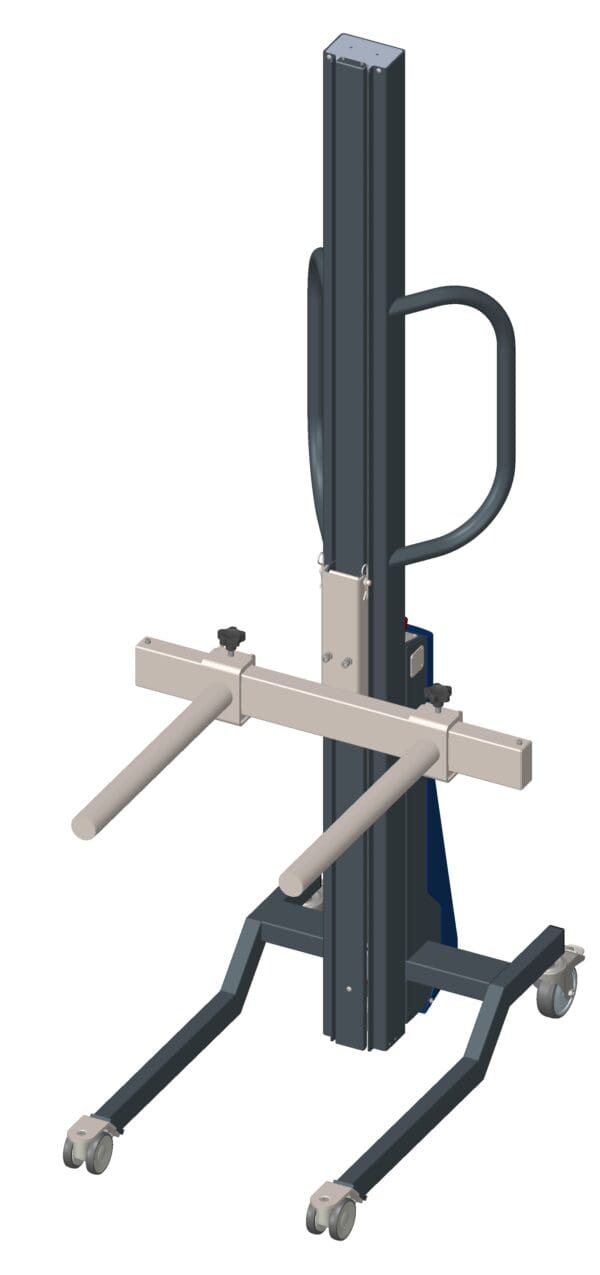

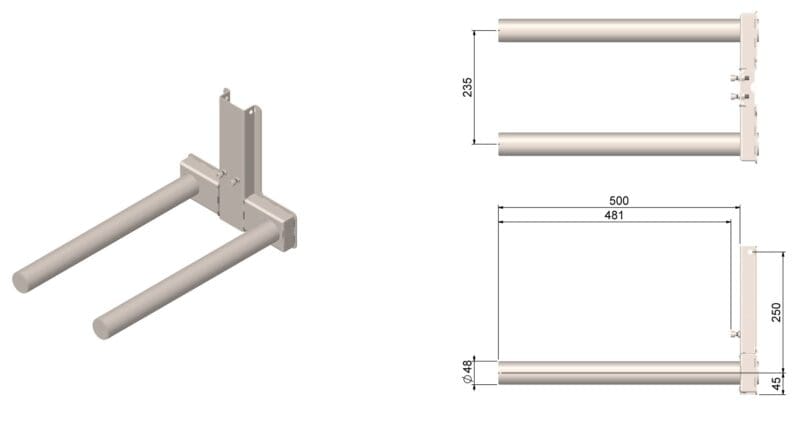

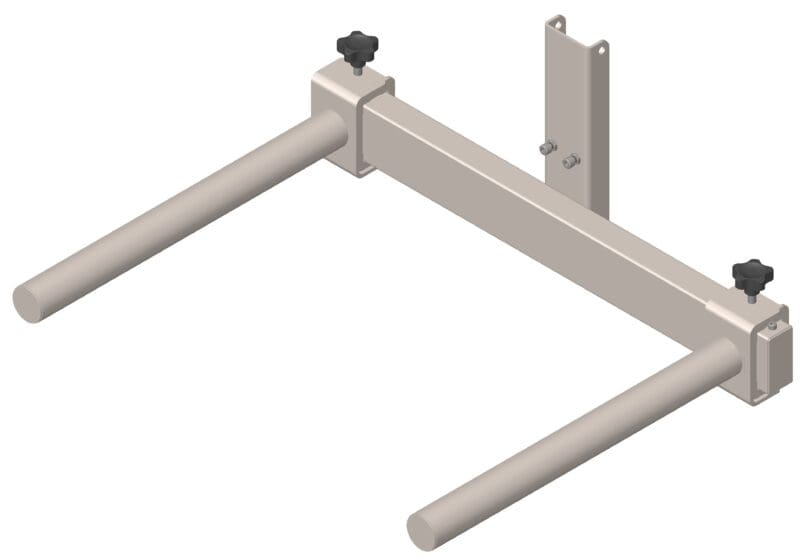

Twin Round Arms for Rolls Stainless Steel	ML80-200	Add to Quote Request

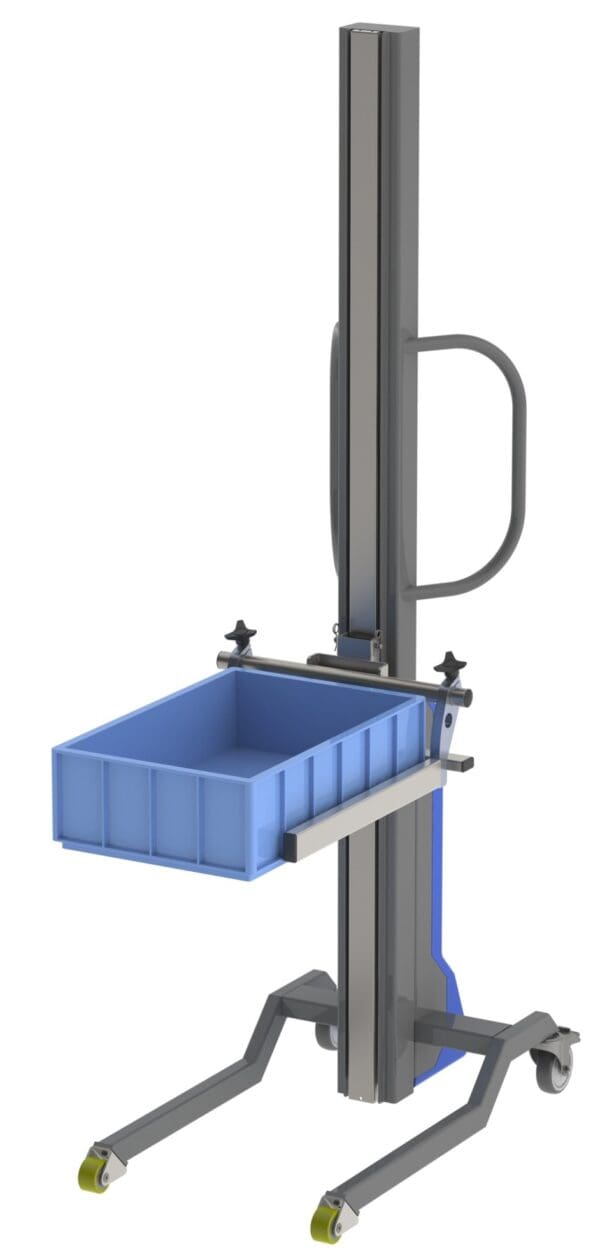

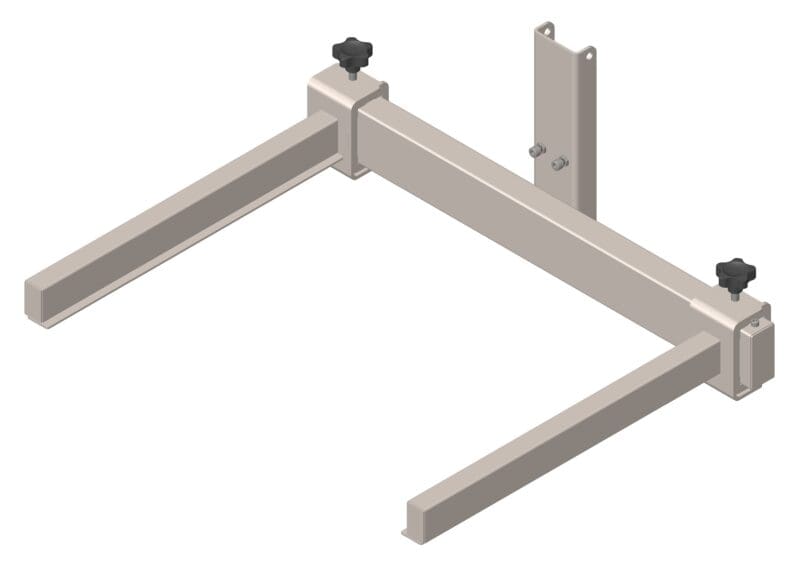

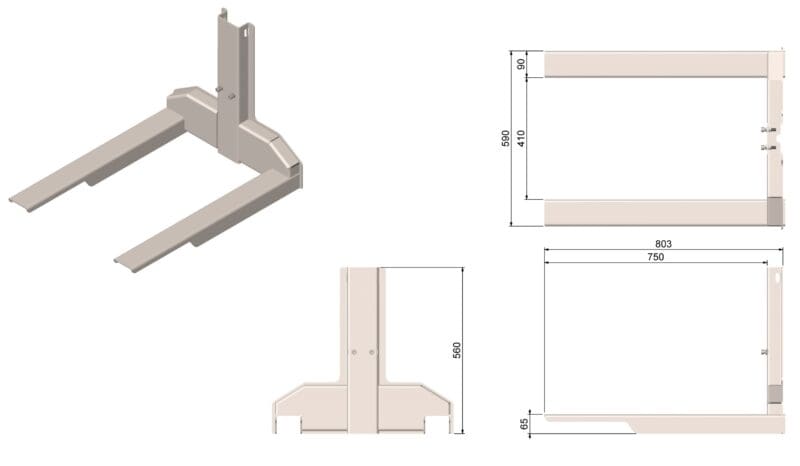

Adjustable Width Forks for Crates Stainless Steel	ML80-300	Add to Quote Request

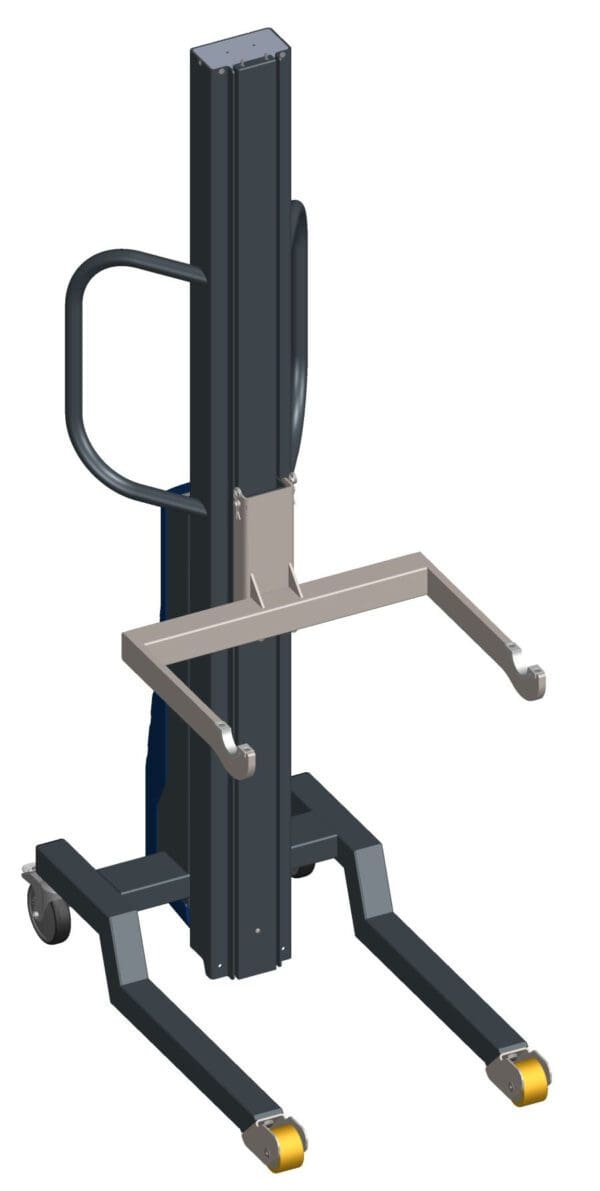

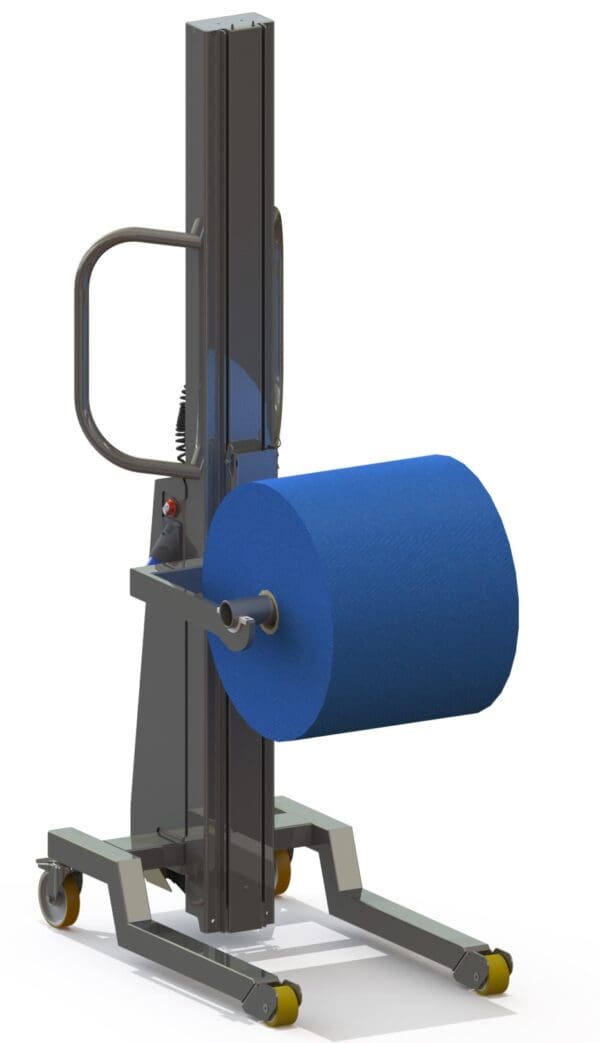

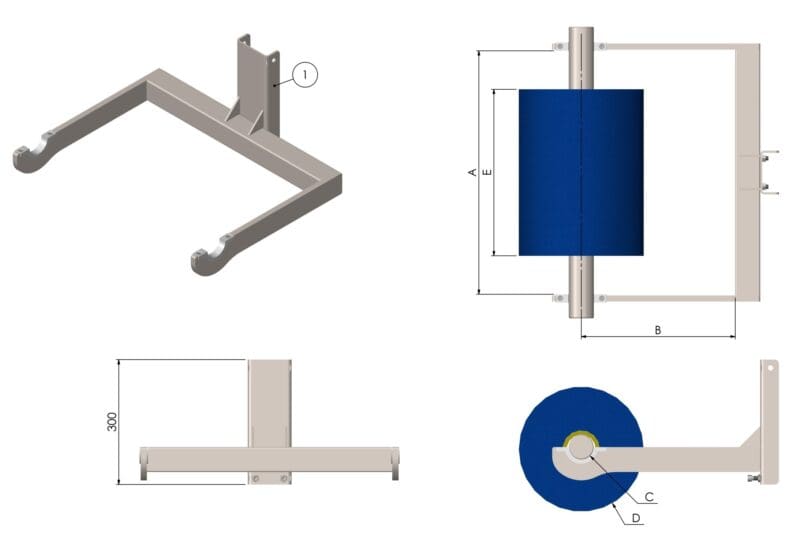

Forks with Cradle Ends for holding a roll with shaft in core Stainless Steel	ML80-400	Add to Quote Request

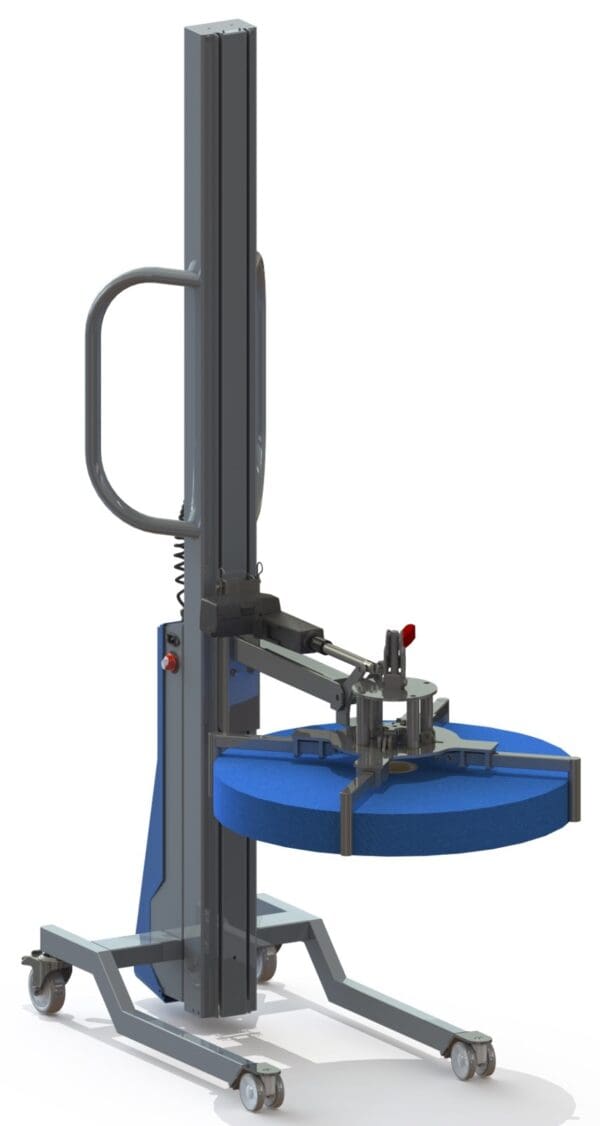

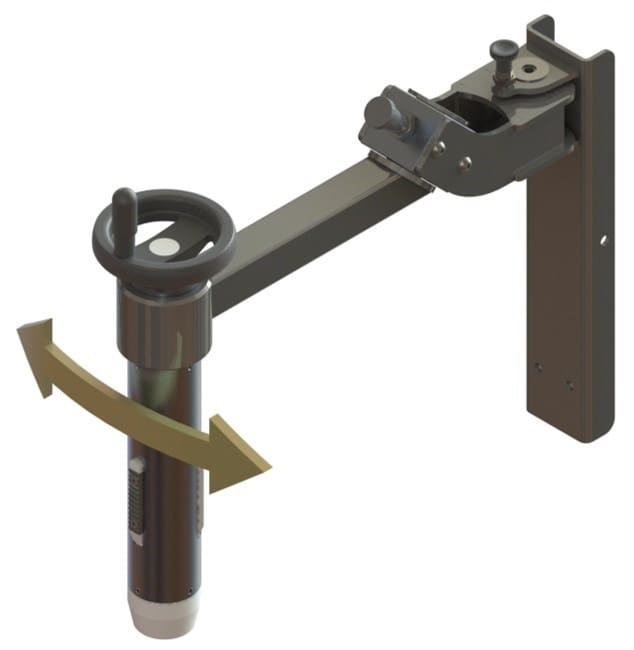

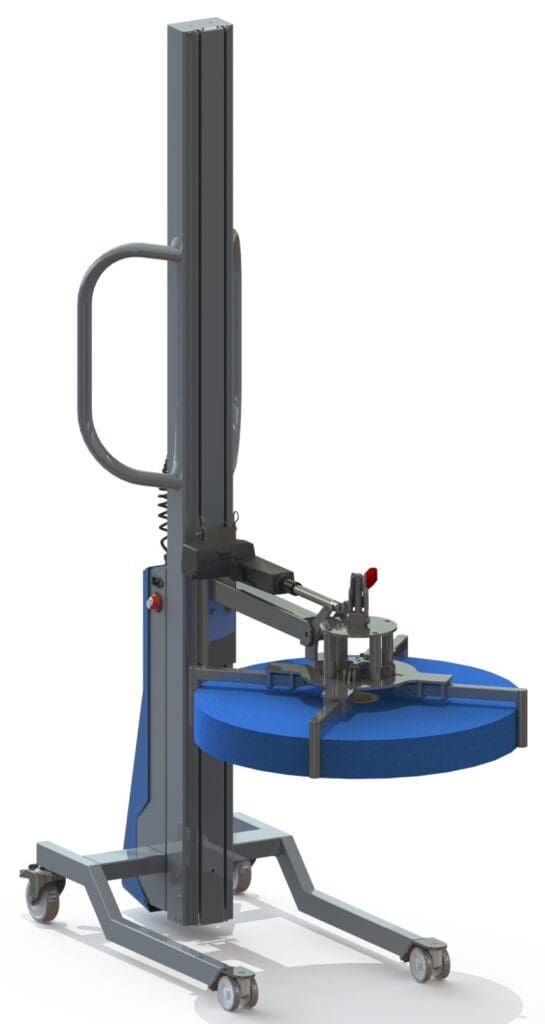

Roll Turning Tool Stainless steel Max diam 500 x 500 wide x 76mm core ID	ML80-500	Add to Quote Request
Platform Tool- Plastic Top 500 x 500mm	ML80-600	Add to Quote Request

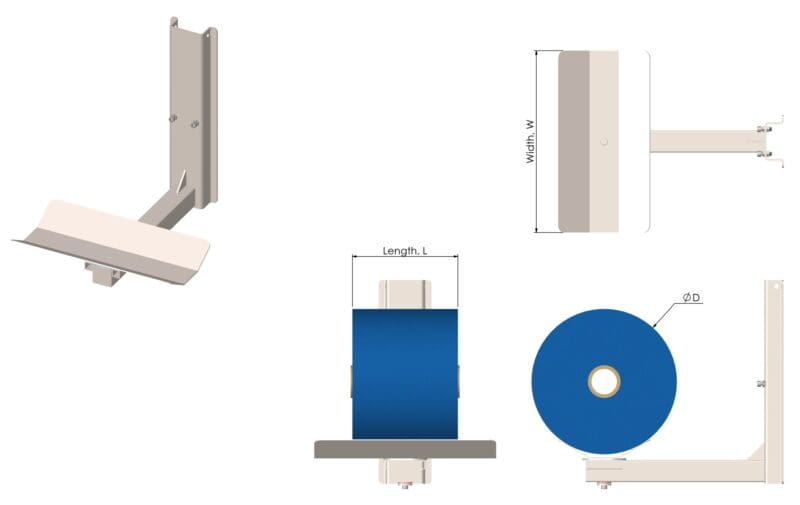

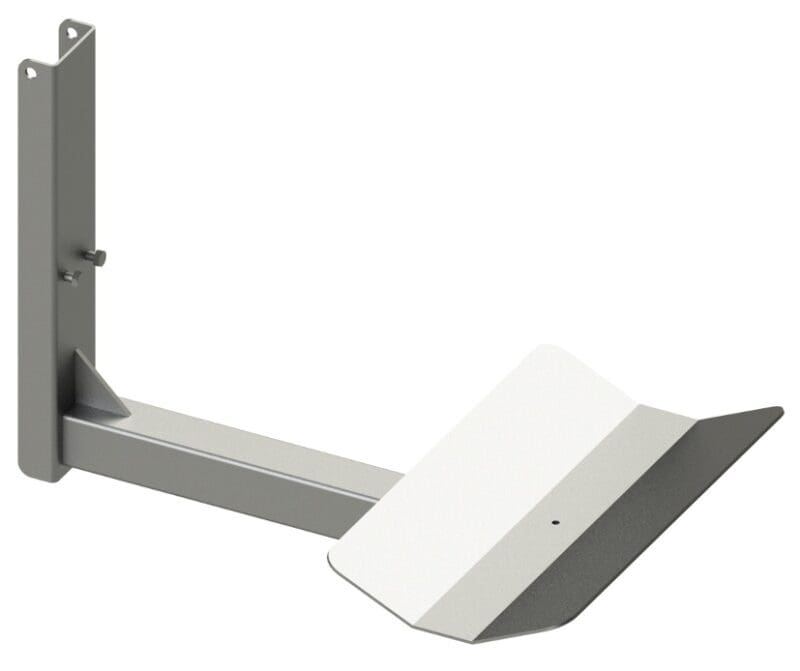

Rotary V Bed Stainless Steel	ML80-700	Add to Quote Request

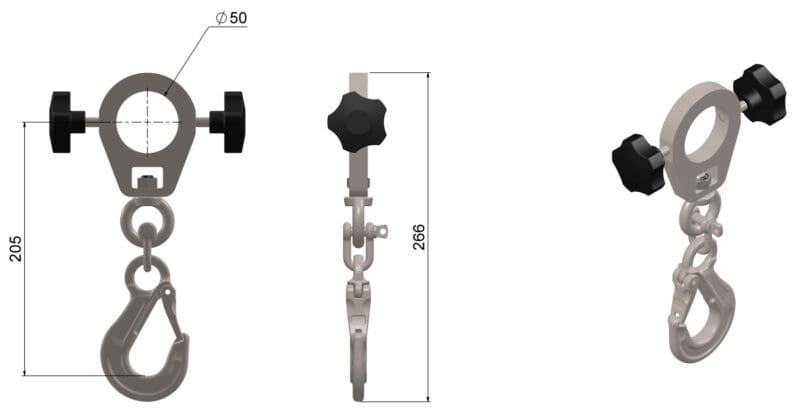

Adjustable Collar with Hook for use with Single Arm ML80-100	ML80-800	Add to Quote Request

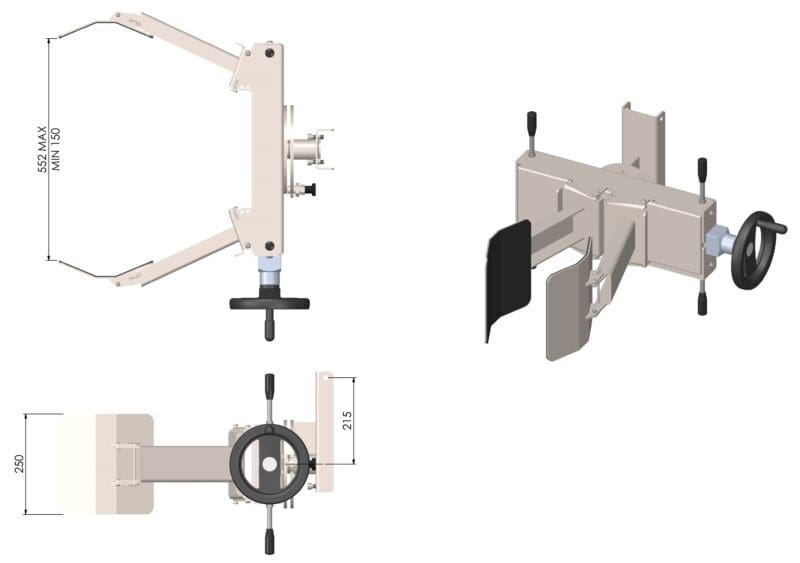

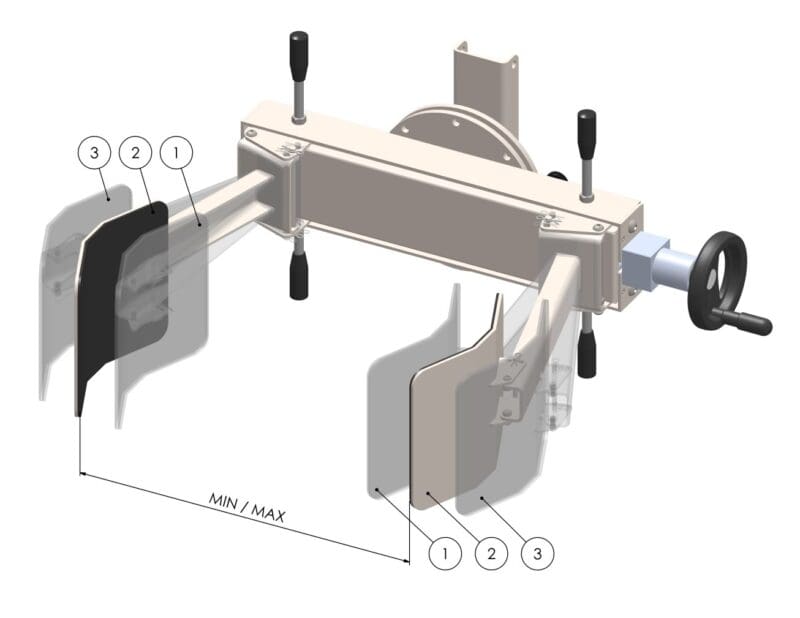

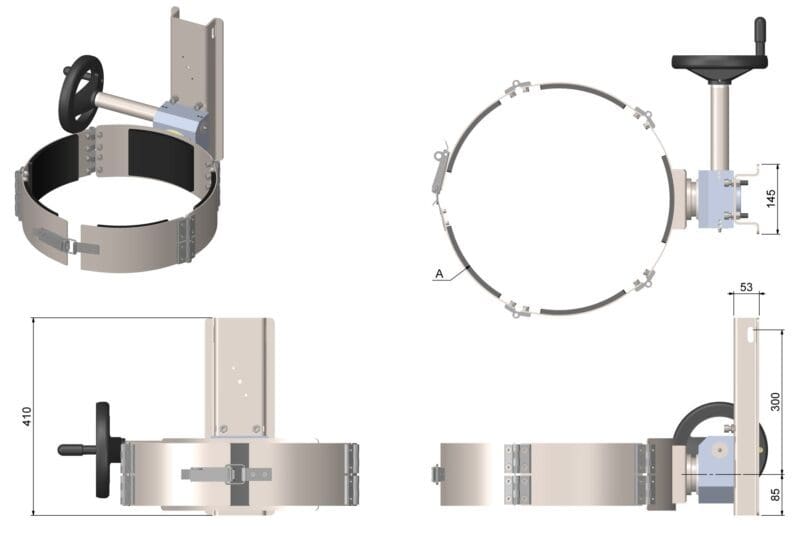

Manual Clamp- Toggle Action x side rotation 250-550mm dia x 50kg max Stainless Steel	ML80-900	Add to Quote Request
Fixed Direct Front Wheels 60 dia Roller x 80mm Leg height	ML80-1020	Add to Quote Request

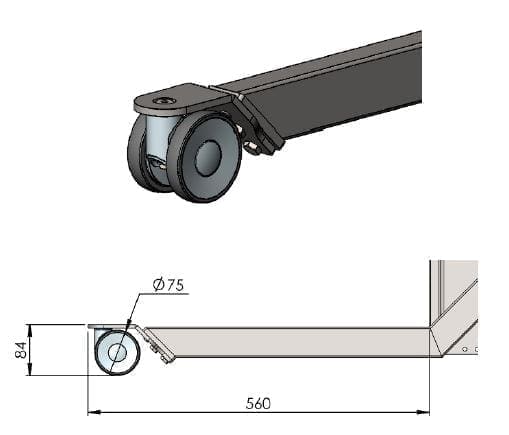

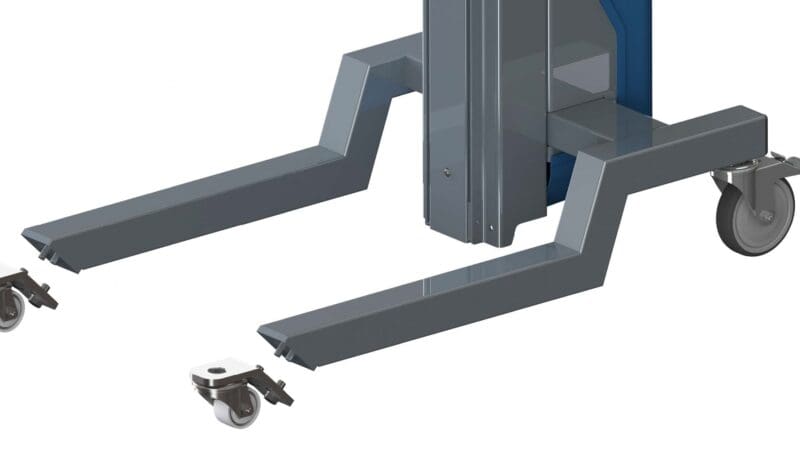

Swivel Direction Front Castors 70 dia Front Twin wheel x 88mm leg height	ML80-1021	Add to Quote Request

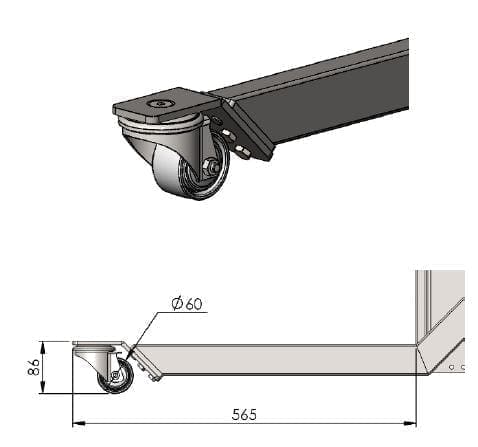

Swivel Direction Front Casters 60 dia Front Twin wheel x 86mm leg height	ML80-1022	Add to Quote Request
Linear Side Shift +/- 75mm travel Suits all ML80 tool options	ML80-1000	Add to Quote Request

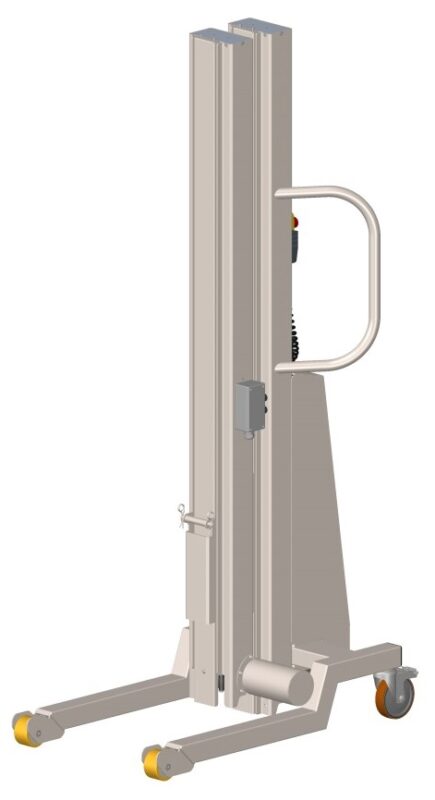

Option- Second Stainless Mast to create Telescopic Unit max 100kg	FA1003	Add to Quote Request

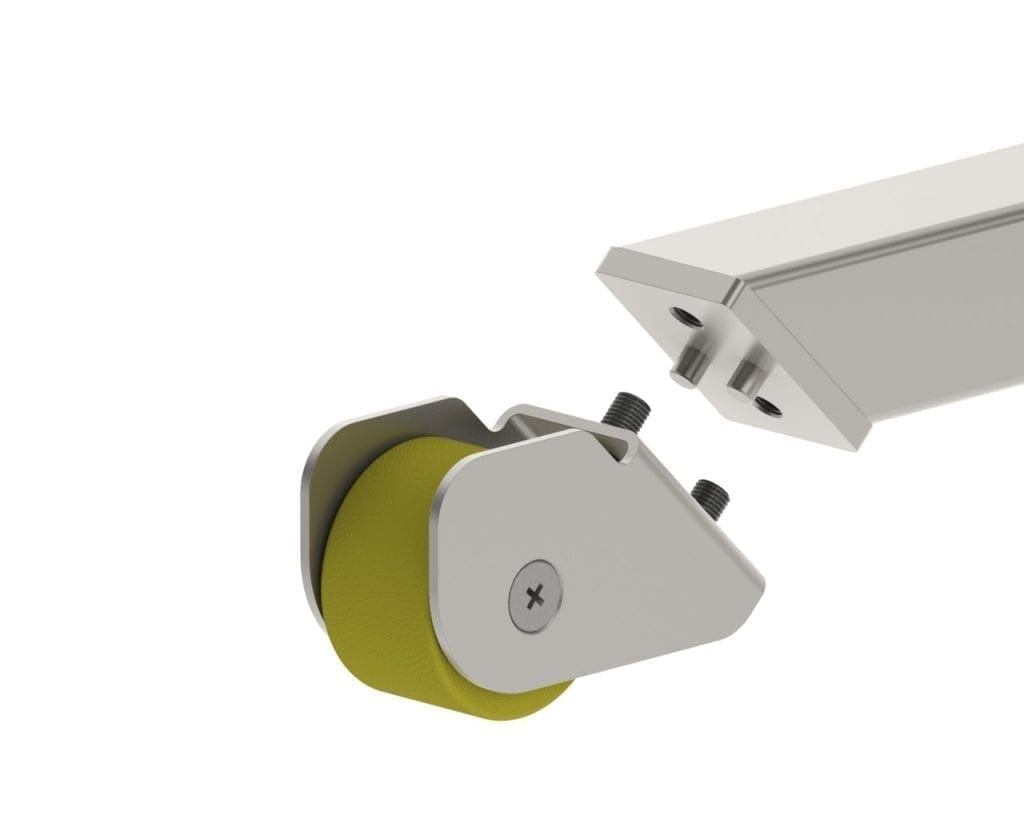

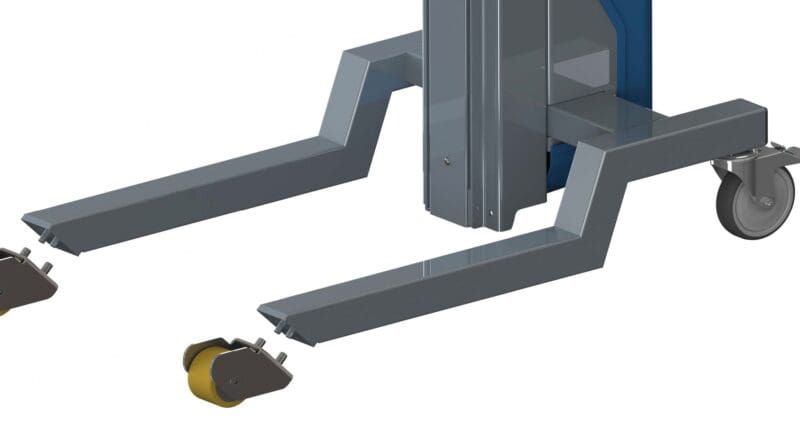

80 dia Pallet Wheel x 90mm leg height	FA1020	Add to Quote Request
60 dia Front Swivel Caster 90mm leg height	FA1021	Add to Quote Request

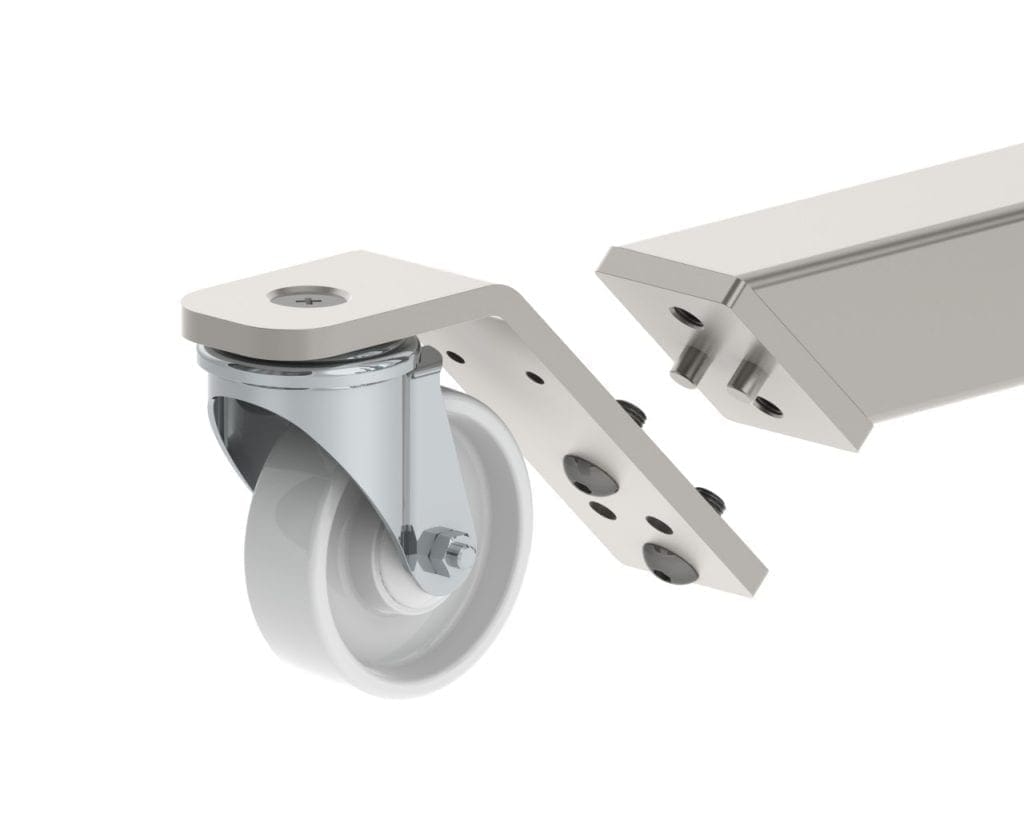

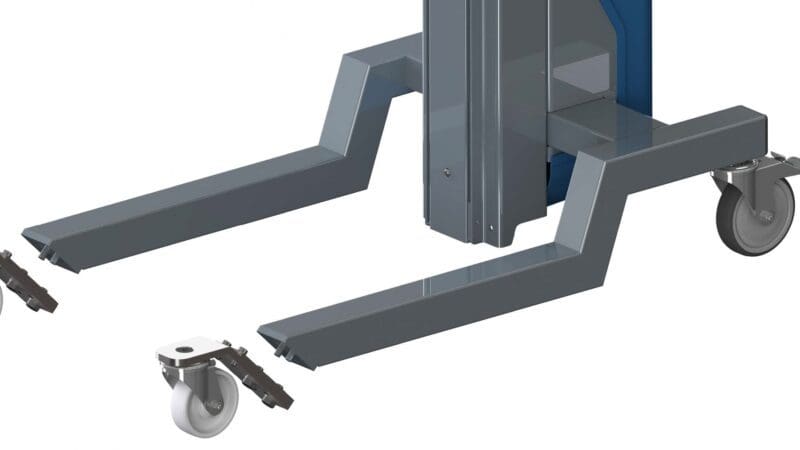

100 dia Front Swivel Caster 140mm leg height	FA1022	Add to Quote Request

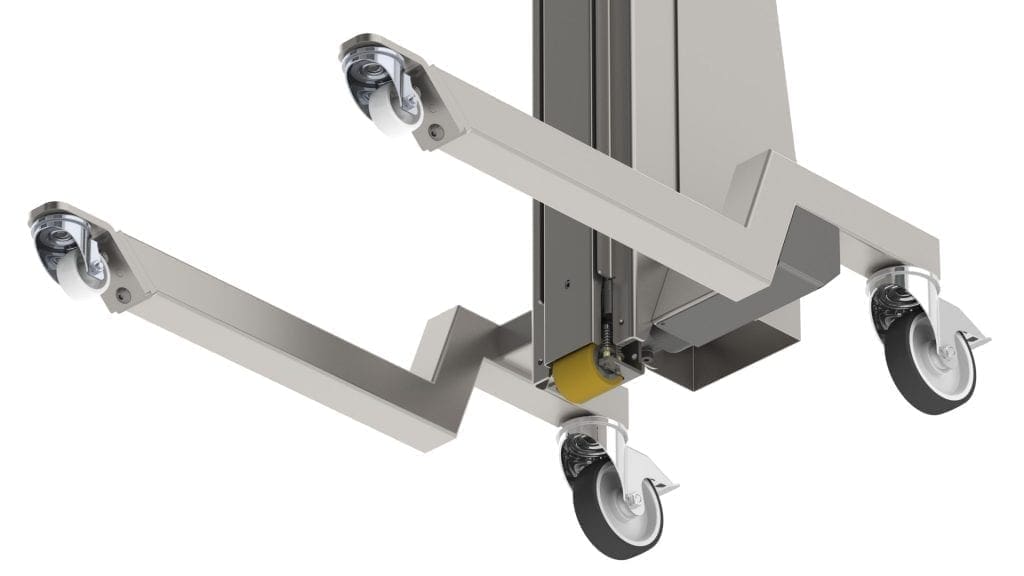

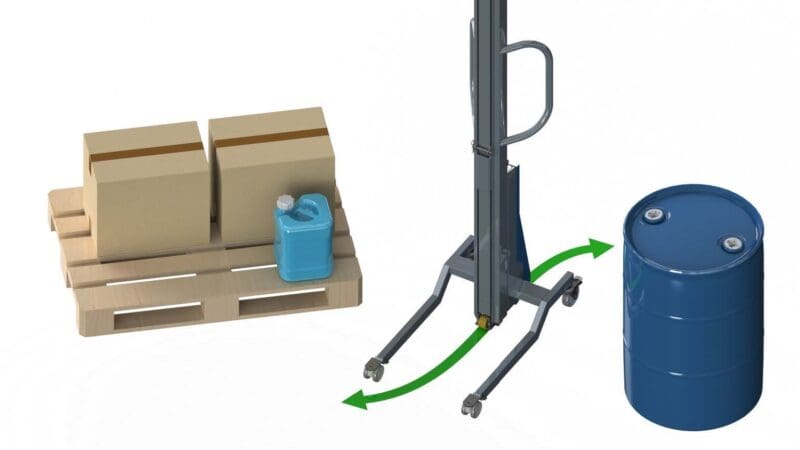

5th Wheel – Only when lifter has 4 swivel wheels	FA1023	Add to Quote Request

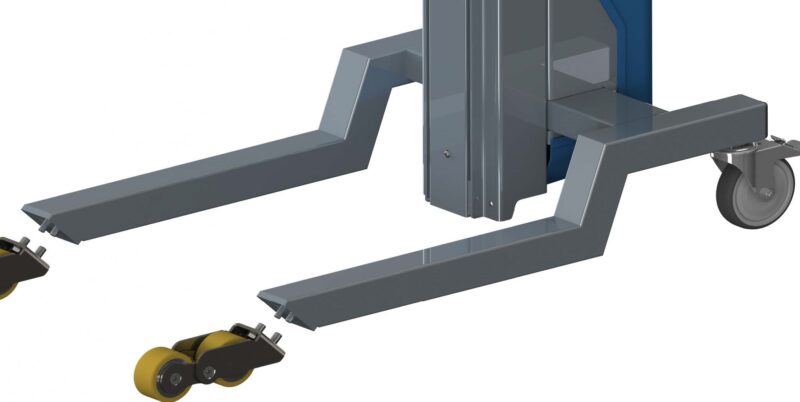

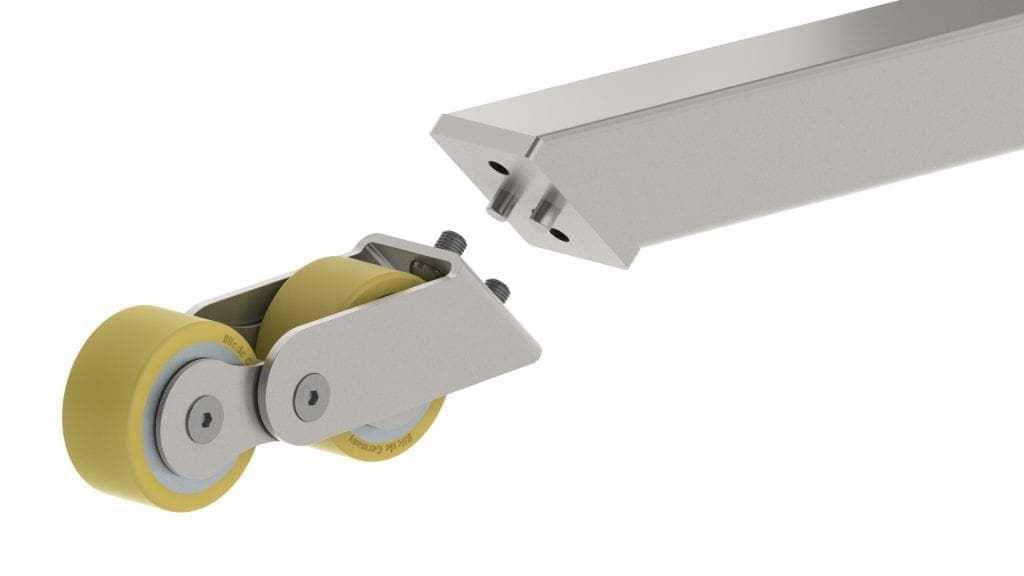

Double Front Wheels for Pallet Entry	FA1024	Add to Quote Request

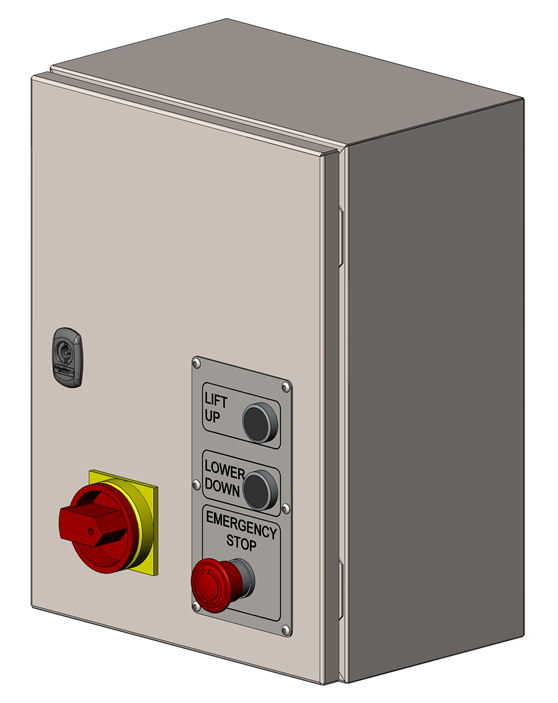

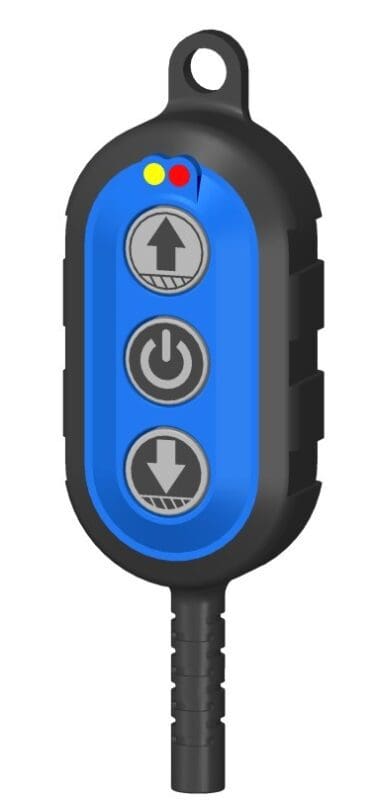

Standard Controls for Single Drive (Up/Down and E-Stop on Spiral Cable)	FA1031	Add to Quote Request
Single Arm 150kg	FA1100	Add to Quote Request

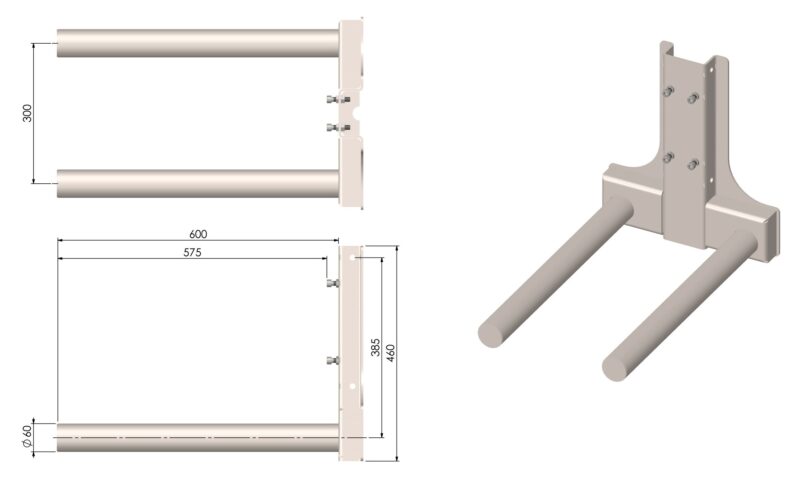

Twin Arm Lifting attachment 300kg	FA1110	Add to Quote Request
Single Arm 300kg	FA1111	Add to Quote Request

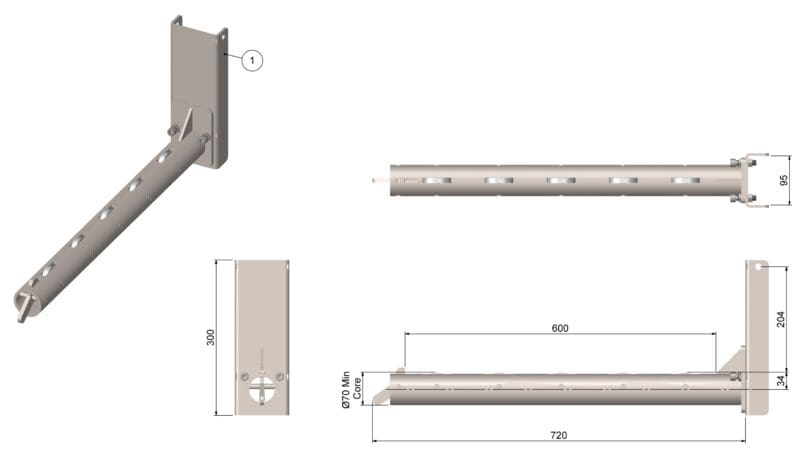

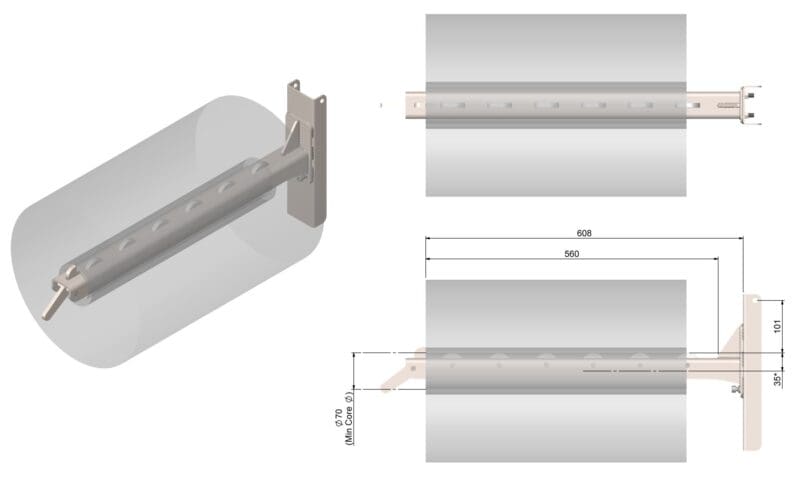

Single Arm with Rollers	FA1112	Add to Quote Request

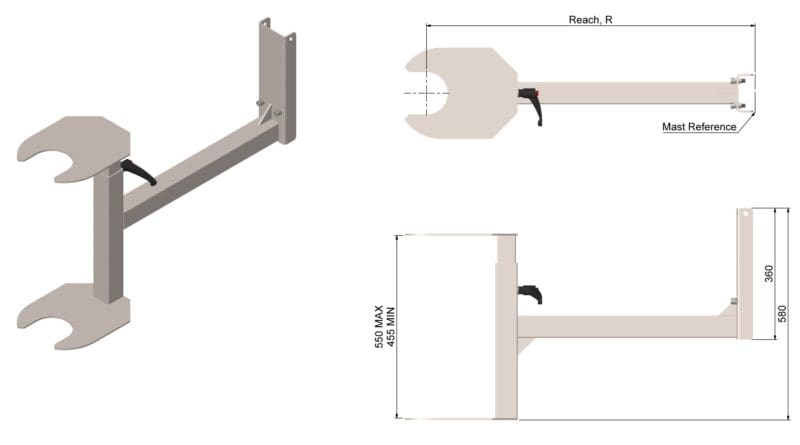

Cradle	FA1120	Add to Quote Request

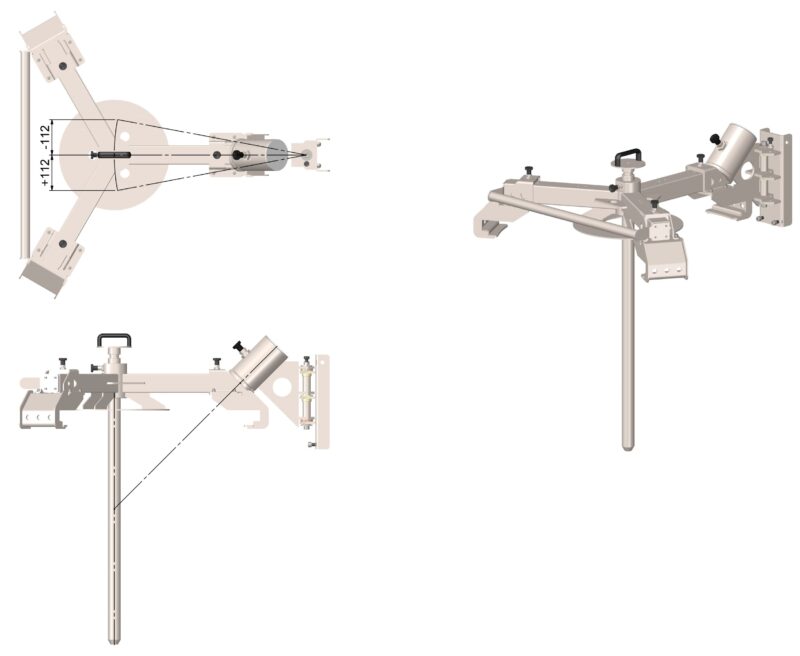

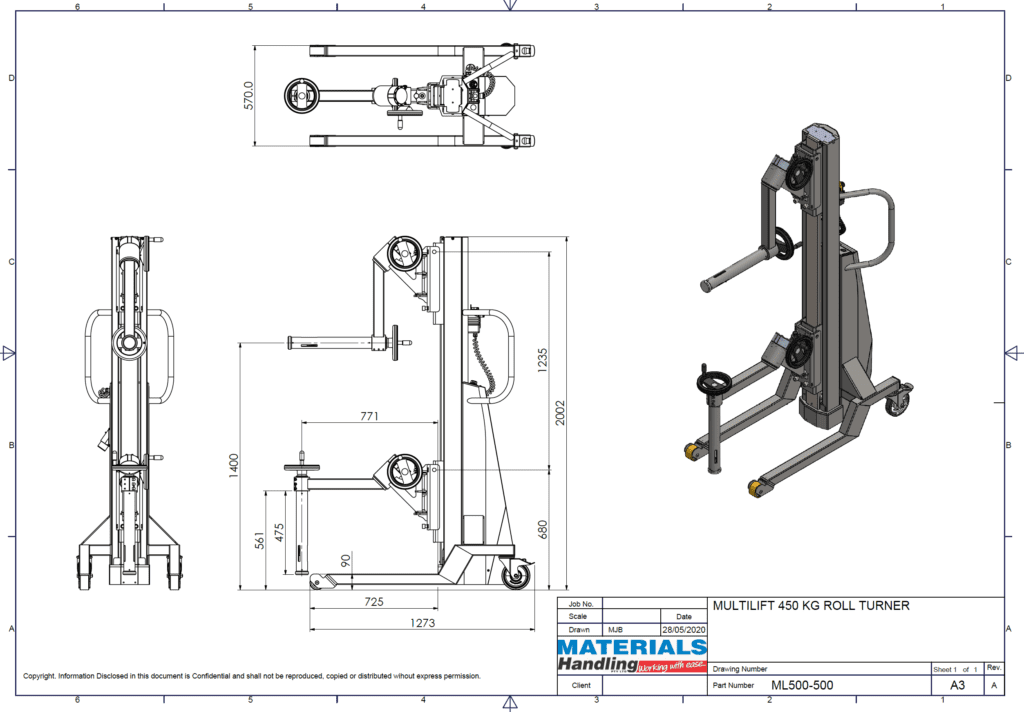

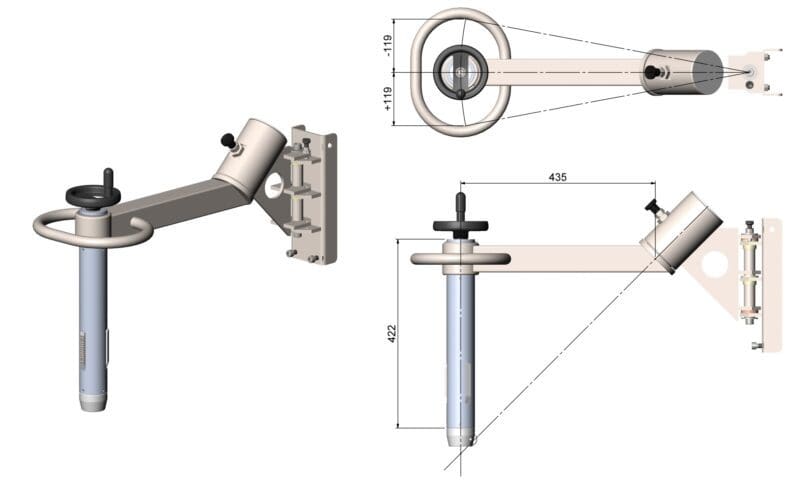

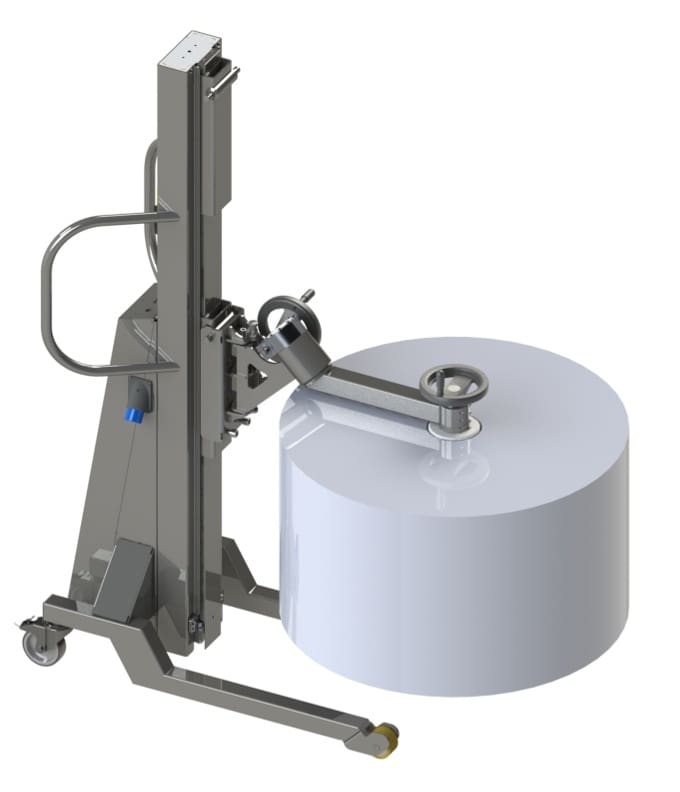

Roll turner- 350mm Arm Stainless Steel Min/Max Roll Width 150/650mm x 76mm Core ID	FA1130	Add to Quote Request
V Bed with bearing for 360 degree rotation 150kg	FA1150	Add to Quote Request
Lifting Platform with Plastic top 580 long x 560 wide x max 300kg	FA1160	Add to Quote Request

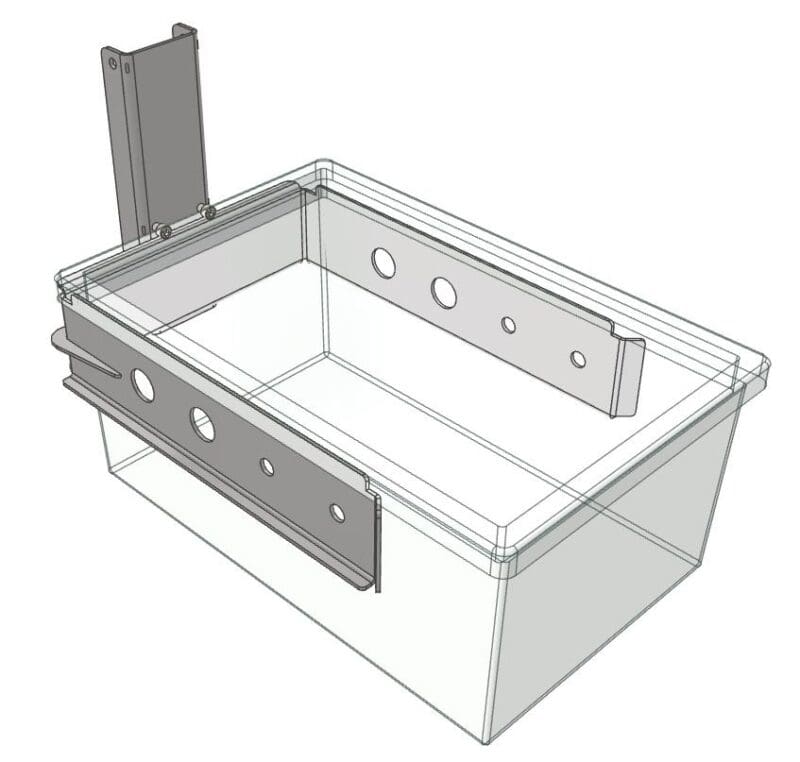

Crate Forks – made to suit crate 150kg	FA1180	Add to Quote Request

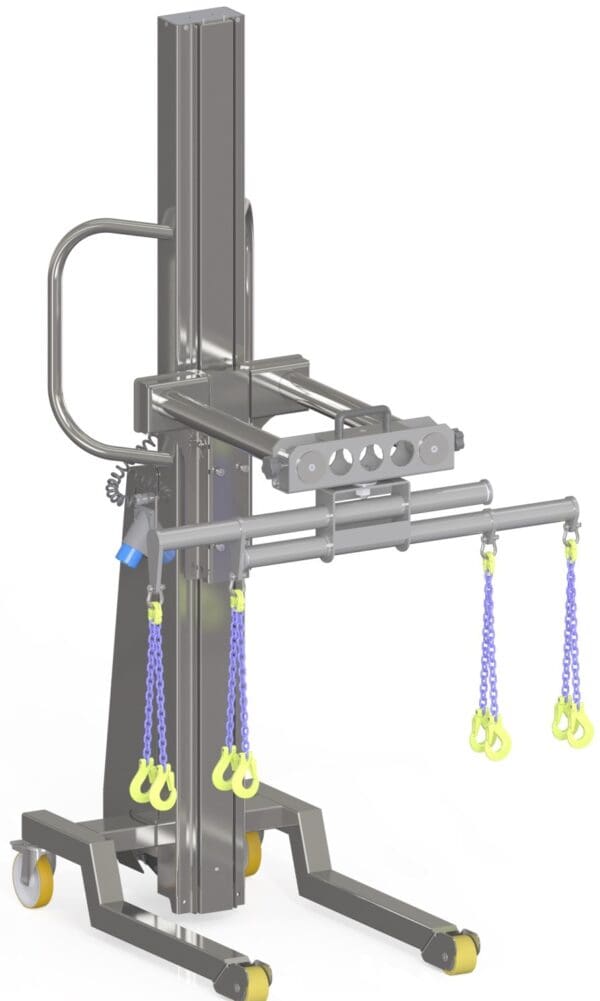

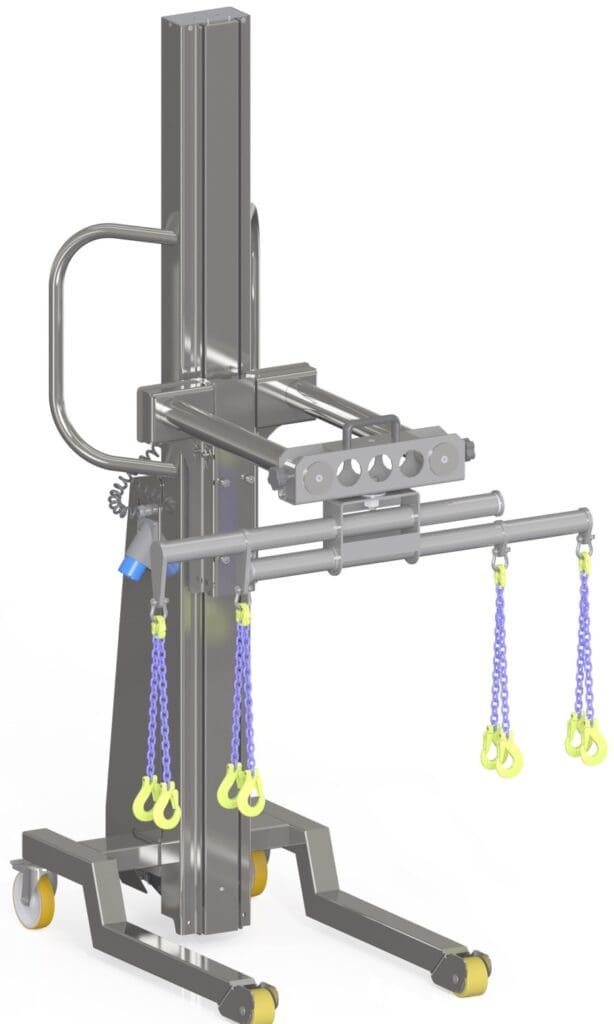

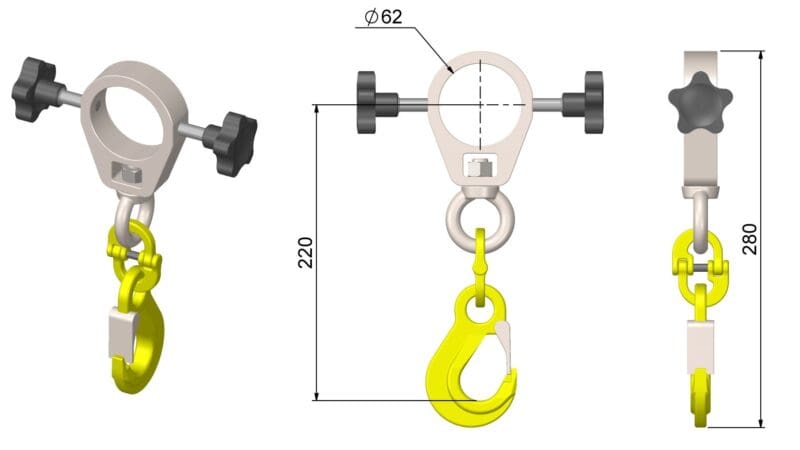

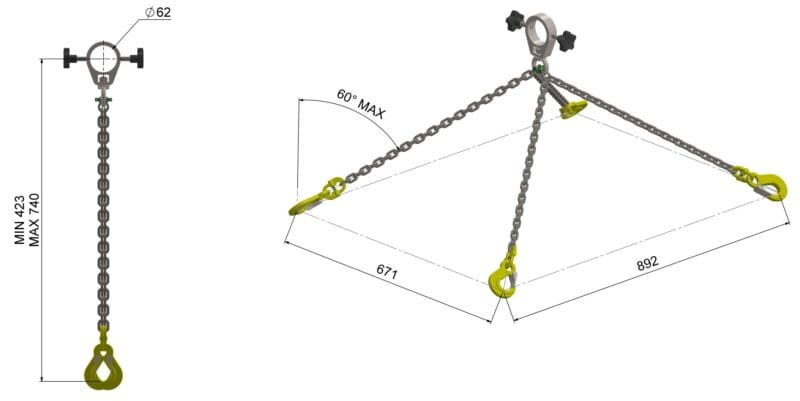

Tool Handling- Hanger with 4 Chains and Hooks	FA1190	Add to Quote Request
Crane Attachment	FA1192	Add to Quote Request

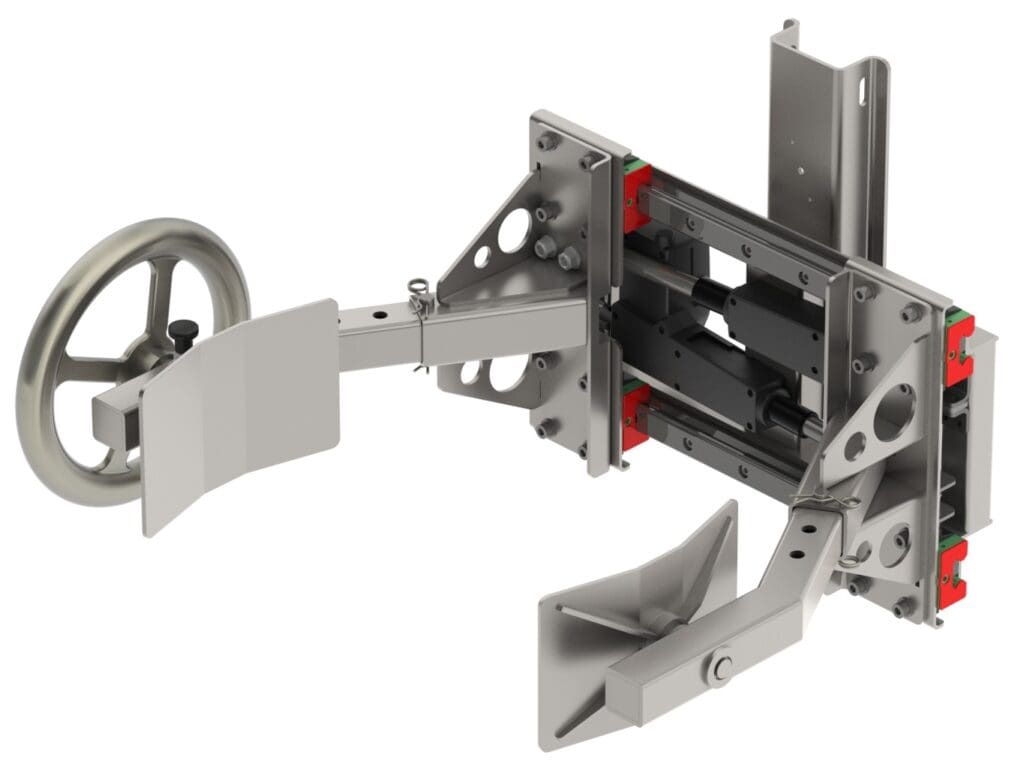

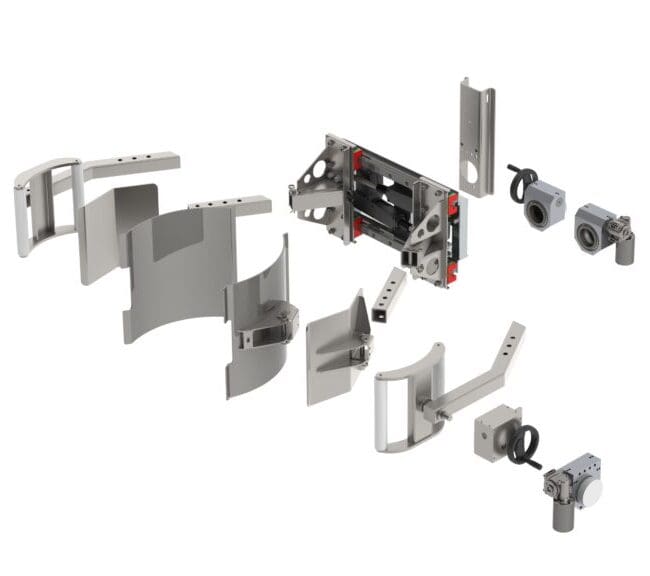

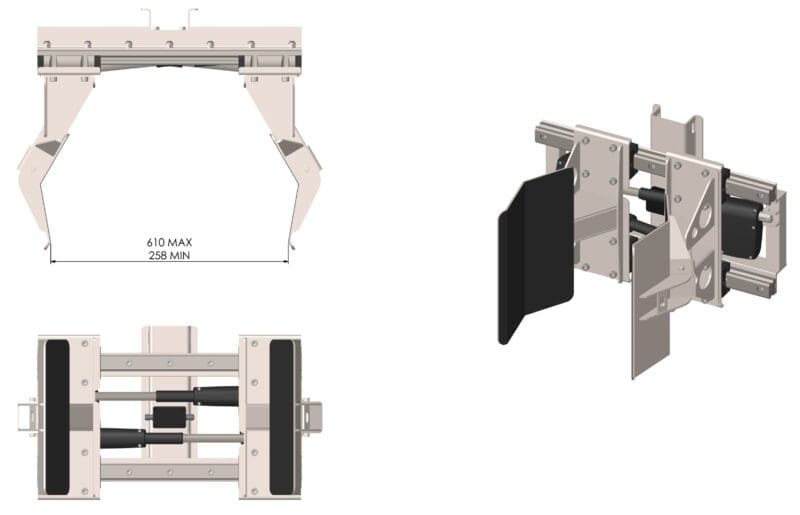

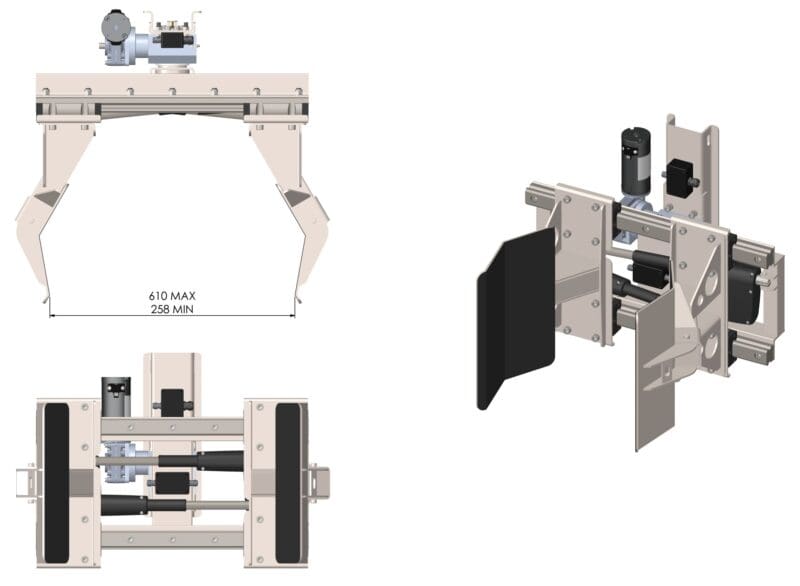

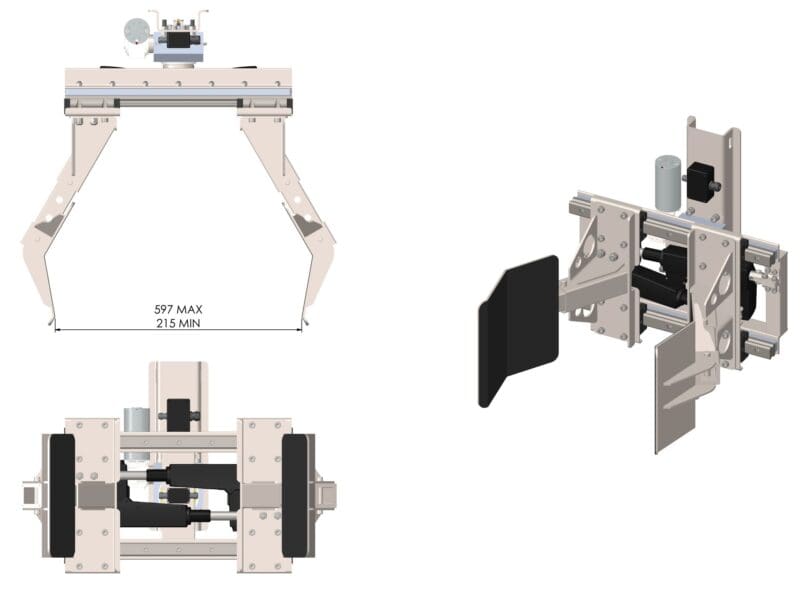

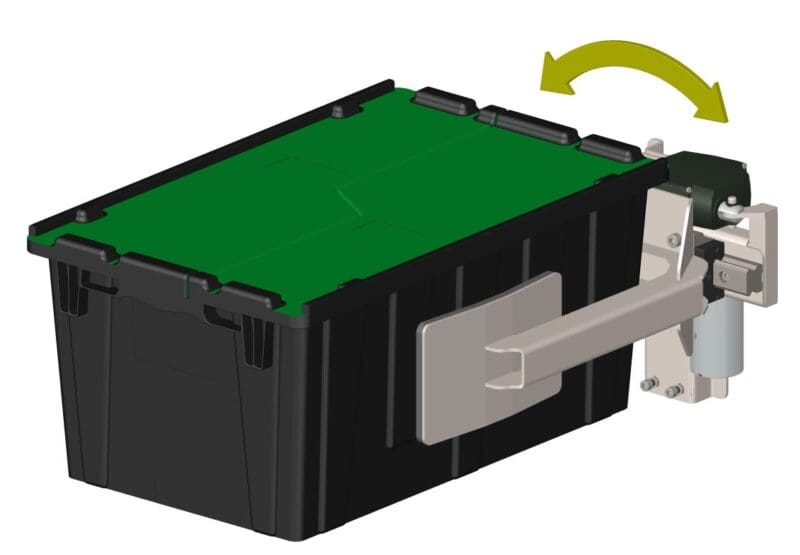

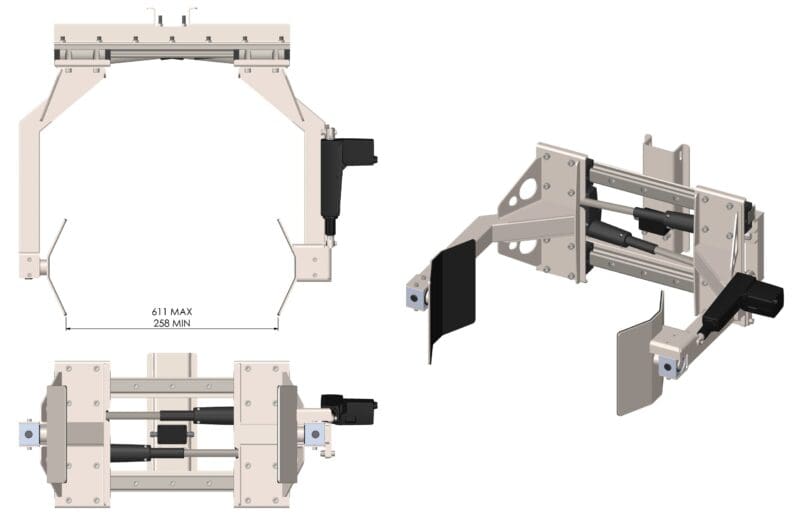

Stainless Clamp Electric Grip and Rotation max 250kg	FA1202	Add to Quote Request

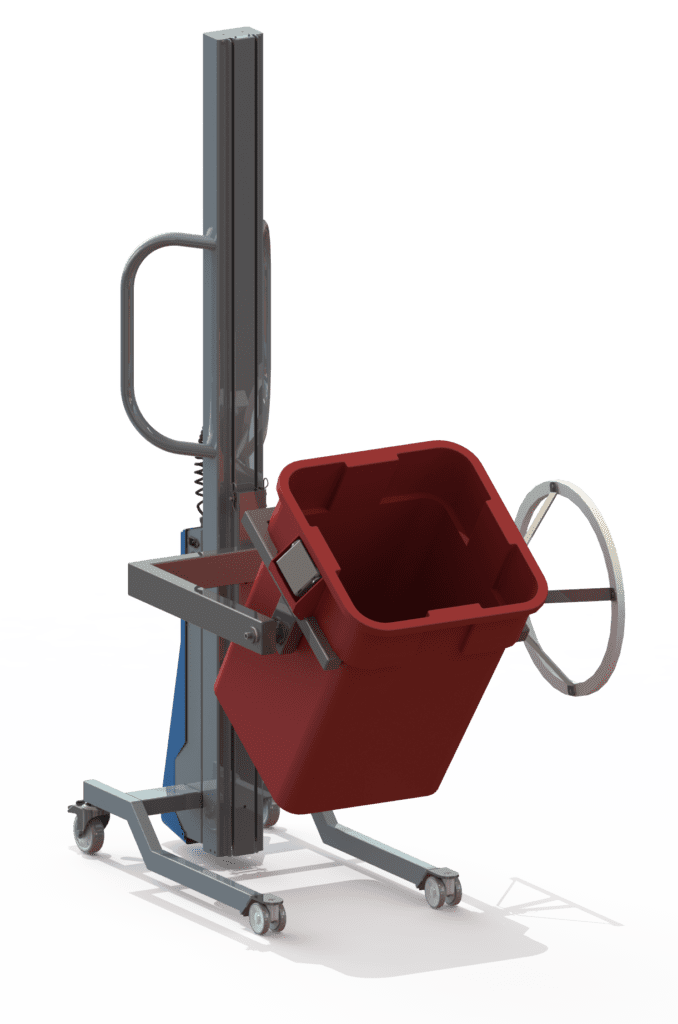

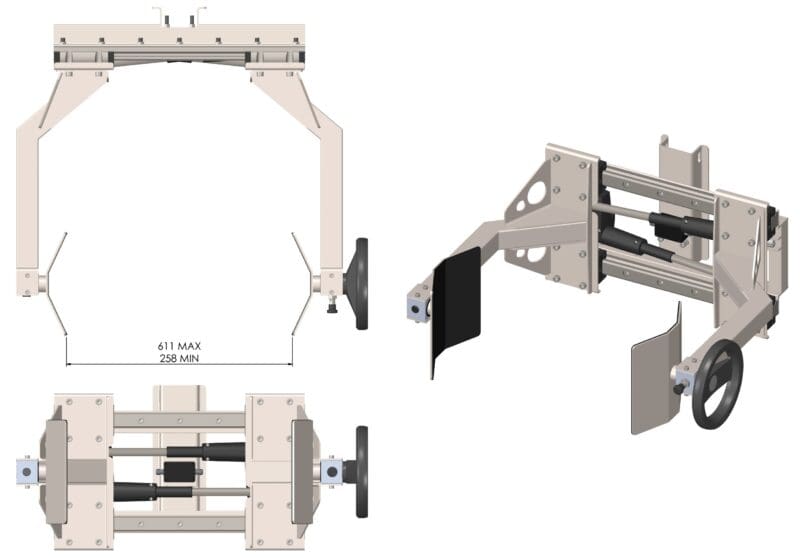

Forwards Turn Clamp – Manual	FA1230	Add to Quote Request
Light Linear Side Shift on Rails +/- 100mm	FA1300	Add to Quote Request
