Vacuum Lifter – miniLifter

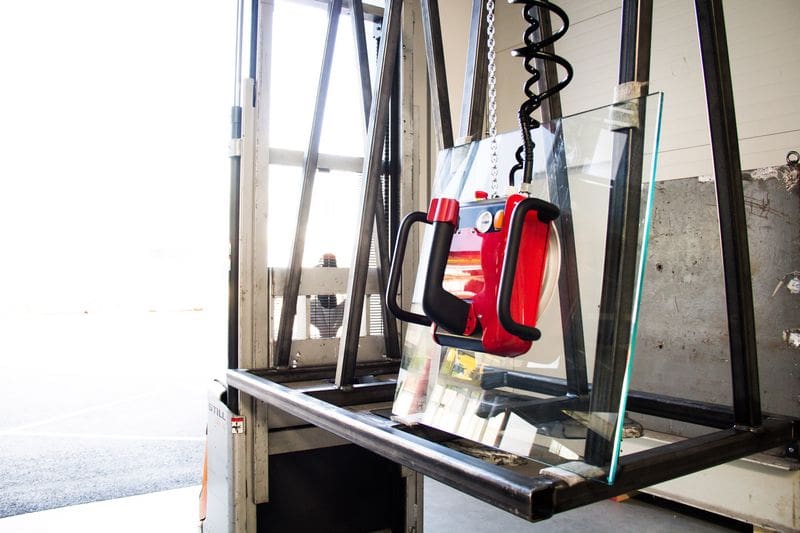

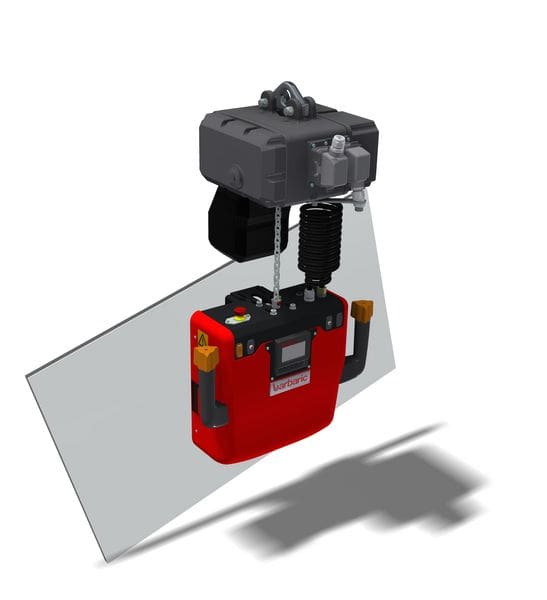

The Glass miniLifter is a compact vacuum lifting device for vertical handling and rotation of glass and similar workpieces. It provides quick manipulation of parts with flat surfaces and it is possible for an operator to control all functions with just one hand. This ability provides user flexibility, ergonomic lifting and increased functionality.

As a unique and safe handling solution, the glass miniLifter has a low overall weight and compact design. It is a responsive, lightweight unit that presents efficient materials handling. Designed uniquely to handle processes within glass and window working environments, the miniLifter is available in two options – GML1 for lifting and GML2 for lifting and rotating.

Additional Information

The miniLifter ensures fast and effortless handling!

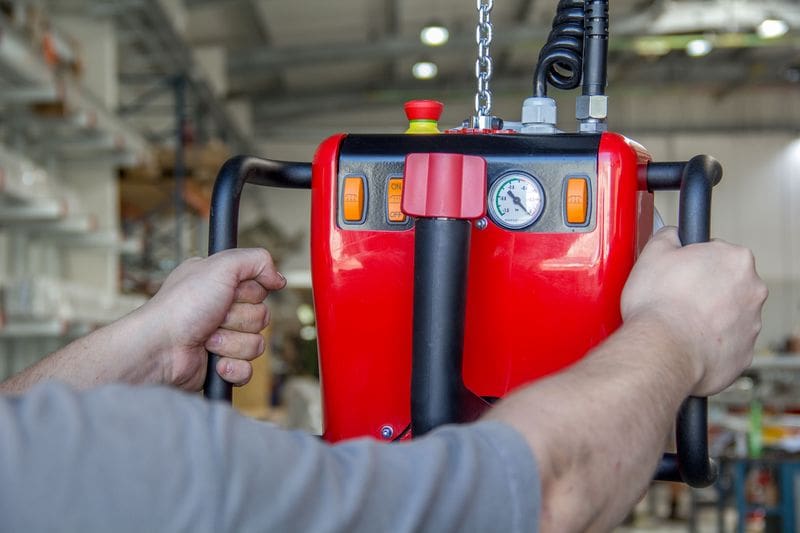

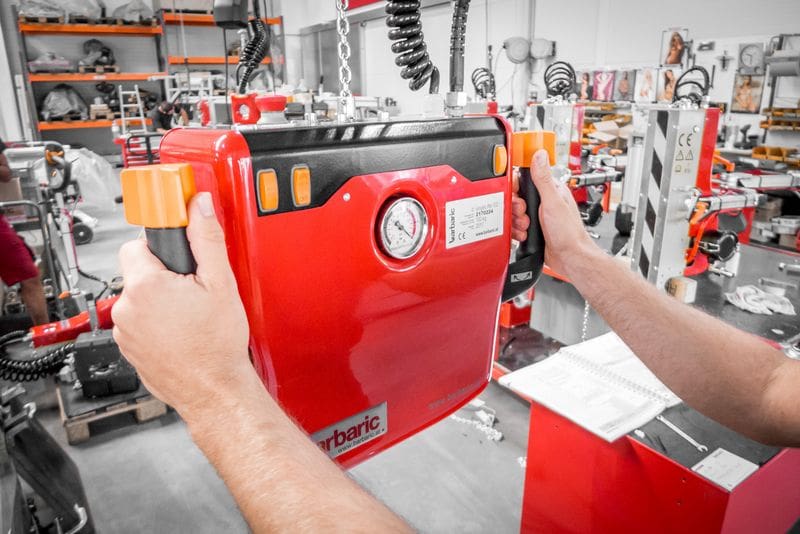

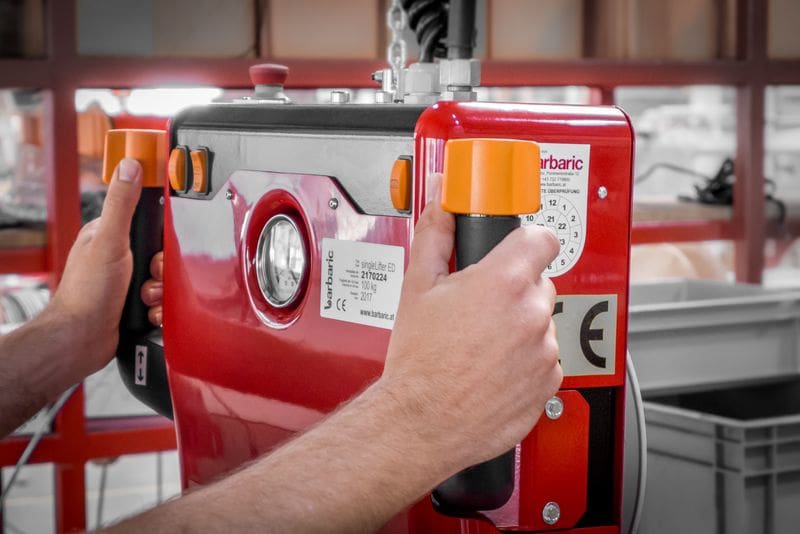

This intuitive handling solution features simple controls for secure manipulation. It’s possible a user can operate the device with a single hand, however, the device is equipped with two side handles on the frame for extra comfort. The miniLifter has an ergonomic design that’s lightweight for fast and effortless handling. All operating elements are integrated into the compact body.

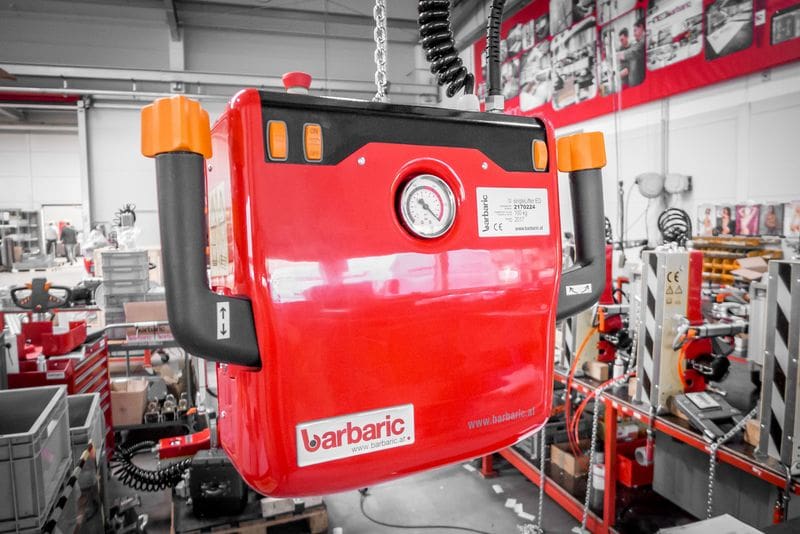

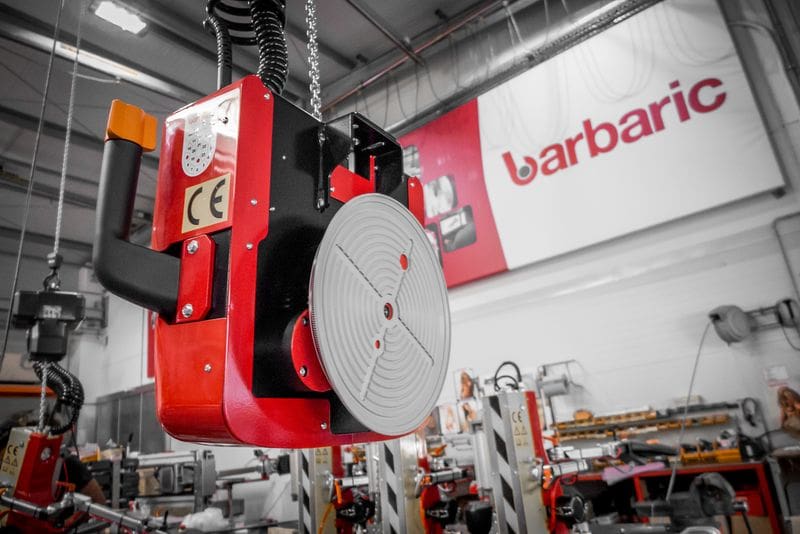

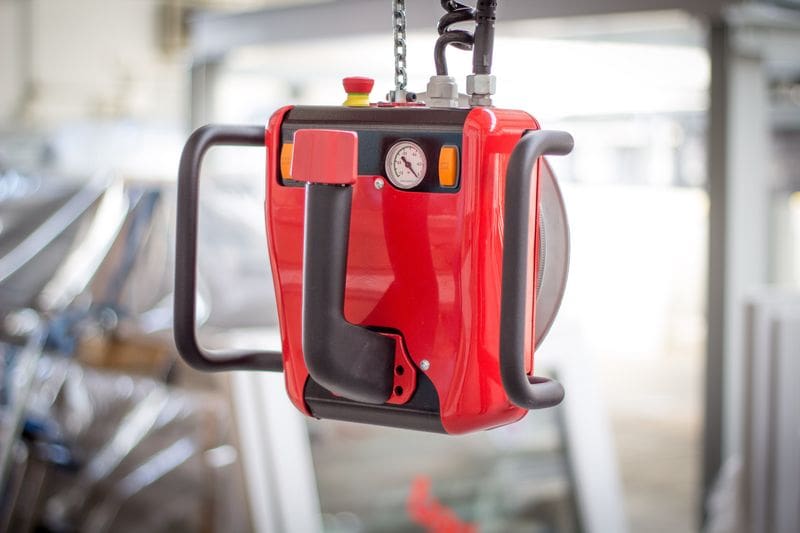

The device features changeable suction cups, high safety standards with pneumatic vacuum generation and security release function. It also has a triple safety factor, overload protection on the chain hoise, safety signal (horn) and vacuum gauge integrated into the base body.

Specifications:

Safe Working Load – 100 kg
Suction Cup – Ø 270 mm (changeable)
Vacuum Generation: pneumatically with safety function
Lifting Speed: up to 20 m/min regulated continuously
Suction Time: approx. 2 sec.
Release Time: approx. 1 sec.
Optional: 360° (endless) rotation function – GML2 Model only.

Require an alternative lifting solution?

View our Vacuum Lifting range to find a lifting system that suits your requirements.

Click the PDF button to learn more.

Product Variations

Description	Product Code
GML1 Glass miniLifter 100 kg	99213	Add to Quote Request
Upgrade capacity to 150kg (add to 99213)	99635	Add to Quote Request
GML2 Glass miniLifter rotating 360 deg 100kg	99214	Add to Quote Request
Option: upgrade capacity to 220kg (add to 99214) Two suction cups 270mm diameter	99645	Add to Quote Request
Power centre of gravity adjustment (add to 99214)	99646	Add to Quote Request
Option: upgrade capacity to 150kg (add to 99214) Single suction cup 350mm diameter	99636	Add to Quote Request
Upgrade capacity to 300kg (add to 99214)	99650	Add to Quote Request
