Vacuum Lifter – uniLifter

The uniLifter features a modern design for safe handling of non-porous items, such as metal, plastic sheets, glass or windows. With an integrated chain hoist, this vacuum handling device improves efficiency and makes light work of heavy loads.

A multipurpose lifter that is suited for a number of industries, the uniLifter Vacuum Lifter is equipped with advanced safety features like load monitoring and a two-button release function.

The vacuum lifter is designed with an ergonomic control console that allows the operator to control the load with one hand.

The uniLifter has quick-release functionality that momentarily reverses the flow direction for fast and safe operation. The operator does not need to be concerned about residual vacuum holding the part when releasing the load.

This unique vacuum lifting device is available in a number of options that lift, rotate and tilt materials.

Product Variation

Clear

Additional Information

The uniLifter is also known as the uniGlass. Primarily designed for handling glass, the range is suitable for handling other non-porous items like plastic and metal. This range is clearly identified as separate from our uniWood range of lifters.

Featuring blow-off technology, it can quickly release the part for efficient operation. These vacuum lifting devices offer endless lifting possibilities. With overload control and a variety of suction beams, they are suitable for a variety of applications.

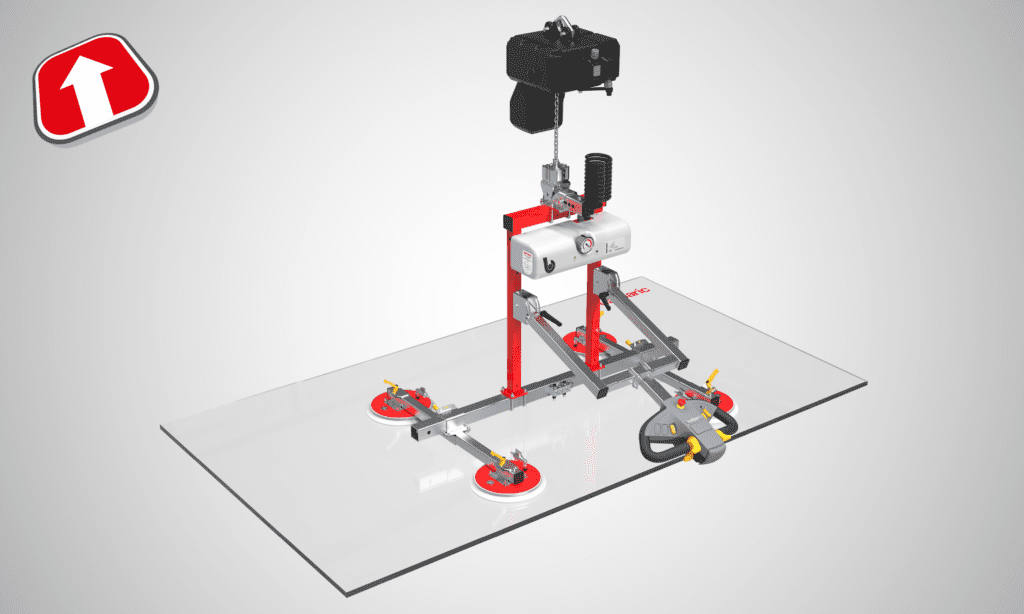

uniGlass UGL 1- lifting only

The UGL1 uniGlass is designed for basic lifting and lowering. The device can efficiently handle loads with a capacity of either 250 kg or 500 kg.

Load Capacity – 250 kg or 500 kg
Lifting Height – 2000 mm
Operating Voltage – 240 V / 50 Hz
Lifting Height – 2000 mm
Lifting Speed – 0-10 m/min infinitely variable speed
Compressed Air Required – 6 bar

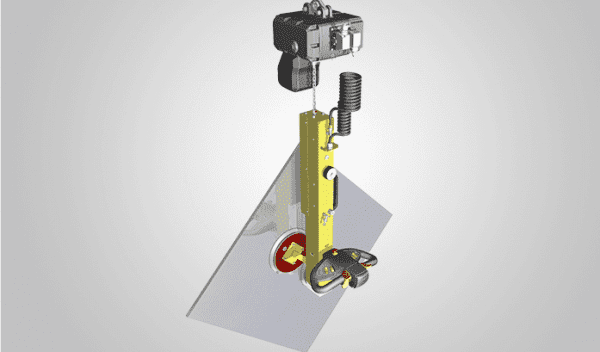

uniGlass UGL 2S – lifting and rotating

This model features a unique 200° rotation function with the workpiece in the vertical position. The UGL2S can easily lift and rotate parts in the vertical plane and is ideal for glazing work. Featuring a very compact body, an operator can maintain excellent vision at all times. The unit is ideal for vertical transport of loads up to a maximum capacity of either 250 kg or 500 kg.

Load Capacity – 200 kg or 250 kg
Rotation Function – 200°
Lifting Height – 2000 mm
Operating Voltage – 240 V / 50 Hz
Lifting Speed – 0-10 m/min infinitely variable speed
Compressed Air Required – 6 bar

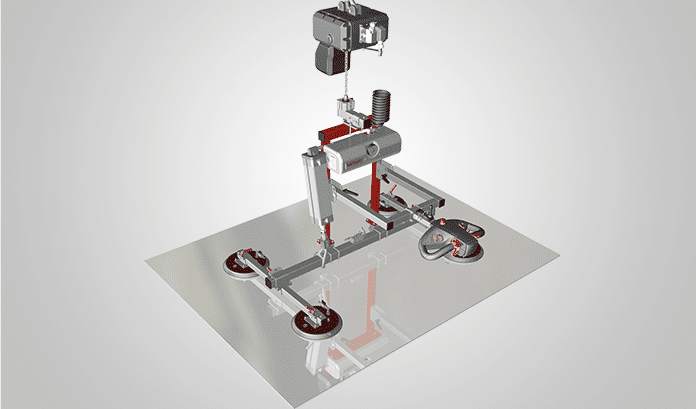

uniGlass UGL 3 – lifting and tilting

The UGL3 features a compact body to allow an easy view of the glass. It has a pneumatic tilting function that tilts horizontally through 90° to vertical. This lifter is capable of loads up to 250 kg or 500 kg.

Load Capacity – 250 kg or 500 kg
Tilting Function – 90°
Lifting Height – 2000 mm
Operating Voltage – 240 V / 50 Hz
Lifting Speed – 0-10 m/min infinitely variable speed
Compressed Air Required – 6 bar

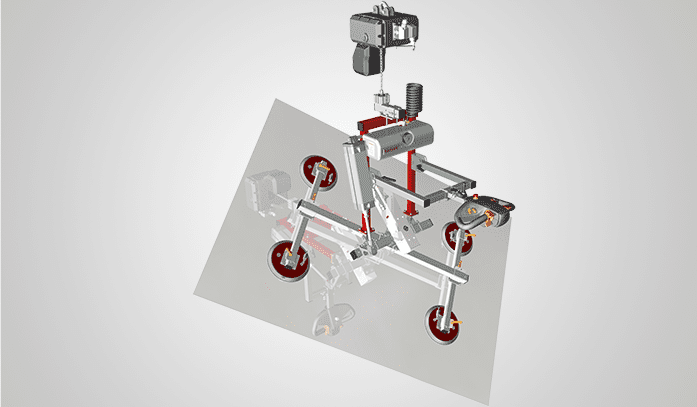

uniGlass UGL 4 – lifting, rotating and tilting

The UGL4 vacuum lifter is a versatile machine. This model has the ability to rotate the part 200° and tilt from vertical to horizontal through 90°.

Load Capacity – 300 kg or 500 kg
Tilting Function – 90°
Rotating Function – 200°
Lifting Height – 2000 mm
Operating Voltage – 240 V / 50 Hz
Lifting Speed – 0-10 m/min infinitely variable speed
Compressed Air Required – 6 bar

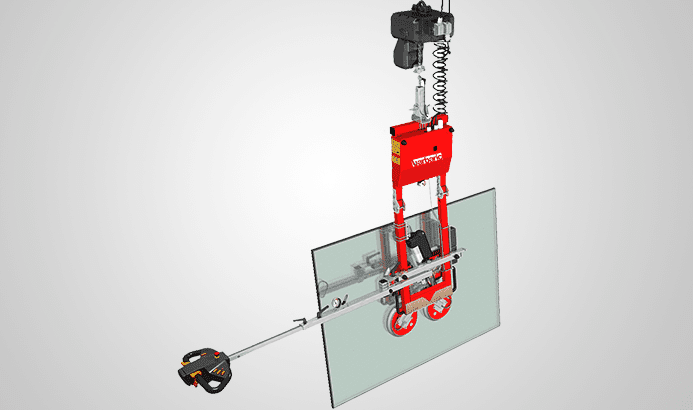

uniGlass UGL 2N – lifting and rotating

With a narrow main body, the UGL2N uniLifter is best suited for applications where glass is picked up from vertical racks. It features an electric motor for 100° rotation and can handle a maximum load of up to 250 kg.

Load Capacity – 250 kg
Rotating Function – 100°
Operating Voltage – 240 V / 50 Hz
Lifting Speed – 0-10 m/min infinitely variable speed
Compressed Air Required – 6 bar

Check out our Glass miniLifter in the uniLifter series!

This device can quickly handle materials for fast manipulation and effortless use. This Single Hand Rotator provides fast and variable lifting speeds and rotating while vertical functions. The controls are simple to use and intuitive, while the two-button release creates a quick and safe release.

View the entire range!

uniLifter offers integrated control systems that simplify lifting processes. View our entire range to see how performance can be increased in your workplace.

Product Variations

Description	Product Code
UGL 1 uniLifter 250 kg Handling flat glass up to 3.2 x 2.5 m Vacuum ejector with “push off” release of workpiece Includes safety release system by load detection Four 270mm suction cups adjustable on H beam	99205	Add to Quote Request
Option: capacity 500 kg (add to 99205) Suction cups BA 350 and safety system with load management	99621	Add to Quote Request

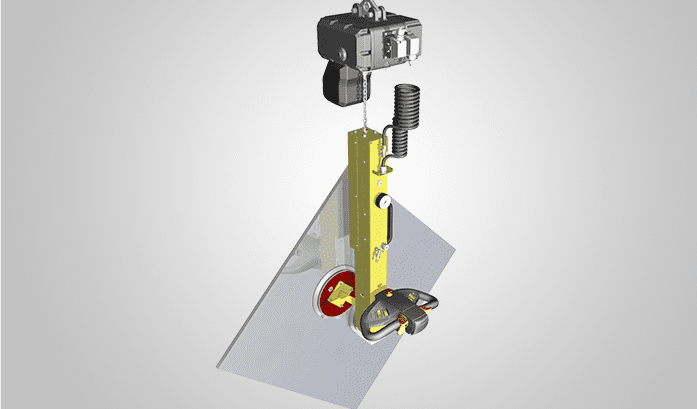

UGL 2S uniLifter 200 kg Vertical handling of flat glass up to 3.2 x 2.5 m Electric rotation mechanism 200 ° Vacuum ejector with “push off” release of workpiece Comfort controls fixed on the main body Two 270mm suction cups fixed on the beam	99206	Add to Quote Request
Special body for the use of special beams and incl. manual adjustment of center of gravity [Add this to 99206]	99622	Add to Quote Request
Option: capacity 250 kg (add to 99206) 2 suction cups BA 350 fixed on the beam	99504	Add to Quote Request
UGL 2 uniLifter 250 kg Vertical handling of flat glass up to 3.2 x 2.5 m Electric rotation mechanism 200 ° Vacuum ejector with “push off” release of workpiece Includes safety release system by load detection Four 270mm suction cups adjustable on H beam	99207	Add to Quote Request
UGL 3 uniLifter 250 kg Handling and tilting of flat glass up to 3.2 x 2.5 m Pneumatic tilting 90 ° Vacuum ejector with “push off” release of workpiece Includes safety release system by load cell Four 270mm suction cups adjustable on H beam	99208	Add to Quote Request
UGL 4 uniLifter 250 kg Handling tilting and roating flat glass up to 3.2 x 2.5 m Electric rotation mechanism 200 ° Pneumatic tilting 90 ° Vacuum ejector with “push off” release of workpiece Includes safety release system by load detection Four 270mm suction cups adjustable on H beam	99209	Add to Quote Request
Option: upgrade lifting capacity to 500kg (add to 99207 99208 99209) Suction cups BA 350	99623	Add to Quote Request

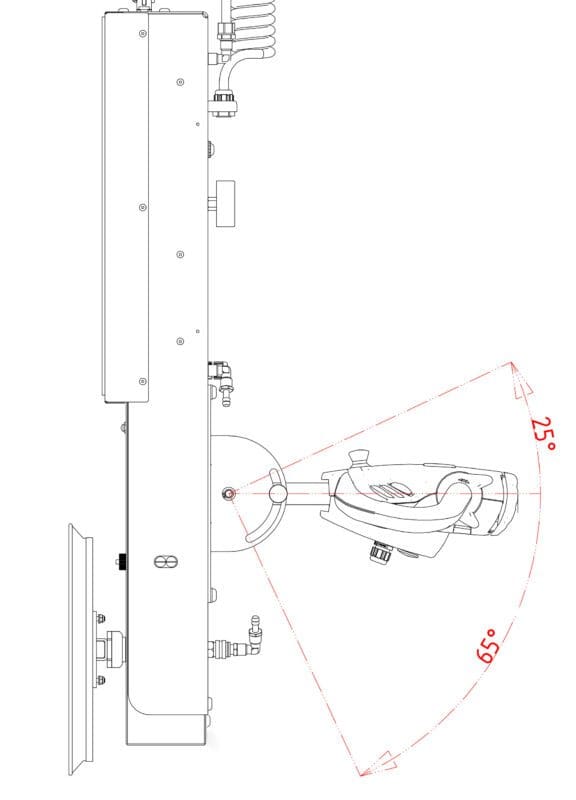

Operating handle tiltable (add to 99206) The operating handle is mounted on a tiltable boom. Locking by a clamping lever.	99401	Add to Quote Request

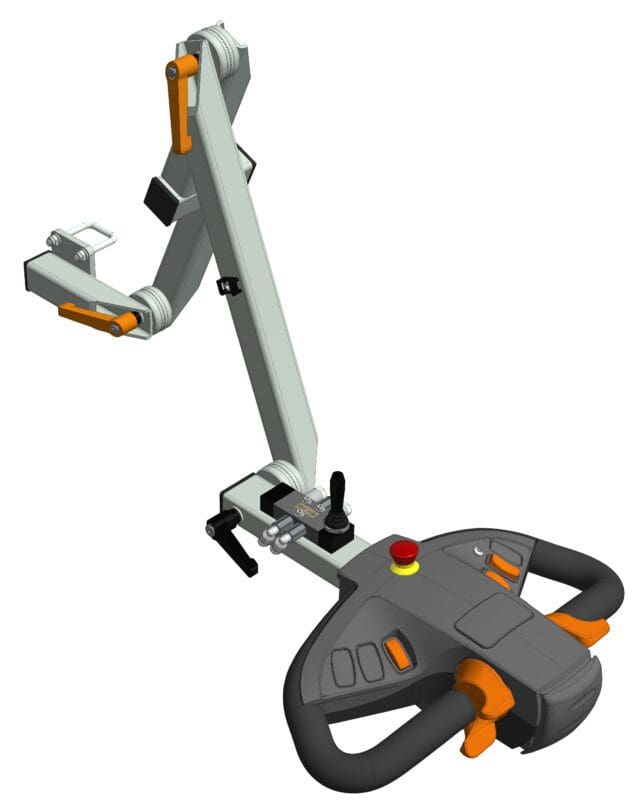

Adjustable operating handle: Optimal adjustment by locking at 3 points of articulation	99402	Add to Quote Request

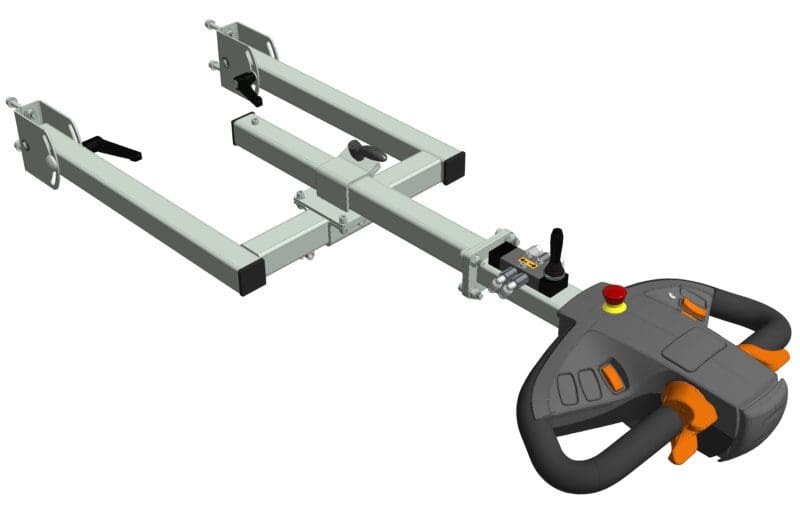

Length adjustable operating handle: This handle is additionally to the swiveling boom even 350 mm adjustable in length	99403	Add to Quote Request
Cross beam 250 kg lockable with 2 suction cups BA 350 Optionally available with 2 suction cups BA 270 The suction cups can be locked by means of spring latches in 3 positions (For model uniLifter B2s only in combination with special body 99622)	99505	Add to Quote Request
Cross beam for window 250 kg until max. 400 kg Suitable for transporting windows and doors with glazing bars with adjustable distance between the beams. (For model uniLifter B2s only in combination with special body 99622)	99506	Add to Quote Request
Telescopic beam 200 kg Suitable for transporting windows and doors on the outer frame The offset slide is equipped with a parallel guide wherein when adjusting one side the other side is automatically adjusted with (For model uniLifter B2s only in combination with special body 99622)	99507	Add to Quote Request

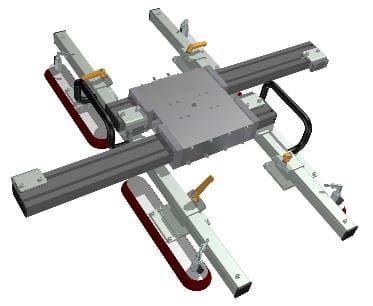

X-Traverse adjustable 250 kg with 4 suction cups BA 270 All suction pads are designed to be adjustable 2 beams incl. suction pads are fully removable (as shown colored blue) (For model uniLifter B2s only in combination with special body 99622 not available for models of the safetyLifter series)	99508	Add to Quote Request
Y-Slip beam 250 kg 2 pcs. with 2 suction cups BA 270 for the stabilization of long thin glass. (not available for models of the safetyLifterseries as well as for model uniLifter B2s)	99509	Add to Quote Request
UGL 2N uniLifter 250 kg Handling of single glass from rack Compact narrow body for picking in tight spaces Electric rotation mechanism 100 ° Vacuum ejector with “push off” release of workpiece Includes safety release system by load cell	99210	Add to Quote Request
