Quick-Lift Rail

+ Add to Quote Request

Our Quick-Lift Rail (QLR) unit is an intelligent lifting device for repetitive ergonomic handling. An impressive crane rail-mounted solution that can be fitted to a new or existing crane rail system to complete materials handling and heavy lifting actions.

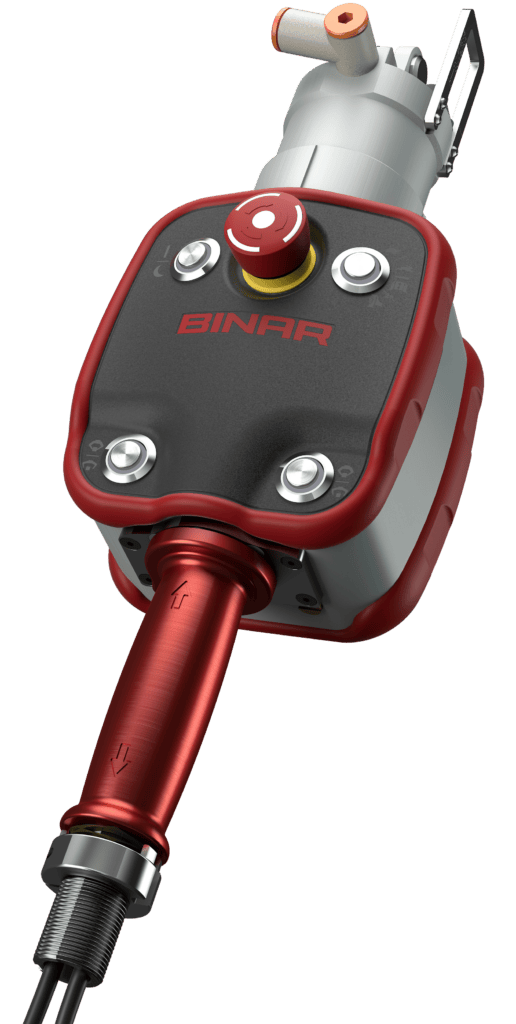

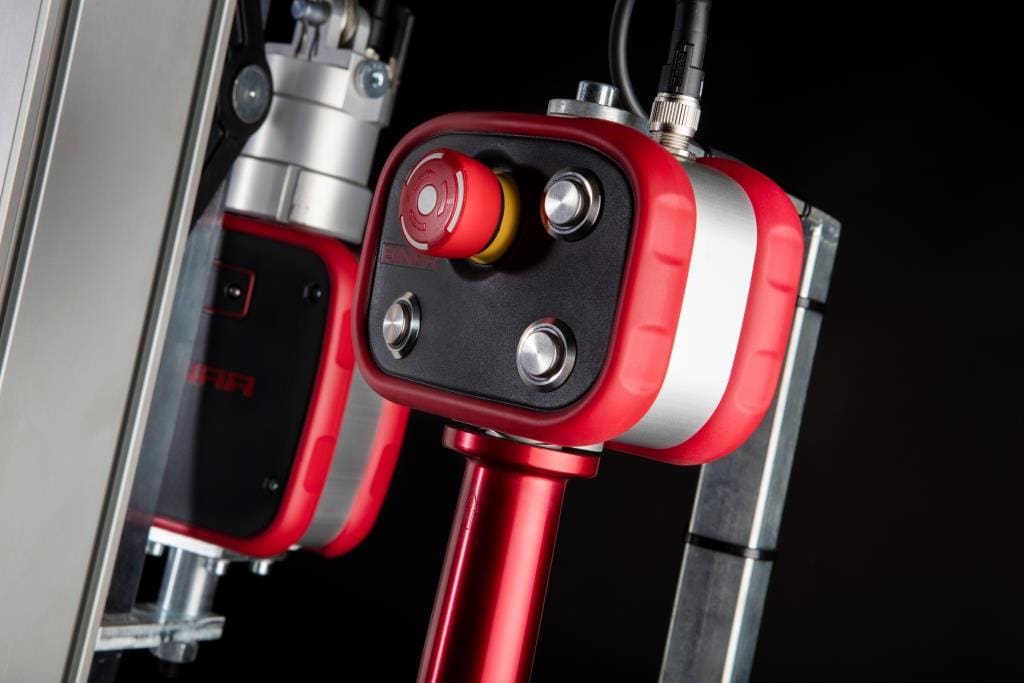

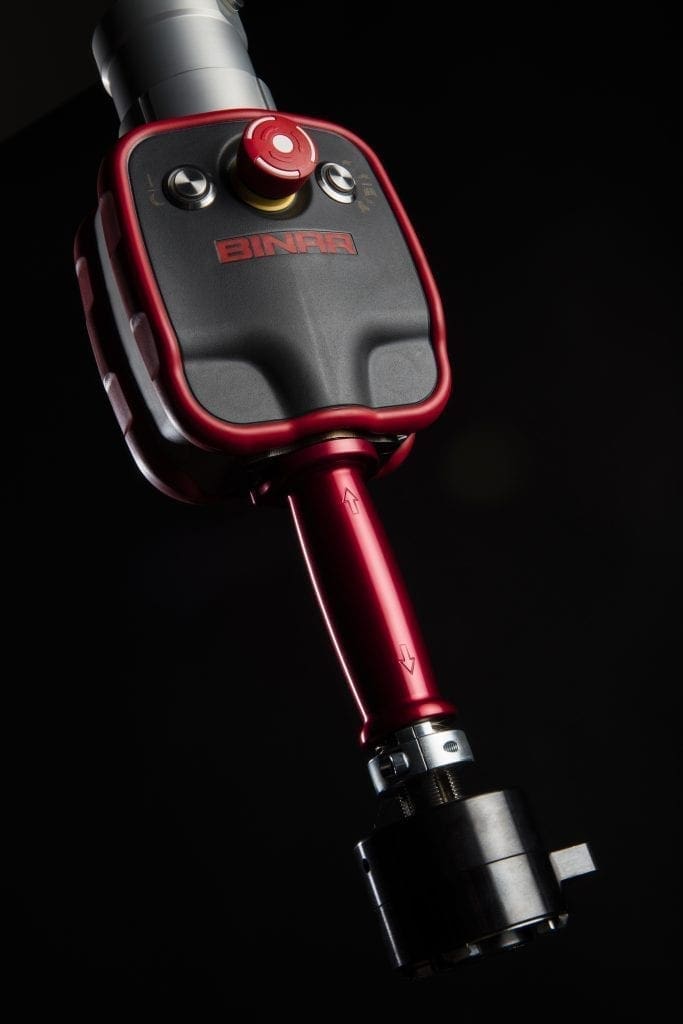

The manoeuvre handle senses the up and down force from the operator. The lifting motion of the motor then reflects this force. Regardless of the load, only 20 grams of operating force is required to lift loads up to 300 kg. When the handle is released the load is in balance allowing the operator to use both hands to move the load freely, with minimal force. The handle is attached to the gripping device and is close to the load to increase operator feel and awareness.

Clear

Additional Information

The Quick-Lift Rail can be suspended from our MechRail and Gorbel crane profiles for an ultimate solution. Alternatively, the Quick-Lift Rail can be mounted onto an existing crane rail system. Various standard lifting attachments [hooks and grabs] are available including customised end effectors for a push-button actuated gripping solution.

The key to a good lifting solution is precision, speed, and most of all a comprehensive gripper. Most grippers are custom designed for each application. By offering a complete turnkey lifting solution, we provide unique and user-friendly devices that are easy to use, built to last and that will increase profitability.

How Easy Is This?

With just a feather touch on the patented lift handle and our Quick-Lift Rail System unit leaps into controlled action. Where the hand goes, so the load follow. It is truly the closest thing to the bionic hand since the TV series “Six Million Dollar Man”. When the manoeuvring handle is released the lifted product is in balance and can be lifted and lowered for precise positioning without the use of the control handle.

Models

The Quick-Lift Rail is available in two models:

  • QL R – an easily manually moving solution, for rail-mounted up and down control. No buttons are needed.
  • QL D – a unique driving motor unit, that follows the operator.  Ideal for larger working environments where speed, accuracy and simple movements are necessary.

Need something else?

For lightweight lifting, try our Quick-Lift Arm solution that features a lightweight articulated design. Or view our Quick-Lift Handles and Grippers range to find the best attachments for your device.

To view more information on this product, please see this link.

Product Variations

Image Description Product Code Price (excl. GST)

Quick Lift Rail QLR 50i
50kg capacity

L101200

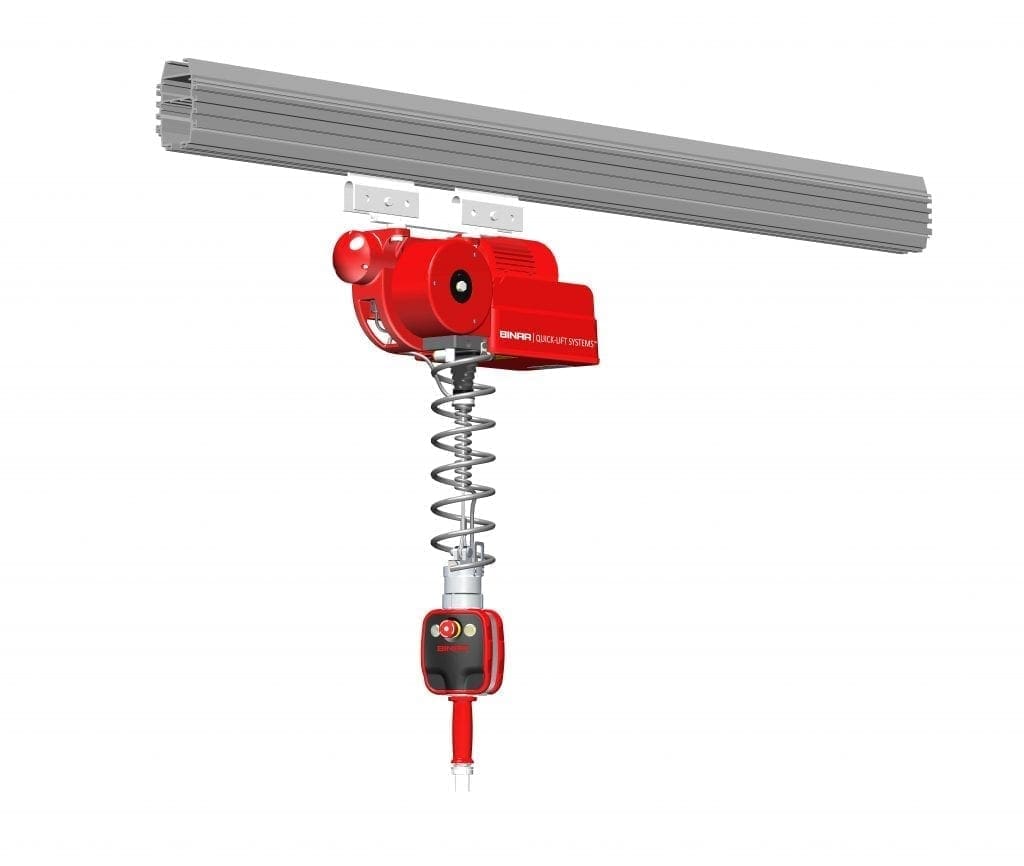

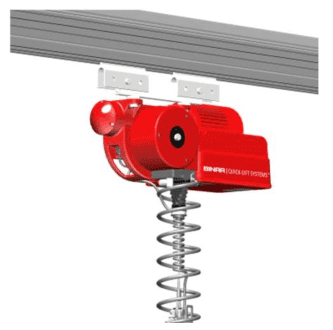

Quick Lift Rail QLR 125i
125kg capacity

L101201

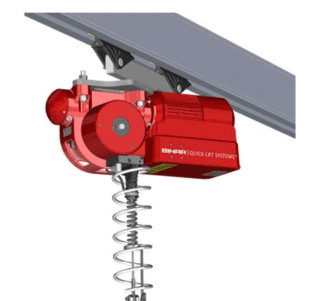

Quick Lift Rail QLR 200i
200kg capacity

L101202

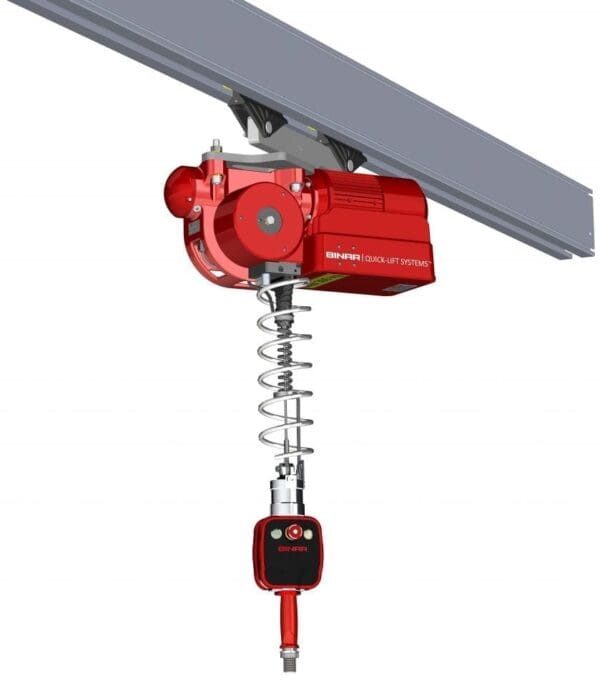

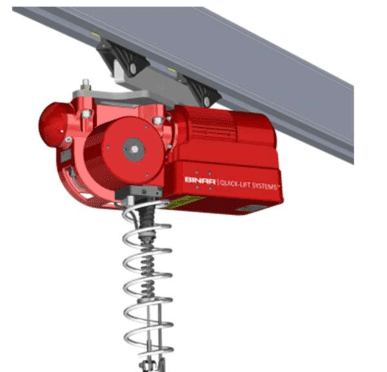

Quick Lift Rail QLR 300i
300kg capacity

L101203

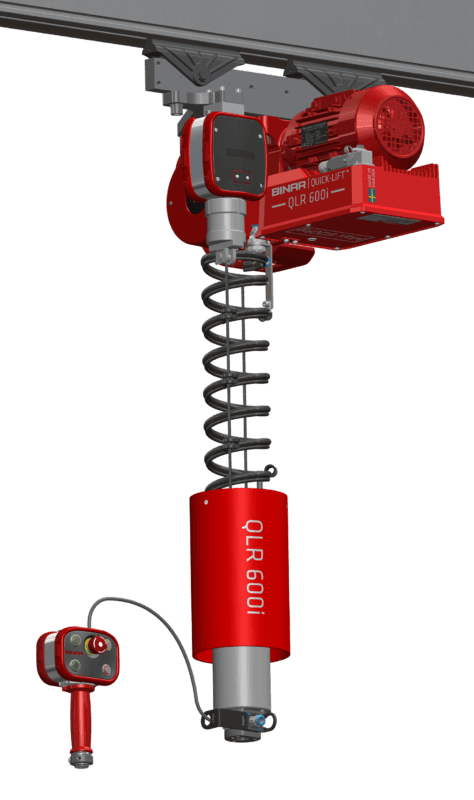

Quick Lift Rail QLR 600i
600kg capacity

L101206

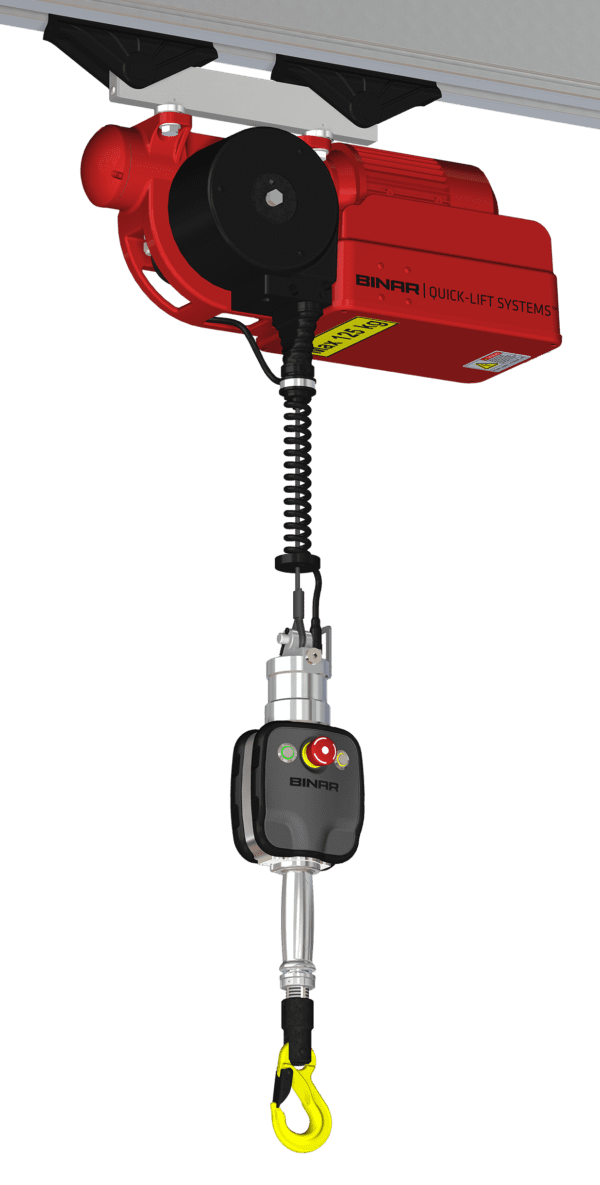

Black Line QLR 125i
125kg capacity

L101251

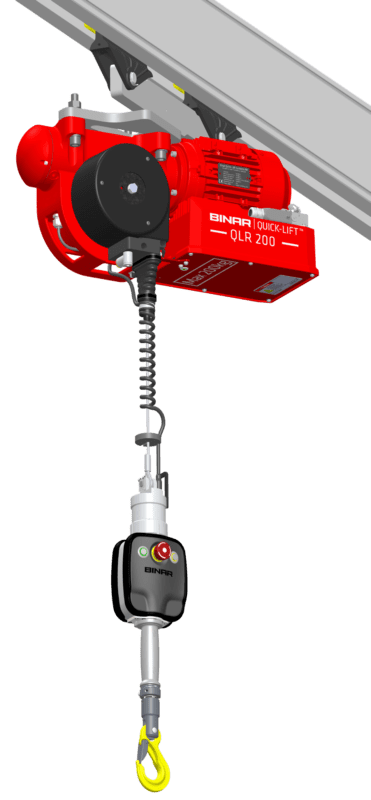

Black Line QLR 200i
200kg capacity

L101252

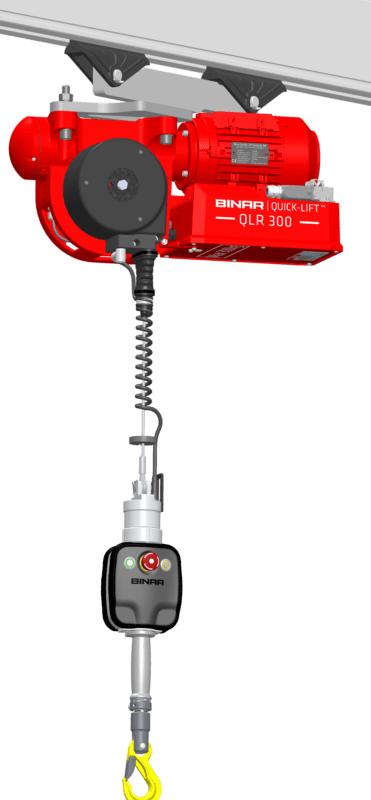

Black Line QLR 300i
300kg capacity

L101253

Hook fixed to the handle articulated with spring locking M25x1.5
300 kg capacity

L013850

Safety hook articulated with spring locking
Use together with quick-coupling L012903

L013141

Safety hook articulated with safety latch
Use together with quick-coupling L012903

L012061
agg.5
