Quick-Lift Handles and Grippers

+ Add to Quote Request

Our range of Quick-Lift Handles allow you to easily control and move loads. Their ergonomic design features a handle that becomes an extension of your own hand. This inventive mechanism then converts movements into electronic signals. Moving the handle up raises goods, and alternatively, moving the handle down lowers goods. Adjust the handle (or gripper) slightly and the device responds immediately.

Quick-Lift Handles and Grippers lift capacities up to 300 kg. With the highest precision, they smoothly position products as per project requirements. Each device uses minimal hand strength and is available in a number of configurations to suit multiple applications.

Our Handles and Grippers are designed to be used in conjunction with the Quick-Lift Arm and Quick-Lift Rail.

Clear

Additional Information

A number of Quick-Lift Handles and Grippers available for your requirements!

We have a number of control handles that can easily integrate with any Quick-Lift system. Each device is ergonomic to use and helps improve the safety and efficiency of any working environment. Thanks to their incredible responsiveness, each device is simple to use. They feature accessible buttons with various operational functions. Quick-Lift Handles and Grippers are cost-effective, durable and extremely reliable. They are strong, innovative and provide a quick handling solution.

Choose the right Quick-Lift Handles to suit your application.
Quick-Lift Handle Basic Specifications:

This L012842 basic model achieves a high degree of safety with its intelligent control. A unique integrated mechanical and electrical swivel enables continuous rotation of the handle. It features an automatic power save mode, smooth lifting operation and auto-balance mode (or float mode), for when the operator moves the load up or down. This device is suited for mechanical end effectors (gripping tool).

  • Load Capacity – 300 kg
  • Weight – 2.6 kg
  • Length – 420, 575 or 875 mm
  • Width – 137 mm
  • Depth – 107 mm

Functions include emergency stop, left button for toggling between power save and operating modes and right button for activating auto-balance/float mode. End effectors can be attached to the control handle via an outer thread.

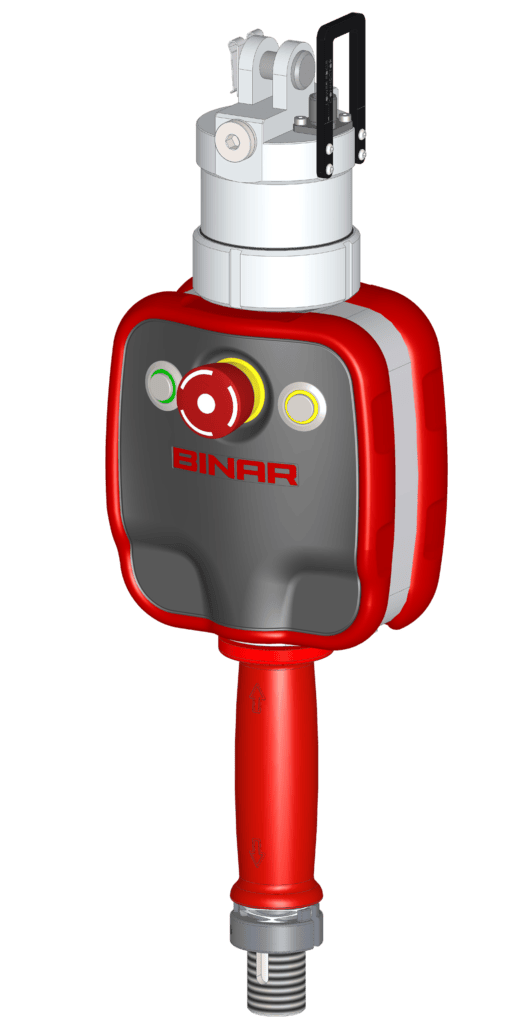

L012842 Basic Quick-Lift Handles

L012842 Basic Quick-Lift Handles

Quick-Lift Handle with Push-Button Vacuum Specifications:

The L012843 achieves safe handling with its intelligent design. Smooth lifting is performed when the handle is moved up and down. Auto-balancing/float mode ensures the load is transported quickly when the operator moves the product up or down. The control unit also features an electronically controlled gripping function for grip or release when the workload is not affecting the end effector (gripping tool).  An automatic power-save mode is included. L012843 also features a blow-off function, which allows the object to be quickly and safely released when requested by an operator. And the L012843 has an atmospheric pressure function, which prevents a self-generated vacuum that can occur if the vacuum cups are pressed down against a surface.

  • Load Capacity – 300 kg
  • Weight – 3.2 kg
  • Length – 420, 575 or 875 mm
  • Width – 137 mm
  • Depth – 155 mm

Functions include an emergency stop button, the upper left button toggles between power save and operating mode, upper right button activates auto-balancing mode, and lower buttons are for grip and release functions. Optional adaptors for old end effectors or with holes for air hoses are available, as well as quick-coupling additions.

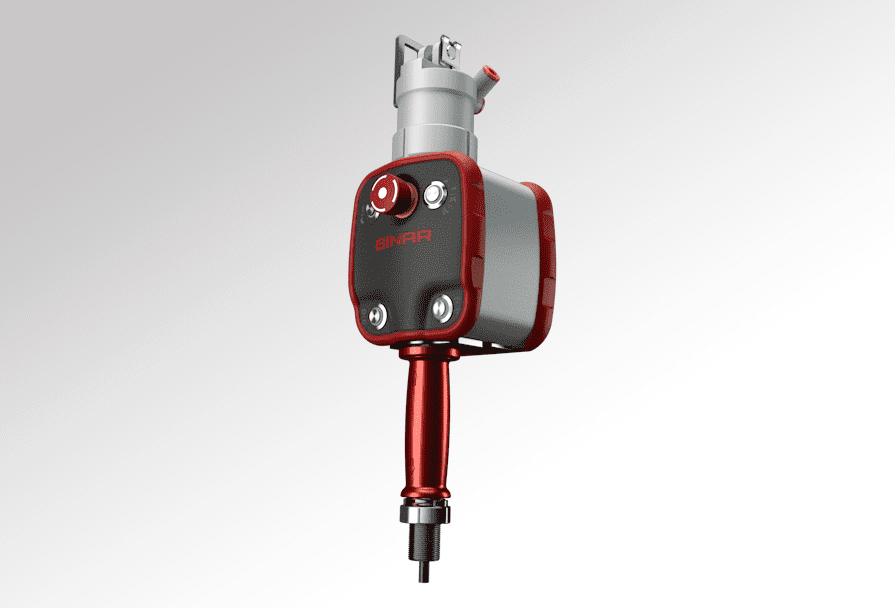

L012843 Quick-Lift Handles with Vacuum Ejector

L012843 Quick-Lift Handles with Vacuum Ejector

Quick-Lift Handle with Pneumatic Cylinder:

The L012844 is ideal for pneumatic or mechanical end effectors (gripping tools). It includes handle mode (for smooth up and down lifting), auto-balance and float mode (for similar smooth up and down operation) and automatic power saving mode. The device has electronically controlled gripping functions as well, to allow grip or release, when the workload isn’t affecting the end effector. It features an integrated pneumatic cylinder for grip/release functions. Unique integrated, mechanical, electrical and pneumatic swivel allows for continuous rotation. Pre-connected electrical wires are to be used with an inductive sensor for correct grip (not included).

  • Load Capacity – 300 kg
  • Weight – 4.8 kg
  • Length – 420 mm (excluding moving piston rod), 505 mm (including a recessed piston rod) and 530 mm (including an extended piston rod)
  • Width – 137 mm
  • Depth – 196 mm
  • Cylinder – ø 50 mm
  • Stroke – 25 mm

Functions include emergency stop, an upper left button for toggling between power save and operating modes, an upper right button for activating the auto-balance mode and lower buttons for grip and release functions. Option handle lengths are available upon consultation.

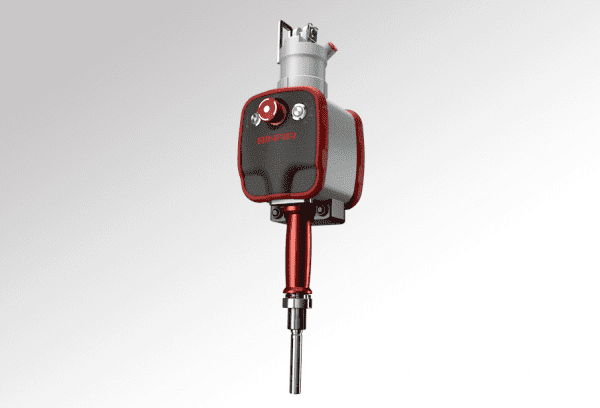

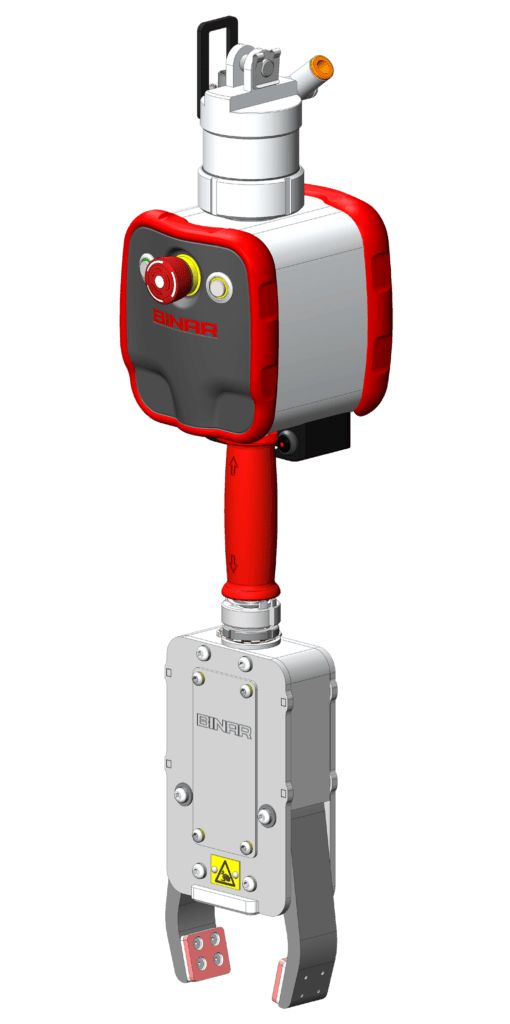

L012844 Quick-Lift Handles with Pneumatic Cylinder

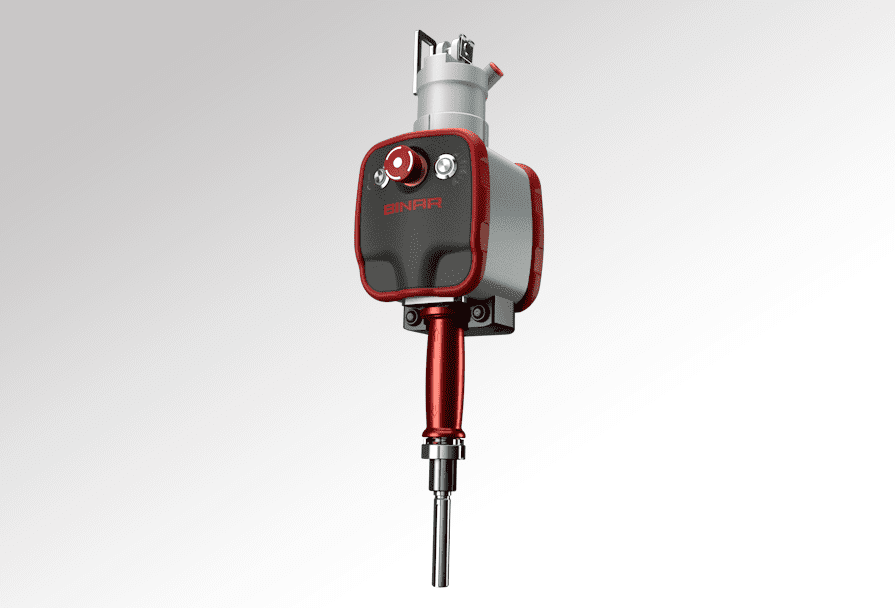

L012844 Quick-Lift Handles with Pneumatic Cylinder

Quick-Lift Handle with Push-Button Air Valve Specifications:

The L012845 model achieves safety with its intelligent control and grip/release functionality. Smooth lifting is performed whenever the handle is moved up or down. Auto-balance modes or float modes are also incorporated. This device features pre-connected internal valves for electronically controlled grip/release functions. It is suited for pneumatically actuated end effectors (gripping tools).

  • Load Capacity – 300 kg
  • Weight – 3.3 kg
  • Length – 420, 575 or 875 mm
  • Width – 137 mm
  • Depth – 125 mm
  • Includes pneumatic valve – type 5/2
  • Prepared with two 6/4 mm hoses for connection to grip/release functions on the end effector. Pneumatic cylinder not included.

Functions include emergency stop, upper left for toggling between power save and operating modes, upper right for activating the auto-balance mode and lower buttons for grip/release functions. Optional adaptors are available for control handle and quick-coupling.

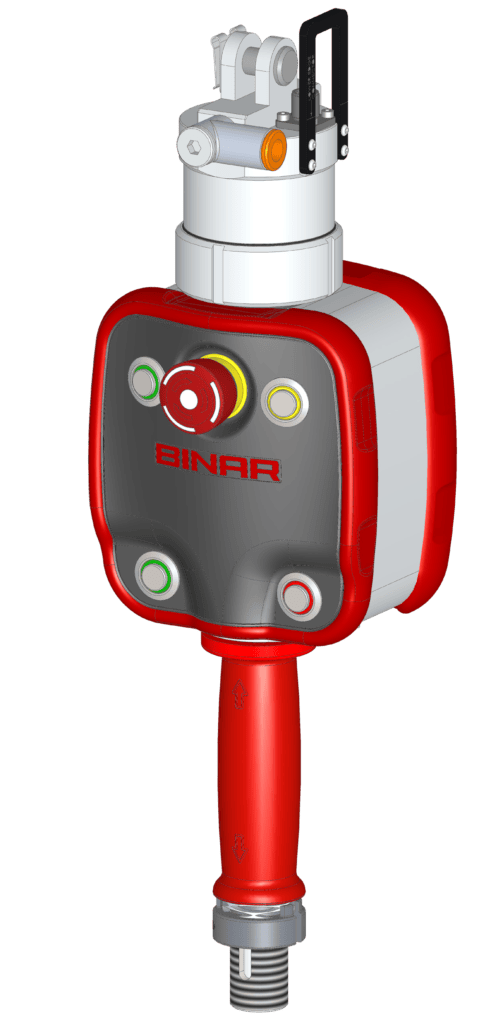

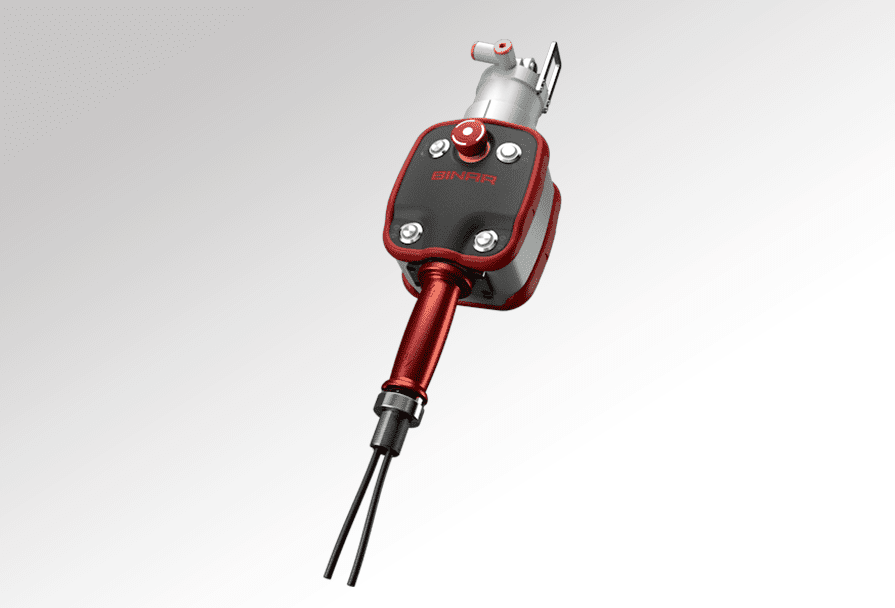

L012845 Quick-Lift Handles with Pneumatic Valve

L012845 Quick-Lift Handles with Pneumatic Valve

Quick-Lift Handle with Vacuum Gripper:

The L012765 Vacuum End Effector is hinged and can be rotated 90o degrees to a vertical position. For normal use on flat, dense and non-greasy materials. When integrated with the Quick-Lift system it is efficient, strong and easy to use. The gripper utilises 2x safety for each lifting object. This handle is actuated by the lower buttons on the control handle. As a standardised unit, the corresponding Quick-Lift Arm/Rail should be specified at order.

  • Load Capacity – 85 kg (Horizontal) and 60 kg (Vertical)
  • Weight – 9 kg
  • Length – 350 mm between centre points of suction caps
  • Width – 183 mm
  • Height – 572 mm
  • Recommended vacuum level at 60 kPa
  • Air Supply – Clean dry air, filtered, pressure 6-8 Bar

Control functions include an emergency stop push button, manoeuvre button with grip and release, manoeuvre handle for up and down movement and handle for manual tilt. It also has a wire attachment, with a tiltable configuration. Features built-in blow-off function, atmospheric pressure function and warning for insufficient vacuum.

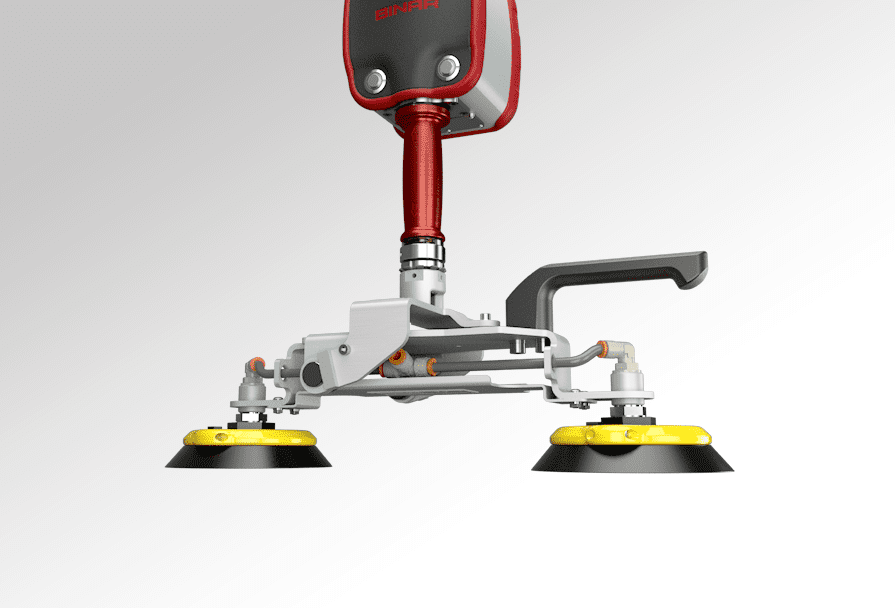

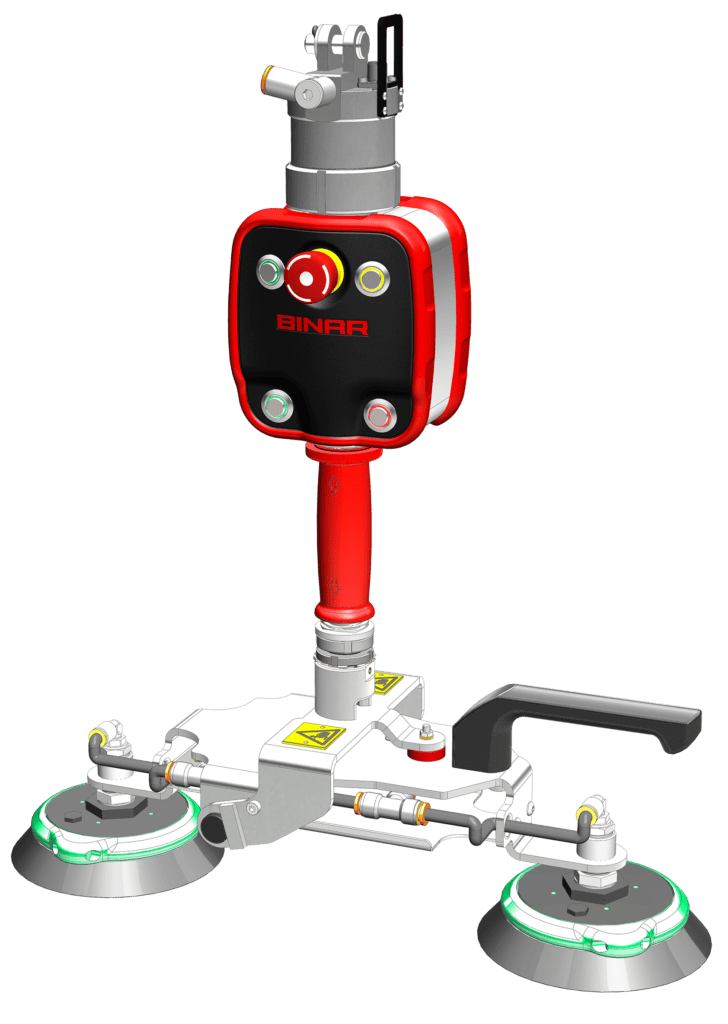

Quick-Lift Handle with Vacuum Gripper L012765

Quick-Lift Handle with Vacuum Gripper L012765

Quick-Lift Handles with Quick Coupling:

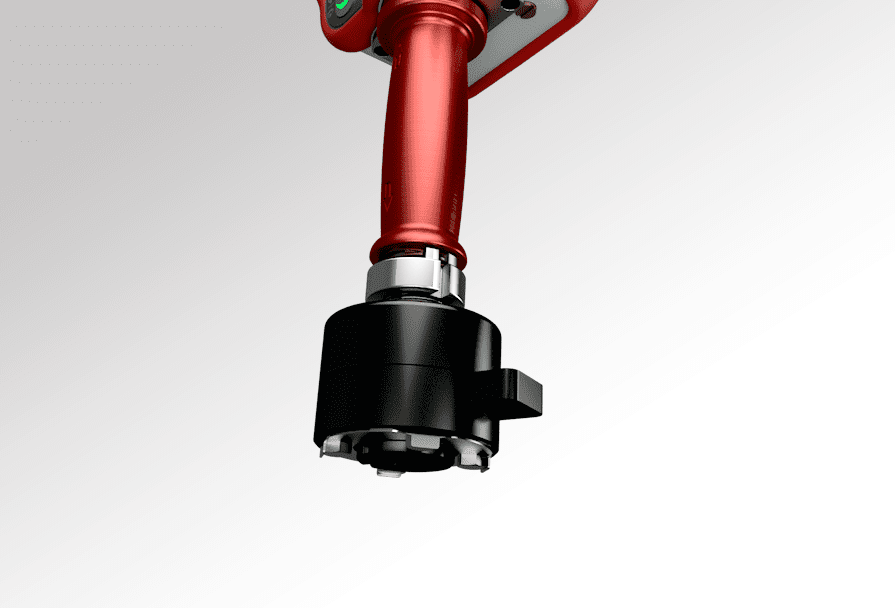

The L012903 is used primarily to attach mechanical end effectors to control units. It is reliable for the quick and easy handling of tools that have a quick-coupling pin. It’s a basic piece that screws into the bottom of a control handle. It allows for fast removal and adding of components. As shown in the picture, this is the handle with the quick coupling.

  • Load Capacity – 300 kg
  • Weight – 1.3 kg
  • To be attached to the control handle threads
  • Options – quick-coupling pin

Applicable on Quick-Lift control handles for mechanical end effectors, control handle with pneumatic 5/2 valve and control handles with a vacuum ejector.

L012903 Quick-Lift Handles with Quick Coupling

L012903 Quick-Lift Handles with Quick Coupling

Quick-Lift Handle with Magnetic Gripper:

The L013280 is an ergonomic tool that uniquely integrates a mechanical, electrical and pneumatic swivel for continuous rotation of the handle. This attachment is easy to use, strong and reliable. The maximum lifting capacity depends on the shape of the object being lifted. As a note, the lifting capacity reduces when the centre of gravity of an object to be lifted is eccentric.

  • Lifting Capacity – depends on object being lifted.
  • Steel plate thickness – ≥15 mm max. 85 kg; 10 mm max. 70 kg
  • Magnetism can occur under steel plates <15 mm.
  • Round steel – ø 50-150 mm, Max. length 1000 mm, Max. weight 45 kg
  • The maximum temperature of lifting object is 50°C
  • Air Supply – Clean dry air, filtered, pressure 6-8 bar is required.

The Magnetic end effector is actuated by lower buttons on the control handle (included). The handle features 5/2 pneumatic valve and swivel. Quick-Lift Rail / Arm system needs to be specified at the time of order. Required 3 x safety must be applied to each lifting object. Quick-couplings, pins and flanges are available as options.

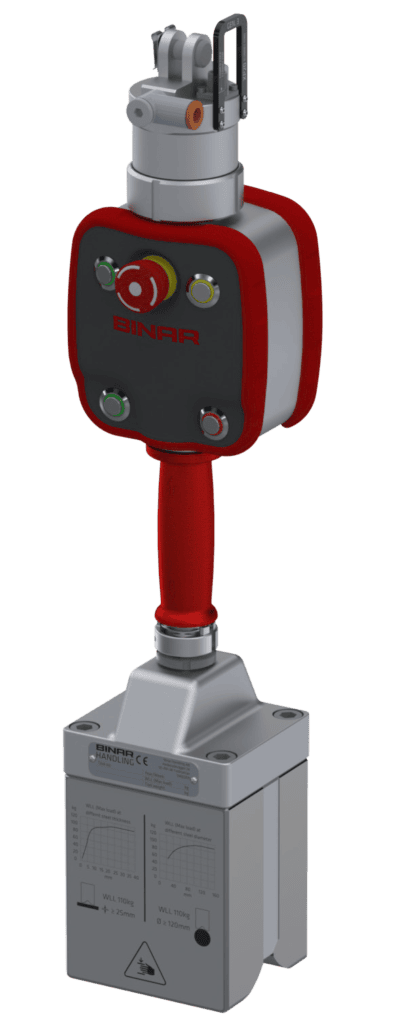

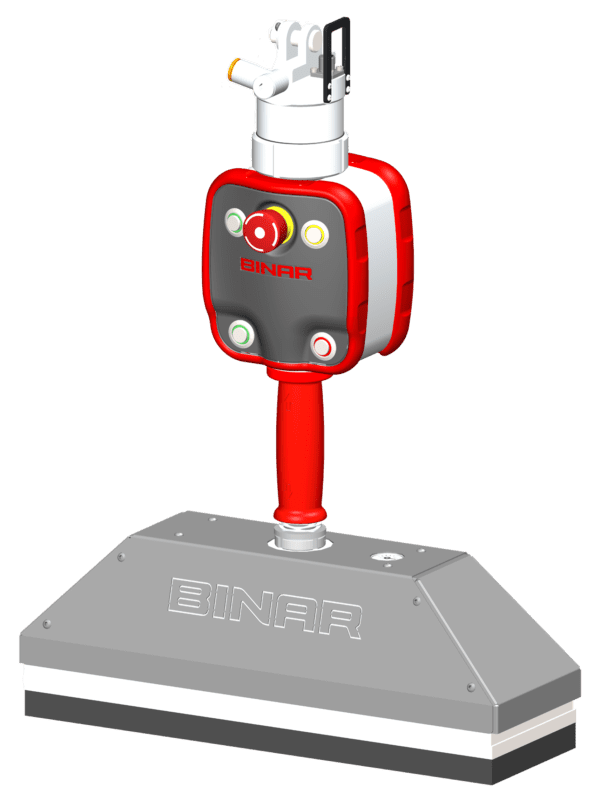

L013280 Quick-Lift Handle with Magnetic End Effector

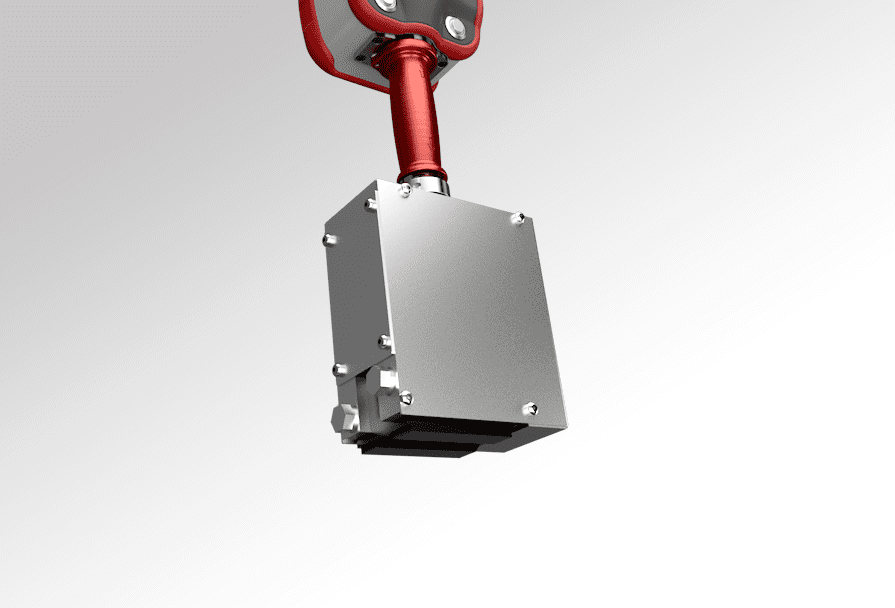

L013280 Quick-Lift Handle with Magnetic End Effector

Quick-Lift Handles and Hooks:

Our range of Quick-Lift hooks are to be used with a Quick-Coupling attachment or when a fixed installation to a control unit is required. They are each rated with a Safety Class 8 and are to be used for loads up 300 kg. Each hook weighs 0.6 kg. The L012061 Hook is articulated with a safety latch, the L013141 Hook is articulated with spring locking and the L013850 is a fixed hook articulated with spring locking (M25x1.5). Both L012061 and L013141 are to be used with quick-couplings and L013850 is for fixed installations.

L012061 Safety Hook (Quick-Lift Handles and Grippers)

L012061 Safety Hook

L013141 Hook (Quick-Lift Handles and Grippers)

L013141 Hook

L013850 Fixed Hook (Quick-Lift Handles and Grippers)

L013850 Fixed Hook

Product Variations

Image Description Product Code Price (excl. GST)

Quick Lift handle basic

L012842

Hook fixed to the handle articulated with spring locking M25x1.5
300 kg capacity

L013850

Quick Lift quick coupling for handle

L012903

Safety hook articulated with spring locking
Use together with quick-coupling L012903

L013141

Safety hook articulated with safety latch
Use together with quick-coupling L012903

L012061

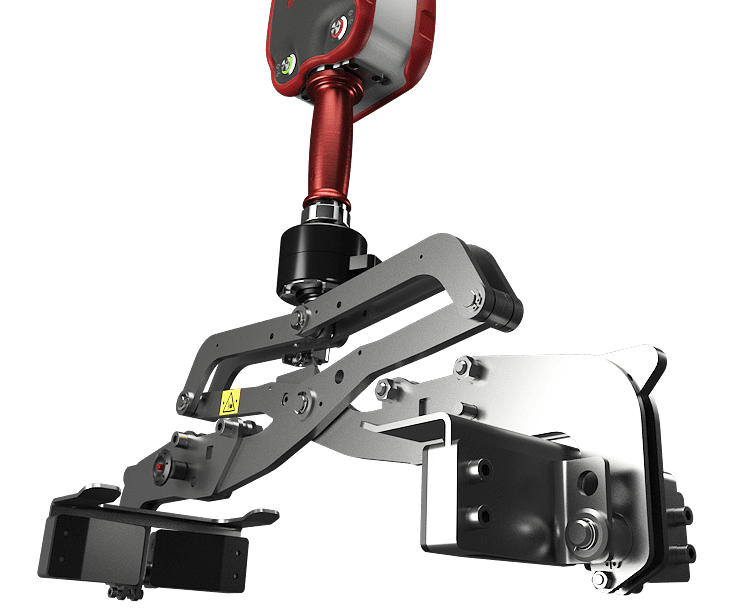

Scissor Grab flat type
275-340mm gripping range
200mm wide grip face

LSZ2342

Quick Lift handle with vacuum gripper capable of manual tilting from hoz-vert
Capacity 85kg in hoz and 60kg in vert

L012765

Quick Lift handle with push-button operated magnet
Capacity 85kg (requires pneumatic supply)

L013280

Quick Lift handle with push-button actuated vacuum generator inside

L012843

Quick Lift handle with push-button air valve to switch pneumatic supply on/off to gripper

L012845

Quick Lift handle with pneumatic cylinder

L012844

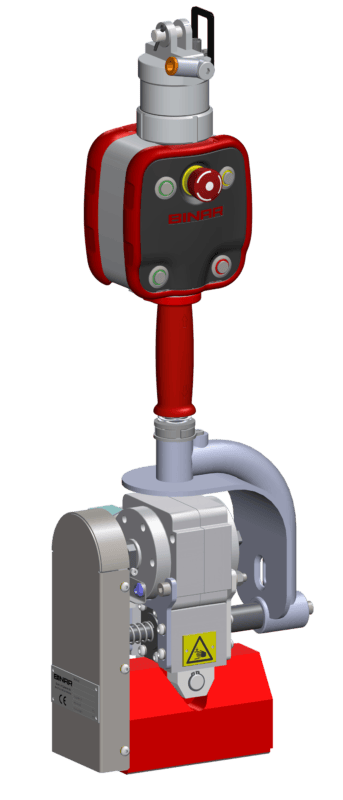

Quick Lift handle with push-button operated magnet
Capacity 275kg (requires pneumatic supply)

L012699
