+ Add to Quote RequestOur MegaDumper Bin Tipper is an incredibly safe and economical, heavy-duty industrial bin tipper. With a modular design, it suits a great range of applications including emptying rubbish into compactors and pouring ingredients into mixers. It easily lifts and tips Wheelie Bins or Pallet Bins of almost any size to empty the contents.
Featuring a unique tipping action, the MegaDumper provides high stability, a small workplace ‘footprint’, and various tipping heights to suit specific requirements (from 900 mm to more than 6 m). Ideal for emptying 660 L and 1100 L bins, the MegaDumper has been designed for safe handling and productive waste management.
The unit has an electro-hydraulic mechanism, with a full cage and mesh guarding structure. Unlike other similar bin tippers, the MegaDumper does not have a dangerous swing arc and is highly versatile.
Additional Information
The MegaDumper Bin Tipper is a robust and simple waste management solution!

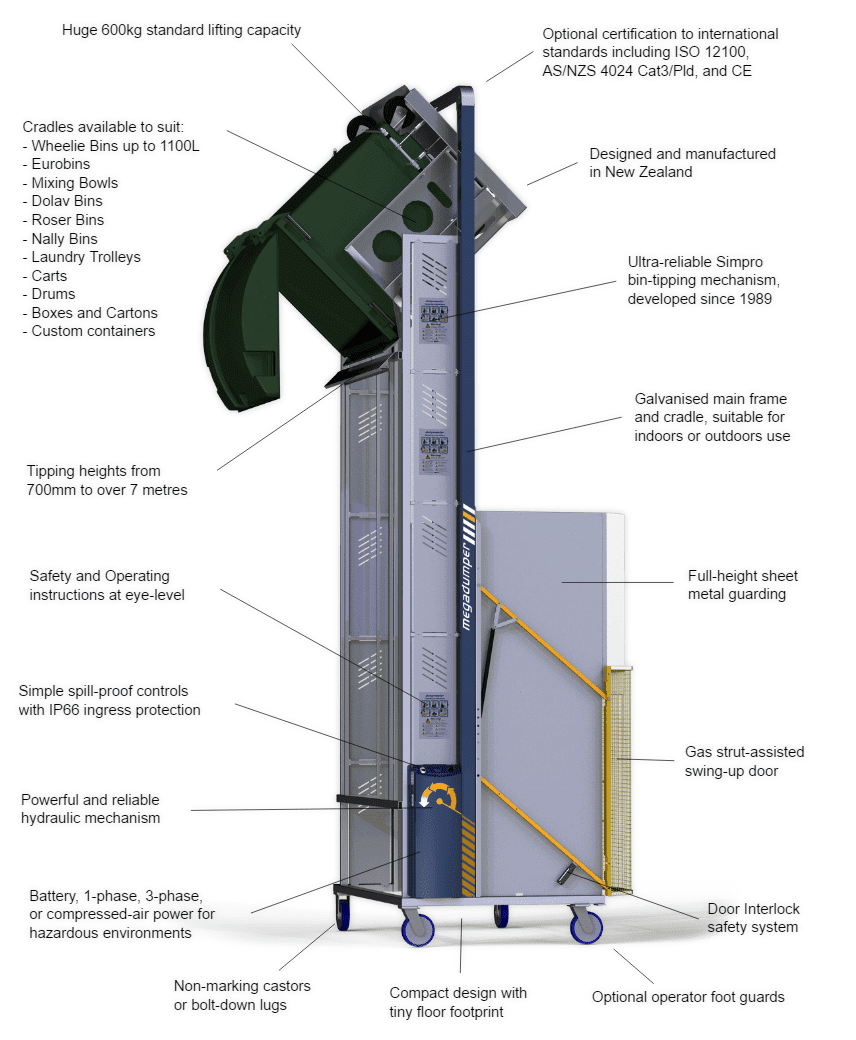

As an integral part of workplace operations and waste management procedures, the MegaDumper was designed for safety from the ground up. The full height and swing-up door allows for secure loading. The unit also features an interlocking safety system for segregated and strong operation. It complies with relevant Australian Standards and can be customised to tip any container.
Suitable for indoor or outdoor use, the MegaDumper has a compact design with a tiny floor footprint. MegaDumper Bin Tippers come with an inbuilt charger, interlocking door switch and a disabling key switch (to stop unauthorised persons from accessing the machine). Cradles are available to suit wheelie bins up to 1100 litres, Laundry Trolleys, Carts, Drums, Boxes and Cartons and Containers. They are supplied as a standard battery-operated model, however, mains power-sourced bin tippers are available. Choose from a variety of lifting heights.
Choose the right MegaDumper for your application.Â

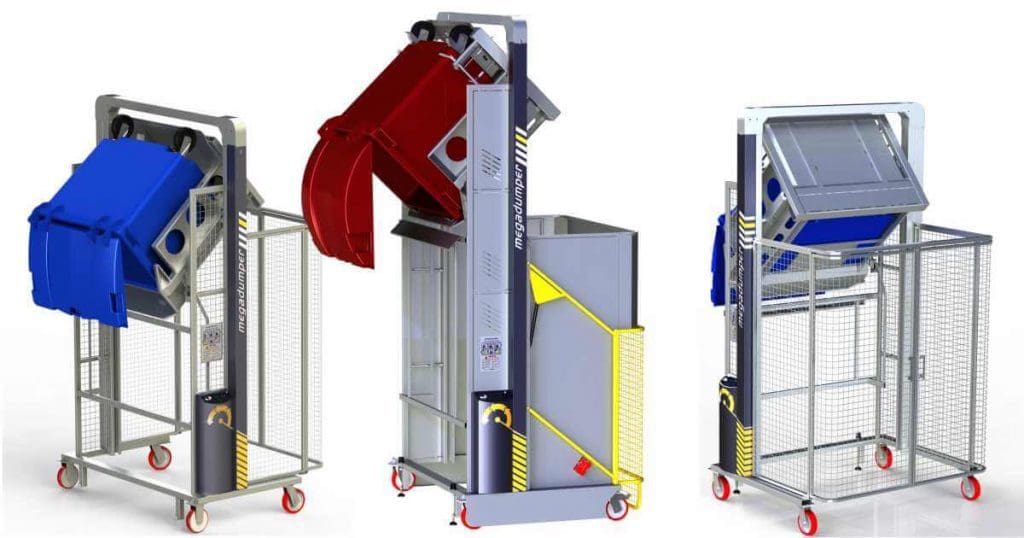

There are different variations of the MegaDumper available for tipping standard Wheelie Bins, 660L Wheelie Bins, 1100L Wheelie Bins and our units for dumping MegaBin pallet bins.
Specifications:Â
- Lifting Capacity – up to 600 kg
- Lifting Heights –Â Up to 3000mm
- Performance – 25 tonne per day
- Power Source – Battery-powered, single-phase 240V or three-phase 415V (compressed-air powered also available)
- Safety-rated enclosure
- Optional Pallet Bin Cradle and other customisations available

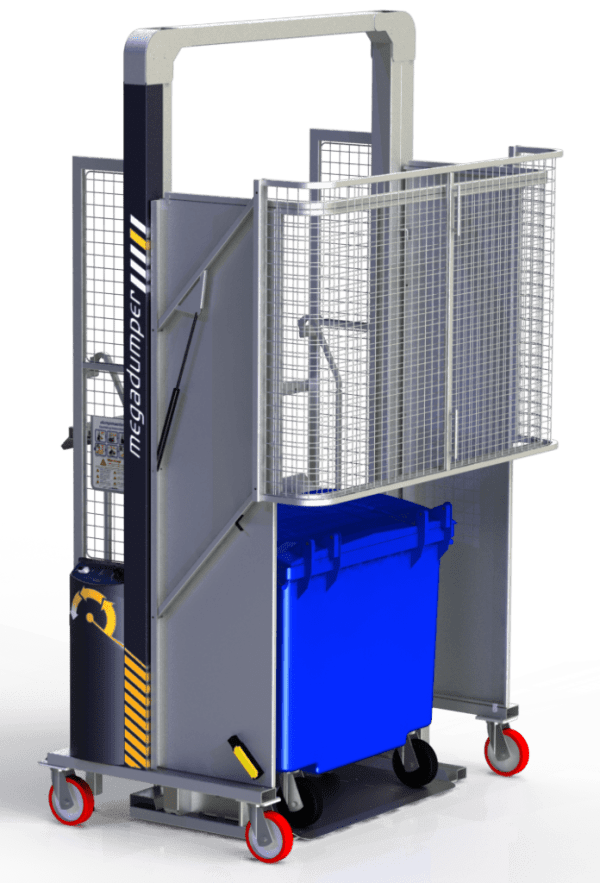

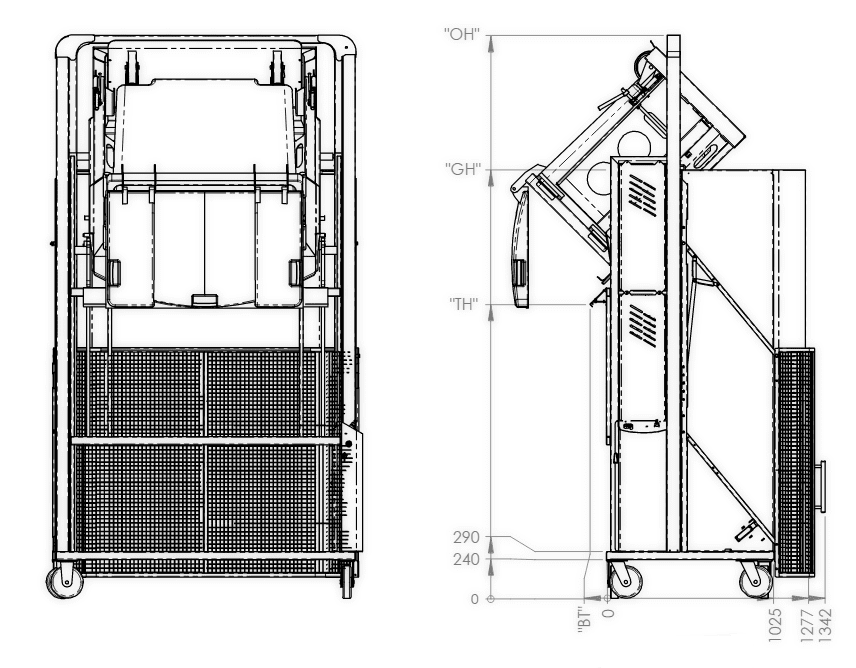

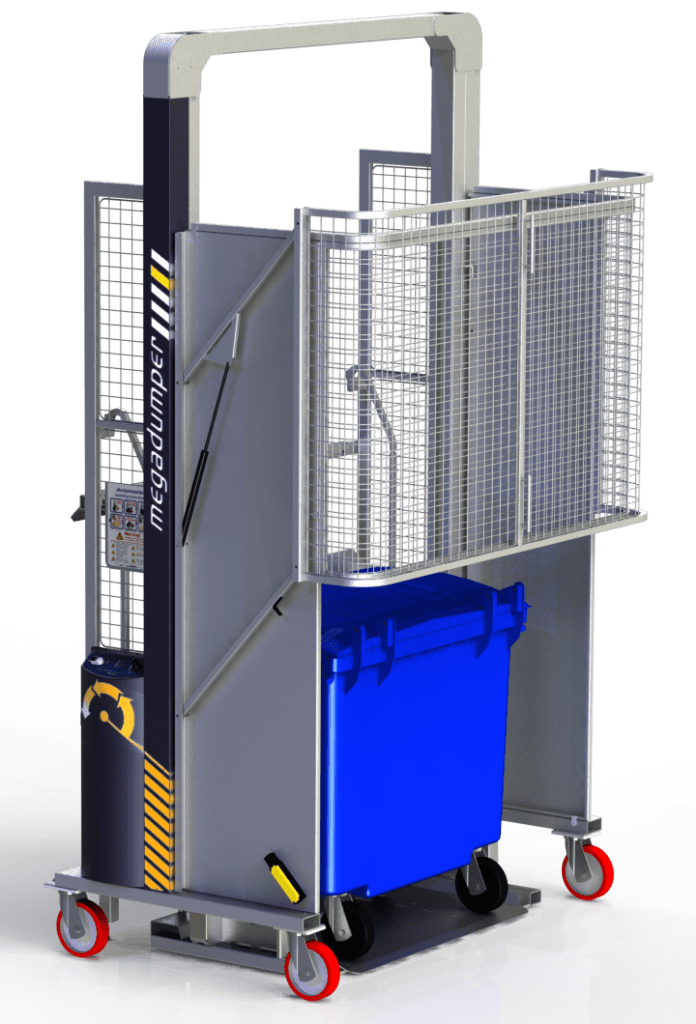

For Bins up to 660 L:
- Tipping Heights – 1200, 1500, 1800, 2100 mm and customised
- Bin sizes 1 x 660 litres or 2 x 240/140/120/80 litres
- Guarding Height – 2635 mm
- Overall Height – 2855, 3155, 3455, 3755 mm and customised
- Length (door closed) – 1342 mm
- Length (door open) 1592 mm
- Width – 1874 mm

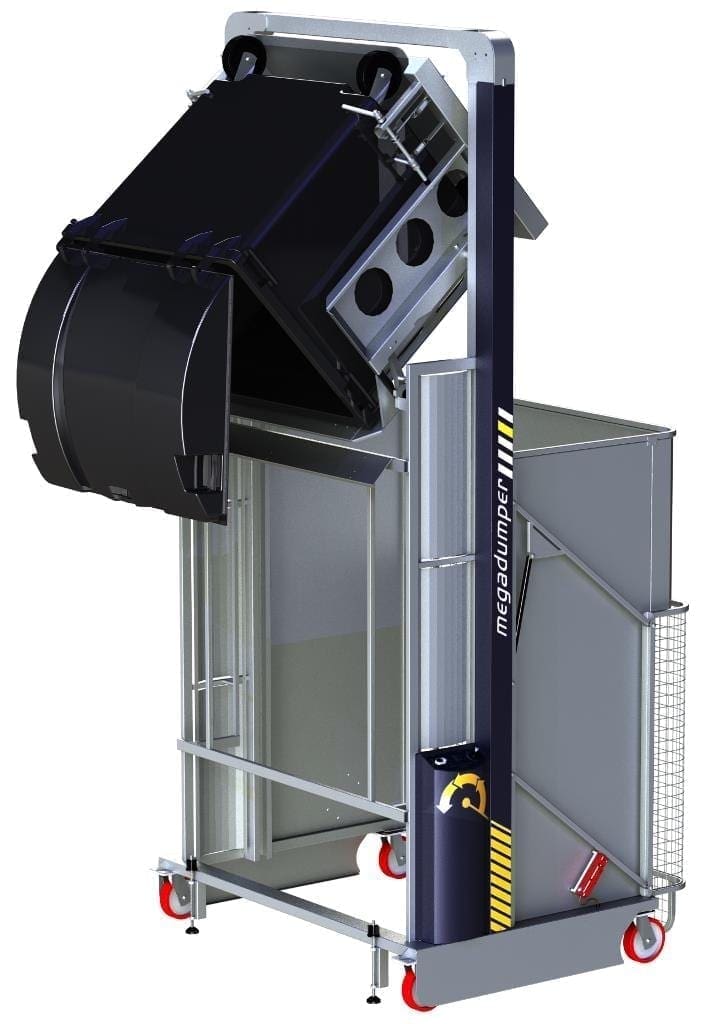

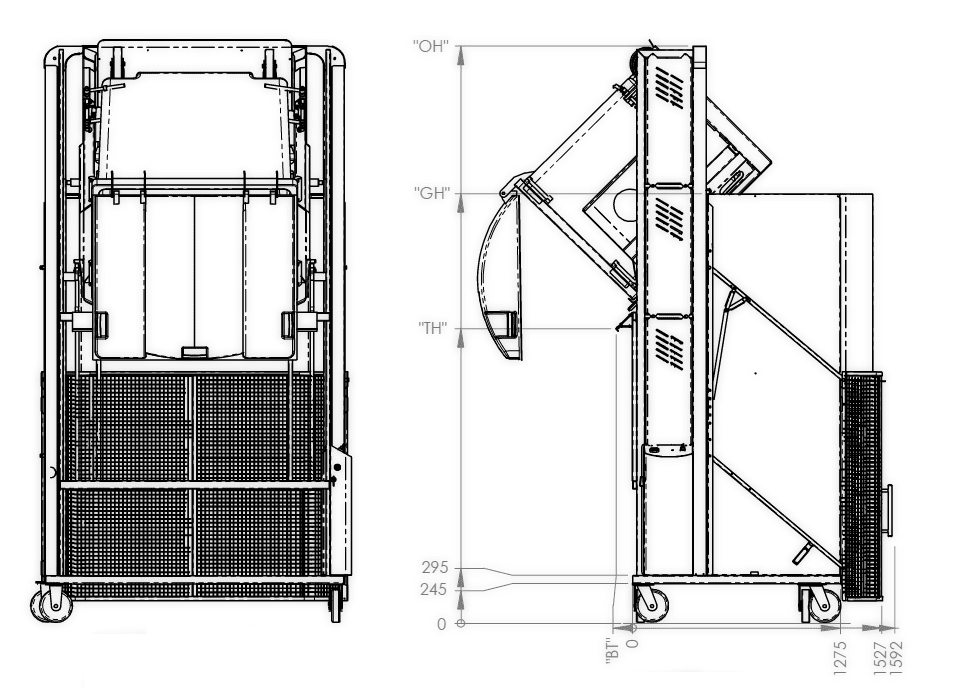

For Bins up to 1100 L:
- Tipping Heights – 1200, 1500, 1800, 2100 mm and customised
- Bin sizes 1 x 1100/660 litres or 2 x 240/140/120/80 litres
- Guarding Height – 2635 mm
- Overall Height – 2940, 3240, 3540, 3840 mm and customised
- Length (door closed) – 1592 mm
- Length (door open) 1842 mm
- Width – 1874 mm
Available with a range of optional accessories!
The MegaDumper supports a range of customised options and accessories to ensure the unit fits your required activity.
- Bin Weight – capacities can be engineered on request
- Tipping Heights – from 700 mm to 7 m
- Power Supply – single-phase, three-phase, battery or compressed air
- Cradles available to suit all common industrial containers
- Custom cradles can be designed for unique applications
- Full or partial stainless steel construction for hygiene-critical, food-grade or corrosive environments
- Frame-mounted chute for applications where the unit cannot be placed against a skip or hopper
- Optional standards certification – certified machines include a double interlock door, electronic evaluation unit and additional guarding panels
- Auto-cycle and other programmable behaviours
- Solar power or battery-powered options
- Digital scales
- Guarding – steel mesh, transparent or sheet metal

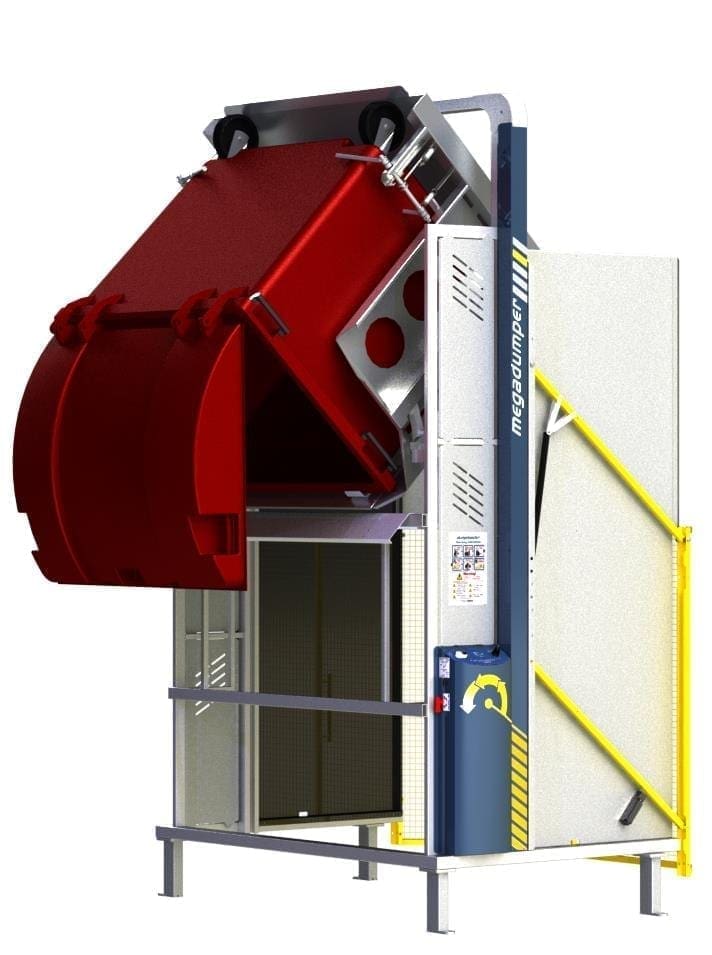

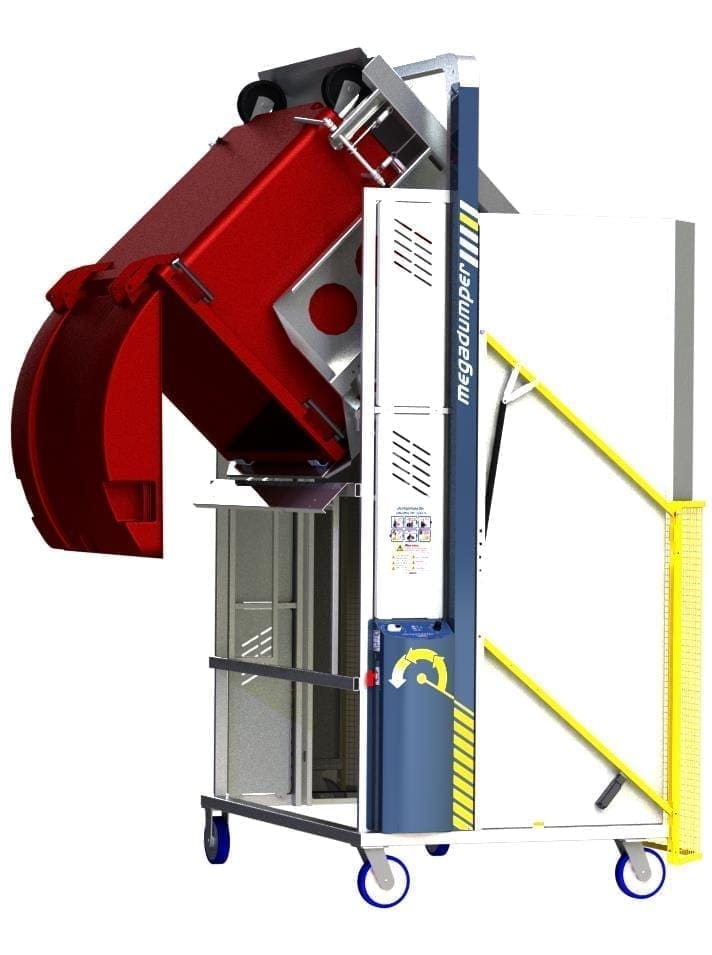

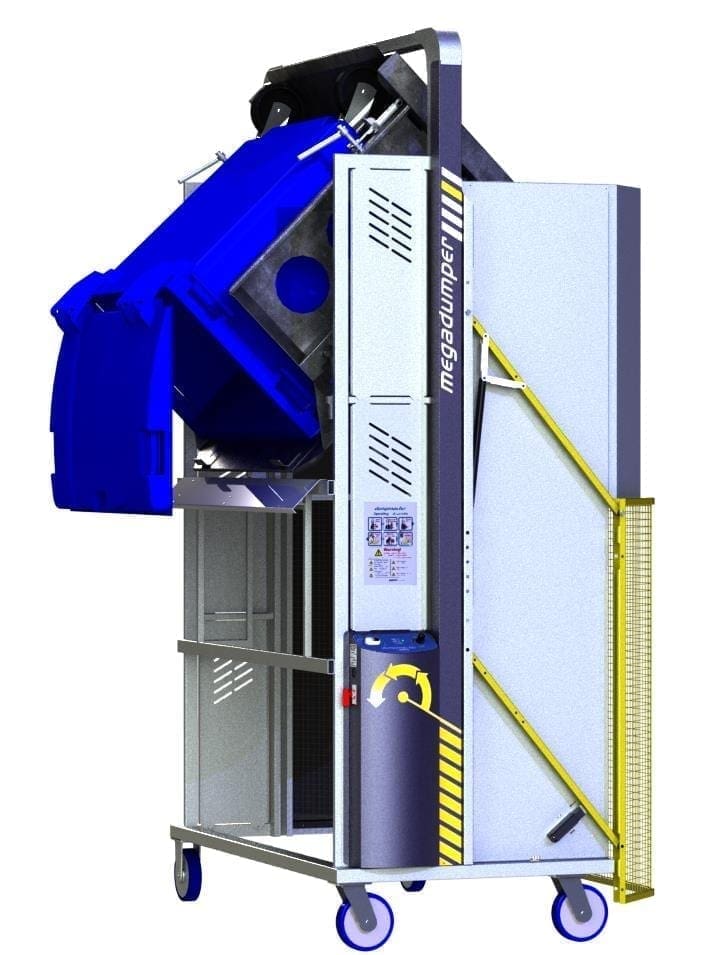

- Mounting – castor wheels or bolt-down lugs
Require a smaller model?Â
View our Dumpmaster Bin Tippers perfect for lifting bins of 80-240 litres. Alternatively, browse our great selection of Wheelie Bin Tippers.
