Forklift Tow Jib

MH FST200 Tow Jib tow ball watermark copy

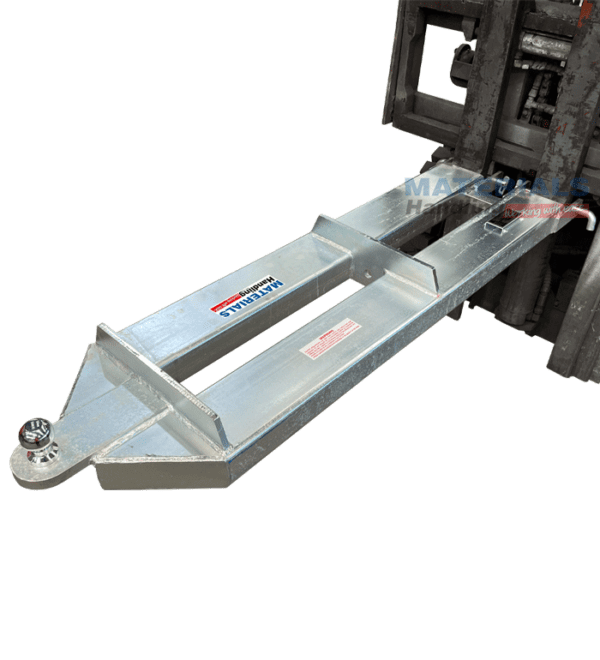

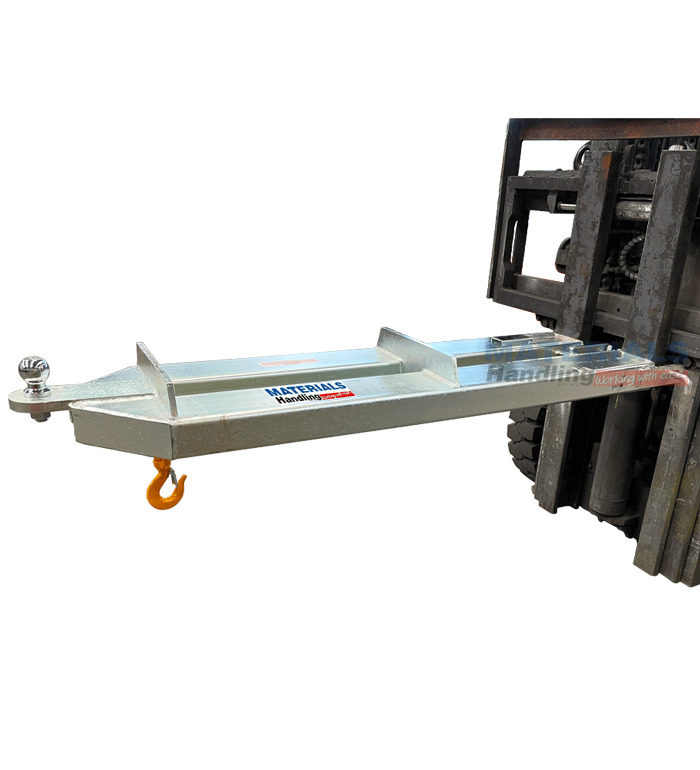

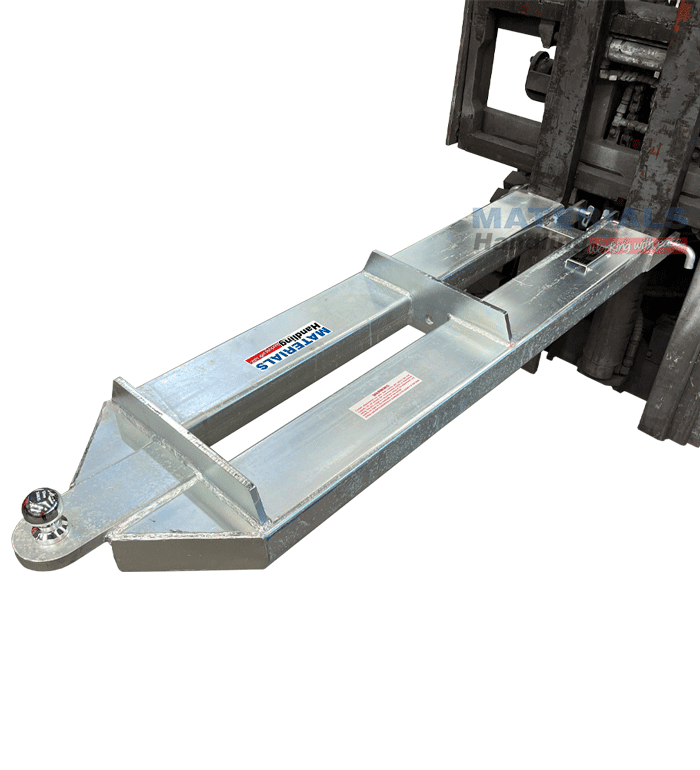

The MFST200 SLIP ON TOW JIB is a dual purpose unit allowing towing with the attached 50mm tow ball, and also is a 2000kg capacity jib complete with a safety swivel hook. There are two lifting hook positions and two fork locking pins secure the jib to the forks during operation.
Fully compliant to Australian standards.

SPECIFICATIONS:

Maximum weight on tow ball must not exceed 500kg
Lifting Working Load Limit: 2000kg at 1160mm load centre
Unit Weight: 45kg
Fork Pocket Size: 140 x 65mm
Fork Pocket Centres: 250mm
Fork Pocket Length: 1220mm
Overall dimensions: 1420 x 420 x 135mm
HCG 655mm
VCG -30mm
Durable Zinc finish

** Note that the towing of trailers by a forklift fitted with a tow jib can impose overturning forces on the forklift and additional force on the mast and braking system. The load being towed must be no greater than 25% of the mass of the forklift. Towing should be carried out in a slow, smooth and controlled manner and on level ground. Sharp turning must be avoided at all time to prevent jack-knifing of the trailer. **
