Lifting Beams

+ Add to Quote Request

Our Lifting Beams support heavy loads during overhead lifting applications. Thanks to their versatility and various lifting points, an operator can choose to either lift as a lifting beam or spreader beam. These alternative configurations allow various functionalities. That is, when using the centre hook point as a lifting beam, the beam has a lower headroom. When using as a spreader beam via the end hooks and a chain sling, the beam has a larger lifting capacity.

These devices are multi-tasking with use for crane and overhead lifting. Constructed in accordance with relevant Australian Standards, Lifting Beams are available in either a light model (LCEL2439), medium model (LCEM2439) or heavy model (LCEH2439). All units feature load connection points are adjustable to three positions.

Clear

Additional Information

Our Lifting Beams are a versatile solution for overhead handling!

These flexible lifting devices can either be used as a Lifting Beam or Spreader Beam. When used as a Lifting Beam, the load is supported by the centre hook point. This mode is ideal for lighter and shorter lifts that don’t require a lot of headroom. When used as a Spreader Beam, the load is supported by two end hooks and a 2 leg chain sling. This option evenly distributes the weight across the beam, making it ideal for very wide or heavy-duty loads.

Standard Features:

  • Multi-tasking; can be used as either a Lifting Beam or Spreader Beam.
  • Lifting Beam utilises the centre hook point.
  • Spreader Beam uses the end hooks with a 2 leg chain sling.

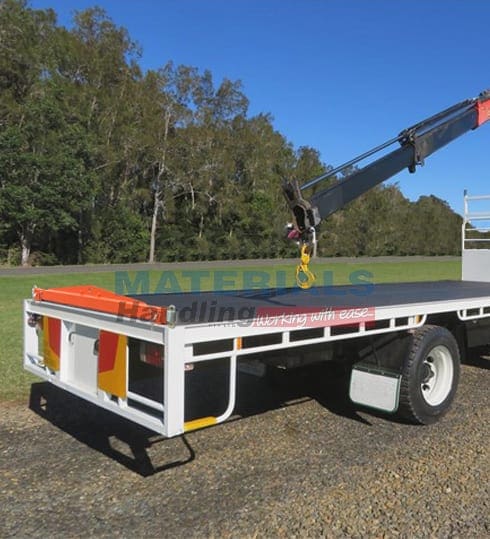

  • Supplied with retaining saddle brackets for storage on truck trays.
  • Load connection points are adjustable to 3 positions.

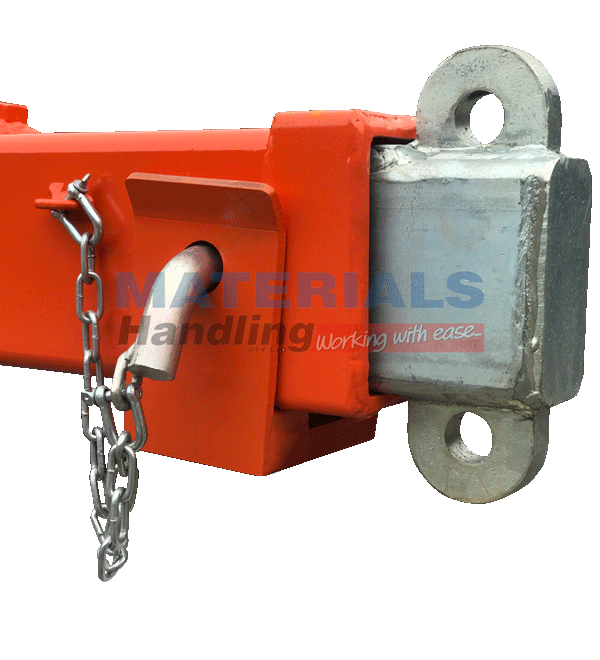

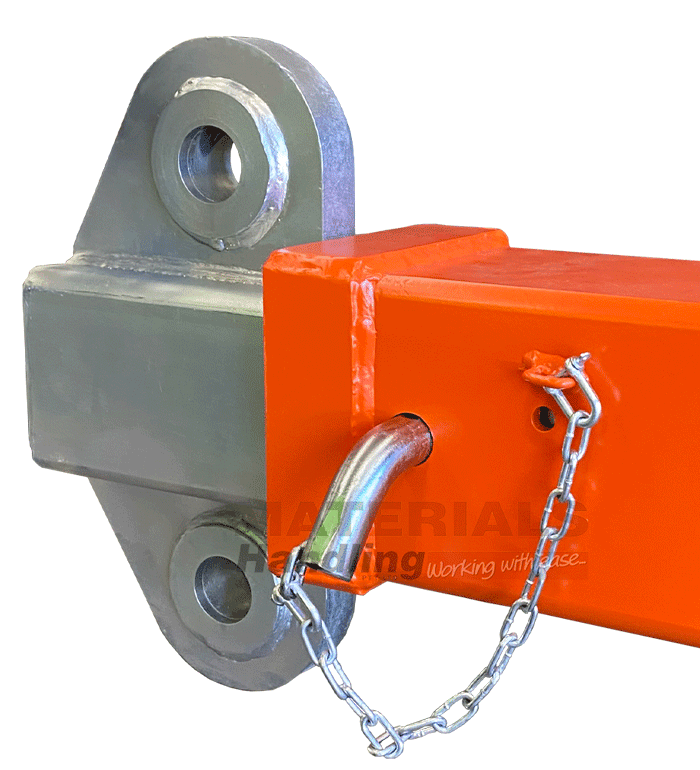

  • Safety pins used to securely lock extendable arms in position.
  • Light & medium models are fitted with 2 safety swivel hooks.
  • Certified in accordance with Australian Standards.
  • Zinc-finish on extendable arms with enamel paint finish on the main body.

Specifications:

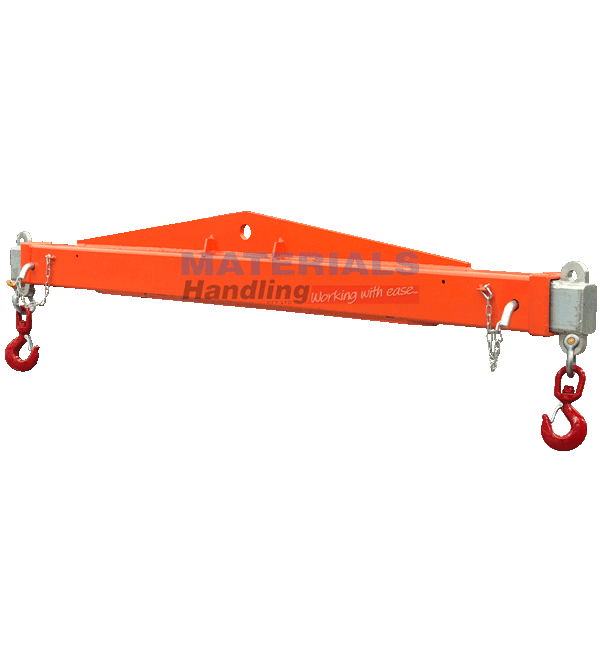

LCEL2439 (Light – 9T) Load Chart:

  • Unit Weight – 140 kg
  • Overall Size (Fully Retracted) – 210 x 345 x 2500 mm
  • Finish – Enamel Paint in Safety Orange (Outer Beams) and Zinc-Plated (Inner Beams)
Rated Capacity (RC)
When Used as
Fully Retracted
(LC @ 2380 mm)
Middle Position
(LC @ 3140 mm)
Fully Extended
(LC @ 3900 mm)
Length 2500 mm 3260 mm 4020 mm
Lifting Beam 4500 kg 2500 kg 1300 kg
Spreader Beam 9000 kg 7200 kg 5600 kg

LCEM2439 (Medium – 10T) Load Chart:

  • Unit Weight – 218 kg
  • Overall Size (Fully Retracted) – 275 x 382 x 2500 mm
  • Finish – Enamel Paint in Safety Orange (Outer Beams) and Zinc-Plated (Inner Beams)
Rated Capacity (RC)
When Used as
Fully Retracted
(LC @ 2380 mm)
Middle Position
(LC @ 3140 mm)
Fully Extended
(LC @ 3900 mm)
Length 2500 mm 3260 mm 4020 mm
Lifting Beam 6000 kg 4500 kg 2400 kg
Spreader Beam 10,000 kg 10,000 kg 10,000 kg

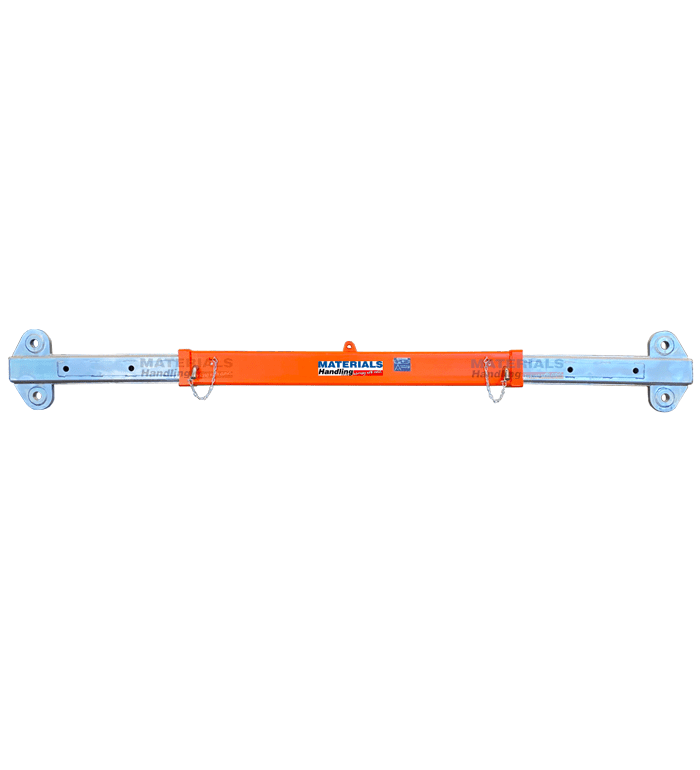

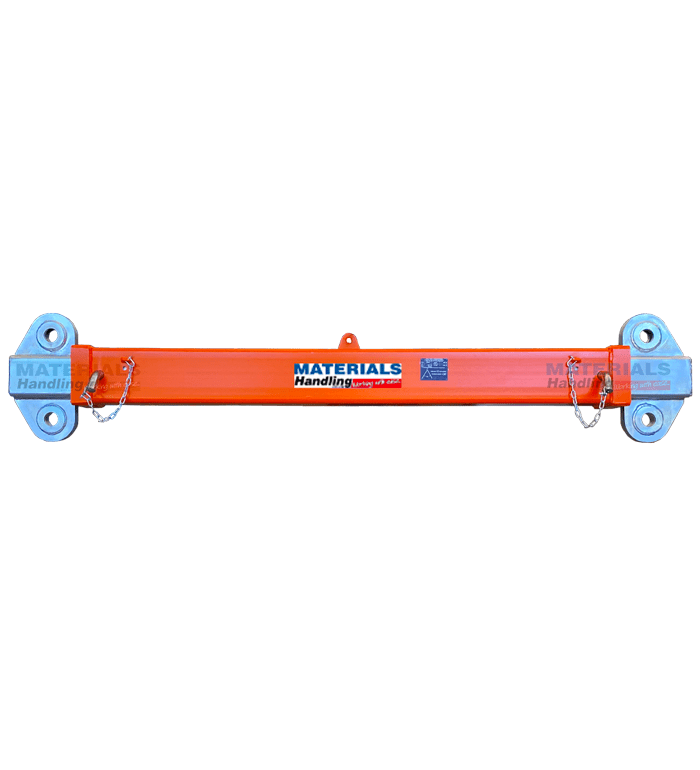

LCEH2439 (Heavy-Duty – 40T) Load Chart:

  • Working Load Limit (WLL) – 40,000 kg
  • Unit Weight – 301 kg
  • Overall Size (Fully Retracted) – 2500 x 480 x 220 mm
  • Finish – Enamel Paint in Safety Orange (Outer Beams) and Zinc-Plated (Inner Beams)
Rated Capacity (RC)
When Used as
Fully Retracted
(LC @ 2210 mm)
Middle Position
(LC @ 2970 mm)
Fully Extended
(LC @ 3730 mm)
Length 2500 mm 3260 mm 4020 mm
Spreader Beam 40,000 kg 40.000 kg 40,000 kg

Require an alternative lifting solution?

View our Spreader Beams for Crane and Forklift use.

Product Variations

Image Description Product Code Price (excl. GST)

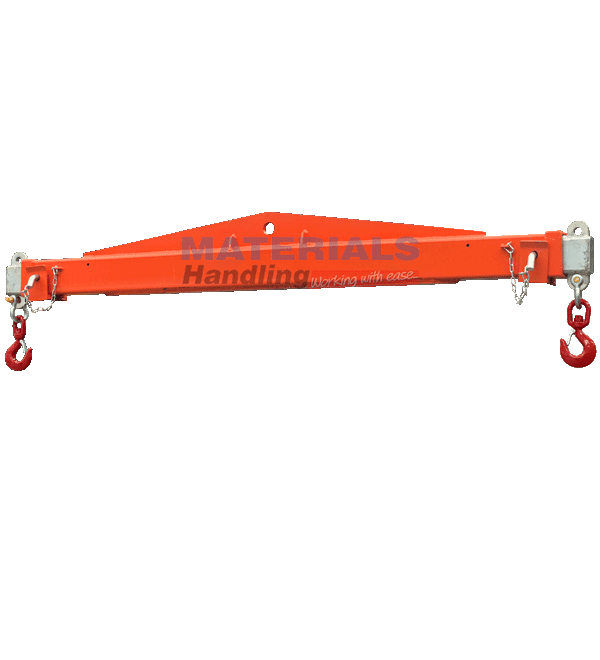

Lifting Beam Light
Adjustable in length to preset positions
Unit weight 140kg

LCEL2439

Lifting Beam Medium
Adjustable in length to preset positions
Unit weight 281kg

LCEM2439

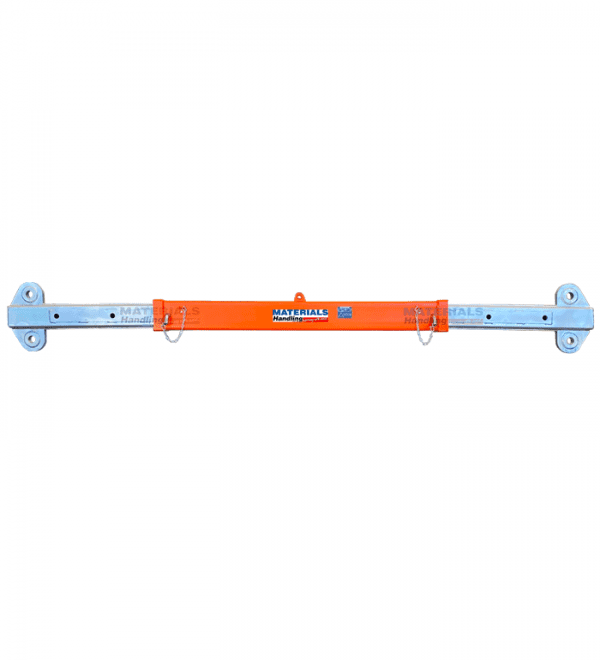

Lifting Beam Heavy
Adjustable in length to preset positions
Unit weight 308kg

LCEH2439
