Lifting Frames A Frame Trolley

+ Add to Quote Request

The A-Frame is made to store and move sheet materials like glass, stone, and others by forklift, overhead crane, or wheeled manually.

Ideal for usage in factories and used as a transport cage when delivering materials to sites. Adjustable clamp bars are used to secure the load, each equipped with removable ratchet straps. Rubber profiles help stop movement and prevent harm to the load.

A heavy-duty design for maximum stability with forklift pockets and crane lugs installed for forklift or crane transport.

For simple mobility around the job site, wheels with brakes are provided. The wheel kit has a storage space for when it is not in use and is designed for rapid release.

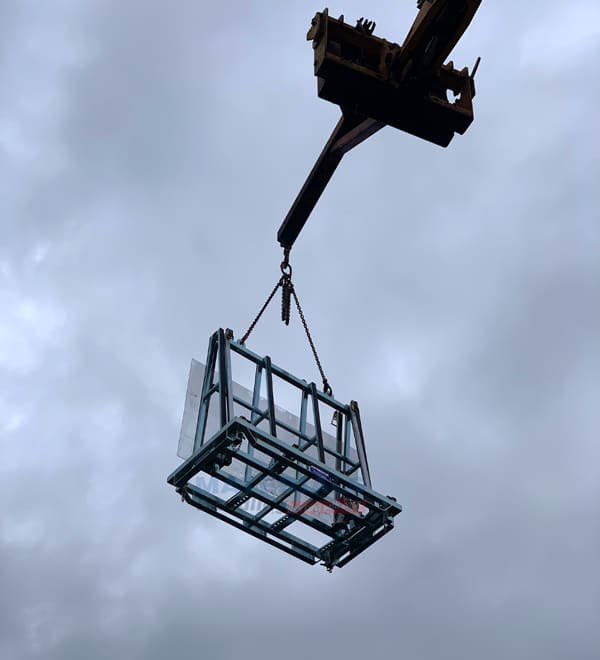

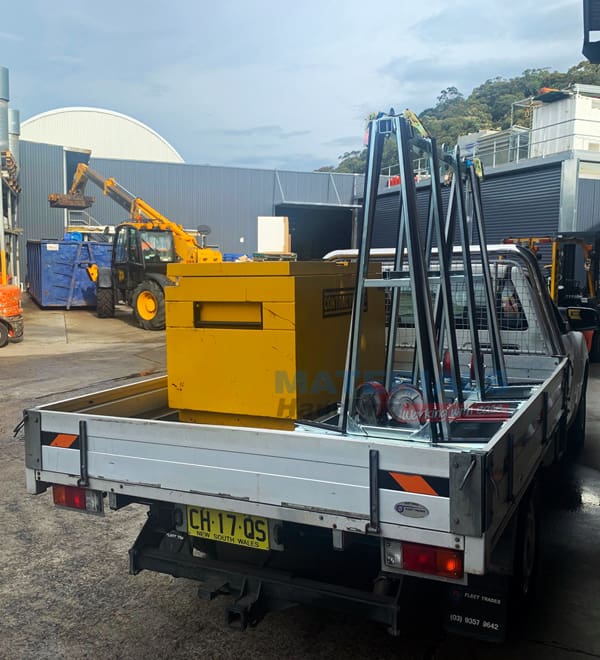

A forklift or overhead crane can load a frame onto the back of a truck. High load-carrying capacity variants are available in 1500 and 2000 kg.

The SAFT80 base is designed (800mm) to fit through a regular doorway and take up less room on a truck tray.
To accommodate storage in pallet racking, the SAFT115 base is built with racking locators. The finish is zinc-plated and typically delivered flat-packed for on-site assembly.

Product Variations

Image Description Product Code Price (excl. GST)

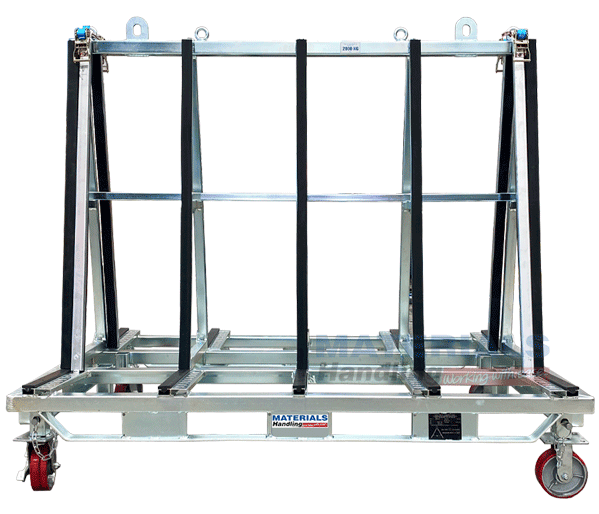

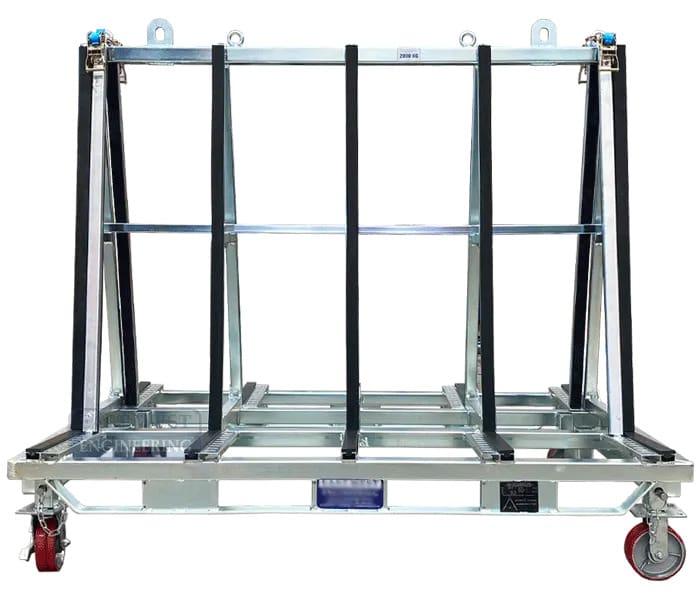

Glass A Frame Trolley and Lifting Frame
1150(d) x 1800(w) mm
Capacity 2000kg

SAFT115

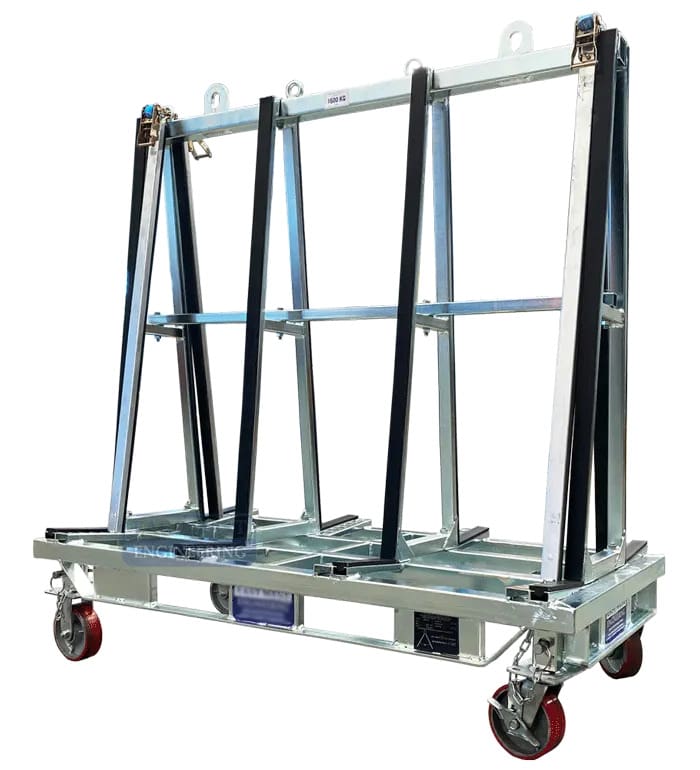

Glass A Frame Trolley and Lifting Frame
800(d) x 1500(w) mm
Capacity 1500kg

SAFT80
