Trailer Unloading Conveyors Telescopic

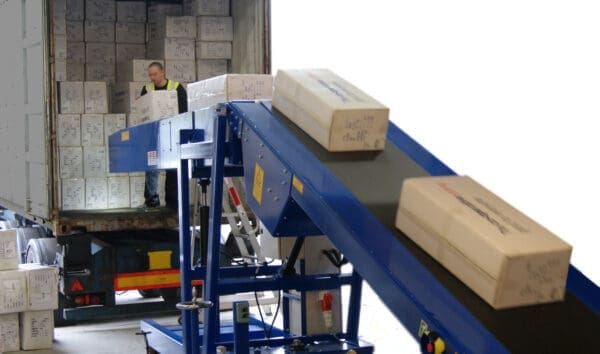

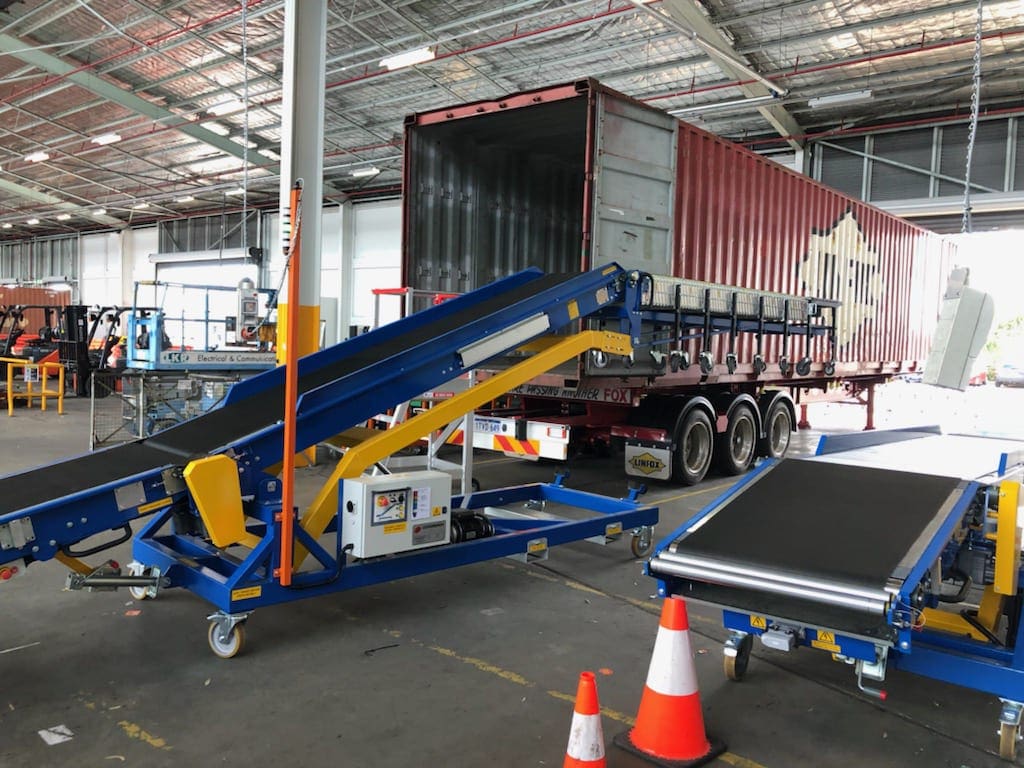

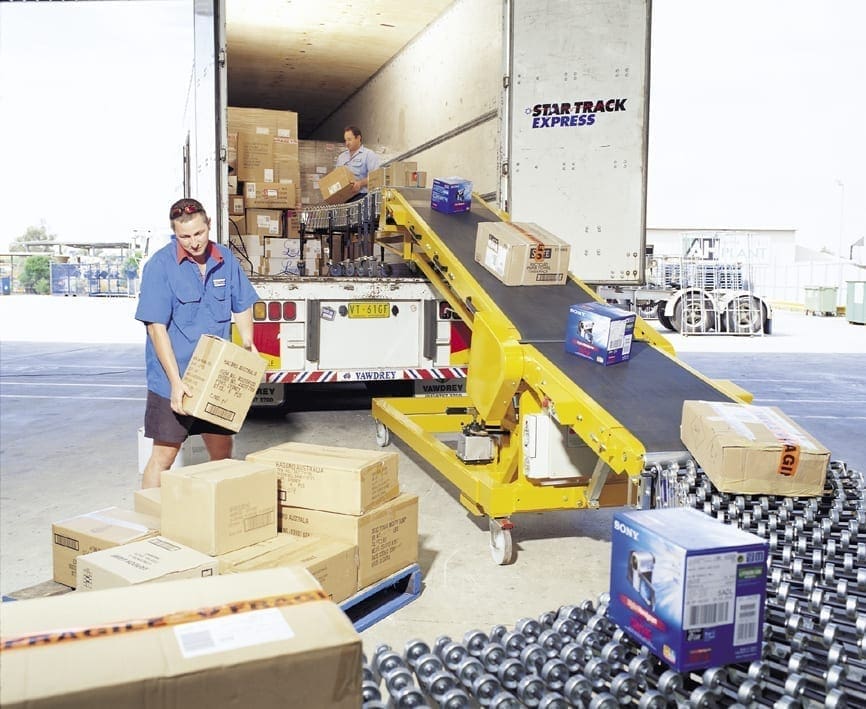

Our Dockless Trailer Loader is an exceptional product that is ideal for small to medium warehouses that are not fitted with loading docks.

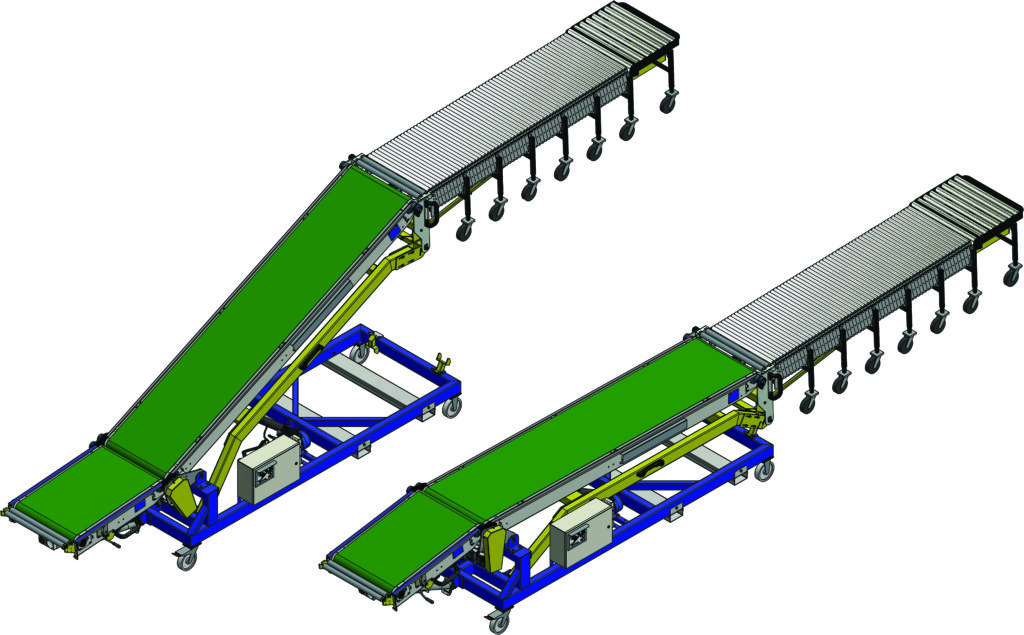

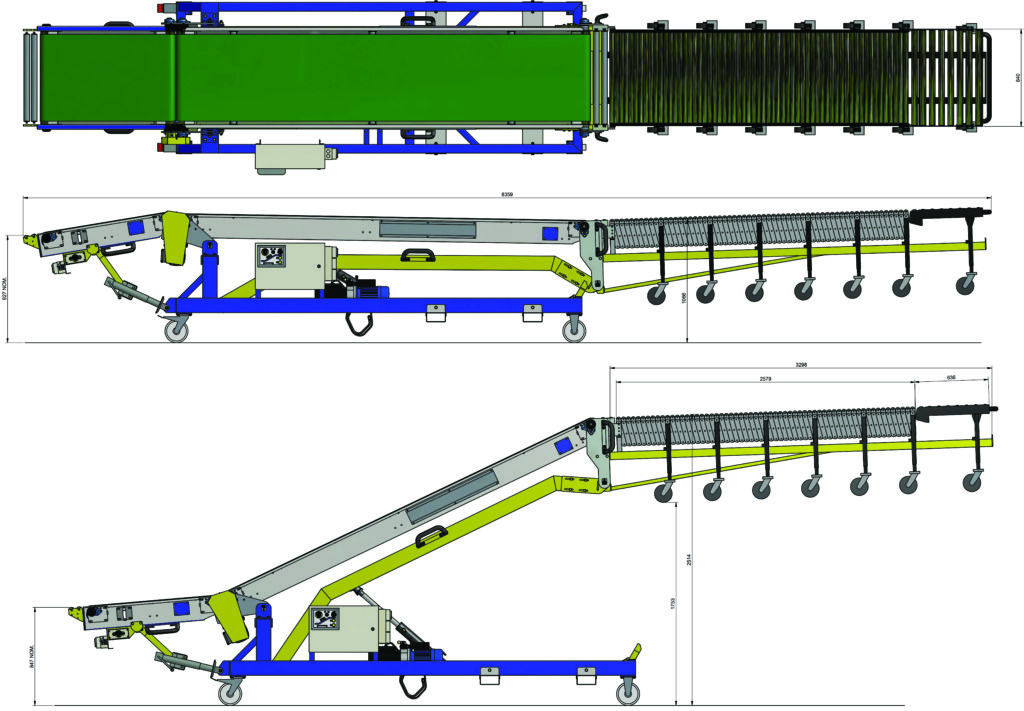

It is an inclined belt conveyor with a manually adjustable extending ‘tongue’ that delivers packages into or out of the truck trailer.

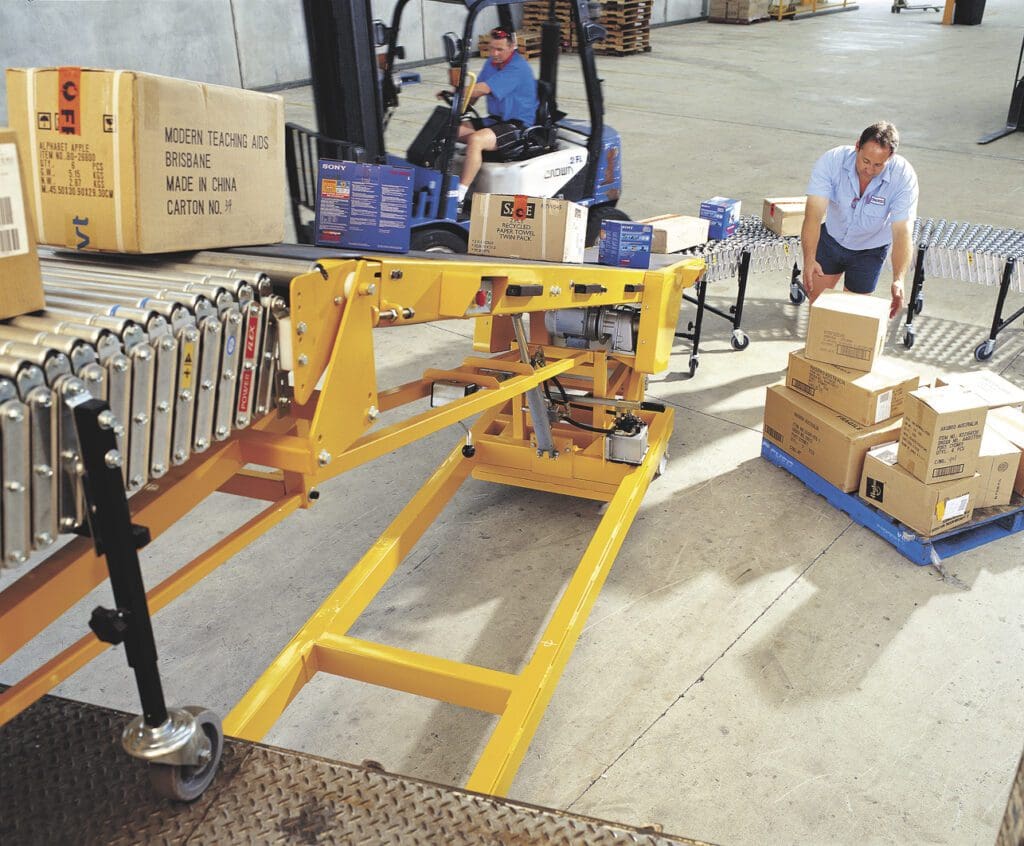

The device is easy to use, low in maintenance and can connect to Bestflex Gravity Skate Wheel or Powerflex Powered Roller conveyors for continuous and productive conveying.

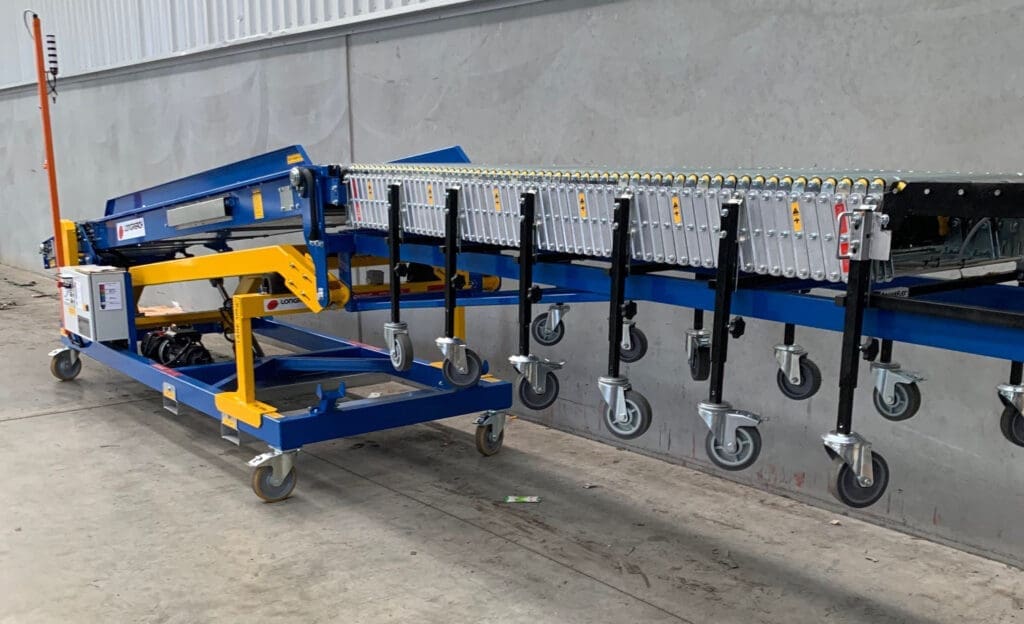

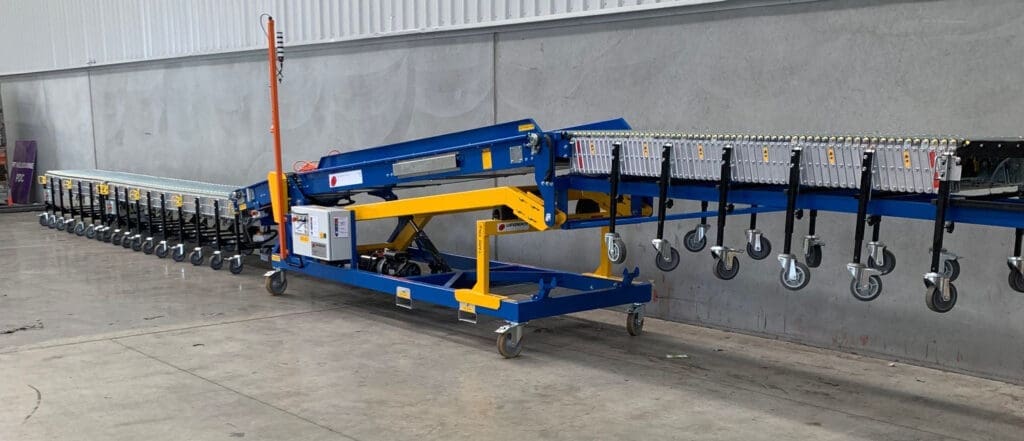

The chassis is mounted on large diameter swivel castors making it easy to be manually pushed into position.

Additional gravity skates or powered roller extensions at the load and unload ends of the systems help to support containers and trucks (20′ and 40′ deep).

The powered rollers are driven by 240VAC 50Hz 0.7kW power supply. Conveyor belt speed 22 metres per minute. Load capacity 40kg per metre.

The height of the conveyor belt boom can be adjusted using the hydraulic height adjustment.

Forward, reverse and stop controls are located on both sides of the in-feed boom.
