Bestflex Expandable & Flexible Conveyor

+ Add to Quote Request

Bestflex Expandable & Flexible Skate Wheel and Roller Conveyors provide an economical materials handling solution ideally suited for truck loading/unloading, packaging, and shipping and use on flexible assembly lines. They are self-tracking so the product stays on the conveyor bed following the twist and turn of the conveyor path without using engineered curves.

Adjustable in height via adjustable locking knobs to raise or lower conveyor height, they have heavy-duty square tubing legs for longer service life. The aluminium alloy construction, wide ribbed design side plates provide added durability and the units are securely assembled with bolts and locknuts.  Structural steel channel supports span the entire conveyor width for unequalled strength. You can only get this patented design with Bestflex. The 127mm swivel castors roll easily and the castor brakes lock both wheels and swivel simultaneously while the conveyor is in use. They are available in 450, 600 and 750mm widths and with steel gravity skate wheels, gravity roller or our Powerflex range with powered rollers in a large range of standard lengths.

Clear

Additional Information

Gravity Roller

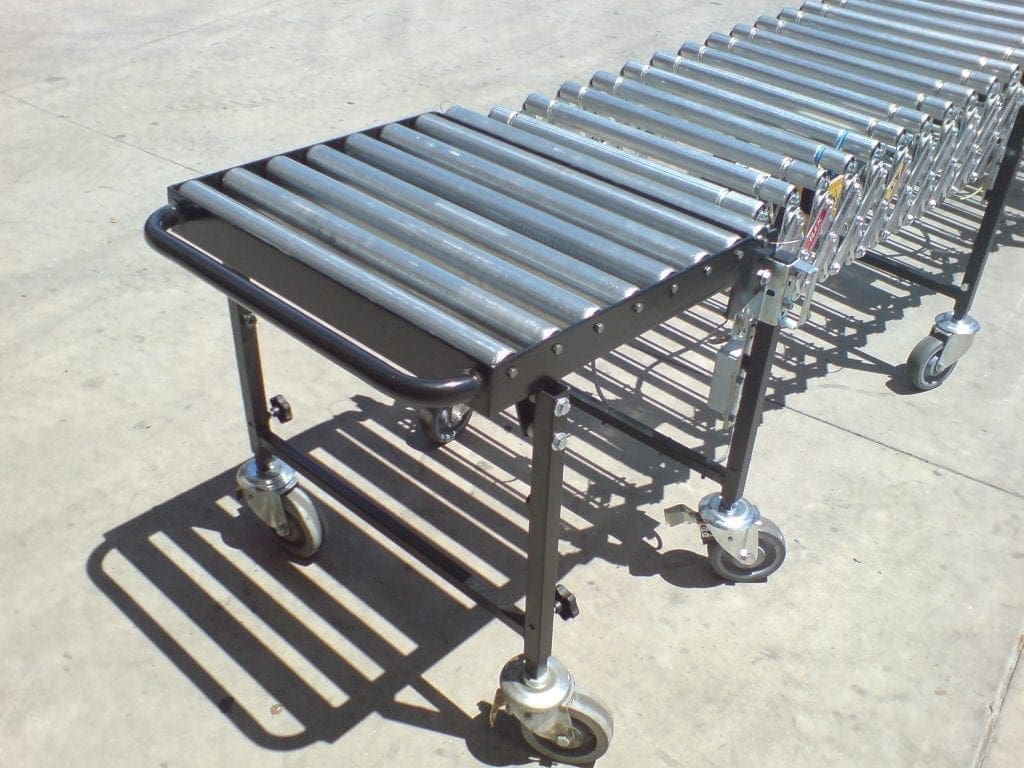

The 35mm rollers are excellent for handling odd-shaped items, bags and low-grade cartons with 220kg capacity per linear metre (level) and 762 to 1080mm adjustable conveyor heights. Shown here with an optional impact support table.

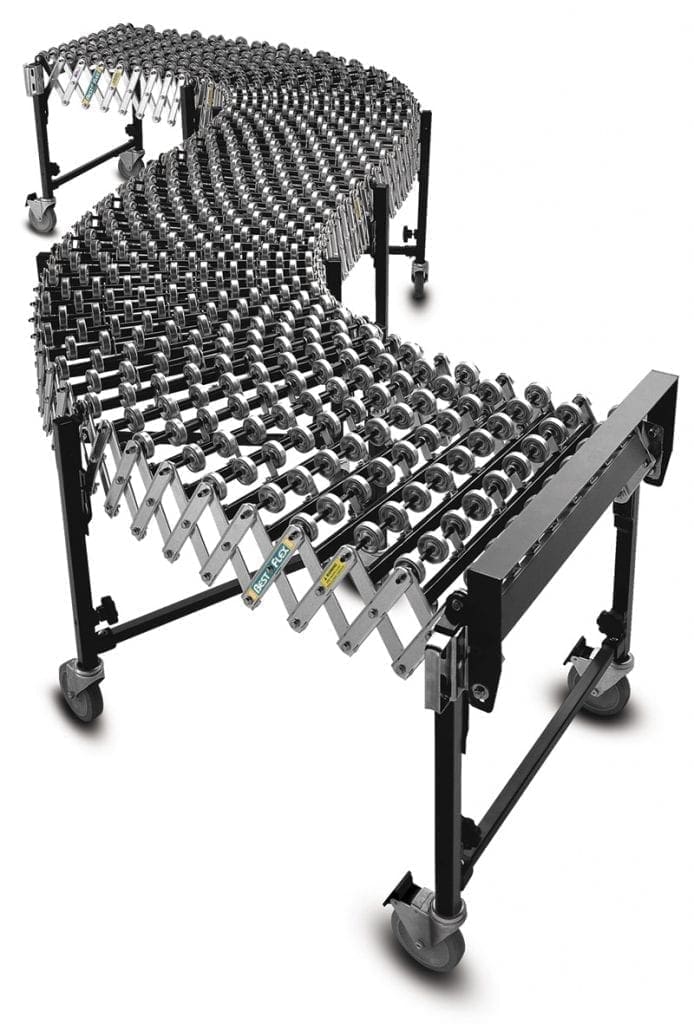

Gravity Skate Wheel

The 48mm diameter steel skate wheels provide a 300kg capacity per linear metre (level) and the units have adjustable conveyor heights from 720 to 1000mm. They are available in 450, 600 and 750mm widths and a large range of standard lengths. Options are package stops, side rails & connectors to join multiple lengths.

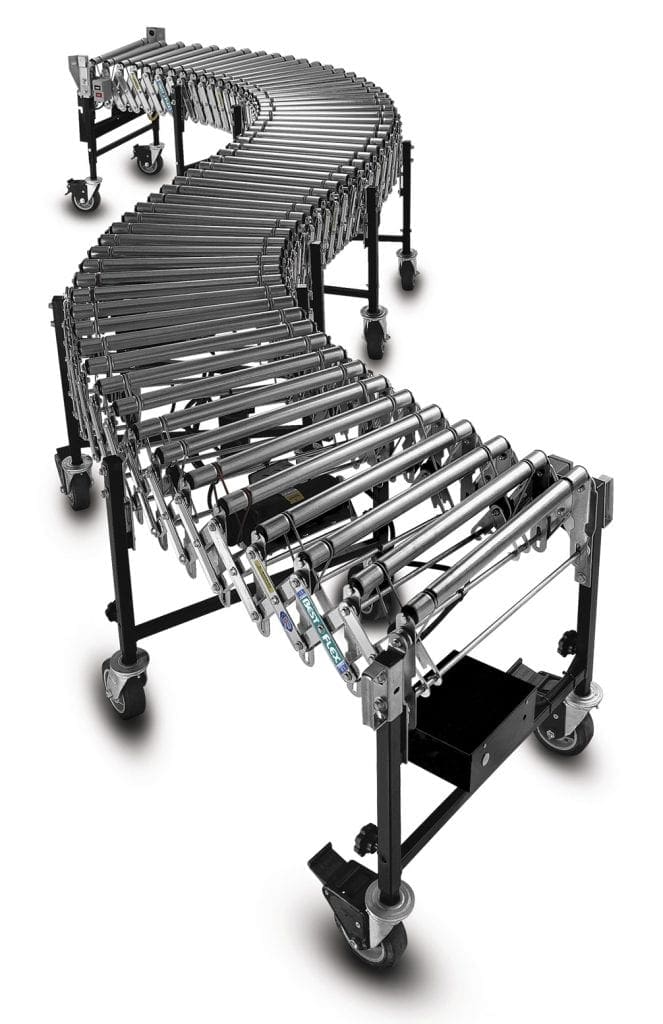

Also view our Powerflex Expandable Powered Conveyors.

Click the PDF button to learn more.

Product Variations

Image Description Product Code Price (excl. GST)

Flexible Roller Conveyor 450 wide x 1220 – 3660mm

CBFR1812

Flexible Roller Conveyor 600 wide x 1220 – 3660mm

CBFR2412

Flexible Roller Conveyor 750 wide x 1200 – 3660mm

CBFR3012

Flexible Roller Conveyor 450 wide x 1630 – 4880mm

CBFR1816

Flexible Roller Conveyor 600 wide x 1630 – 4880mm

CBFR2416

Flexible Roller Conveyor 750 wide x 1600 – 4880mm

CBFR3016

Flexible Roller Conveyor 450 wide x 2030 – 6100mm

CBFR1820

Flexible Roller Conveyor 600 wide x 2030 – 6100mm

CBFR2420

Flexible Roller Conveyor 750 wide x 2000 – 6100mm

CBFR3020

Flexible Roller Conveyor 450 wide x 2440 – 7320mm

CBFR1824

Flexible Roller Conveyor 600 wide x 2440 – 7320mm

CBFR2424

Flexible Roller Conveyor 750 wide x 2440 – 7320mm

CBFR3024

Flexible Skate Wheel Conveyor 450 wide x 910 – 3660mm

CBFS1812

Flexible Skate Wheel Conveyor 600 wide x 910 -3660mm

CBFS2412

Flexible Skate Wheel Conveyor 750 wide x 910 – 3660mm

CBFS3012

Flexible Skate Wheel Conveyor 450 wide x 1200 – 4800mm

CBFS1816

Flexible Skate Wheel Conveyor 600 wide x 1220 – 4880mm

CBFS2416

Flexible Skate Wheel Conveyor 750 wide x 1200 – 4800mm

CBFS3016

Flexible Skate Wheel Conveyor 450 wide x 1500 – 6100mm

CBFS1820

Flexible Skate Wheel Conveyor 600 wide x 1530 – 6100mm

CBFS2420

Flexible Skate Wheel Conveyor 750 wide x 1500 – 6100mm

CBFS3020

Flexible Skate Wheel Conveyor 450 wide x 1800 – 7300mm

CBFS1824

Flexible Skate Wheel Conveyor 600 wide x 1800 – 7300mm

CBFS2424

Flexible Skate Wheel Conveyor 750 wide x 1800 – 7300mm

CBFS3024
