Concrete Pipe Lifter

+ Add to Quote Request

Safely handle concrete pipes with our specialised lifting equipment. The Concrete Pipe Lifter saves manual efforts on time-consuming and at times, unsafe tasks. The use of this particular tool helps eliminate risky manual handling practices such as securing slings, straps and chains under and/or around a pipe, which puts workers in hazardous situations.

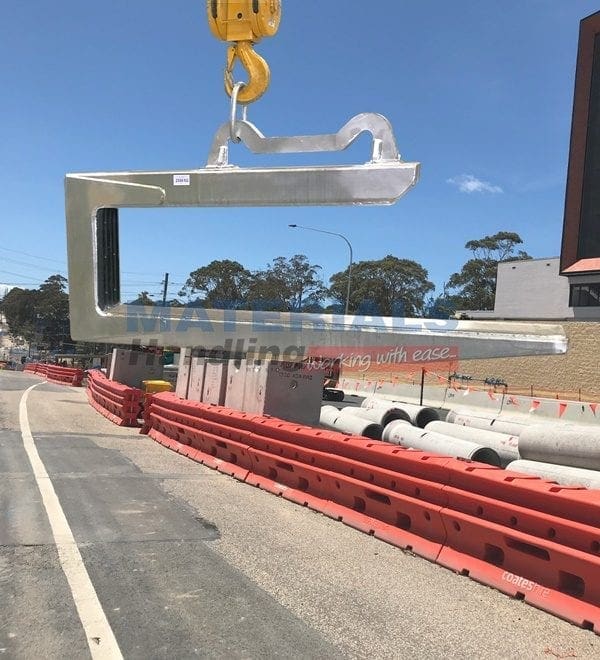

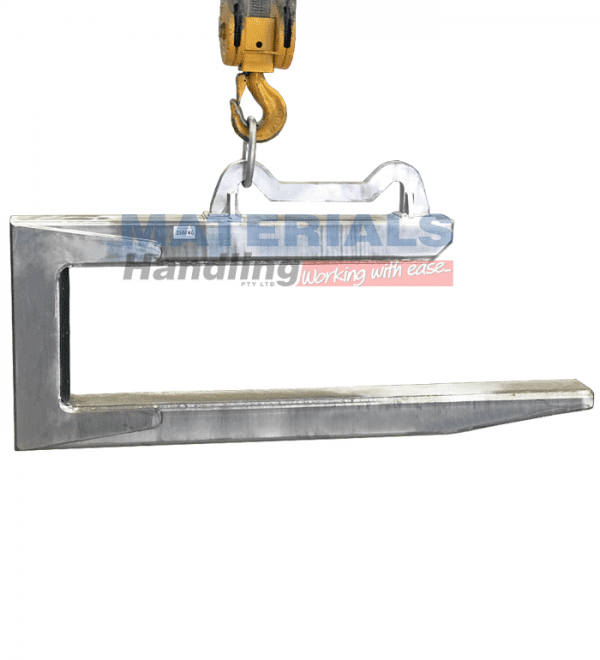

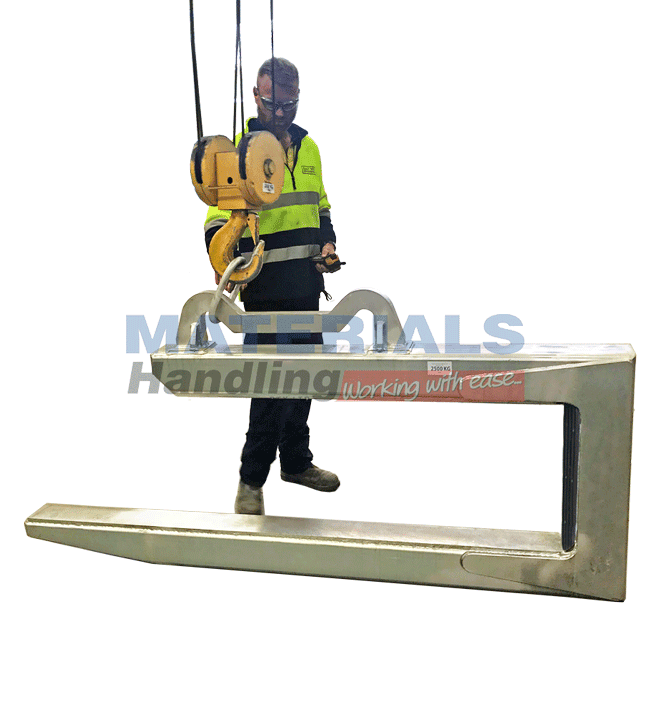

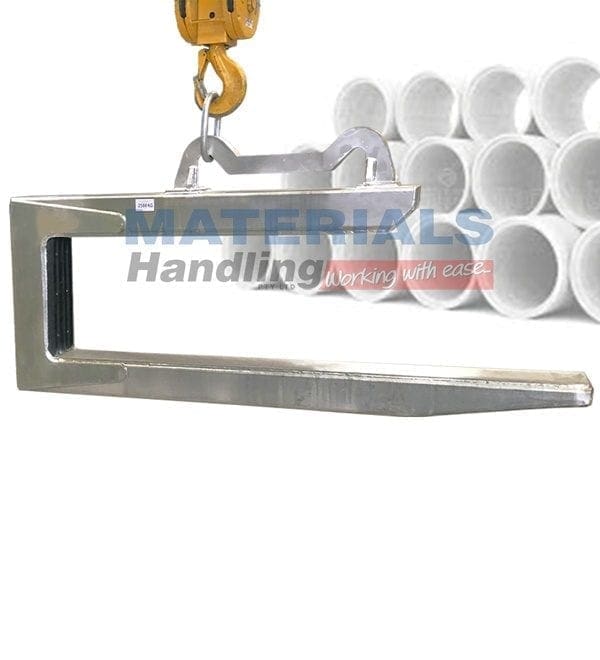

The Concrete Pipe Lifter is designed to safely handle concrete pipe sections or similar by overhead crane. The load is balanced by moving the lifting ring between the loaded and unloaded positions. This allows pipes to be easily lifted, transported, moved and positioned.

Clear

Additional Information

Concrete Pipe Lifter is a robust overhead lifting solution!

This device is ideal for concrete pipes and suited to sections with a length of 2450 mm. The attachment easily hooks inside a pipe to lift, move and place where required. Available in two models – LCQM125 (Working Load Limit: 1250 kg) and LCQM250 (Working Load Limit: 2500 kg). The device easily reduces risky manual handling practices under and/or around heavy pipes. Rubber buffer pads are fitted to prevent damage to the pipe.

LCQM125 Specifications:

  • Working Load Limit – 1250 kg
  • Load Centre – 1200 mm
  • Inside Clearance – 500 mm
  • Clear Hook Arm Length – 1985 mm
  • Unit Weight – 160 kg

LCQM250 Specifications:

  • Working Load Limit – 2500 kg
  • Load Centre – 1200 mm
  • Inside Clearance – 500 mm
  • Clear Hook Arm Length – 2000 mm
  • Unit Weight – 250 kg

Need another lifting solution?

Browse our extensive range of Lifting Attachments to ensure your workplace activities operate safely.

Product Variations

Image Description Product Code Price (excl. GST)

1250 kg capacity 1200 mm load centre
500 mm inside clearance weight 160 kg

LCQM125

2500 kg capacity 1200 mm load centre
500 mm inside clearance weight 250 kg

LCQM250
