Shop Crane Modular Gantry

+ Add to Quote Request

Our Shop Crane Modular Gantry is a freestanding crane for heavy loads.

Available in 500kg or 1000kg options, the Shop Crane evenly distributes weight over four support columns to free up work space. The modular gantry design consists of parallel runways and a bridge rail that spans between the two. This ensures the weight is balanced and positioning of heavy loads (up to 1000kg) becomes absolutely effortless. The support columns can then be positioned into the corners of your work area allowing for complete coverage of an entire work bay, without becoming an obstacle.

Add our Vaculex Vacuum Tube Lifter, VacuBoy vacuum handling device, an electric chain hoist, air hoist, balancer or our Quick-Lift Rail and you are on your way to working with ease.

Clear

Additional Information

Why do you need the Shop Crane?

The Shop Crane makes lifting and moving heavy loads extremely easy. With a long list of benefits, this is the ultimate device to increase working space.

Heavy loads moved with ease

This unique overhead crane system, ensures weight is evenly distributed between its bridge and parallel runways. By spreading the bearing of weight over these columns, it becomes incredibly effortless to lift up to 1000kg.

Increase working space

The columns of the Shop Crane are incredibly narrow, which means you can neatly tuck this modular gantry into your current working space. Its impeccable design maxmises the lift out of any shop space. The bridge runs along the top of the system, increasing the amount of usable space in your work environment.

Quick to install

This gantry does not require a lot of assembly and has been designed to be put together quite easily – no special tools or forklifts required. Whilst incredible strong, the unit is also incredibly lightweight – enough for two people to simple install the crane without any difficulty. All that’s needed is some common hand tools and your Shop Crane will be ready to go in a couple of hours – it’s that easy!

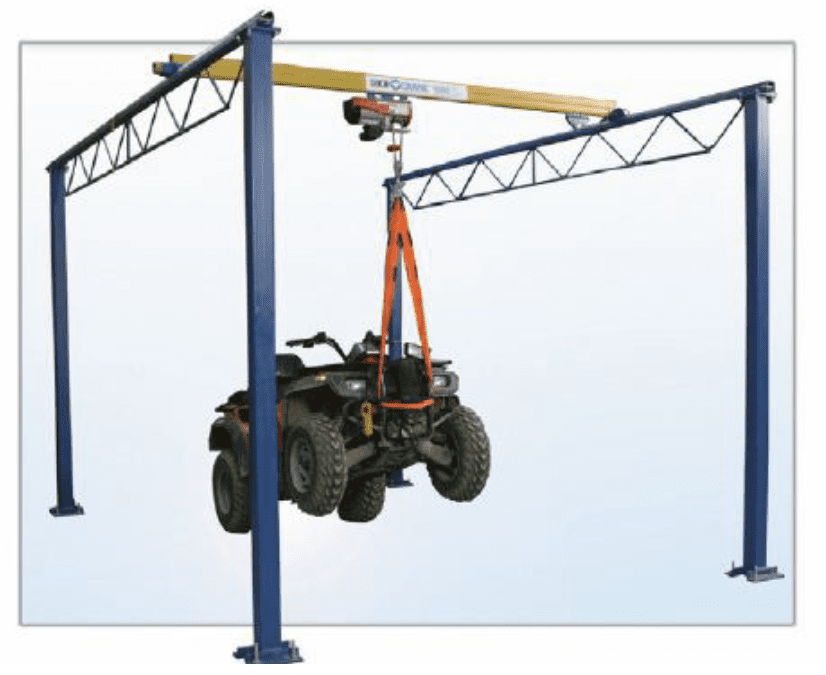

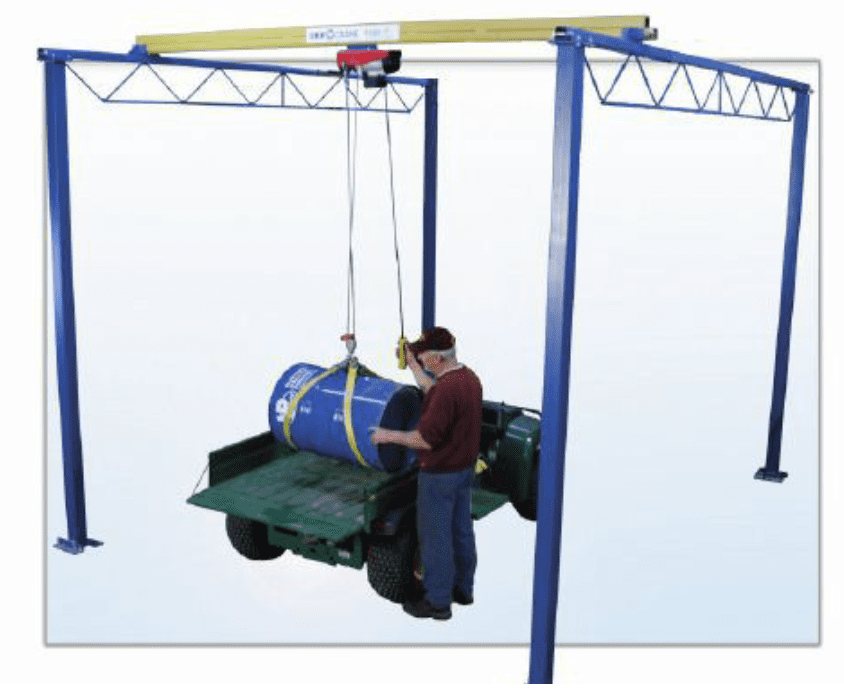

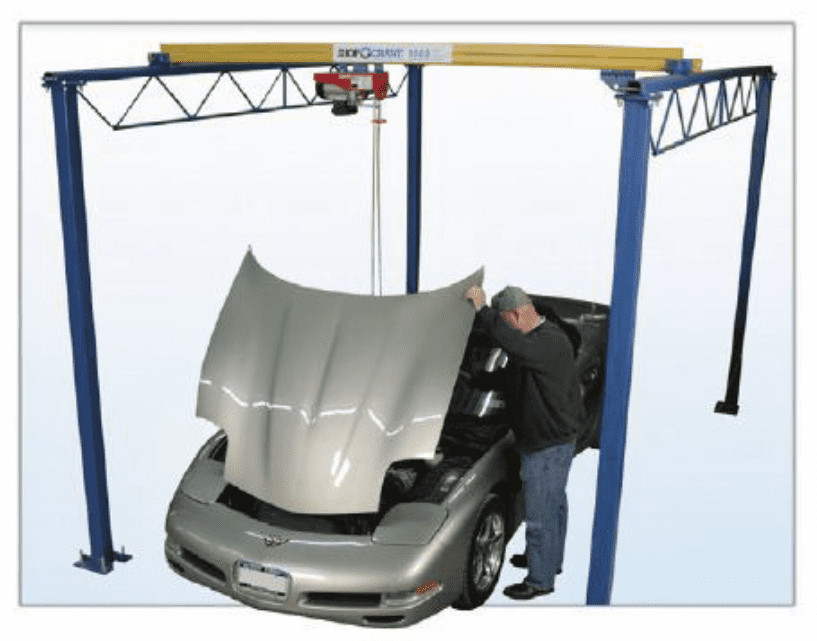

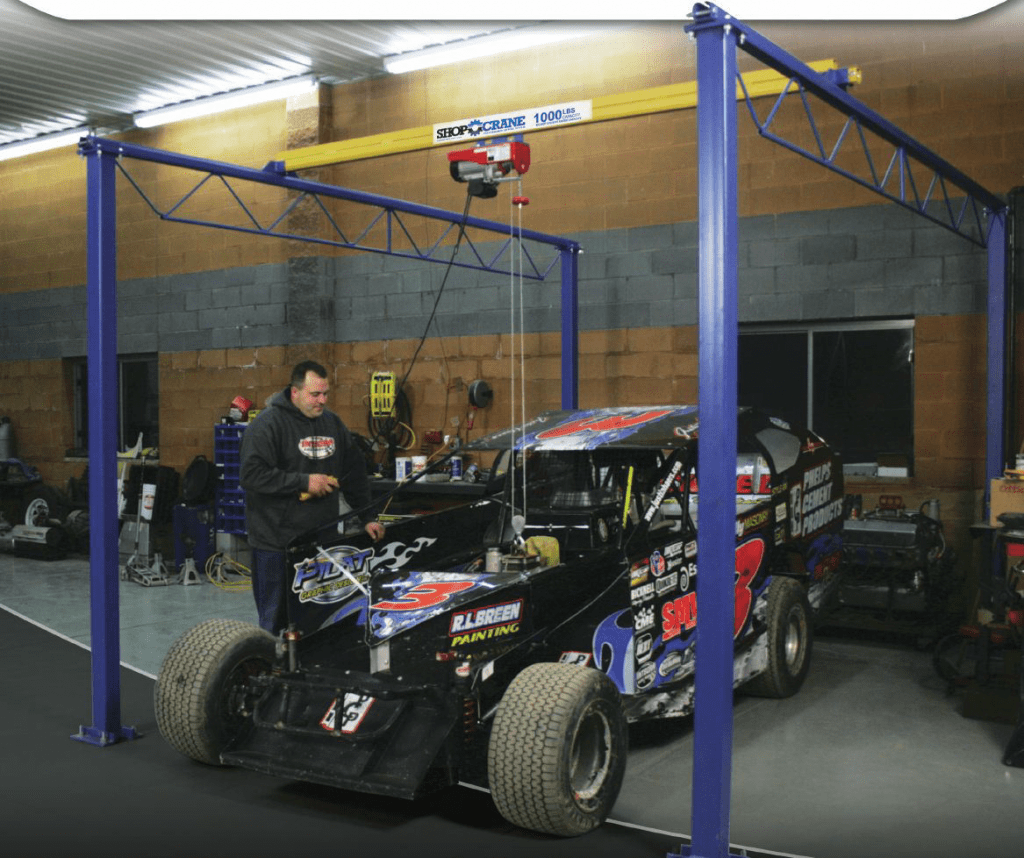

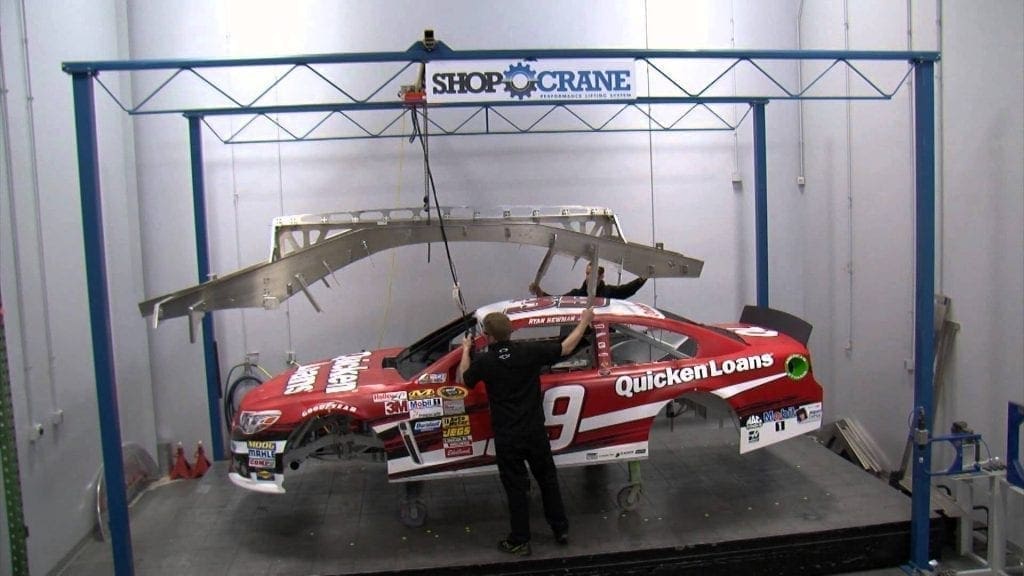

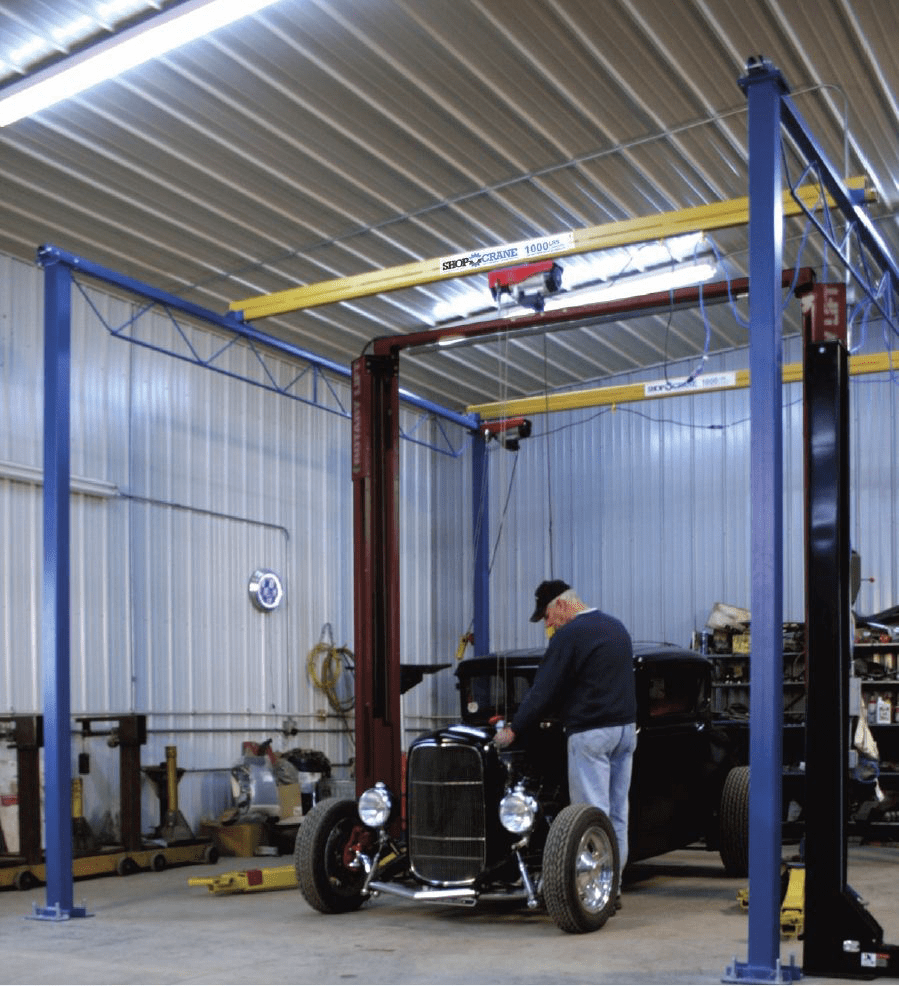

Shop Crane Modular Gantry in workshop Shop Crane Modular Gantry in action

We can help you design your gantry to meet your requirements and fit your shop!

Available in either a weight capacity of 500kg or 1000kg, you then can then select from three different heights (dimension B) and three different widths (dimension A) – shown below.  Every model in this range has a fixed overall length (dimension C) of 4880mm. If you observe the picture below you can see the bridge rail travels on the top of the runways to maximise the headroom in your work bay. Please note that the hoist is not included.

Additional options of a Runway Extension Kit, Additional Bridge or Tagline Kit are also available!

Perfect for a number of industries!

The Shop Crane has already been employed in a number of organisations that needed to increase their working space and move heavy loads. Some examples of this include the unit being installed at:

  • Racing Shops
  • ATV/Motorcycle Work
  • Fabrication Workshops
  • Automotive Restoration
  • Tractor Repair
  • Truck Loading/Unloading
  • Boat/Jet Ski Maintenance
  • Drum Handling

Not what you’re after?

Try our MechRail Aluminium Jib Crane – another solution to lifting heavy objects and increasing productivity.

Product Variations

Image Description Product Code Price (excl. GST)

Shop Crane 500kg
2400 wide x 2400 high

LSC500-24-24H

Shop Crane 500kg
2400 wide x 3000 high

LSC500-24-30H

Shop Crane 500kg
2400 wide x 3600 high

LSC500-24-36H

Shop Crane 500kg
3000 wide x 2400 high

LSC500-30-24H

Shop Crane 500kg
3000 wide x 3000 high

LSC500-30-30H

Shop Crane 500kg
3000 wide x 3600 high

LSC500-30-36H

Shop Crane 500kg
3600 wide x 2400 high

LSC500-36-24H

Shop Crane 500kg
3600 wide x 3000 high

LSC500-36-30H

Shop Crane 500kg
3600 wide x 3600 high

LSC500-36-36H

Shop Crane 1000kg
2400 wide x 3600 high

LSC1000-24-24H

Shop Crane 1000kg
2400 wide x 3000 high

LSC1000-24-30H

Shop Crane 1000kg
2400 wide x 3600 high

LSC1000-24-36H

Shop Crane 1000kg
3000 wide x 2400 high

LSC1000-30-24H

Shop Crane 1000kg
3000 wide x 3000 high

LSC1000-30-30H

Shop Crane 1000kg
3000 wide x 3600 high

LSC1000-30-36H

Shop Crane 1000kg
3600 wide x 2400 high

LSC1000-36-24H

Shop Crane 1000kg
3600 wide x 3000 high

LSC1000-36-30H

Shop Crane 1000kg
3600 wide x 3600 high

LSC1000-36-36H
