Winch Electric AC

Our industrial electric winches are precision-engineered, ruggedly constructed and quiet.

Available in single and three-phase power, they have been designed for long service life and high performance.

Including low-maintenance features and brakes designed for both static and dynamic loading that automatically apply in the event of power loss.

Push-button pendant control is supplied as standard on all models.

LCWL series 200 and 300kg capacity, lightweight, electric winches are ideal for portable use.

Product Variation

Clear

Additional Information

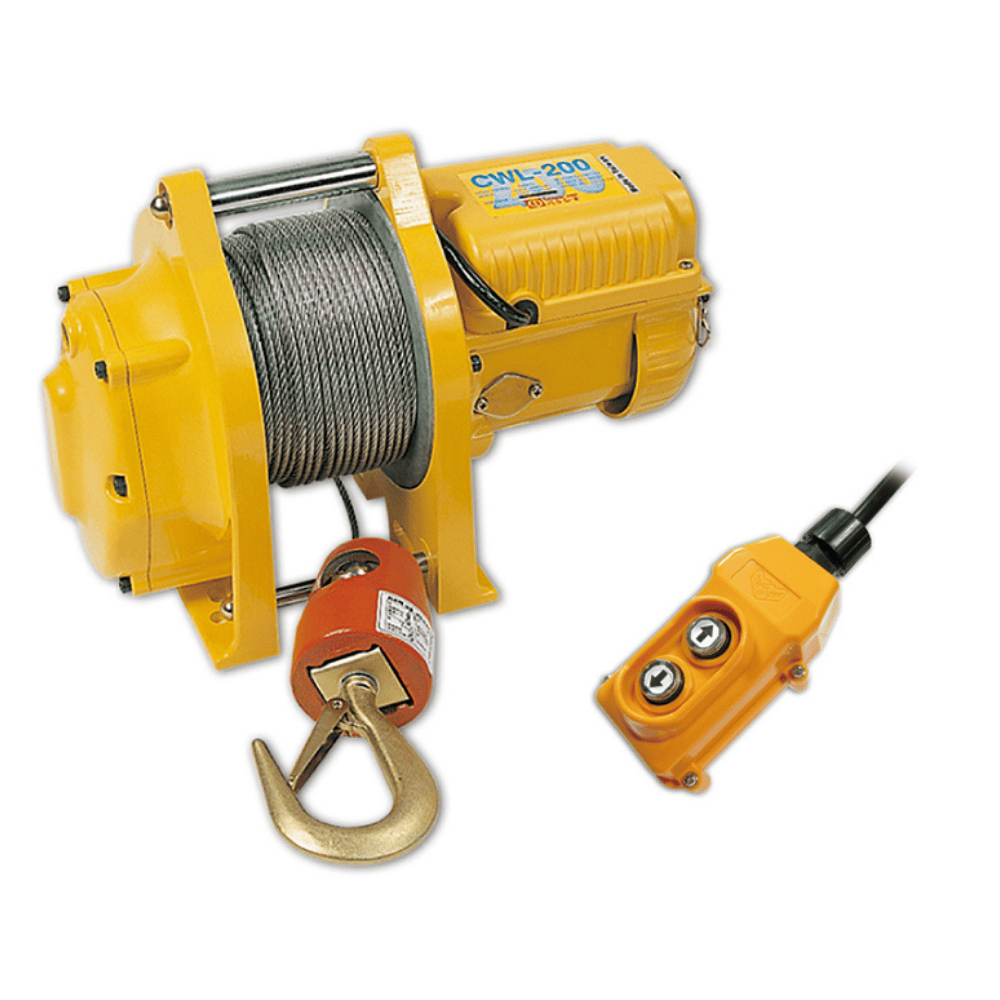

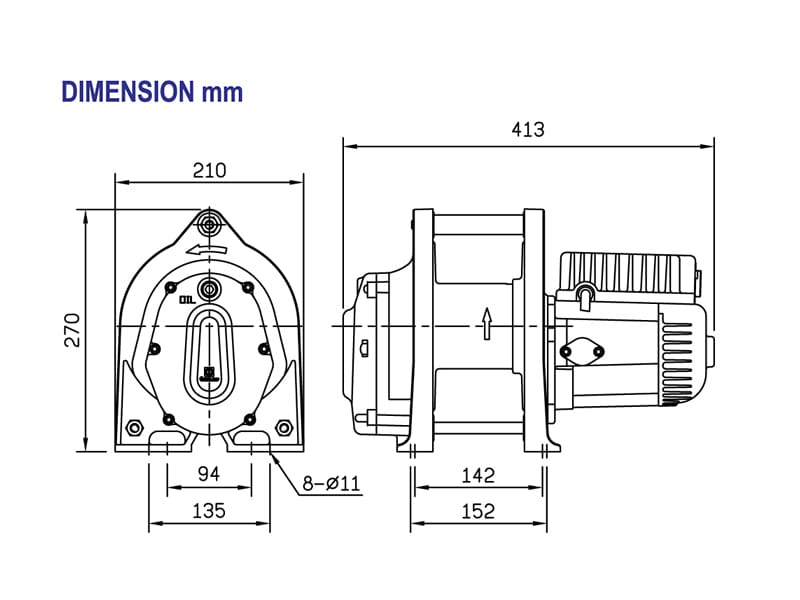

LCWL200

Capacity 200 kg
Lifting speed: 11 – 16 m/min
Power supply: 240V
Gear ratio: 240:1
Wire rope: 5mm x 46m
Mounting bolt pattern: 142 x 94 mm and 152 x 135 mm
Weight: 30kg

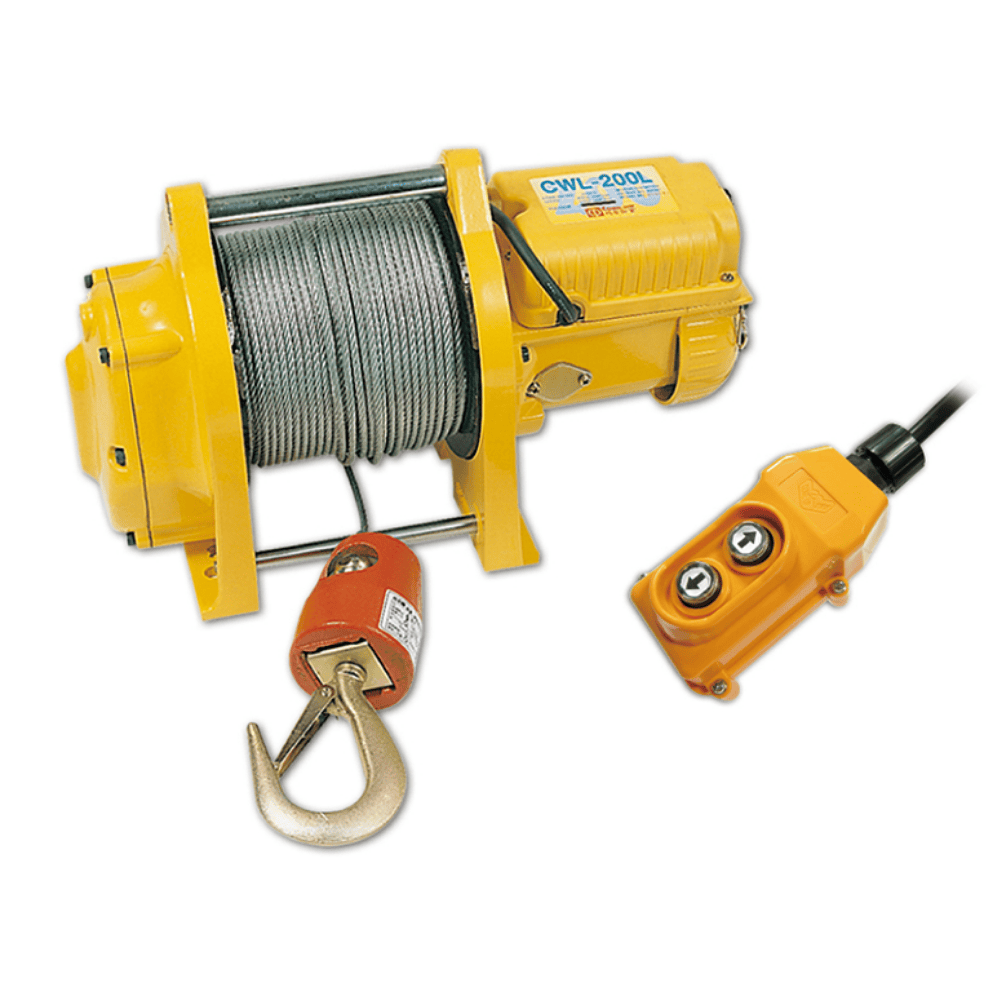

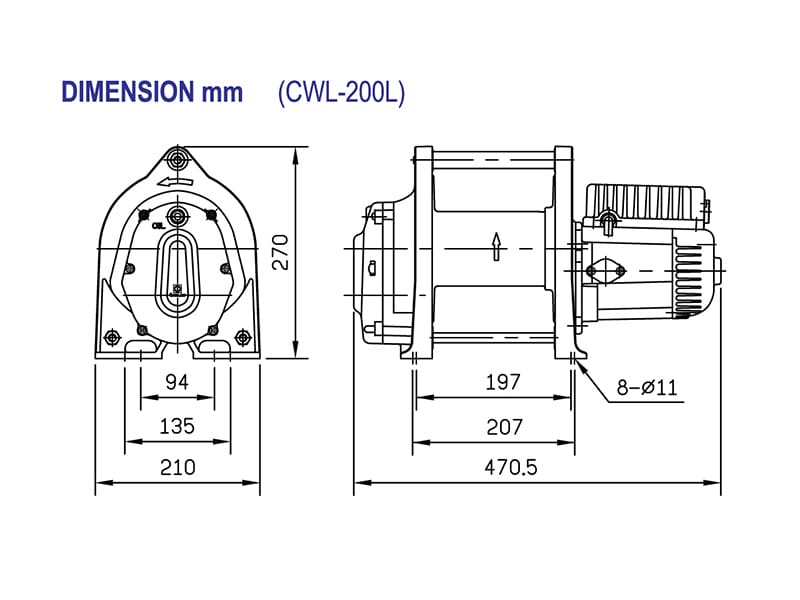

LCWL205

Capacity 200 kg
Lifting speed: 11 – 16 m/min
Power supply: 240V
Gear ratio: 240:1
Wire rope: 5mm x 71m
Mounting bolt pattern: 197 x 94 mm and 207 x 135 mm
Weight: 33kg

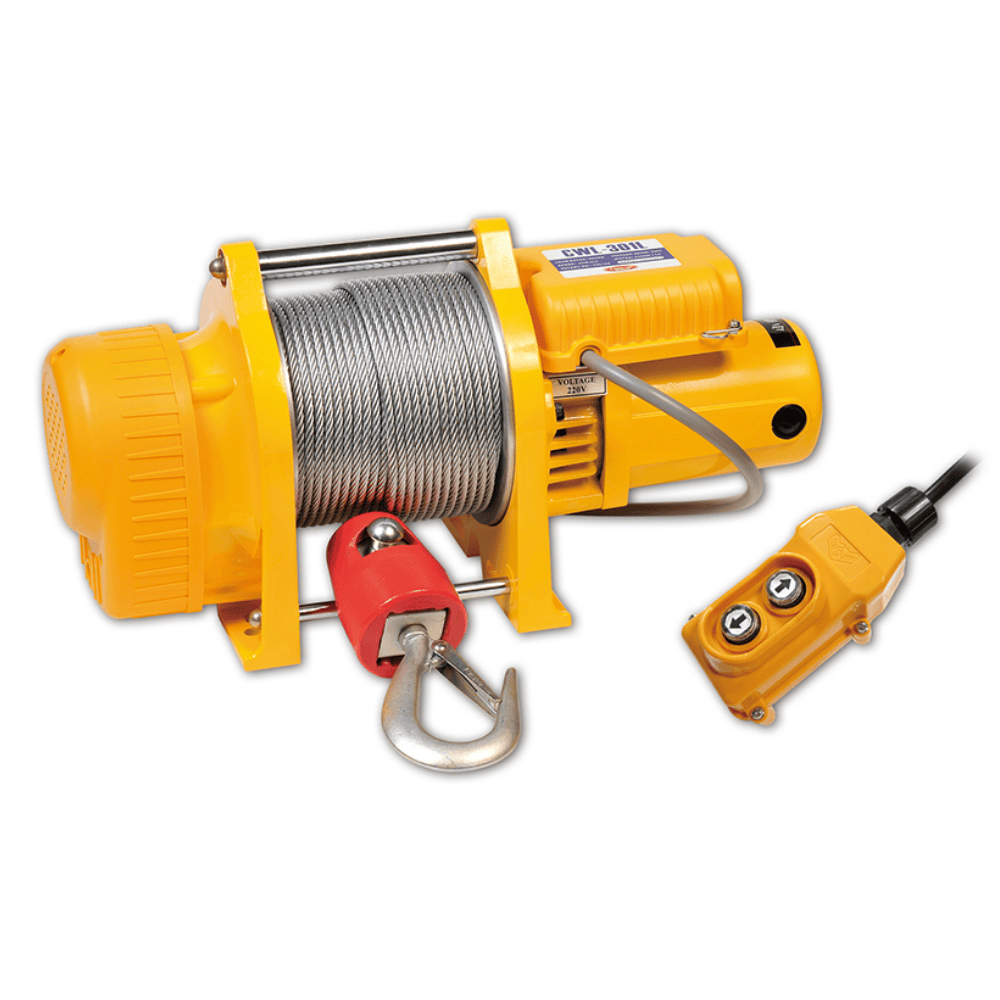

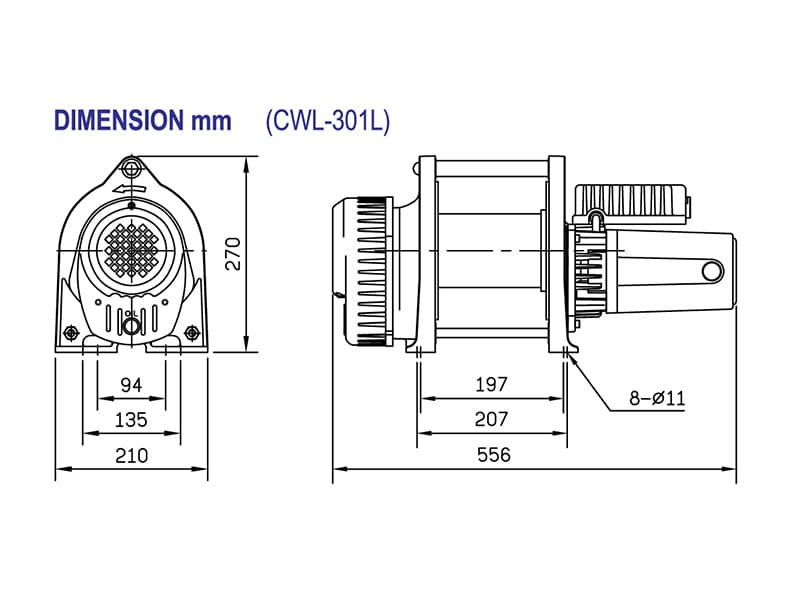

LCWL305

Capacity 300 kg
Lifting speed: 16 – 25 m/min
Power supply: 240V
Gear ratio: 110:1
Wire rope: 6mm x 60m
Mounting bolt pattern: 197 x 94 mm and 207 x 135 mm
Weight: 40kg

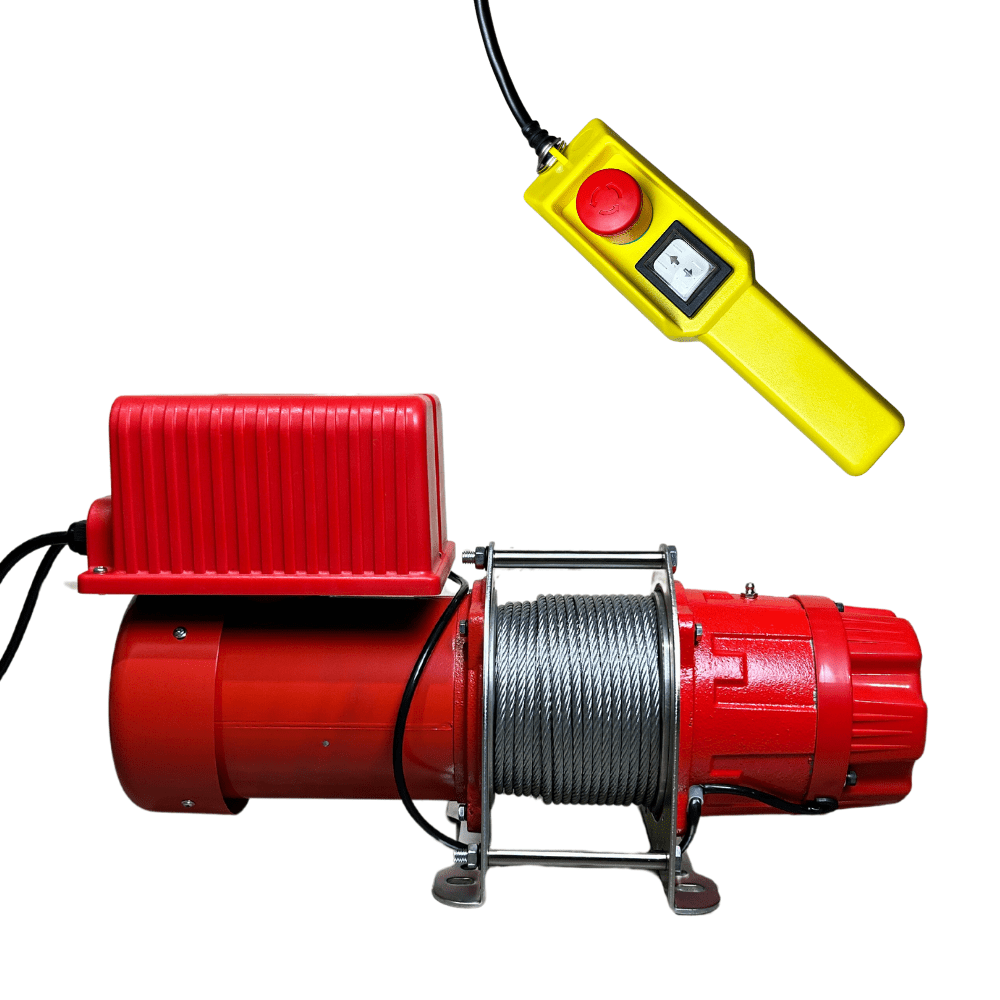

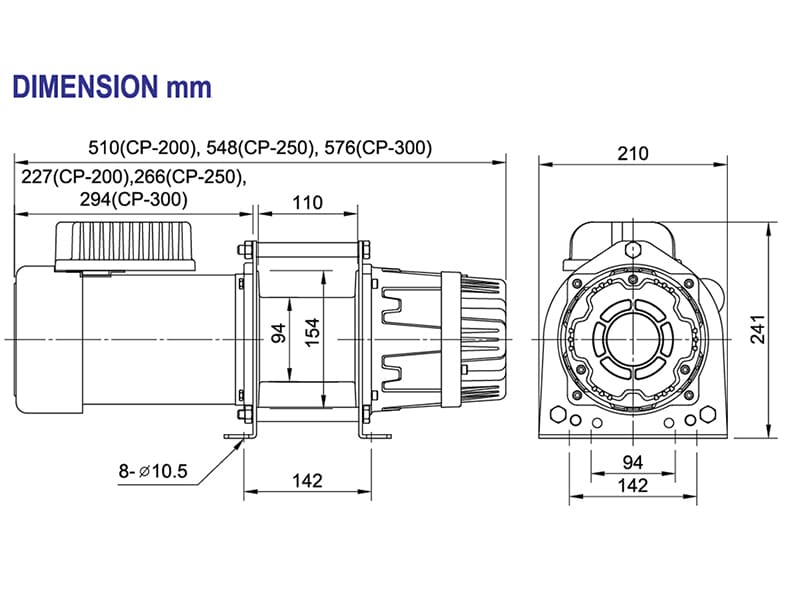

LACW200

Capacity 200 kg
Lifting speed: 10 – 15 m/min
Power supply: 240V
Gear ratio: 43:1
Wire rope: 6mm x 30m
Mounting bolt pattern: 142 x 142 mm and 142 x 94 mm
Weight: 32 kg

LACW250

Capacity 250 kg
Lifting speed: 10 – 15 m/min
Power supply: 240V
Gear ratio: 43:1
Wire rope: 6mm x 30m
Mounting bolt pattern: 142 x 142 mm and 142 x 94 mm
Weight: 34 kg

LACW300

Capacity 300 kg
Lifting speed: 10 – 15 m/min
Power supply: 240V
Gear ratio: 43:1
Wire rope: 6mm x 30m
Mounting bolt pattern: 142 x 142 mm and 142 x 94 mm
Weight: 38 kg

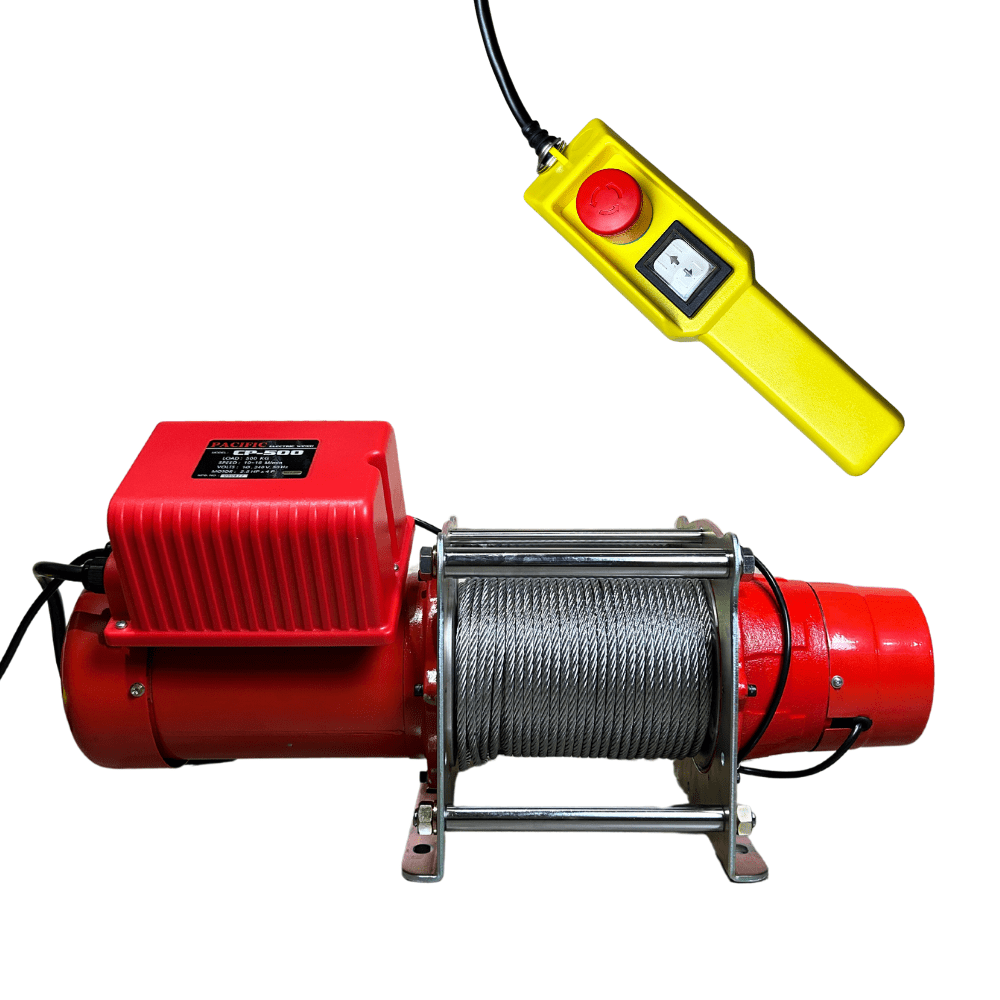

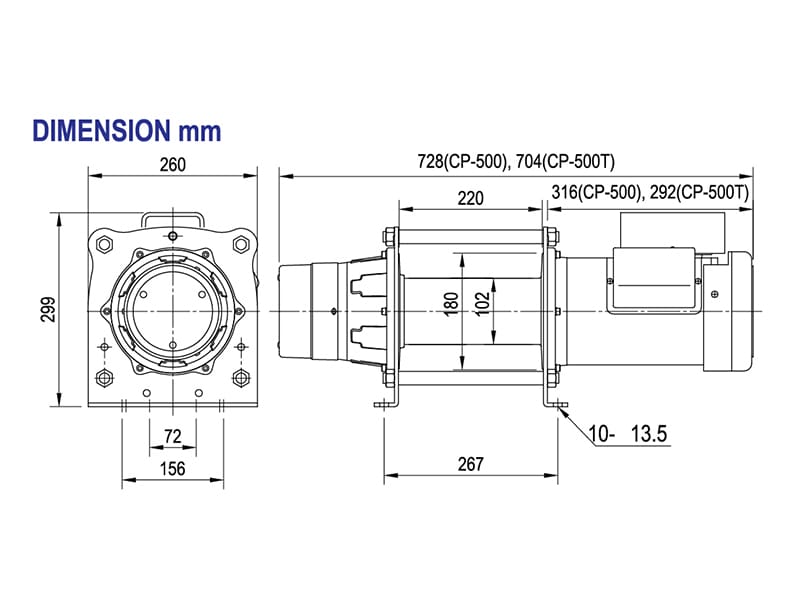

LACW305

Capacity 500 kg
Lifting speed: 10 – 15 m/min
Power supply: 240V
Gear ratio: 48:1
Wire rope: 7mm x 60m
Mounting bolt pattern: 267 x 156 mm and 267 x 72 mm
Weight: 55 kg

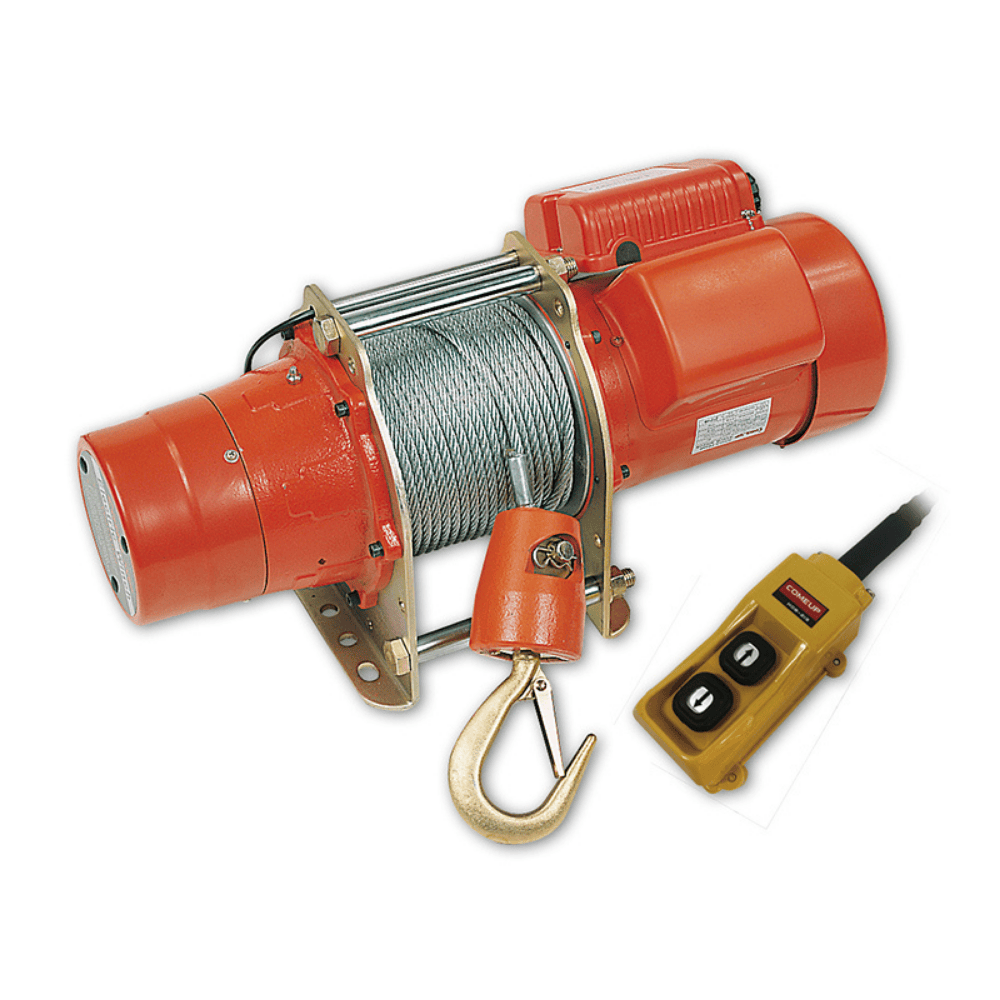

LACW320

Capacity 300 kg
Lifting speed: 12 – 19 m/min
Power supply: 240V
Gear ratio: 41:1
Wire rope: 6mm x 60m
Mounting bolt pattern: 197 x 156 mm
Weight: 42 kg

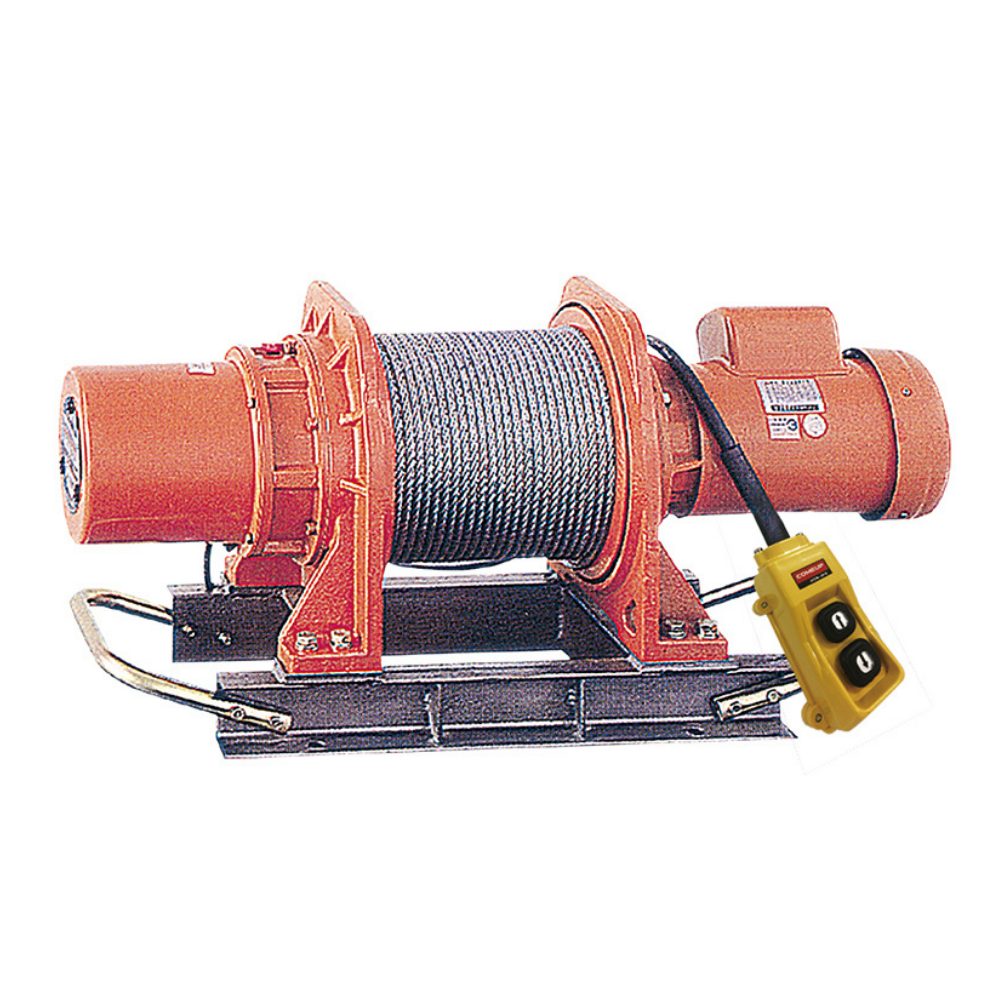

LACW330

Capacity 400 kg
Lifting speed: 12 – 18 m/min
Power supply: 240V
Gear ratio: 57:1
Wire rope: 9mm x 60m
Mounting bolt pattern: 400 x 325 mm
Weight: 120 kg

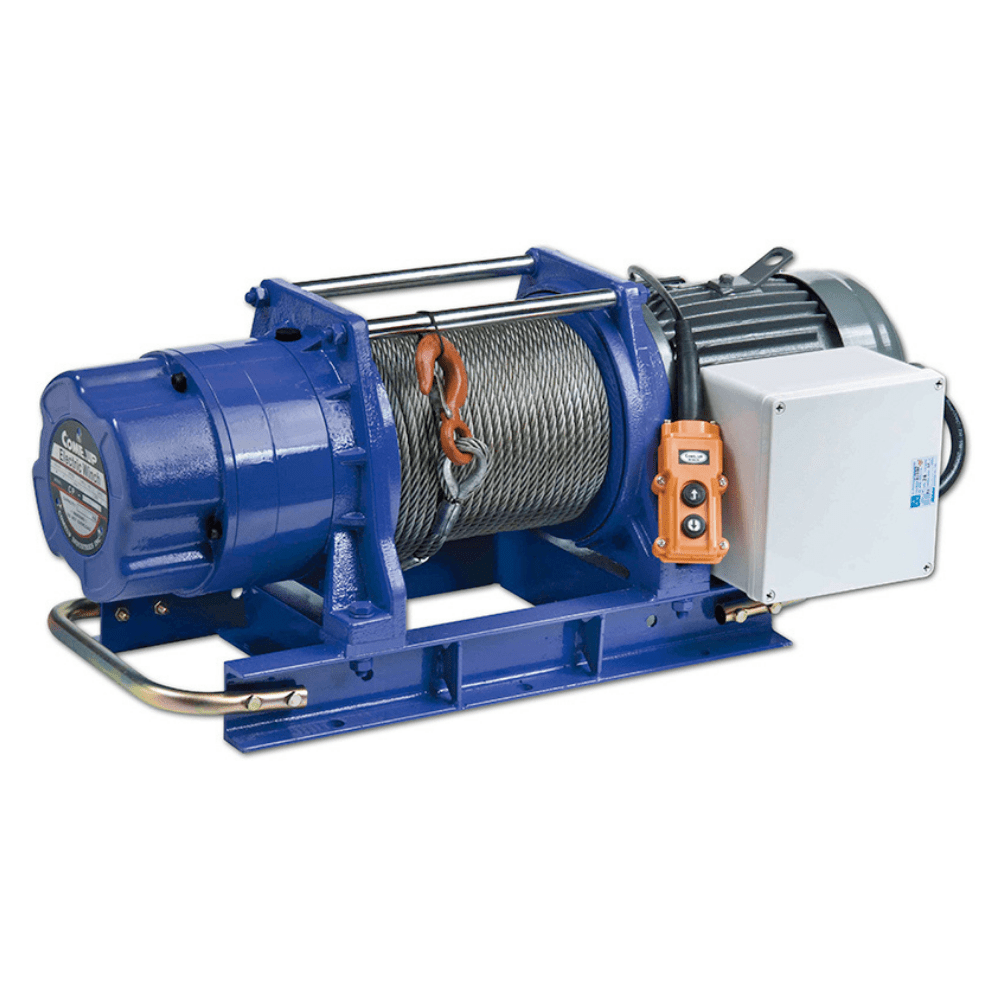

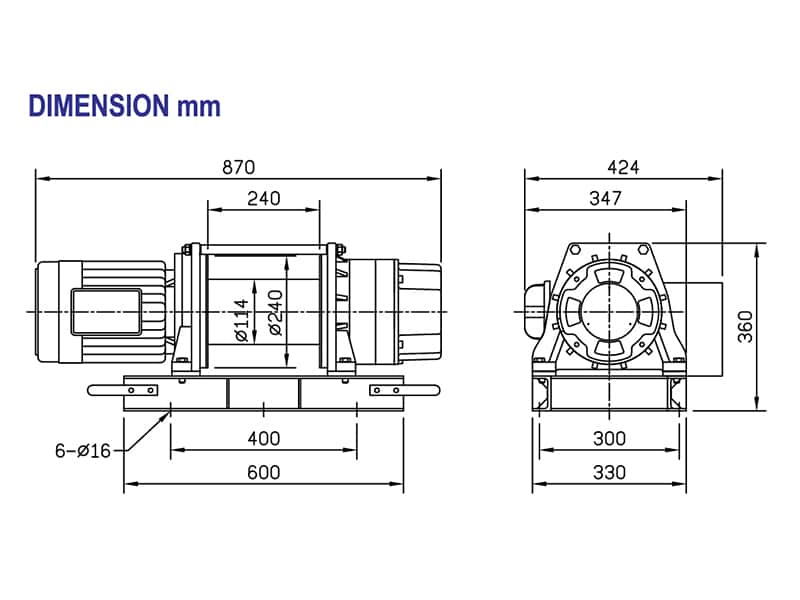

LACW310

Capacity 750 kg
Lifting speed: 10 – 15 m/min
Power supply: 415V
Gear ratio: 58:1
Wire rope: 9mm x 60m
Mounting bolt pattern: 400 x 300 mm
Weight: 135 kg

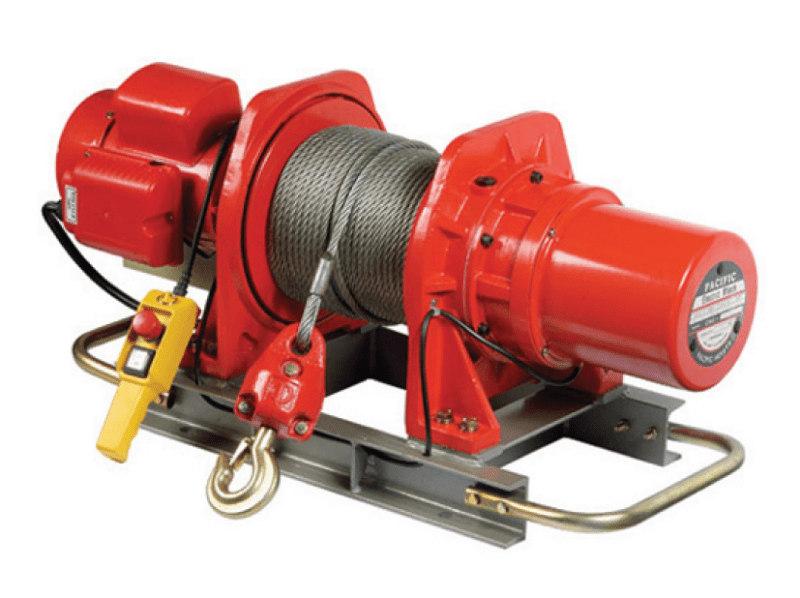

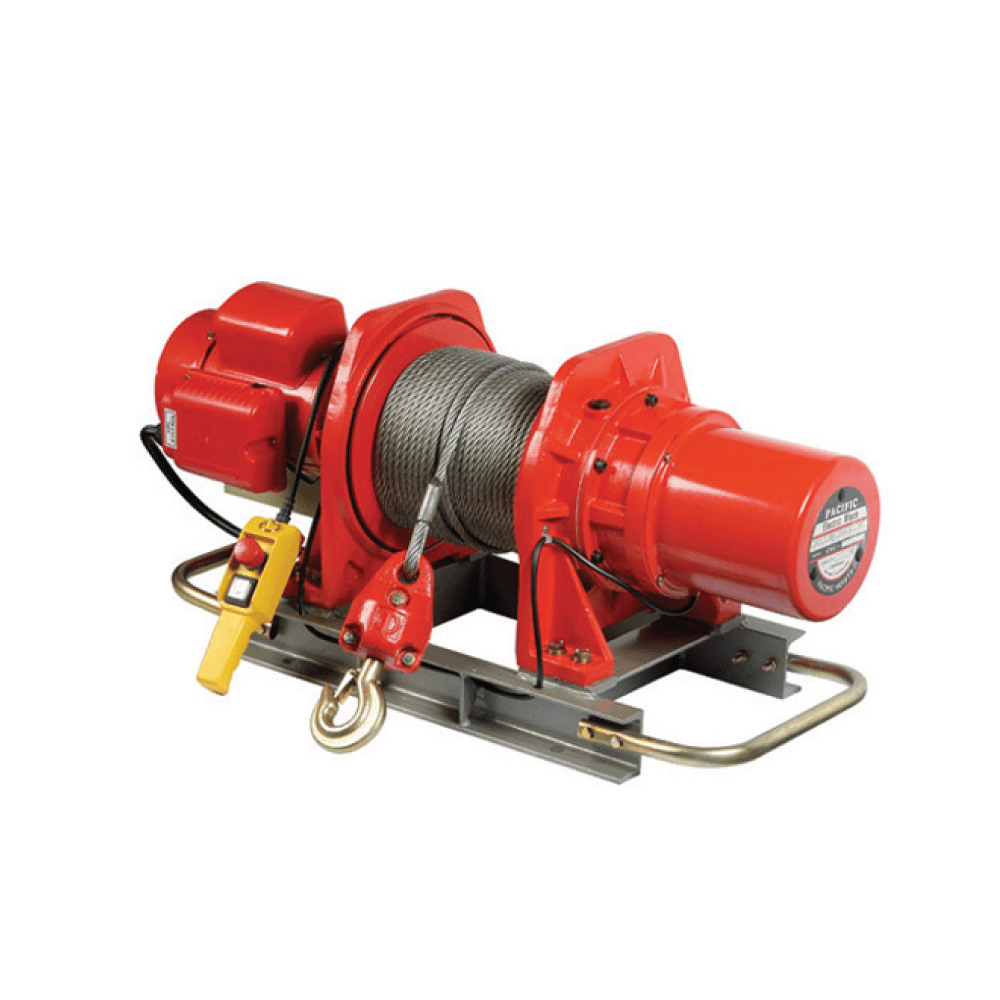

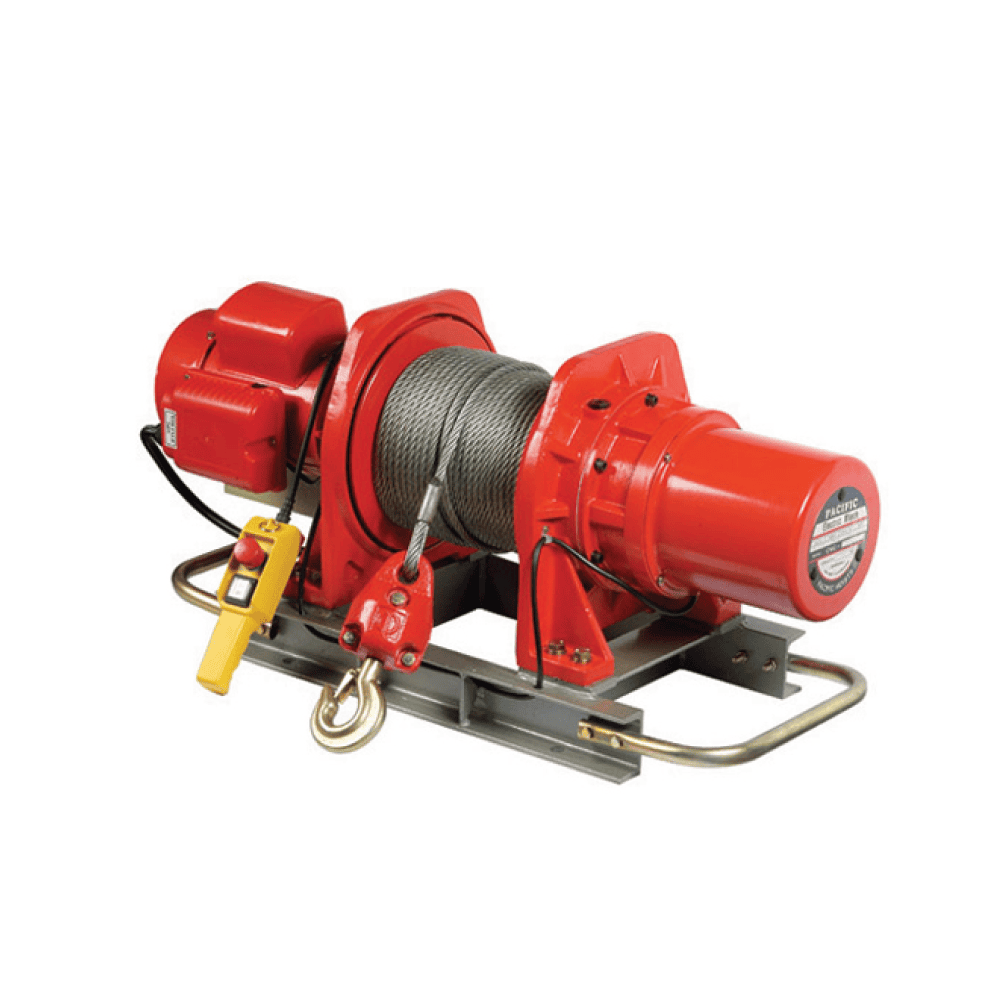

LACW340

Capacity 650 kg
Lifting speed: 12 – 18 m/min
Power supply: 415V
Gear ratio:
Wire rope: 9mm x 60m
Mounting bolt pattern: 325 x 400 mm
Weight: 154 kg

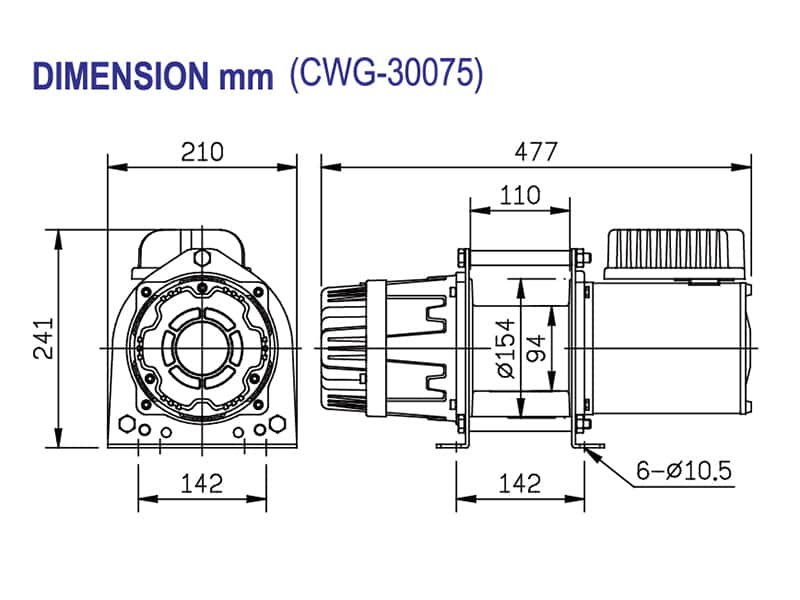

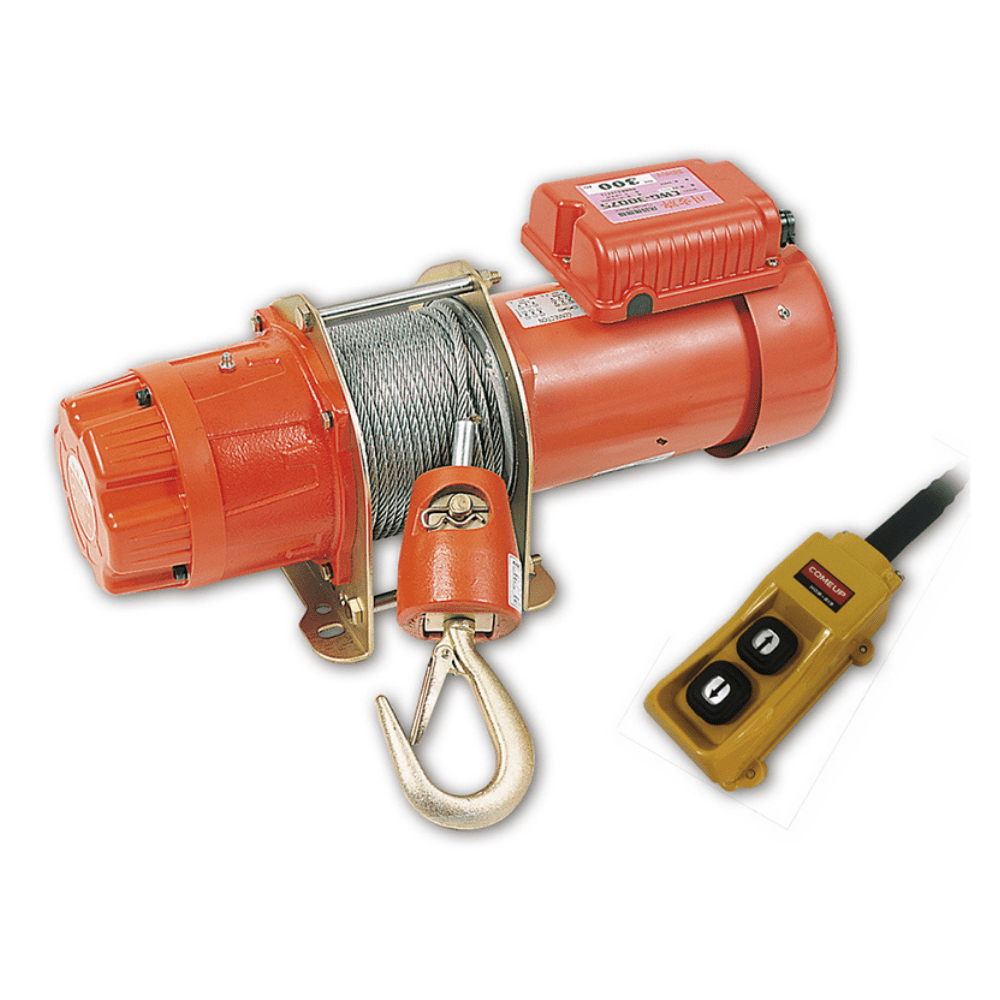

LACW345

Capacity 300 kg
Lifting speed: 10 – 15 m/min
Power supply: 415V
Gear ratio: 43:1
Wire rope: 6mm x 30m
Mounting bolt pattern: 142x 142 mm
Weight: 32 kg

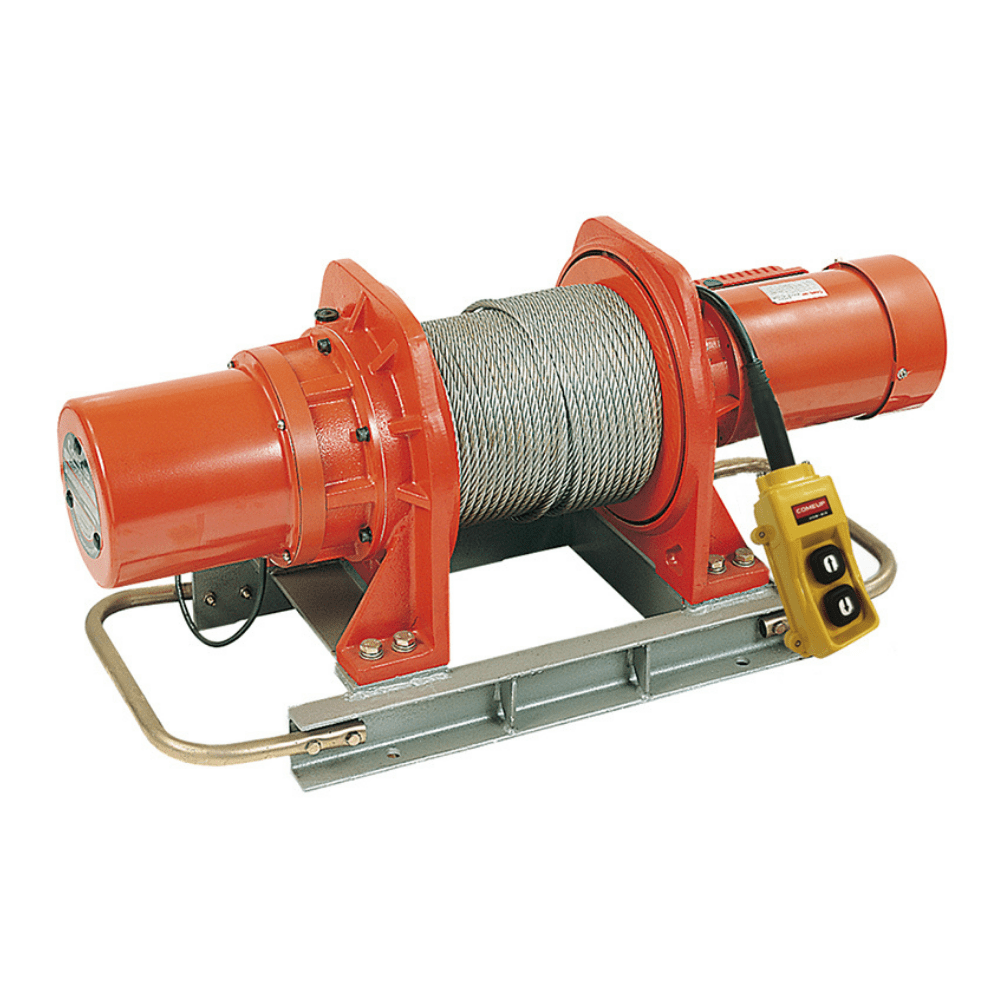

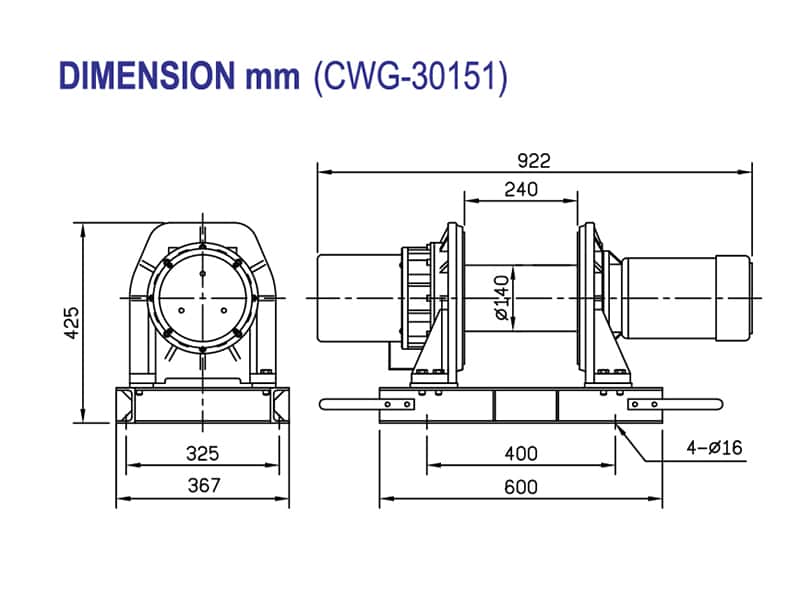

LACW350

Capacity 500 kg
Lifting speed: 12 – 18 m/min
Power supply: 415V
Gear ratio: 57:1
Wire rope: 9mm x 60m
Mounting bolt pattern: 400 x 325 mm
Weight: 120 kg

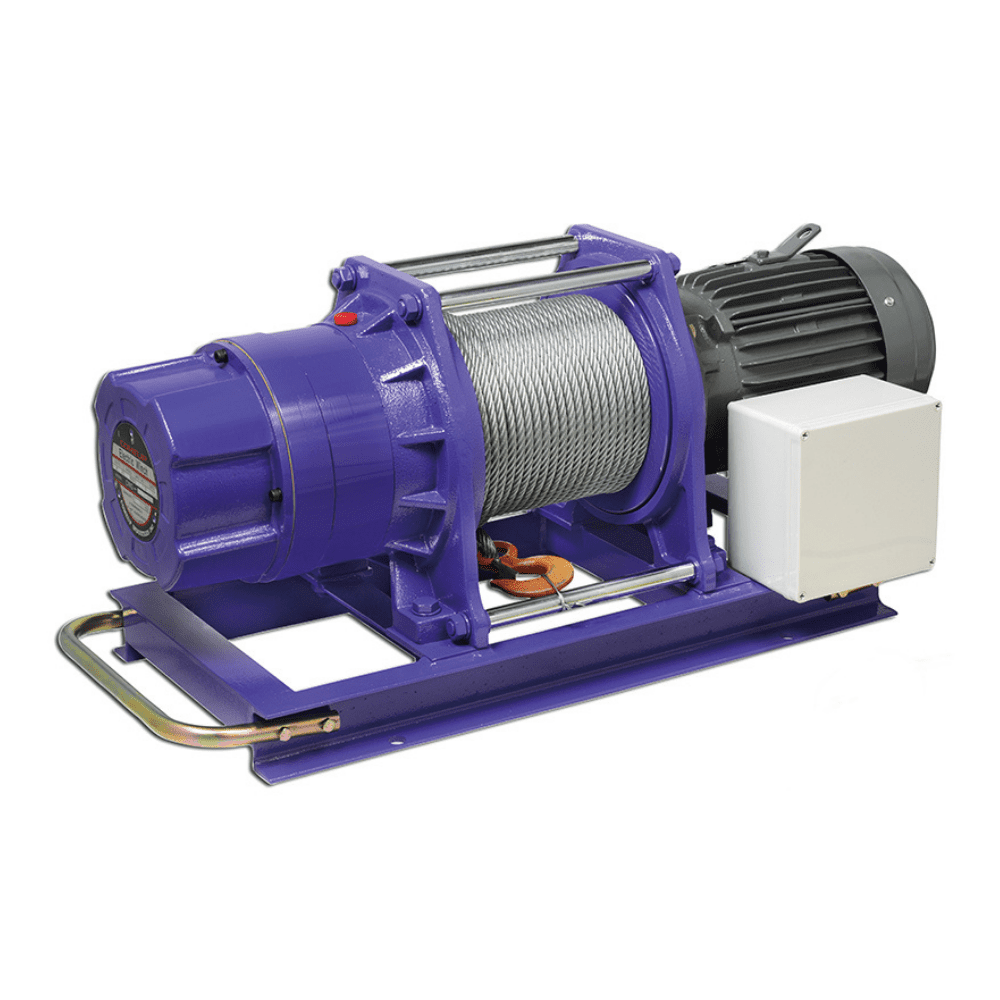

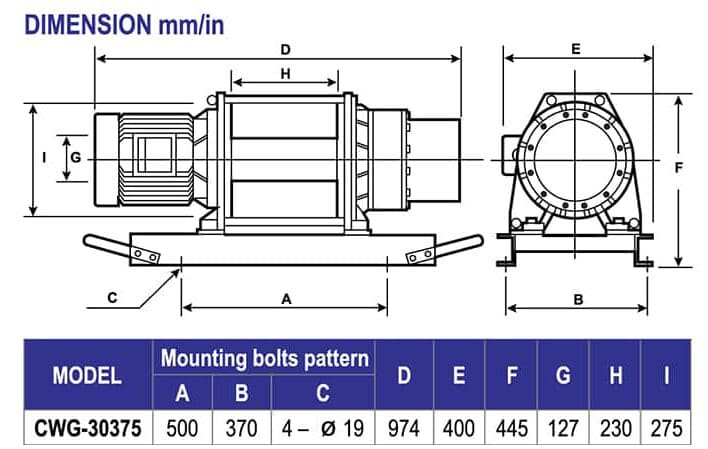

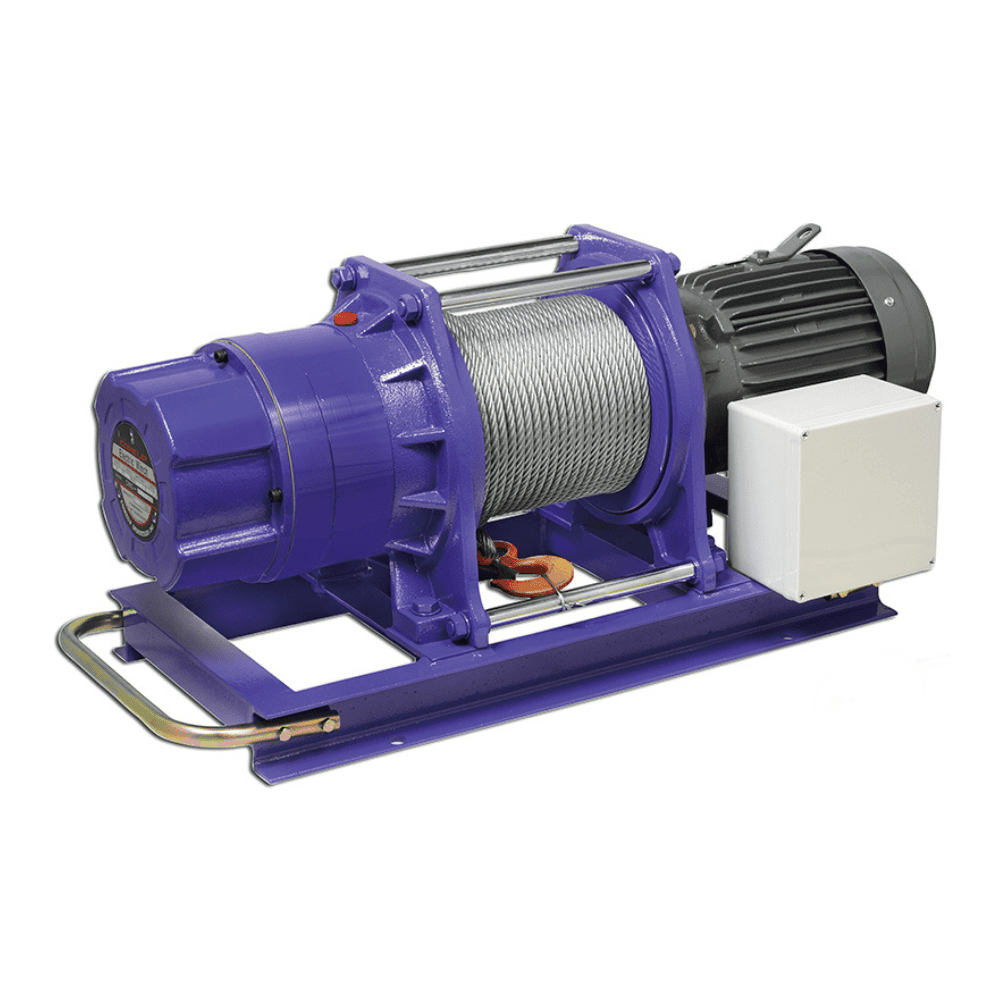

LACW375

Capacity 900 kg
Lifting speed: 13 – 20 m/min
Power supply: 415V
Gear ratio: 48:1
Wire rope: 10mm x 60m
Mounting bolt pattern: 500 x 370 mm
Weight: 185 kg

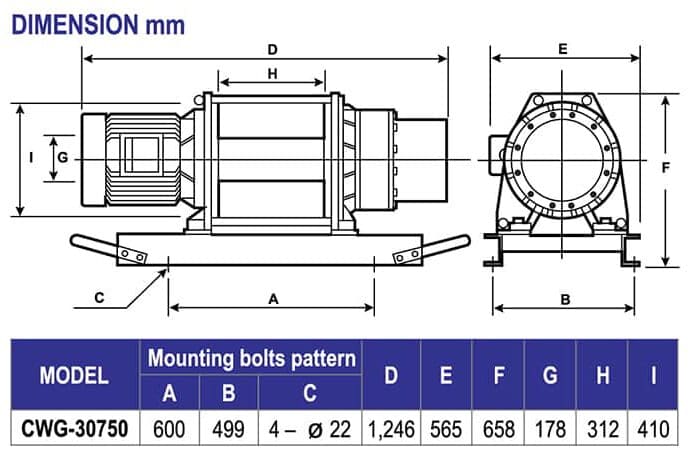

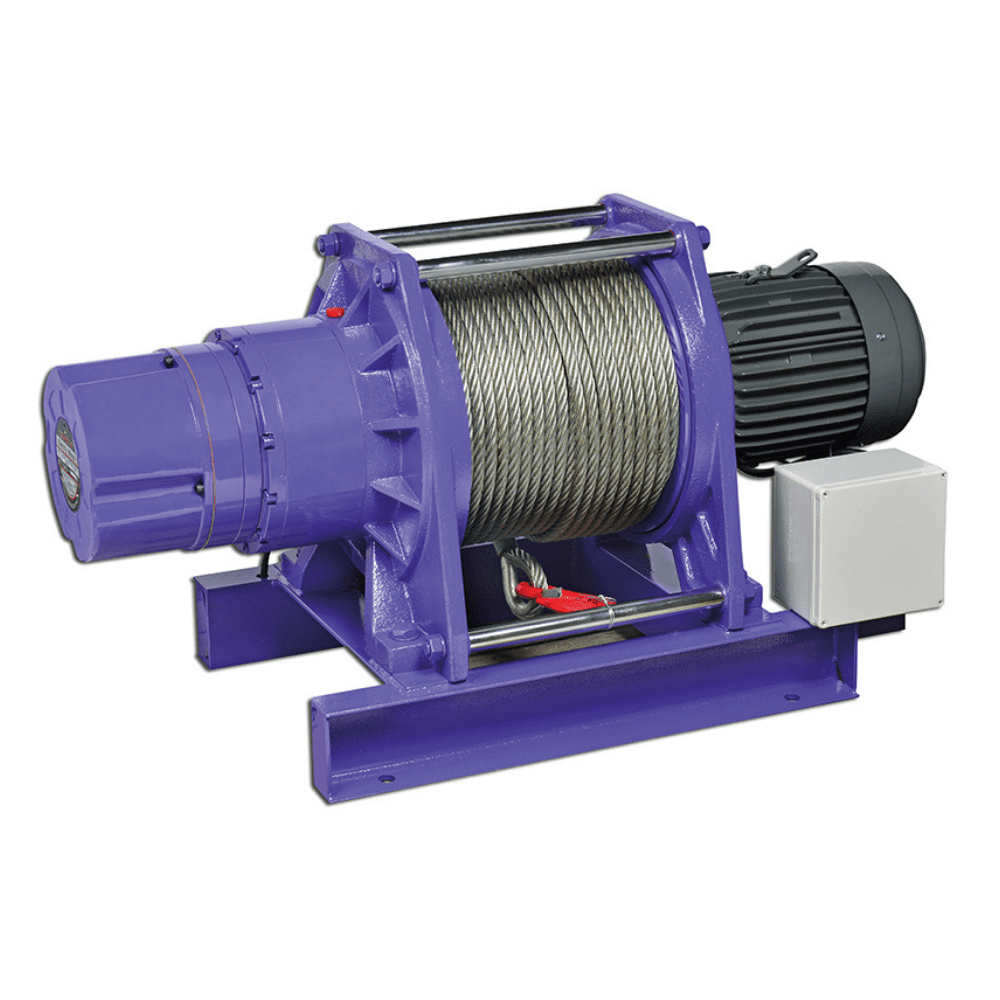

LACW750

Capacity 2200 kg
Lifting speed: 7 – 12 m/min
Power supply: 415V
Gear ratio: 127:1
Wire rope: 16mm x 100m
Mounting bolt pattern: 600 x 499 mm
Weight: 400 kg

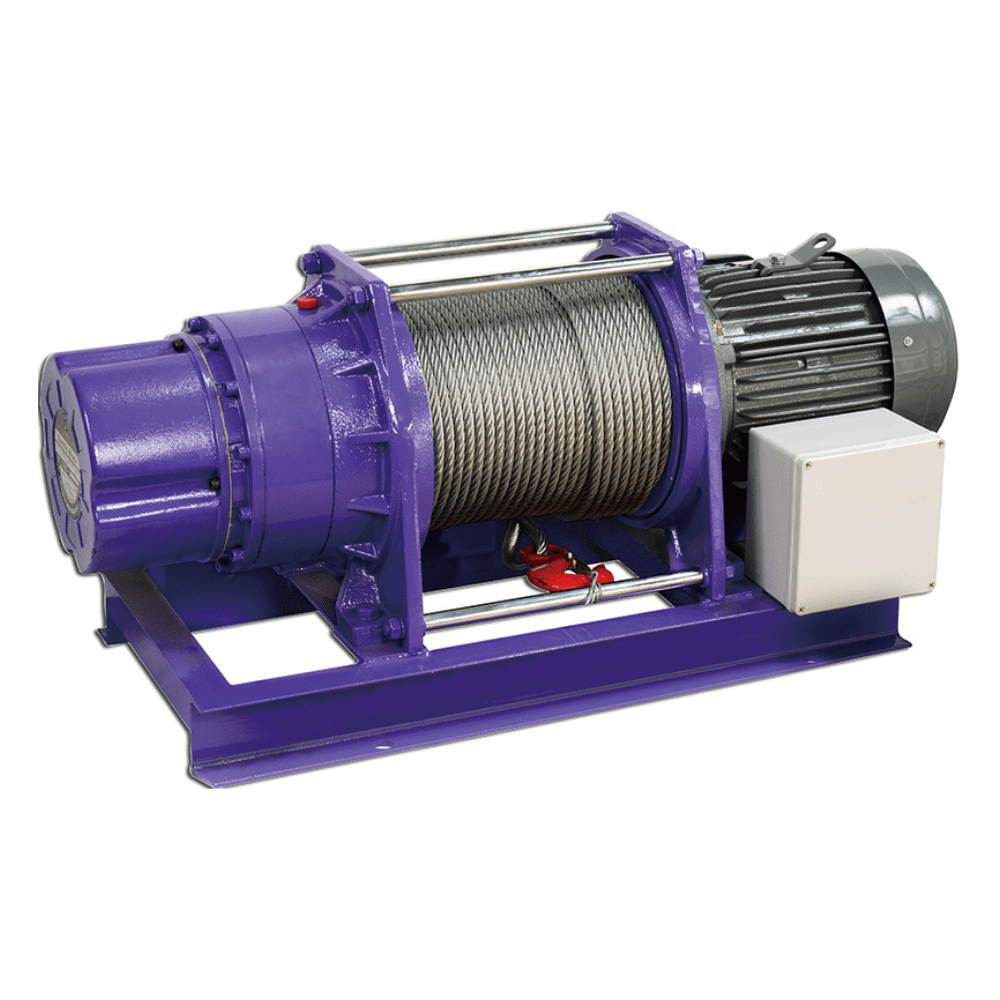

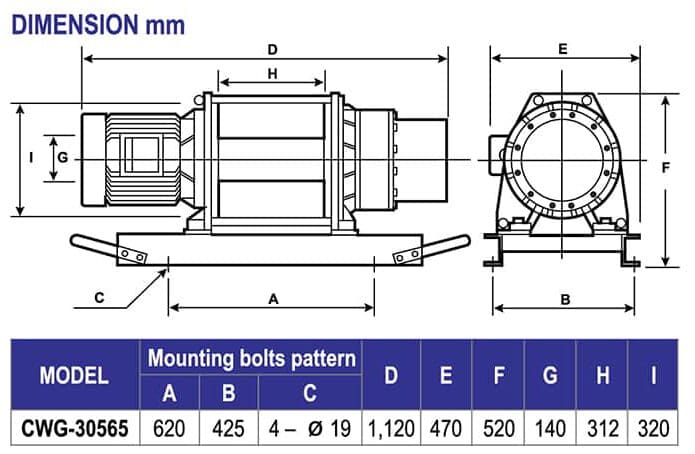

LACW565

Capacity 1100 kg
Lifting speed: 14 – 25 m/min
Power supply: 415V
Gear ratio: 50:1
Wire rope: 12mm x 100m
Mounting bolt pattern: 620 x 425 mm
Weight: 250 kg

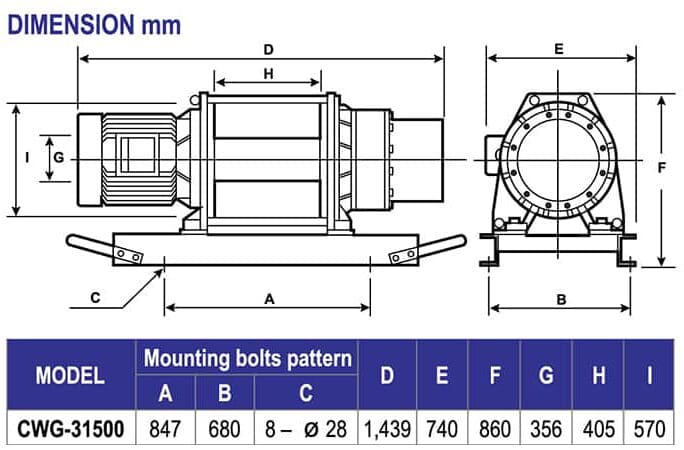

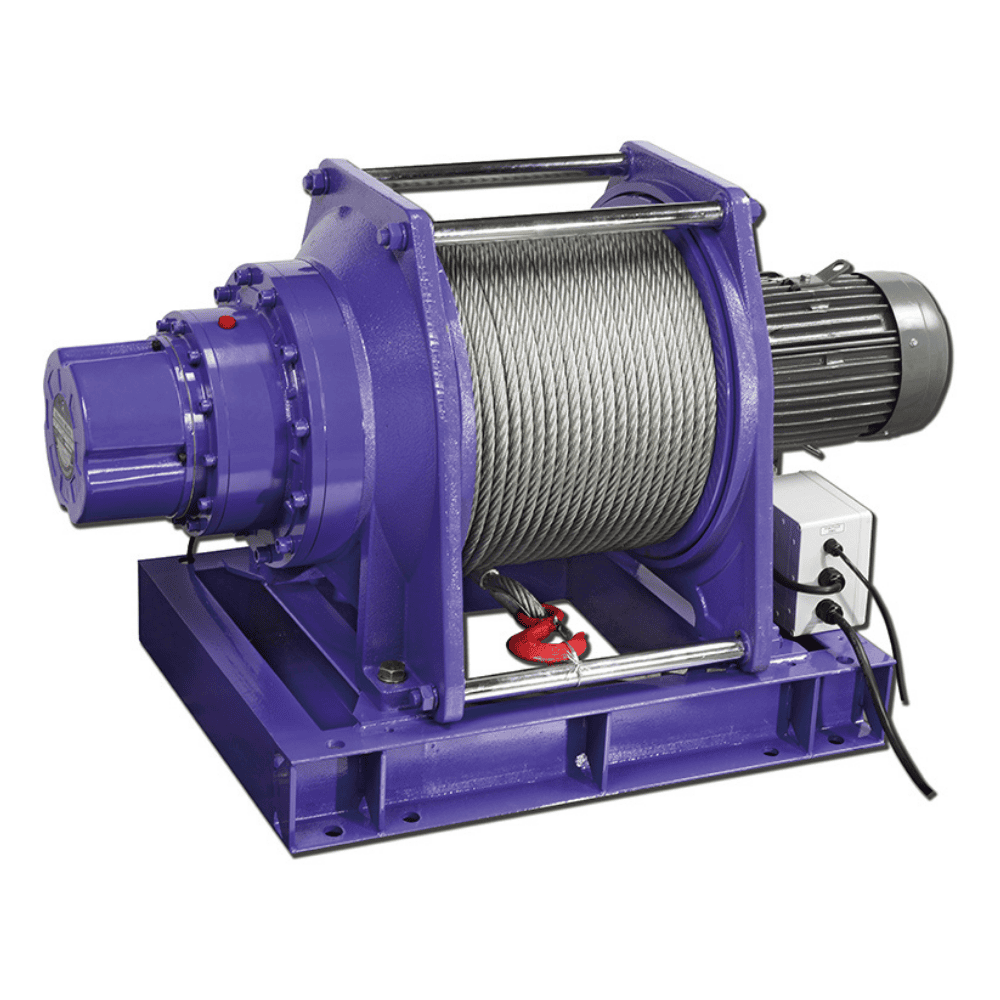

LACW800

Capacity 3500 kg
Lifting speed: 5.8 – 8 m/min
Power supply: 415V
Gear ratio: 192:1
Wire rope: 18mm x 150m
Mounting bolt pattern: 847 x 680 mm
Weight: 800 kg

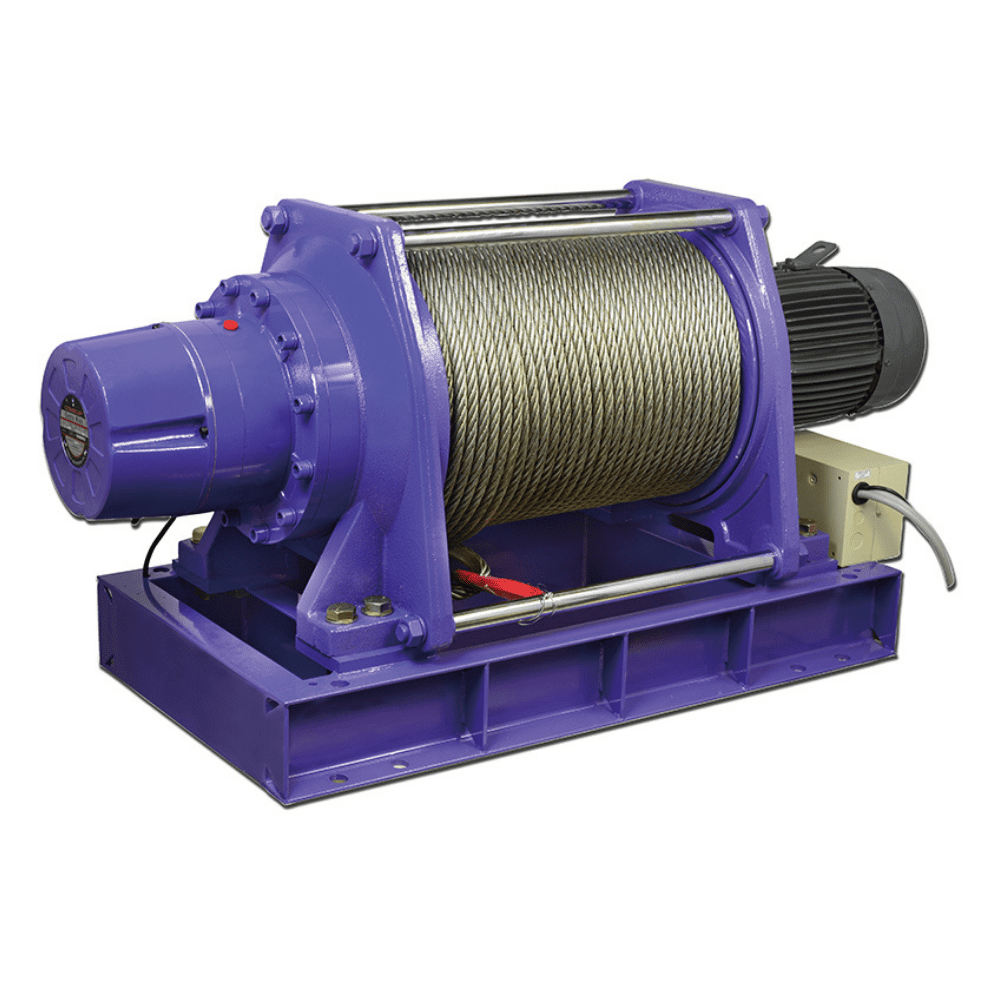

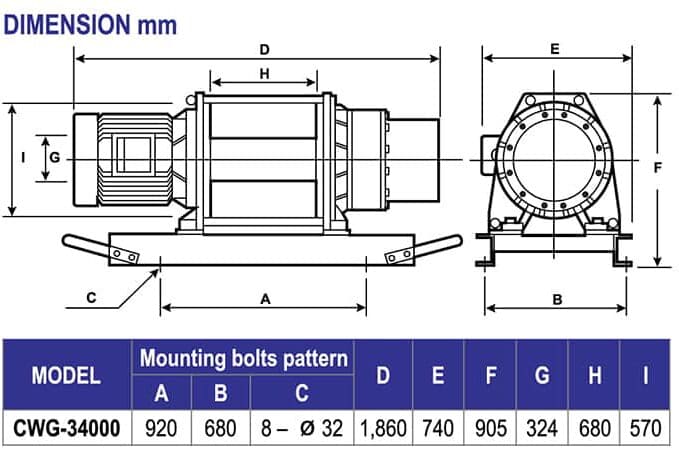

LACW850

Capacity 5000 kg
Lifting speed: 8 – 12 m/min
Power supply: 415V
Gear ratio: 197:1
Wire rope: 22.4mm x 200m
Mounting bolt pattern: 920 x 680 mm
Weight: 1380 kg

Product Variations

Description	Product Code
Electric Winch 240V 200kg 11-16m/min Rope 5mm x 46m	LCWL200	Add to Quote Request
Electric Winch 240V 200kg 11-16m/min Rope 5mm x 71m	LCWL205	Add to Quote Request
Electric Winch 240V 300kg 16-25m/min Rope 6mm x 60m	LCWL305	Add to Quote Request
Electric Winch 240V 200kg 10-15m/min Rope 6mm x 30m	LACW200	Add to Quote Request
Electric Winch 240V 250kg 10-15m/min Rope 5mm x 71m	LACW250	Add to Quote Request
Electric Winch 240V 300kg 10-15m/min Rope 6mm x 30m	LACW300	Add to Quote Request
Electric Winch 240V 500kg 10-15m/min Rope 7mm x 60m	LACW305	Add to Quote Request
Electric Winch 240V 300kg 12/19m/min Rope 6mm x 60m	LACW320	Add to Quote Request
Electric Winch 240V 400kg 12-18m/min Rope 9mm x 60m	LACW330	Add to Quote Request
Electric Winch 415V 750kg 10-15m/min Rope 9mm x 60m	LACW310	Add to Quote Request
Electric Winch 415V 650kg 12-18m/min Rope 9mm x 60m	LACW340	Add to Quote Request
Electric Winch 415V 300kg 10-15m/min Rope 9mm x 30m	LACW345	Add to Quote Request
Electric Winch 415V 500kg 12-18m/min Rope 9mm x 60m	LACW350	Add to Quote Request
Electric Winch 415V 900kg 13-20m/min Rope 10mm x 60m	LACW375	Add to Quote Request
Electric Winch 415V 2200kg 7-12m/min Rope 16mm x 100m	LACW750	Add to Quote Request
Electric Winch 415V 1100kg 14-25m/min Rope 12mm x 100m	LACW565	Add to Quote Request
Electric Winch 415V 3500kg 6-8m/min Rope 18mm x 150m	LACW800	Add to Quote Request
Electric Winch 415V 5000kg 8-12m/min Rope 22mm x 200m	LACW850	Add to Quote Request

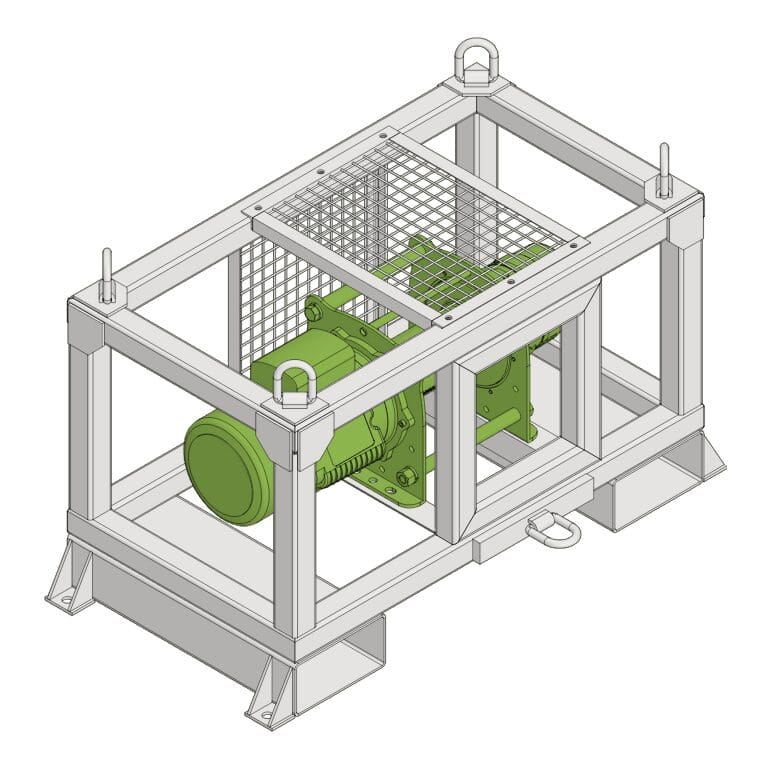

Electric Winch Support Frame for LACW305 Forklift tyne pockets and lifting points for transport	LACW305F	Add to Quote Request

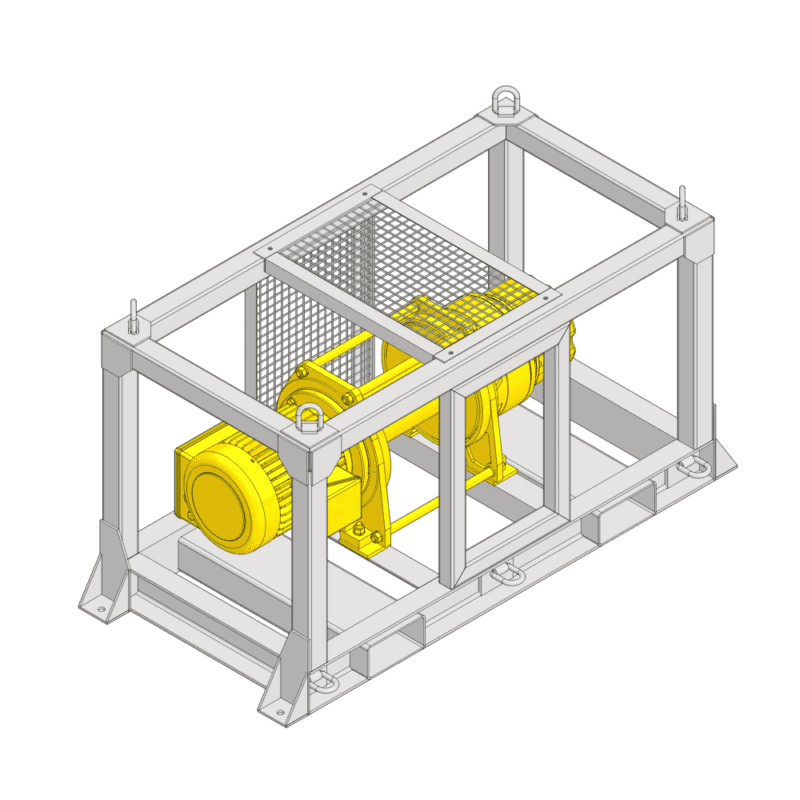

Electric Winch Support Frame for LACW565 Forklift tyne pockets and lifting points for transport	LACW565F	Add to Quote Request

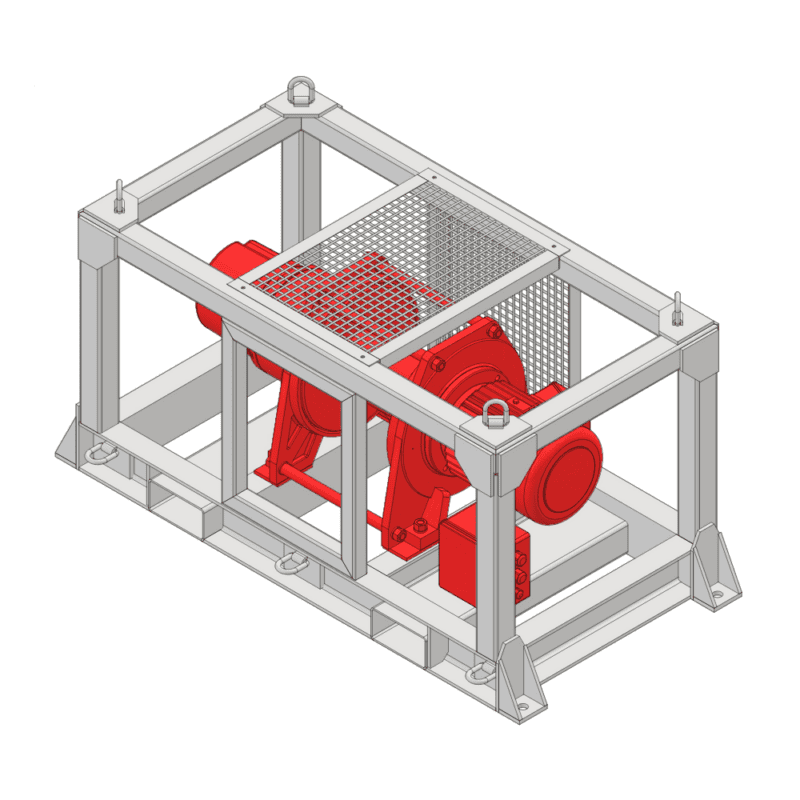

Electric Winch Support Frame for LACW750 Forklift tyne pockets and lifting points for transport	LACW750F	Add to Quote Request

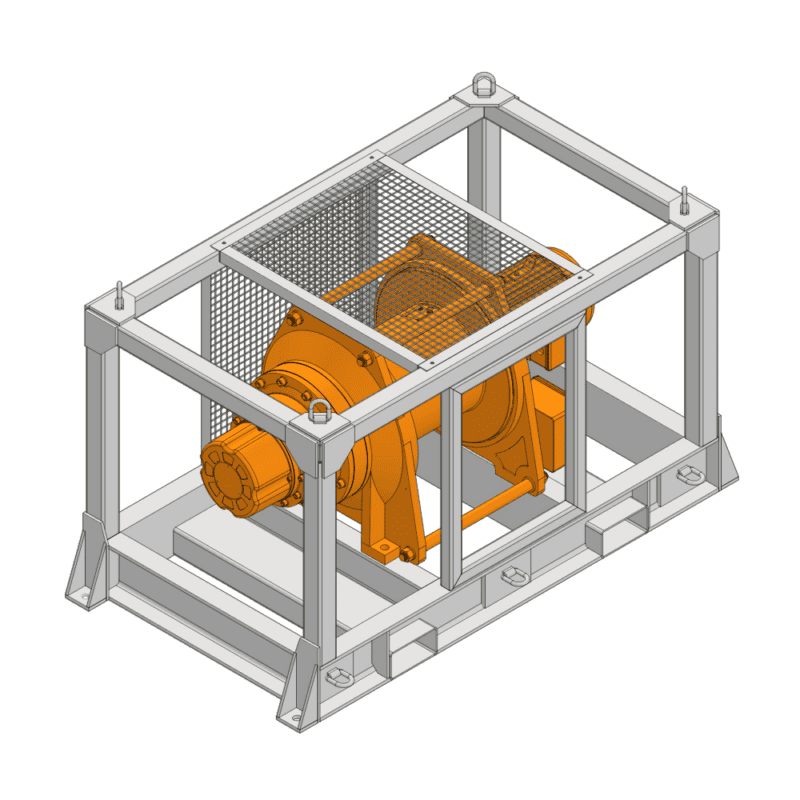

Electric Winch Support Frame for LACW800 Forklift tyne pockets and lifting points for transport	LACW800F	Add to Quote Request

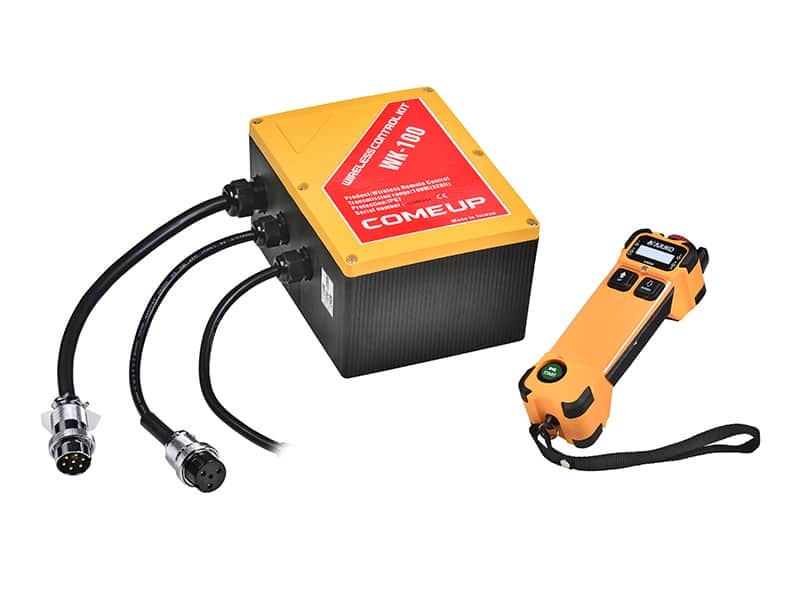

JUUKO wireless remote control for LCWL winches	WK-100S-CWL	Add to Quote Request
