Height Bars

+ Add to Quote Request

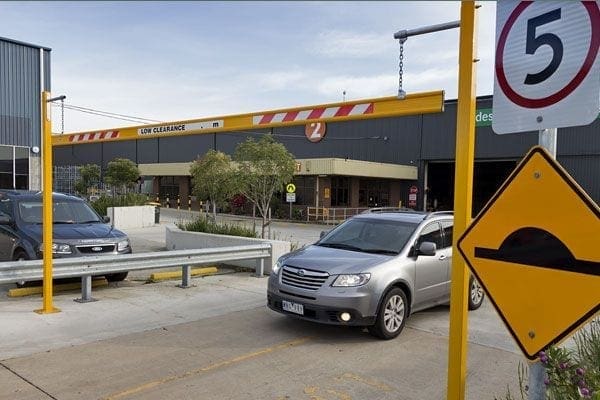

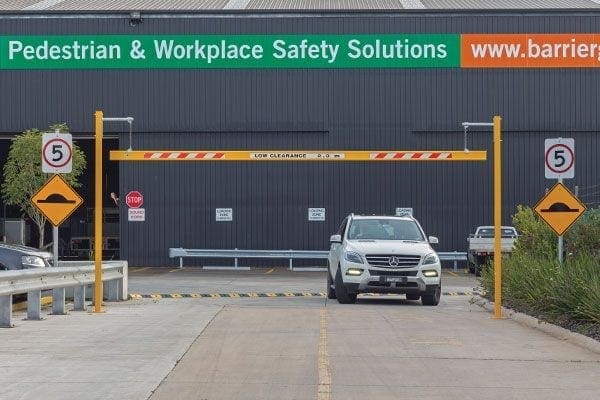

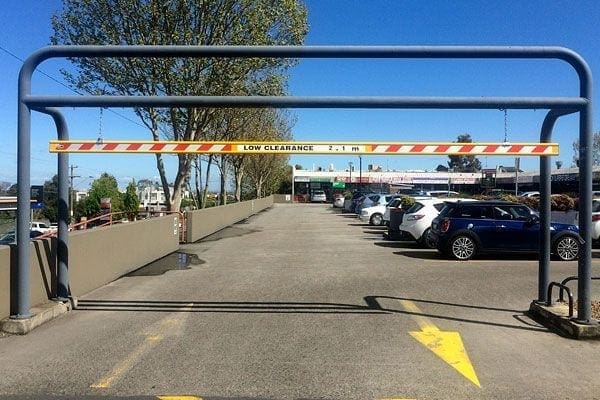

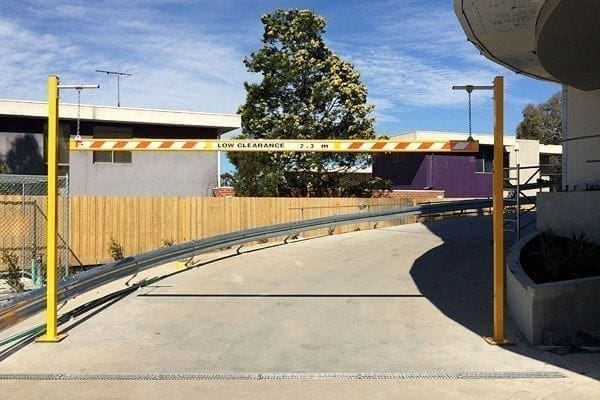

Eliminate damage to vehicles and property caused by oversize vehicles entering areas of restricted height by installing suspended Height Bars. The Height Bars are available in three standard lengths: 2, 3 or 6 metres and come with suspension chain and hanger assemblies.

Powder coated safety yellow with reflected diagonal stripes, they carry the text “LOW CLEARANCE” with the specified height in black letters on a white background. (Please specify)
Use height bars at locations where vehicles first enter an undercover area or encounter an overhead obstruction, where the clearance in either case is;
(i) 3 metres or less if only cars or light vans are likely to use the facility or
(ii) 4.6 metres or less in all other areas.

Clear

Additional Information

Specifications

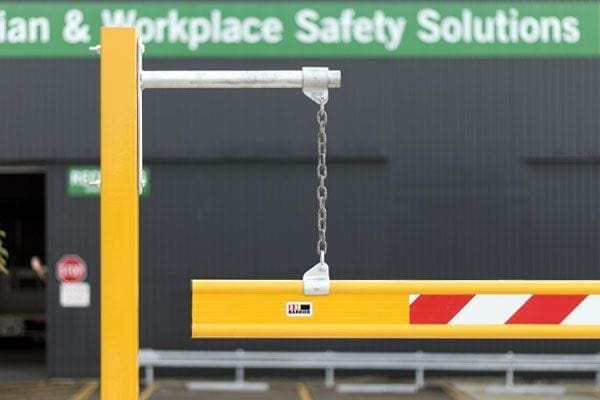

Description: Suspended height bar with hanger assemblies and chains.
Material: 97 x 42mm galvanised tube with 6mm galvanised chain
Length: 2, 3 or 6 metres
Chain: 6mm links. Two lengths 600 mm long
Finish: Safety yellow powder coated over galvanised steel
Installation: Masonary anchors to building
2 metres – 11 kg approx
3 metres – 15 kg approx
6 metres – 28 kg approx

Also view our Flex Impact Safety Height Limiters





Product Variations

Image Description Product Code Price (excl. GST)

400mm height bar standoff

HBS40

In-ground post 89 x 89 x 4mm – 4 metres long

HBPBG

Height Bar 2m – Powder Coated Aluminium

HB2-PA

Height Bar 3m – Powder Coated Aluminium

HB3-PA

Height Bar 4m – Powder Coated Aluminium

HB4-PA

Height Bar 5m – Powder Coated Aluminium

HB5-PA

Height Bar 6m – Powder Coated Aluminium

HB6-PA

Height Bar 8m – Powder Coated Aluminium

HB8-PA

Height Bar 10m – Powder Coated Aluminium

HB10-PA

Height Bar 12m – Powder Coated Aluminium

HB12-PA

Group 2 Hanger Beam

HBHR

Height Bar Post – Surface Mounted Group 1

HBPSM1

Height Bar Post – Surface Mounted Group 2

HBPSM2

Height Bar Adjustable Standoff Bracket each – 500mm

HBS500
