Drum Lifter Rotator Forklift Mounted Hydraulic

+ Add to Quote Request

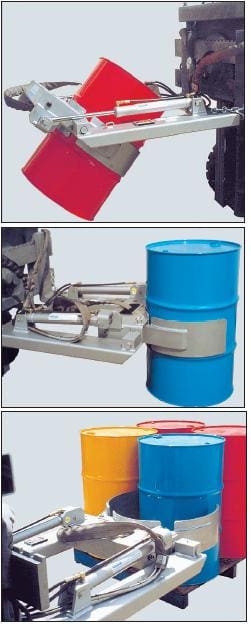

Our Hydraulic Drum Rotator is used to lift, empty and rotate 205-litre steel drums. With an incredible lifting capacity of 1 tonne, it also features a unique hydraulic grab operation. The Hydraulic Drum Rotator is commonly used in food processing, recycling and mining industries.  It’s ideal for frequent emptying of bins and similar applications.

Not only does it support heavy-duty drums, but it can easily select a single drum from a pallet. Its long-reach grab ensures it doesn’t disturb other items or drums, on the pallet, during this process. It is very safe and reliable. The device safely transports drums around a worksite as well.

Additional Information

The Hydraulic Drum Rotator is perfect for safe drum handling!

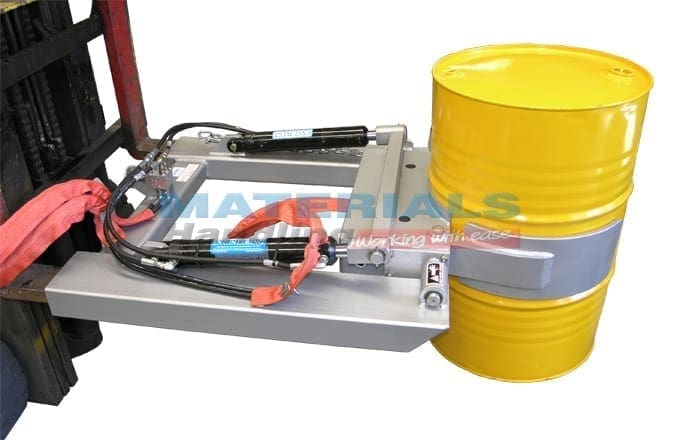

This device is used with an existing forklift vehicle, which allows it to grab, lift, rotate, move, empty and transport a bin. The attachment slips onto the forklift and secured via hydraulic couplings for a quick connection. Its heavy-duty lifting capacity suits 205-litre drums, weighing up to 1 tonne. The rotation feature is controlled by the third and fourth function level and abled by the units hydraulic components. The device is fitted with couplings and finished in an enamel paint design.

DDCGR Specifications:

  • Safe Working Load (SWL) – 1000 kg
  • Unit Weight – 175 kg
  • Rotation – 130º
  • Load Centre – 1307.5 mm
  • Pocket Size – 185 x 65 mm
  • Pocket Centres – 874 mm
  • Horizontal C of G – 700 mm
An optional battery power pack is available!

The Hydraulic Power Pack (code: DDCGRHPP) completely eliminates the need to connect to a forklift vehicles hydraulic system. Learn more about this other variation, by visiting our Heavy Duty Battery Drum Rotator.

Click the PDF button to learn more.

Product Variations

Image Description Product Code Price (excl. GST)

Hydraulic Drum Grab and Rotator

DDCGR $6,830.00
