Drum Lifting and Tipping Trolley

Our Mobile Drum Lifter/Rotator features a flexible design which is ideal for depalletising, transporting, stacking, rotating and tipping 205 litre drums.

There are three methods used for engaging drums:
D Series – Engage drums via a steel band around the centre of the drum

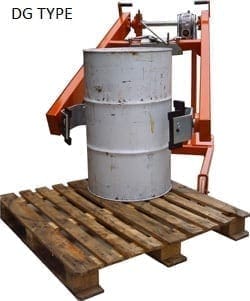

DG Series – Engage drums via vulcanised polyurethane grippers that clamp the drum from the sides

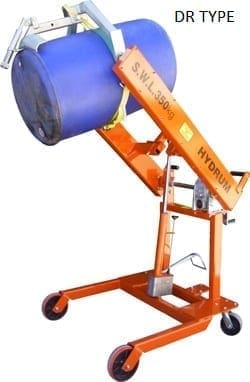

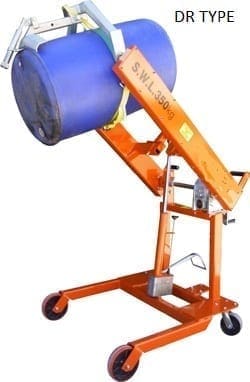

DR Series – Engage drums with a rim gripping clamp that locks onto the lip of the drum

Product Variation

Clear

Additional Information

When rotating the DR version, a webbing band with ratchet buckle secures the drum. Lifting the drum is by hydraulics and your choice of either foot, air or battery operation. Rotating or tipping the drum is achieved by a handle operated worm gearbox. This allows for pallets to be unloaded and drums placed into racking vertically or horizontally.

For added safety, a sprocket guard is integral with the frame of the D series. Large diameter wheels allow easy transport of drums with little effort.

All models may handle various containers, either by replacing the existing grippers or inserting slip-on attachment. A wheelie bin gripper is a popular attachment for rubbish bin dumping. The DR series can lift plastic and fibre drums and barrels with ease. A truck lock type brake is fitted for safe secure decanting and handling. An on-board weigh scale option is available for these lifters. An optional 3,000mm lift is also available for the 3 versions.

Weighing drums?
The DG grip type machine can be fitted with either an Industrial scale or Intrinsically safe scale system where Tare or Gross weighing is required. Both will offer accuracy of 0.5 Kgs.

Working in Food, Beverage or Pharmaceutical areas?
The DG grip machine can be built in 304 Stainless steel or a combination of 304 Stainless Steel at the Drum handling end of the machine and a hard wearing 2-Pack epoxy frame.

Intrinsically safe work areas?
The DG grip Type machine can be supplied with Anti-Static wheels and an Earth Lug to fully comply.

Click the PDF button to learn more.

Notice: Undefined index: wishlist in /var/www/vhosts/materialshandling.com.au/httpdocs/wp-content/themes/materials/functions.php on line 1985

Deprecated: Function create_function() is deprecated in /var/www/vhosts/materialshandling.com.au/httpdocs/wp-content/themes/materials/functions.php on line 1986

Notice: Function post was called incorrectly. Product properties should not be accessed directly. Backtrace: require('wp-blog-header.php'), require_once('wp-includes/template-loader.php'), include('/themes/materials/woocommerce.php'), woocommerce_content, wc_get_template_part, load_template, require('/themes/materials/woocommerce/content-single-product.php'), do_action('woocommerce_after_single_product_summary'), WP_Hook->do_action, WP_Hook->apply_filters, woocommerce_template_product_attribute, wc_table_variation_attribute_options, WC_Abstract_Legacy_Product->__get, wc_doing_it_wrong Please see Debugging in WordPress for more information. (This message was added in version 3.0.) in /var/www/vhosts/materialshandling.com.au/httpdocs/wp-includes/functions.php on line 6078

Notice: Function post was called incorrectly. Product properties should not be accessed directly. Backtrace: require('wp-blog-header.php'), require_once('wp-includes/template-loader.php'), include('/themes/materials/woocommerce.php'), woocommerce_content, wc_get_template_part, load_template, require('/themes/materials/woocommerce/content-single-product.php'), do_action('woocommerce_after_single_product_summary'), WP_Hook->do_action, WP_Hook->apply_filters, woocommerce_template_product_attribute, wc_table_variation_attribute_options, WC_Abstract_Legacy_Product->__get, wc_doing_it_wrong Please see Debugging in WordPress for more information. (This message was added in version 3.0.) in /var/www/vhosts/materialshandling.com.au/httpdocs/wp-includes/functions.php on line 6078

Notice: Function post was called incorrectly. Product properties should not be accessed directly. Backtrace: require('wp-blog-header.php'), require_once('wp-includes/template-loader.php'), include('/themes/materials/woocommerce.php'), woocommerce_content, wc_get_template_part, load_template, require('/themes/materials/woocommerce/content-single-product.php'), do_action('woocommerce_after_single_product_summary'), WP_Hook->do_action, WP_Hook->apply_filters, woocommerce_template_product_attribute, wc_table_variation_attribute_options, WC_Abstract_Legacy_Product->__get, wc_doing_it_wrong Please see Debugging in WordPress for more information. (This message was added in version 3.0.) in /var/www/vhosts/materialshandling.com.au/httpdocs/wp-includes/functions.php on line 6078

Notice: Function post was called incorrectly. Product properties should not be accessed directly. Backtrace: require('wp-blog-header.php'), require_once('wp-includes/template-loader.php'), include('/themes/materials/woocommerce.php'), woocommerce_content, wc_get_template_part, load_template, require('/themes/materials/woocommerce/content-single-product.php'), do_action('woocommerce_after_single_product_summary'), WP_Hook->do_action, WP_Hook->apply_filters, woocommerce_template_product_attribute, wc_table_variation_attribute_options, WC_Abstract_Legacy_Product->__get, wc_doing_it_wrong Please see Debugging in WordPress for more information. (This message was added in version 3.0.) in /var/www/vhosts/materialshandling.com.au/httpdocs/wp-includes/functions.php on line 6078

Notice: Function post was called incorrectly. Product properties should not be accessed directly. Backtrace: require('wp-blog-header.php'), require_once('wp-includes/template-loader.php'), include('/themes/materials/woocommerce.php'), woocommerce_content, wc_get_template_part, load_template, require('/themes/materials/woocommerce/content-single-product.php'), do_action('woocommerce_after_single_product_summary'), WP_Hook->do_action, WP_Hook->apply_filters, woocommerce_template_product_attribute, wc_table_variation_attribute_options, WC_Abstract_Legacy_Product->__get, wc_doing_it_wrong Please see Debugging in WordPress for more information. (This message was added in version 3.0.) in /var/www/vhosts/materialshandling.com.au/httpdocs/wp-includes/functions.php on line 6078

Notice: Function post was called incorrectly. Product properties should not be accessed directly. Backtrace: require('wp-blog-header.php'), require_once('wp-includes/template-loader.php'), include('/themes/materials/woocommerce.php'), woocommerce_content, wc_get_template_part, load_template, require('/themes/materials/woocommerce/content-single-product.php'), do_action('woocommerce_after_single_product_summary'), WP_Hook->do_action, WP_Hook->apply_filters, woocommerce_template_product_attribute, wc_table_variation_attribute_options, WC_Abstract_Legacy_Product->__get, wc_doing_it_wrong Please see Debugging in WordPress for more information. (This message was added in version 3.0.) in /var/www/vhosts/materialshandling.com.au/httpdocs/wp-includes/functions.php on line 6078

Notice: Function post was called incorrectly. Product properties should not be accessed directly. Backtrace: require('wp-blog-header.php'), require_once('wp-includes/template-loader.php'), include('/themes/materials/woocommerce.php'), woocommerce_content, wc_get_template_part, load_template, require('/themes/materials/woocommerce/content-single-product.php'), do_action('woocommerce_after_single_product_summary'), WP_Hook->do_action, WP_Hook->apply_filters, woocommerce_template_product_attribute, wc_table_variation_attribute_options, WC_Abstract_Legacy_Product->__get, wc_doing_it_wrong Please see Debugging in WordPress for more information. (This message was added in version 3.0.) in /var/www/vhosts/materialshandling.com.au/httpdocs/wp-includes/functions.php on line 6078

Notice: Function post was called incorrectly. Product properties should not be accessed directly. Backtrace: require('wp-blog-header.php'), require_once('wp-includes/template-loader.php'), include('/themes/materials/woocommerce.php'), woocommerce_content, wc_get_template_part, load_template, require('/themes/materials/woocommerce/content-single-product.php'), do_action('woocommerce_after_single_product_summary'), WP_Hook->do_action, WP_Hook->apply_filters, woocommerce_template_product_attribute, wc_table_variation_attribute_options, WC_Abstract_Legacy_Product->__get, wc_doing_it_wrong Please see Debugging in WordPress for more information. (This message was added in version 3.0.) in /var/www/vhosts/materialshandling.com.au/httpdocs/wp-includes/functions.php on line 6078

Notice: Function post was called incorrectly. Product properties should not be accessed directly. Backtrace: require('wp-blog-header.php'), require_once('wp-includes/template-loader.php'), include('/themes/materials/woocommerce.php'), woocommerce_content, wc_get_template_part, load_template, require('/themes/materials/woocommerce/content-single-product.php'), do_action('woocommerce_after_single_product_summary'), WP_Hook->do_action, WP_Hook->apply_filters, woocommerce_template_product_attribute, wc_table_variation_attribute_options, WC_Abstract_Legacy_Product->__get, wc_doing_it_wrong Please see Debugging in WordPress for more information. (This message was added in version 3.0.) in /var/www/vhosts/materialshandling.com.au/httpdocs/wp-includes/functions.php on line 6078

Notice: Function post was called incorrectly. Product properties should not be accessed directly. Backtrace: require('wp-blog-header.php'), require_once('wp-includes/template-loader.php'), include('/themes/materials/woocommerce.php'), woocommerce_content, wc_get_template_part, load_template, require('/themes/materials/woocommerce/content-single-product.php'), do_action('woocommerce_after_single_product_summary'), WP_Hook->do_action, WP_Hook->apply_filters, woocommerce_template_product_attribute, wc_table_variation_attribute_options, WC_Abstract_Legacy_Product->__get, wc_doing_it_wrong Please see Debugging in WordPress for more information. (This message was added in version 3.0.) in /var/www/vhosts/materialshandling.com.au/httpdocs/wp-includes/functions.php on line 6078

Notice: Function post was called incorrectly. Product properties should not be accessed directly. Backtrace: require('wp-blog-header.php'), require_once('wp-includes/template-loader.php'), include('/themes/materials/woocommerce.php'), woocommerce_content, wc_get_template_part, load_template, require('/themes/materials/woocommerce/content-single-product.php'), do_action('woocommerce_after_single_product_summary'), WP_Hook->do_action, WP_Hook->apply_filters, woocommerce_template_product_attribute, wc_table_variation_attribute_options, WC_Abstract_Legacy_Product->__get, wc_doing_it_wrong Please see Debugging in WordPress for more information. (This message was added in version 3.0.) in /var/www/vhosts/materialshandling.com.au/httpdocs/wp-includes/functions.php on line 6078

Notice: Function post was called incorrectly. Product properties should not be accessed directly. Backtrace: require('wp-blog-header.php'), require_once('wp-includes/template-loader.php'), include('/themes/materials/woocommerce.php'), woocommerce_content, wc_get_template_part, load_template, require('/themes/materials/woocommerce/content-single-product.php'), do_action('woocommerce_after_single_product_summary'), WP_Hook->do_action, WP_Hook->apply_filters, woocommerce_template_product_attribute, wc_table_variation_attribute_options, WC_Abstract_Legacy_Product->__get, wc_doing_it_wrong Please see Debugging in WordPress for more information. (This message was added in version 3.0.) in /var/www/vhosts/materialshandling.com.au/httpdocs/wp-includes/functions.php on line 6078

Product Variations

Description	Product Code
Drum lift and tip Steel band attachment Lifting Height: 1900 mm	D19	Add to Quote Request
Drum lift and tip Steel band attachment Lifting Height: 2100 mm	D21	Add to Quote Request
Drum lift and tip Steel band attachment Lifting Height: 2700 mm	D27	Add to Quote Request
Drum lift and tip Side gripper attachment Lifting Height: 1600 mm	DG16	Add to Quote Request
Drum lift and tip Side gripper attachment Lifting Height: 2000 mm	DG20	Add to Quote Request
Drum lift and tip Side gripper attachment Lifting Height: 2700 mm	DG27	Add to Quote Request
Drum lift and tip Rim grip attachment Lifting Height: 1600 mm	DR16	Add to Quote Request
Drum lift and tip Rim grip attachment Lifting Height: 2000 mm	DR20	Add to Quote Request
Drum lift and tip Rim grip attachment Lifting Height: 2700 mm	DR27	Add to Quote Request
Drum lift and tip Lifting Height: 3000 mm	D300	Add to Quote Request
Drum lift and tip Rim grip attachment Lifting Height: 3000 mm	DR30	Add to Quote Request
Grip Type Drum Lift and Tip – Heavy	DG30	Add to Quote Request
