Gas Cylinder Storage Cages

+ Add to Quote Request

Our Gas Cylinder Storage Cages are heavy-duty, relocatable goods stores that are designed for the restraint, protection and transport of various gas cylinder sizes. They are commonly used within a number of industries, including manufacturing, construction, hospitality, medical, maintenance and warehousing.

These cages comply with relevant Australian Standards and can be trusted to provide a safe and secure enclosure for gas cylinders. A range of sizes and configurations for each cage are available, with options like single-side, open or dual access, trolleys and crane lift-able features. They are suited to non-flammable, flammable, non-toxic, poisonous gas and oxidising gas bottles.

Clear

Additional Information

Gas Cylinder Storage Cages have many safety benefits!

Our wide-range of dangerous store units includes a wide variety to accommodate most applications. Capacity varies from D, E, F and G sizes (acetylene and industrial). Made with a heavy-duty construction with high-security pad-lockable doors, these cages perfectly protect cylinders. They also feature individual cylinder restraining chains for economical transport and storage.

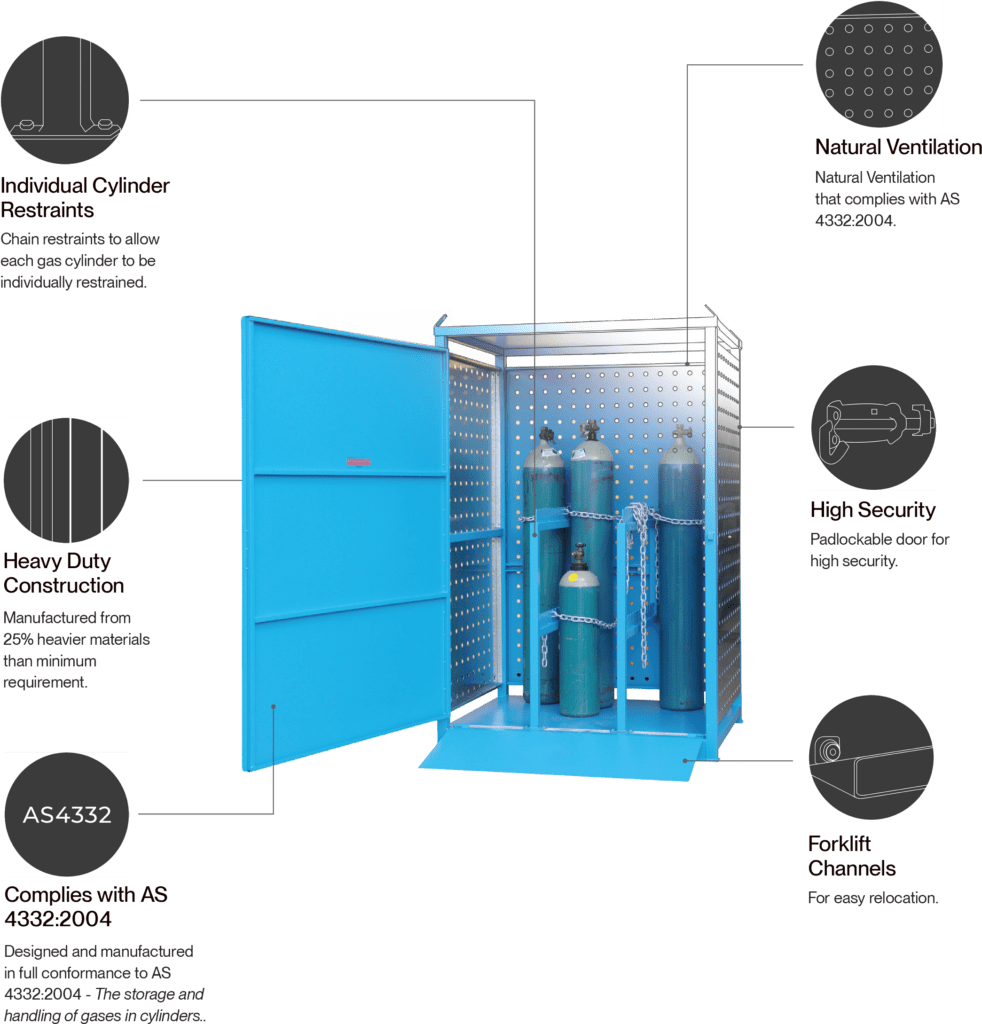

Features:

  • Natural ventilation that complies with relevant Australian Standards.
  • High-security build with a pad-lockable door.
  • Forklift channels for easy relocation (empty lift only)
  • Complies with relevant Australian Standards.
  • Heavy-duty construction and surface protection for outdoor use.
  • Individual cylinder restraints that allow each gas cylinder to be secured.
  • Appropriate warning and safety signage.
  • Manufactured in Australia.
  • Suitable for storage of Class 2.1, 2.2 and 2.3 dangerous gases.

Specifications:

Gas Cylinder Storage Cages –

Code External Dimensions (mm) Weight (kg)
H W D
MG1SS 1760 554 585 70

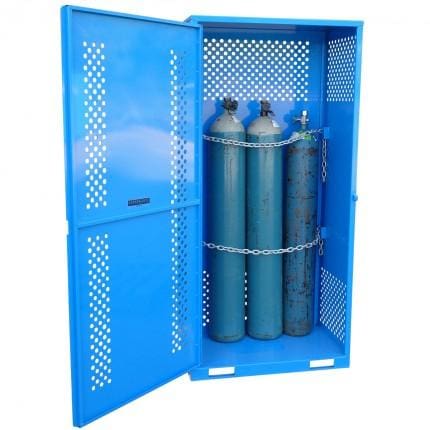

MG2SS 1760 855 585 96

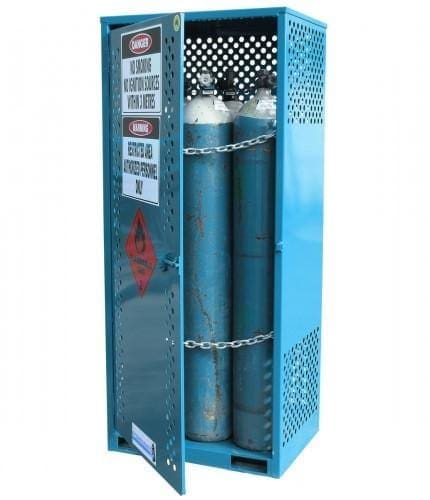

MG4SS 1905 855 955 134
MG6SS 2046 1360 985 295
MG12SS 2046 1760 1205 406

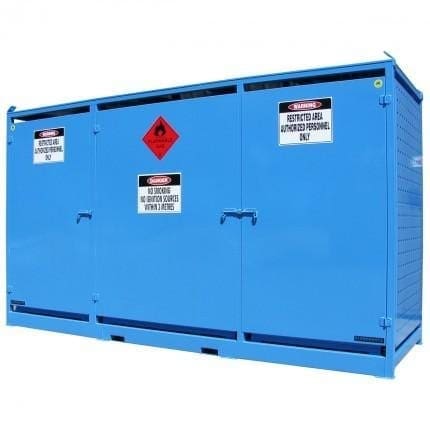

MG24SS 2046 3670 1205 710
MG04D 2046 880 990 80
MG06D 2046 1250 990 95
MG04DS 2046 880 1030 110
MG06DS 2046 1250 1030 130

Please Note: Gas Cylinders are not included.

Additional accessories are available.

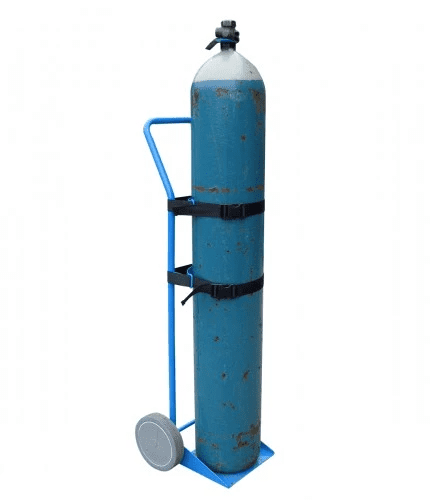

Easily move gas cylinders around the workplace with our GTR10 Gas Cylinder Trolley. Ideal for single high-pressure industrial cylinders (any size), this robust trolley is lightweight, easy to navigate and features a strong construction. The GTR10 has solid rubber tyres, plus restraint straps that grip the cylinder and is designed in accordance with Australian Standards.

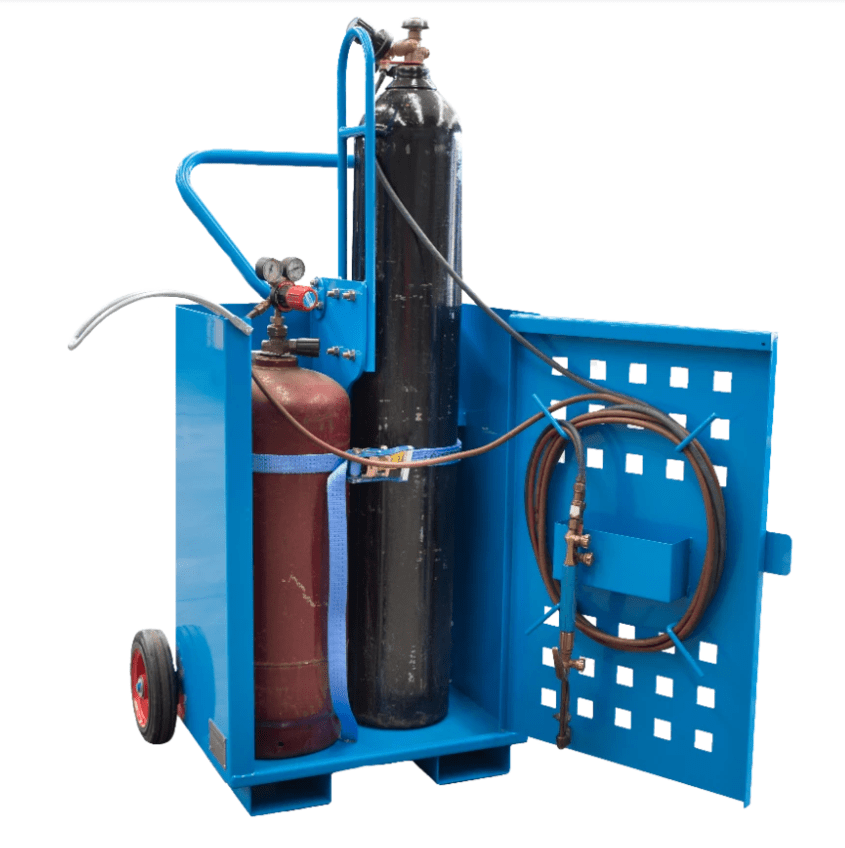

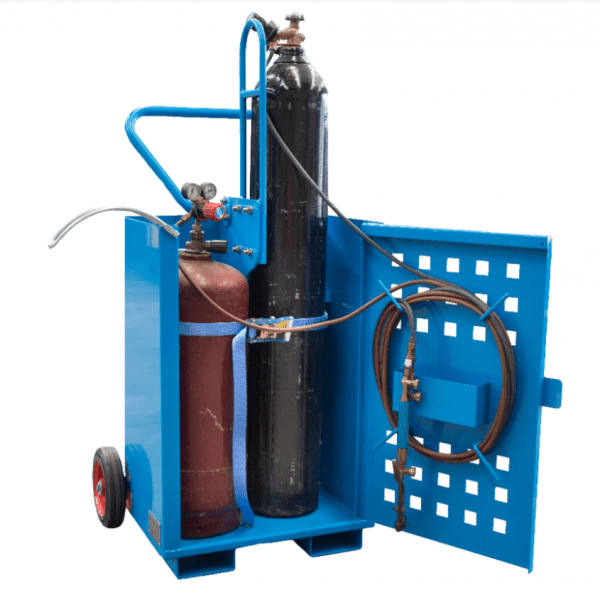

Alternatively, our GCL10 Crane Liftable Oxy/Acetylene Trolley stores and moves cylinders into safe and secure locations. It is equipped with fork channels, crane lifting attachment, adjustable handles and solid soft cushioned wheels, making it incredibly mobile – even by forklift, excavator or crane. The GCL10 has a Safe Working Load Limit of 300 kg and a high-build powdercoat finish.

Store Gas Cylinders effectively!

We have a wide range of Dangerous Stores solutions. Try our LPG Gas Cylinder Storage Cages that helps protect other sized gas bottles.

Click the PDF button to learn more.

Product Variations

Image Description Product Code Price (excl. GST)

Gas storage – single sided access

MG1SS

Gas storage – single sided access

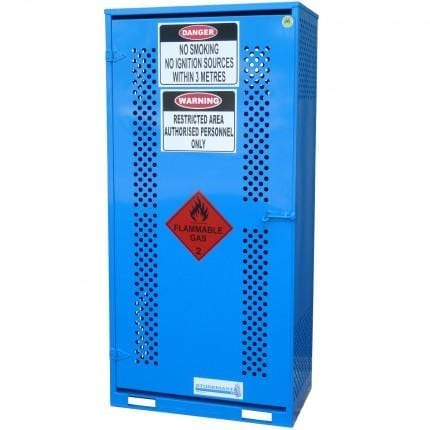

MG2SS

Gas storage – single sided access

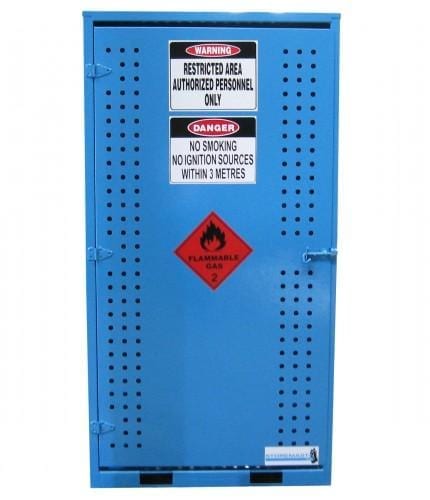

MG4SS

Gas storage – single sided access

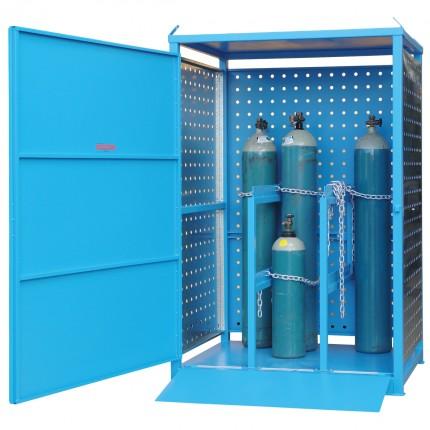

MG6SS

Gas storage – single sided access

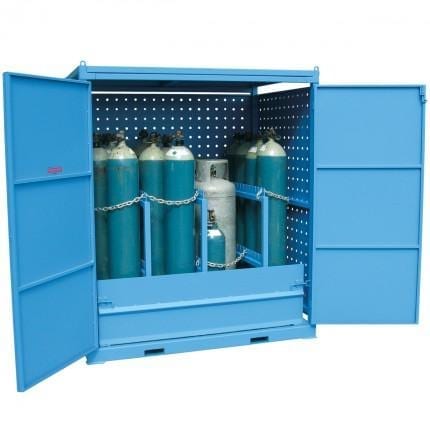

MG12SS

Gas storage – single sided access

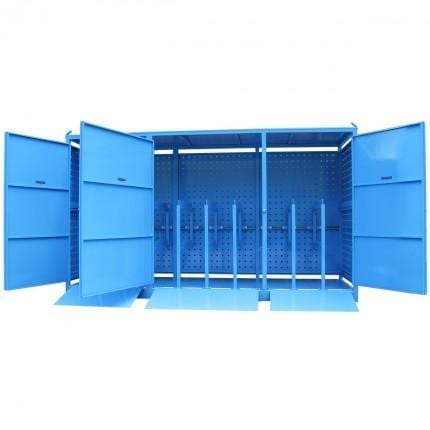

MG24SS

Gas storage – dual sided access

MG04D

Gas storage – dual sided access

MG06D

Gas storage – dual sided access

MG04DS

Gas storage – dual sided access

MG06DS

Single Gas Cylinder trolley

GTR10

Crane liftable Oxy /Acetylene trolley wi

GCL10

Crane Liftable Gas Cylinder Cage

GCL20

Vehicle Gas Cylinder Stores

GVC04

Vehicle Gas Cylinder Stores

GVC06

Vehicle Gas Cylinder Stores

GVC08

Crane liftable Gas Cylinder Stillage

GCL15
