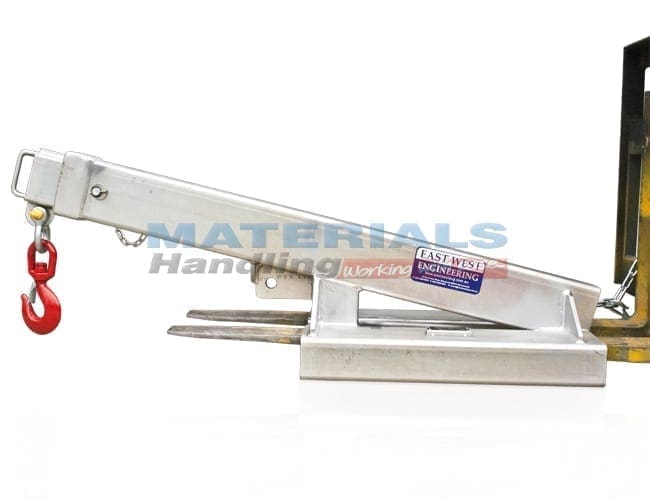

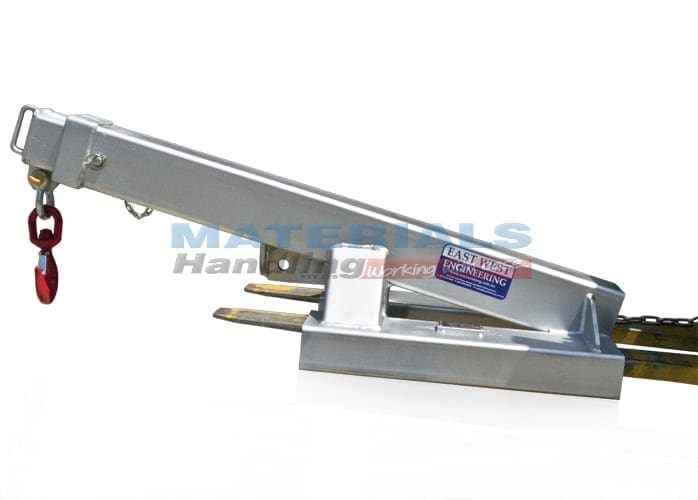

Forklift Jibs-Economy Fixed Incline

These three models of FIXED INCLINE TELESCOPIC EXTENSION JIBS are a valuable addition to any workshop. The design provides optimal safety for the forklift drivers and co workers during any ‘lift by hook’ function. The compact closed length of the forklift jib allows for greater lifting capability and manoeuvrability while extending up to 2500 mm in length gives extra versatility when required. The tilt angle of the boom increases the jibs capability while a safety chain securely attaches the jib to the fork truck.

Removal of the locking pin allows the jib to be extended giving a choice of four different lifting positions. A safety swivel hook is fitted as standard. They are zinc plated finish for durability and certified to relevant Australian Standards. Supplied complete with an instruction manual, certification and risk assessment.

SPECIFICATIONS:

• Working Load Limit (WLL): 3500, 4700 and 7500 kg
• Unit Weight 115/140/390 kg
• Load Centre 800/790/1275 mm
• Pocket Size 185 x 65/185 x 65/230 x 110 mm
• Pocket Centres 300/350/875 mm
• Horizontal C of G 580/600/680 mm
• Vertical C of G 110/120/105 mm
