Downpipe Protectors

+ Add to Quote Request

Our Downpipe Protectors provide great protection to any downpipe or drainage system against vehicle impact or collision. As a barrier shield, they safeguard exposed PVC or thin-walled pipes, conduits, cables and other similar systems from possible potential damage. With a high-strength construction, they are easily retrofitted and attached to existing structures, walls or systems.

Available to suit two downpipe sizes – either 100 mm or 200 mm in diameter – the protectors are finished in a high-visibility, safety yellow, making them clearly noticeable to reversing vehicles or forklifts. Their galvanised steel finish provides a strong barrier and each shield is 900 mm in height. A 1000 mm high plastic roto-moulded unit for pipes up to 150 mm diameter is also available.

Clear

Additional Information

Safe protection for pipes and cables!

Our Downpipe Protectors (also known as Bull-Dog Downpipe Protectors) divert potential collisions or impact away from pipes, cables, large conduits and other similar items. This is a great asset to have in any warehouse, facility, car park, and working environments with frequent vehicle or forklift traffic. These protectors feature a durable steel construction and are finished in a safety yellow for maximum visibility. Two models are available to suit varying requirements.

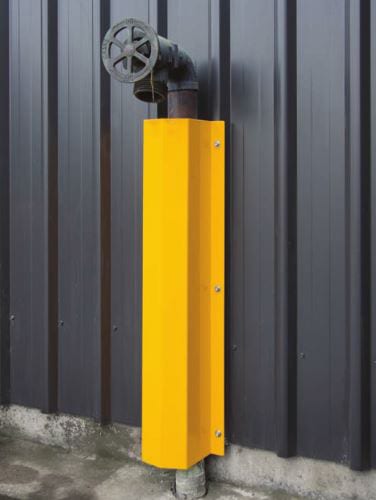

BDP100 Specifications:

  • Suitable for services up to 100 mm diameter
  • Robust 2.5 thick mild steel construction
  • 6 off 10 mm pre-drilled mounting holds
  • Easily retrofitted to existing services
  • Suitable for indoors or outdoors
  • Hot-dip galvanised with yellow powder-coated finish
  • 900 mm high for maximum protection
  • The total weight is 7.8 kg

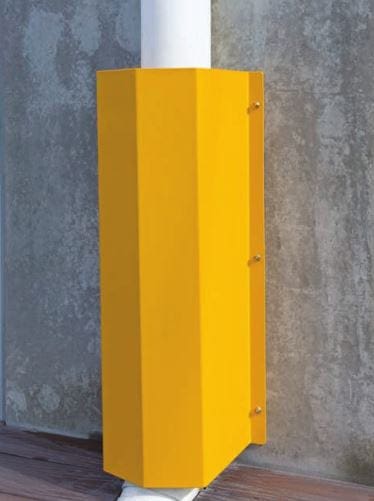

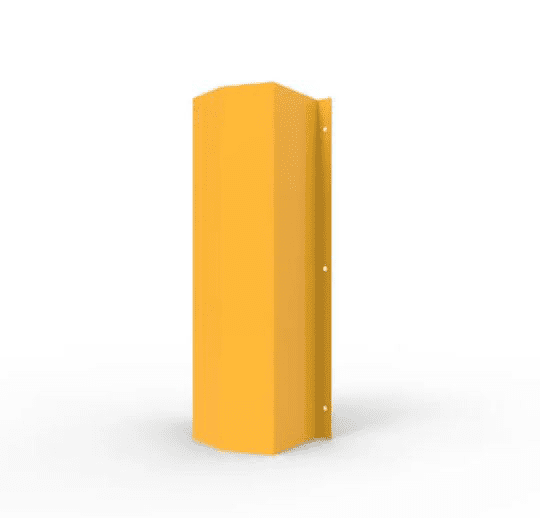

BDP200 Specifications:

  • Suitable for services up to 200 mm diameter
  • Robust 3 mm thick mild steel construction
  • 6 off 10 mm pre-drilled mounting holds
  • Easily retrofitted to existing services
  • Suitable for indoors or outdoors
  • Hot-dip galvanised with yellow powder-coated finish
  • 900 mm high for maximum protection
  • The total weight is 16 kg

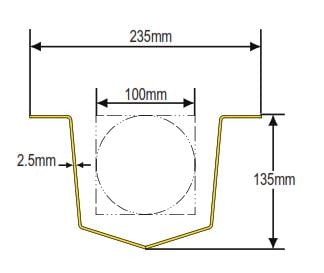

BDP100 Specifications

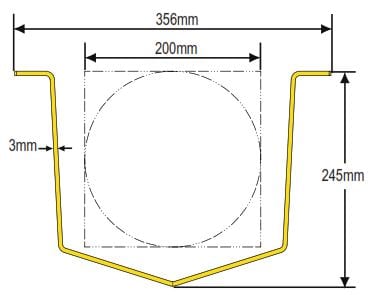

BDP200 Specifications

IN3000 Features:

The IN3000 model prevents damage to downpipes, cars and building assets with a flexible design that suits both rectangular and circular downpipes. It provides strength and protection, without a huge intruding profile.

  • Protects your downpipe from costly damage repairs
  • High tolerance to weathering
  • Lightweight
  • High visibility
  • Six Fastening points
  • Dimensions 1000 mm (height) x 333 mm (width)

Looking for other asset protection?

View our complete range of Bollards and Asset Protection productions!

Product Variations

Image Description Product Code Price (excl. GST)

Bull-Dog 100mm pipe protector (7kgs)

BDP100

Bull-Dog 200mm pipe protector (16kgs)

BDP200

Polyethylene Downpipe Protector pipes up to 150mm O.D.

IN3000
