Crane Goods Cages

+ Add to Quote Request

Our wide range of Crane Goods Cages are designed to safely store or transport loose items or palletised goods via a crane or forklift. Fitted with four point crane lugs, the cages are certified to relevant safety standards and provide a great overhead lifting solution.

Available in a number of models (as outlined further below), all Crane Goods Cages feature a fully front opening gate, for easy loading and unloading requirements, and can be stacked (3 cages high when empty) for convenience and storage. The MCSPN range can be integrated with an optional lifting frame (code: MCSPN-CL).

All cages are of decent pallet size and bear extensive Safe Working Load Limits. They are supplied as a standard flat-pack, but can come assembled upon customer request.

Clear

Additional Information

MCGC range of Crane Goods Cages:

As a forklift and crane goods cage, the MCGC range of cages are ideal for loose or palletised goods. They feature a fully opening gate, drop-down removable access ramp for trolley’s and can be stacked 3 cages high when empty and 2 cages high when loaded. Available in two models – MCGC115 and MCGC130 – they have a variety of benefits for overhead lifting duties.

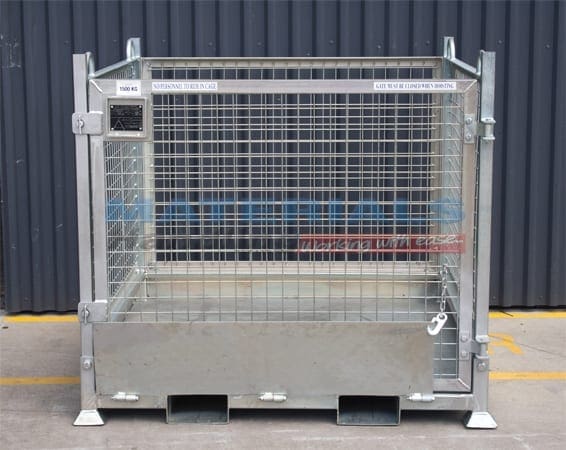

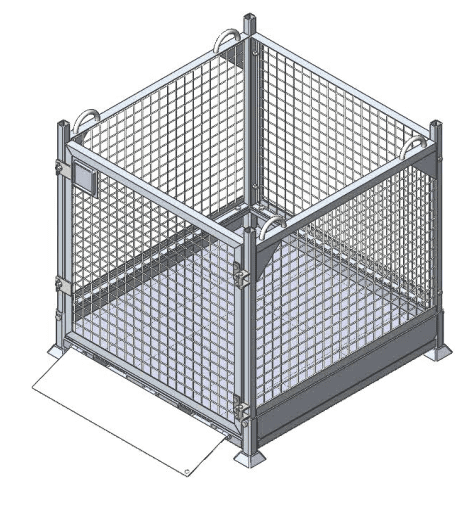

MCGC115 Specifications:

  • Working Load Limit: 1000 kg
  • Unit Weight: 180 kg
  • Overall Dimensions: 1200 mm x 1200 mm x 1180 mm
  • Inside Clearance: 1050 mm x 1050 mm

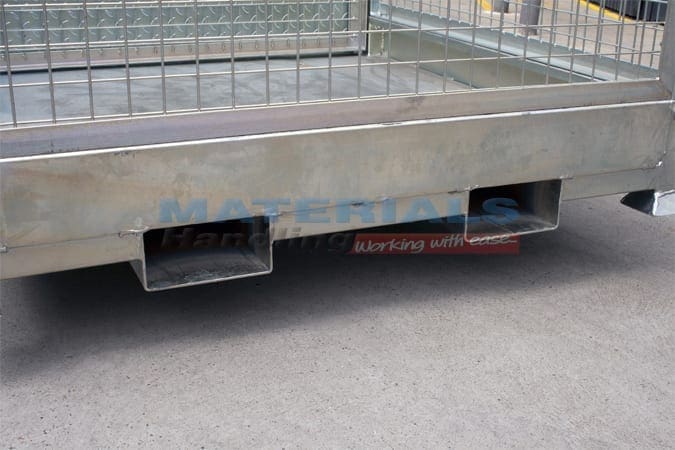

  • Fork Pocket Size: 185 mm x 85 mm
  • Fork Pocket Centres: 500 mm
  • Horizontal C of G: 550 mm
  • 4 Point Crane Lift
  • Stackable
  • Enamel Painted / Zinc Plated Finish
  • Chains not included
  • Fully opening front gate

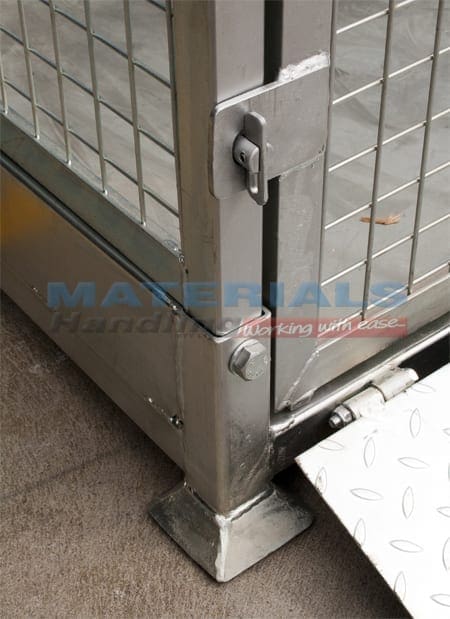

  • Drop down, removable access ramp for trolleys

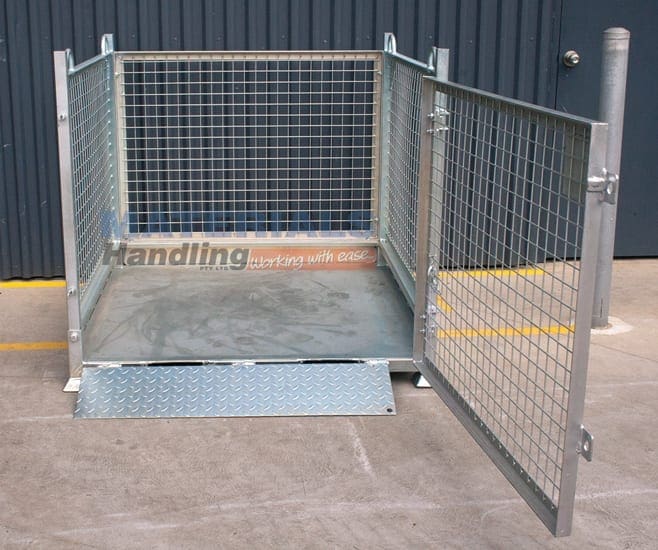

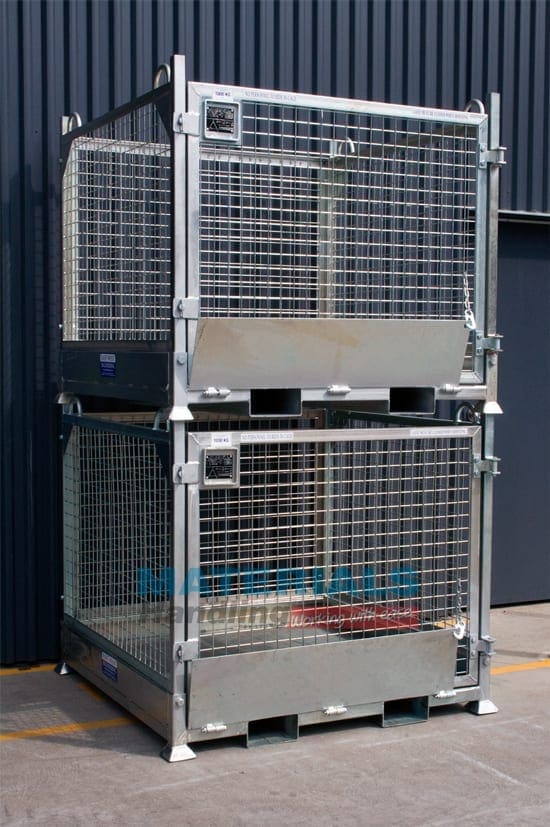

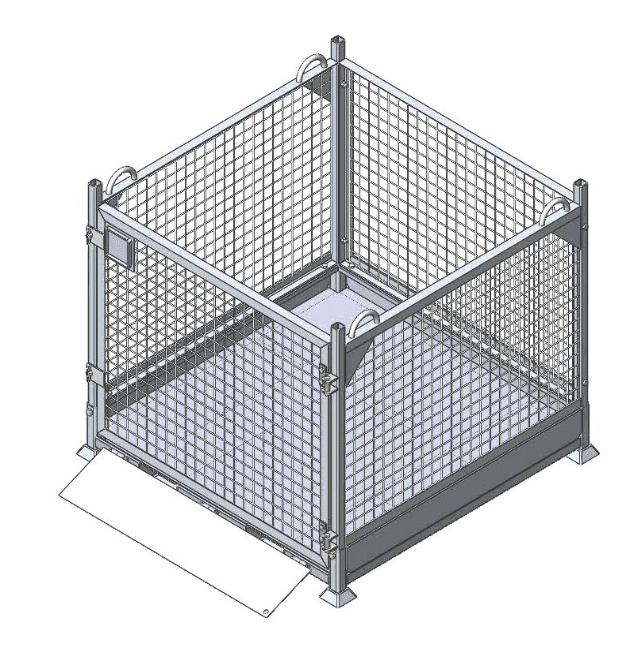

MCGC130 Specifications:

  • Working Load Limit: 1000 kg
  • Unit Weight: 210 kg
  • Overall Dimensions: 1350 mm x 1350 mm x 1180 mm
  • Inside Clearance: 1205 mm x 1200 mm
  • Fork Pocket Size: 185 mm x 85 mm
  • Fork Pocket Centres: 550 mm
  • Horizontal C of G: 625 mm
  • 4 Point Crane Lift
  • Stackable
  • Enamel Painted / Zinc Plated Finish
  • Chains not included
  • Fully opening front gate
  • Drop down, removable access ramp for trolleys

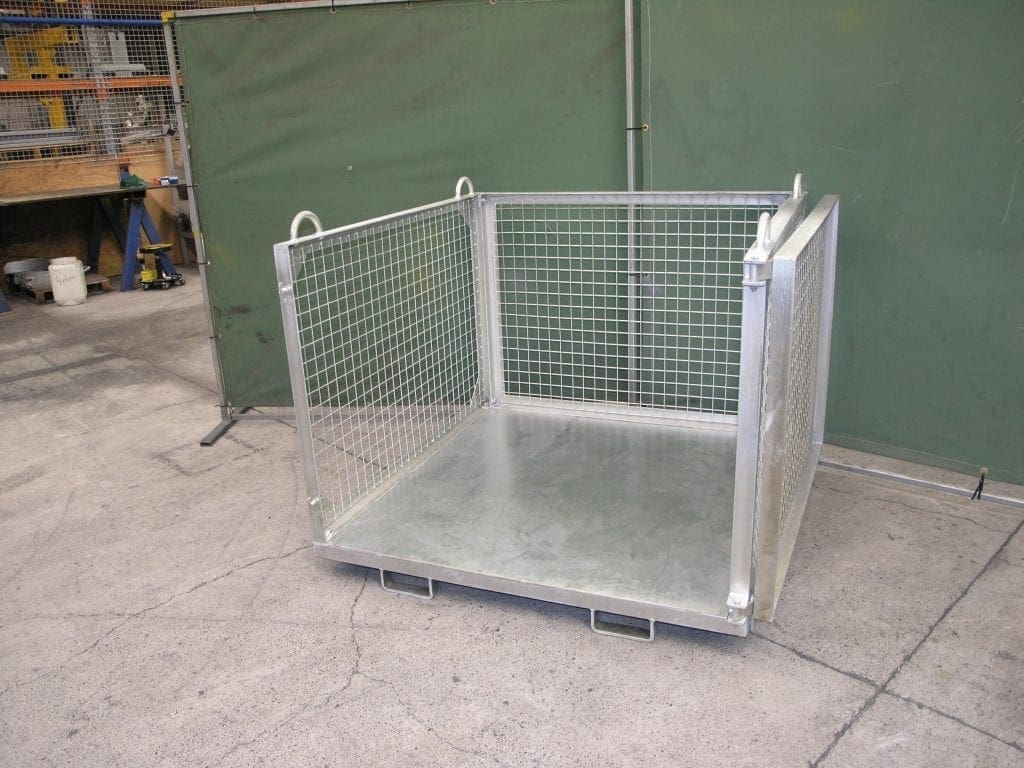

MCSPN range of Crane Goods Cages:

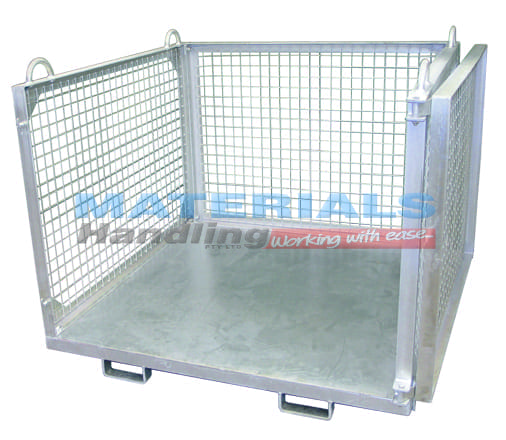

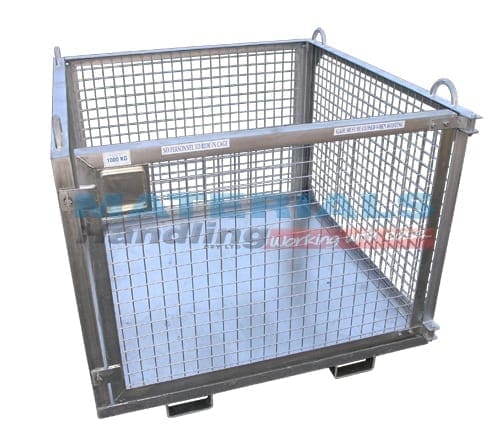

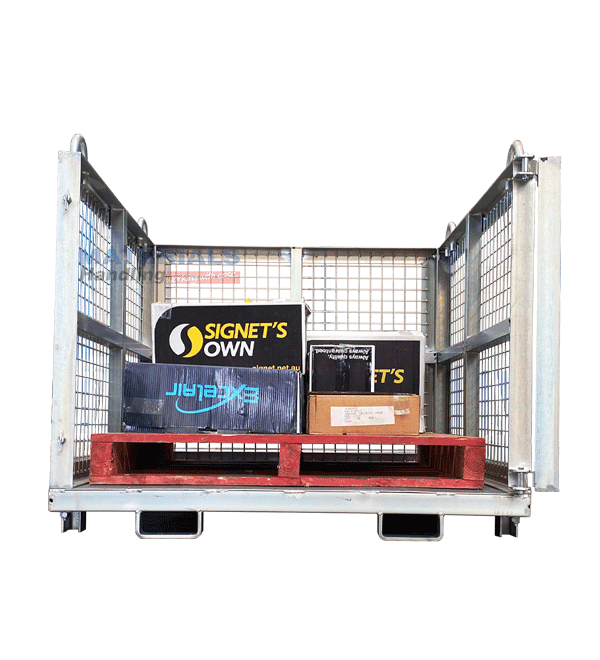

Ideal for loose or palletised goods, the MCSPN01 features a fully opening front gate that allows 1200 mm pallets to be placed inside the cage. It is fitted with crane lugs for a 4-point lift and fork stirrups. With stacking feet underneath the cage, the unit can be placed on top of each other – 3 high when the cage is empty and 2 high when it’s loaded. An optional lifting frame is available as well (code: MCSPN-CL).

MCSPN01 Specifications:

  • Working Load Limit: 1000 kg
  • Unit Weight: 175 kg
  • Overall Dimensions: 1350 mm x 1350 mm x 1153 mm
  • Gate Opening: 1250 mm
  • Fork Stirrup Size: 160 mm x 40 mm
  • 4 Point Crane Lift
  • Stackable
  • Zinc Plated Finish
  • Chains not included
  • Fully opening front gate
  • Suits a 1200 mm square pallet

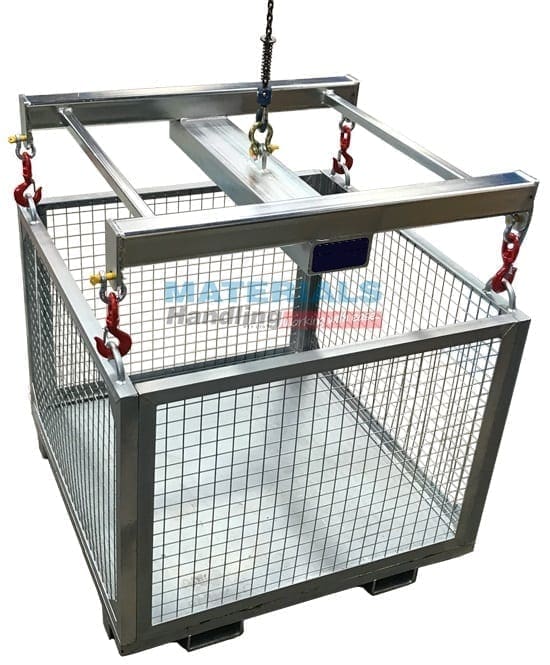

  • Optional lifting frame available

Continue browsing our wide range!

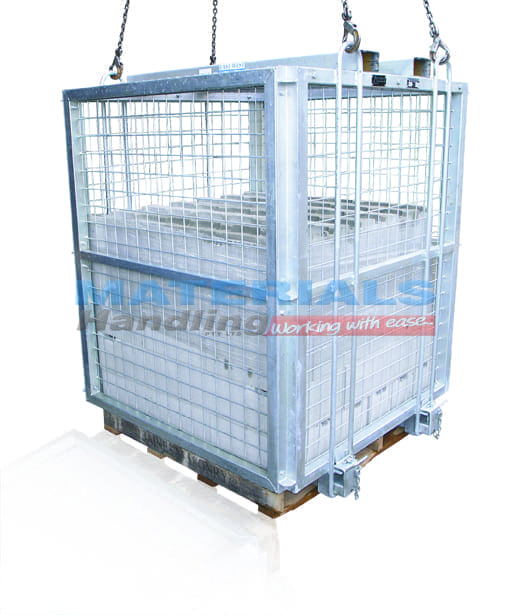

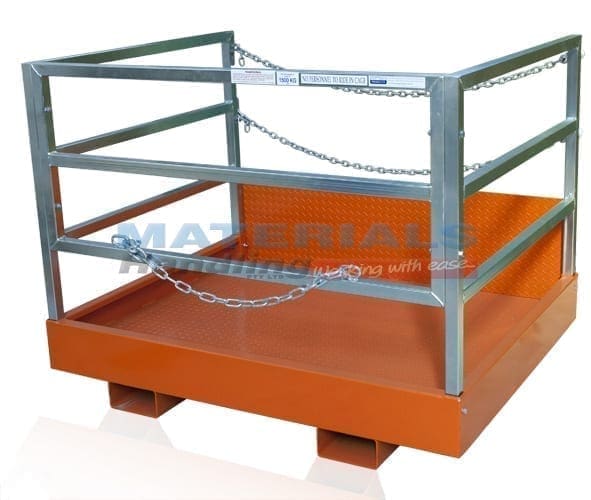

View our other Goods Lifting Cages for some alternative solutions!  Need a Forklift specific model? Then view our Forklift Goods Cages as well.

Product Variations

Image Description Product Code Price (excl. GST)

Crane and Forklift Goods Cage- flatpack

MCGC115

Crane and Forklift Goods Cage- flatpack

MCSPN01

Crane and Forklift Goods Cage- flatpack

MCGC130

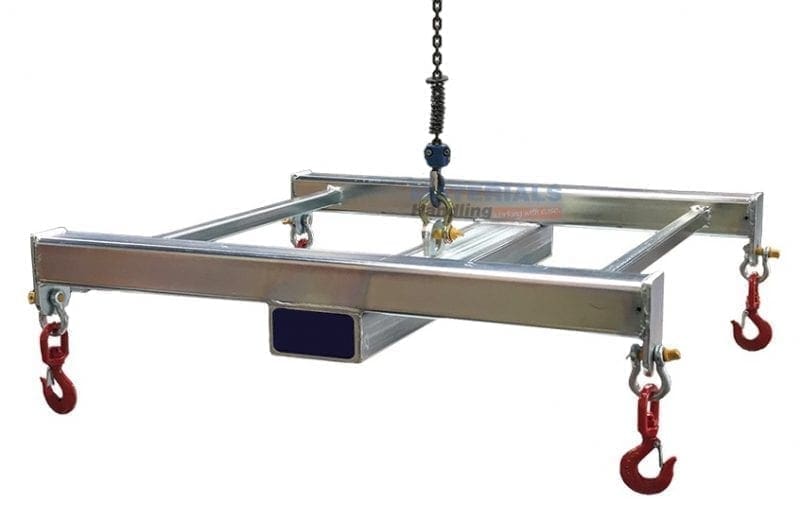

Goods Cage Lifting Frame

MCSPN-CL
