Gas Cylinder Lifting Cage - Secure

Gas Cylinder Lifting Cage – Secure

MGBCM Gas Cylinder Cage Secure Assembled

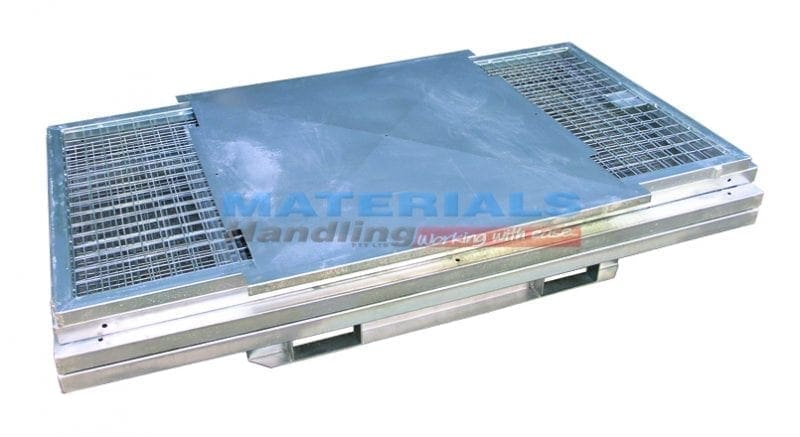

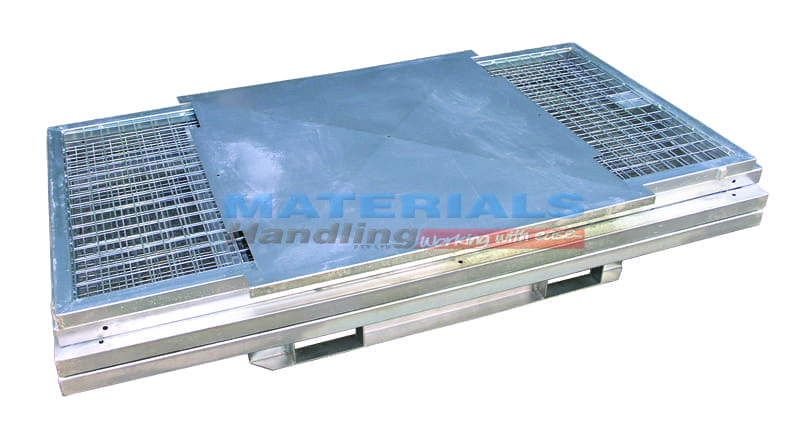

MGBCF Gas Cylinder Cage Secure Flat pack

The MGBCM Gas Cylinder Cage is a secured storage system that easily protects gas cylinder products. Its design ensures equipment is safely stored away, at any building or work site.

Featuring a lockable door and solid steel mesh roof/sides, each cage safely protects chemicals and cylinders. With a range of security benefits, they provide a great storage and handling solution to many organisations. Each Gas Cylinder Cage is fitted with a 4-point crane lift, fork pockets and a load binder, so they can be easily moved around.

The cages are available with a ramp and either as an assembled cage or flat-pack.

Product Variation

Clear

Additional Information

A Gas Cylinder Cage ensures security and protection of valuable cylinders!

Best suited for building, mining and warehouse applications, each cage stores equipment efficiently and effectively. Hinged gates allow for easy access and they can be locked to prevent theft. The fully enclosed meshed fences also increase safety within the workplace. An internal load-binder and straps prevent movement of cylinders during transportation.

They are supplied with chain restraint bars on either side of the cage, helping to prevent cylinders from falling during transport. A fold-down loading ramp is also available in our MGBCM2RP cages.

Specifications of either MGBCM or MGBCF:

Safe Working Load (SWL) – 750 kg
Unit Weight – 160 kg
Dimensions (mm) – 1030 x 1030 x 1928
Fork Pocket Size (mm) – 165 x 65
Fork Pocket Centres – 665 mm
Horizontal C of G – 515 mm
Vertical C of G – 700 mm

Specifications of either MGBCM2RPA or MGBCM2RPF:

Safe Working Load (SWL) – 750 kg
Unit Weight – 175 kg
Dimensions (mm) – 1030 x 1030 x 1930
Fork Pocket Size (mm) – 165 x 65
Fork Pocket Centres – 665 mm
Horizontal C of G – 520 mm
Vertical C of G – 630 mm

For additional protection, the Gas Bottle Cage is also supplied with a chain restraint bar on either side of the cage. This helps to prevent cylinders from falling over during transportation.

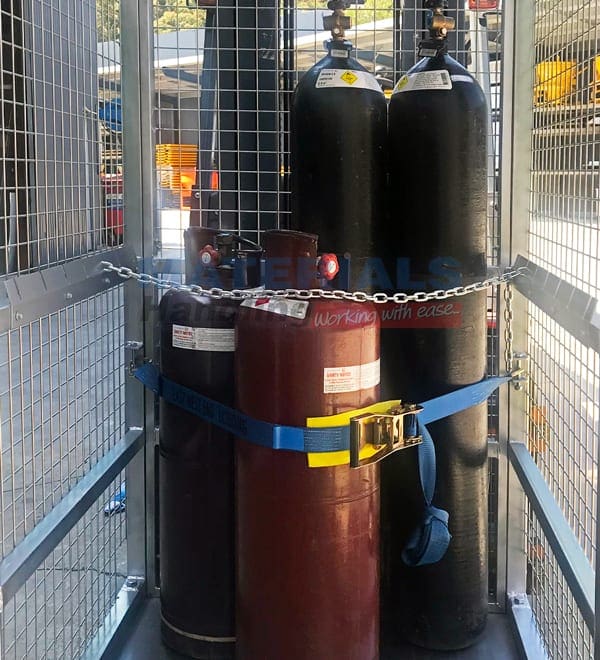

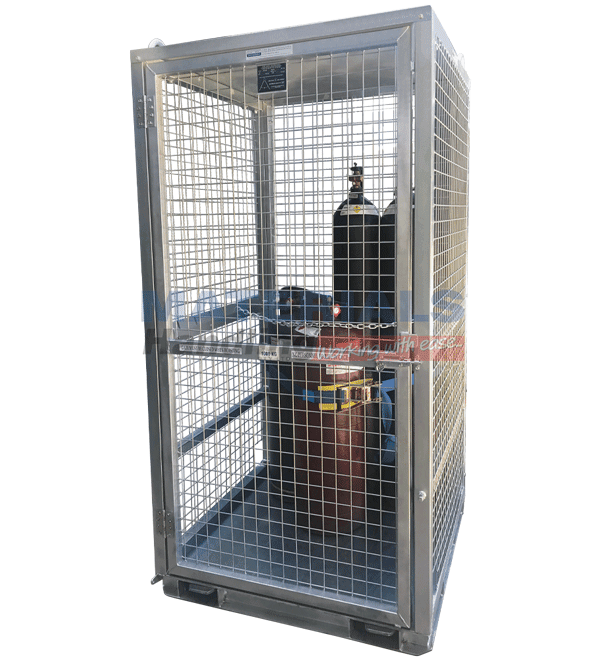

MGBCM with Chain Restraint Bars

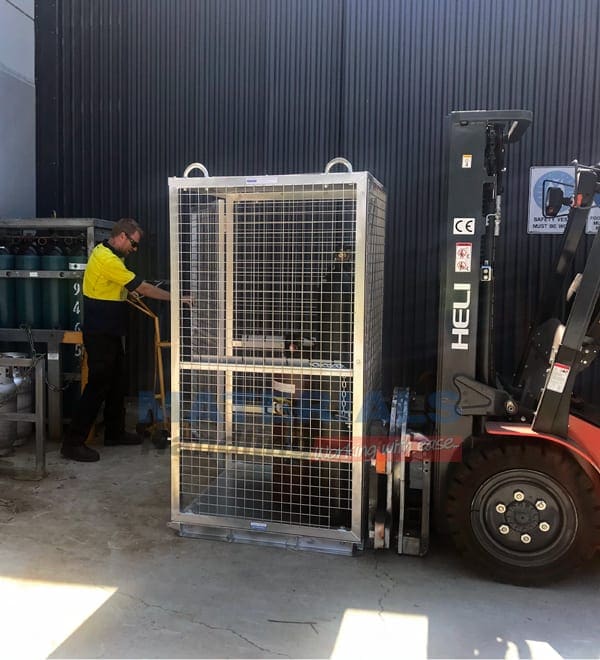

MGBCM Fork Pockets

Continue browsing our storage solutions.

We have a range of products available to help you transfer, store and move gas cylinders.

Click the PDF button to learn more.

Product Variations

Description	Product Code	Price (excl. GST)
Gas Cylinder Cage- assembled	MGBCM	$1,890.00	Add to Quote Request
Gas Cylinder Cage- flatpacked	MGBCF	$1,790.00	Add to Quote Request

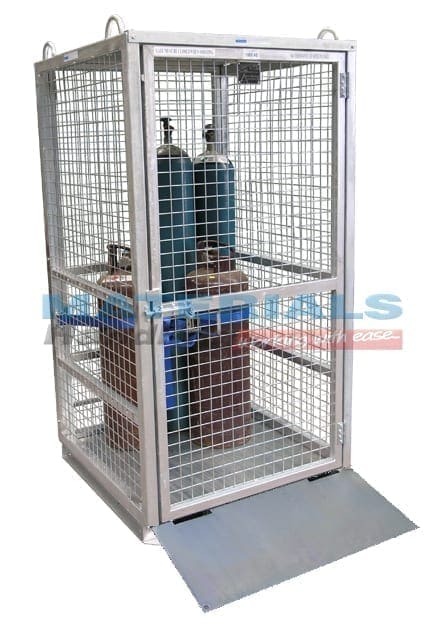

Gas Cylinder Cage with Ramp- assembled	MGBCM2RPA	$2,010.00	Add to Quote Request
Gas Cylinder Cage with Ramp- flatpacked	MGBCM2RPF	$1,910.00	Add to Quote Request
Dangerous Goods Labels – Flammable Gas 2 Metal H270mm x W270mm	836001		Add to Quote Request
Danger Sign – No Smoking No Ignition Sources Metal H225mm x W300mm	840529		Add to Quote Request
