Gates Boom Gate Telescopic

+ Add to Quote Request

Our Telescopic Boom Gates are a great safety barrier perfect for areas with restricted overhead space. When lifted, the booms can be locked into place or, alternatively, retracted when raised. This makes it ideal for workplaces where there is insufficient room to accommodate a fixed-length boom or swing gate. Available in both single and double rail models, the dual rail model is suitable to install as a loading dock safety gate, providing maximum fall protection from loading dock edges.

Telescopic Boom Gates are incredibly reliable and suit a variety of commercial and industrial applications, including car-parks and parking lots, warehouses, airports, and similar industries. They provide a great solution when preventing unauthorised vehicle entry, especially in restricted areas. Additionally, these gates can be easily installed in any workplace and they takes up little operational footprint.

The Telescopic Boom Gates features aluminium construction with a high-visibility powder-coated finish. They are supplied with a receiver post and lockable latch.

Additional Information


  • Gas strut assisted light telescopic boom gates
  • Ideal for work areas with restricted overhead space or insufficient room for a swing gate
  • Extends from 2.3 metres to 3.8 metres
  • The boom can be locked at any length
  • Robust aluminium rails with steel posts
  • High-visibility powder-coated finish in yellow

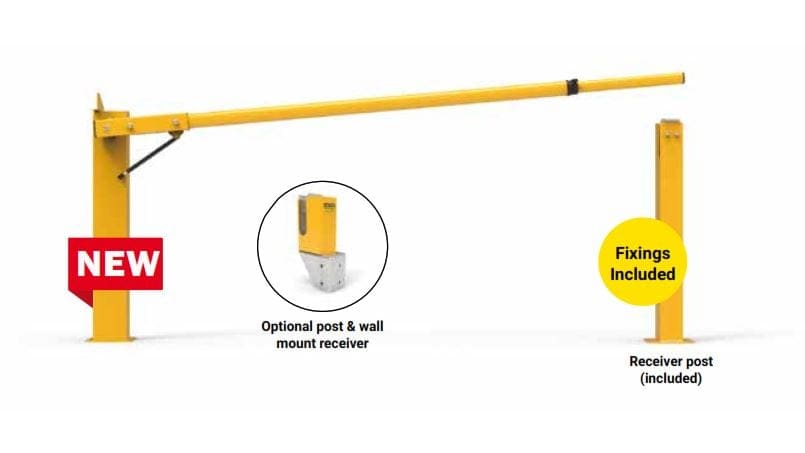

  • Supplied with a receiver post with a lockable latch


  • A gas strut assists the manual raise and lowering of the boom(s) and allows for a smooth transition between open to close
  • Construction – Steel posts with aluminium rails
  • Gate Swing – 90 degrees vertical
  • Gate Stop – Built-in
  • Maximum Opening – 3825 mm
  • Minimum Opening – 2325 mm
  • Mounting Type – Surface-mounted posts
  • Rail Type – Aluminium telescopic 50 dia. (inner) 63 dia. (outer)
  • Rail Height – 940 mm to the centre of the rail
  • Overhead Clearance – 3450 mm
  • Finish – Powder-coated safety yellow

Product Variations

Image Description Product Code Price (excl. GST)

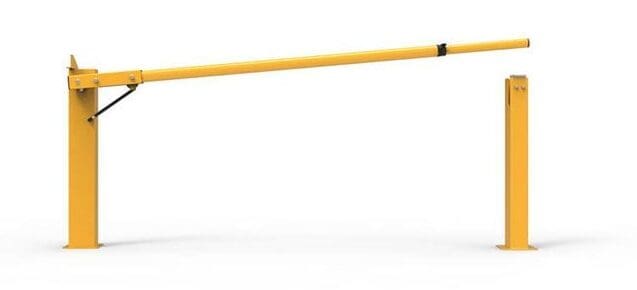

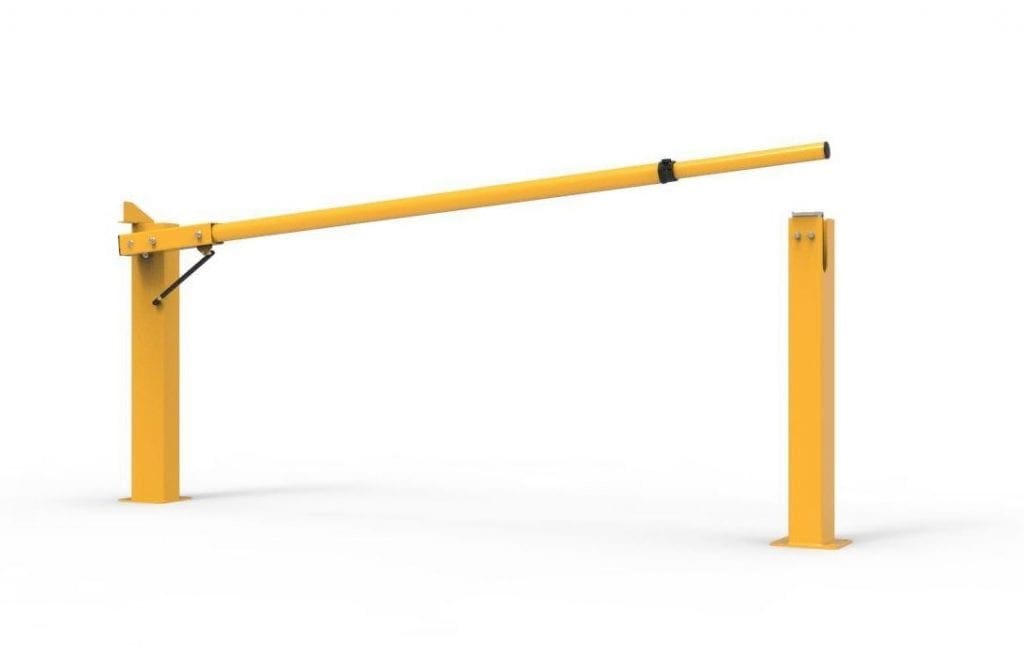

Telescopic Boom Gate

TBG3800 $1,450.00

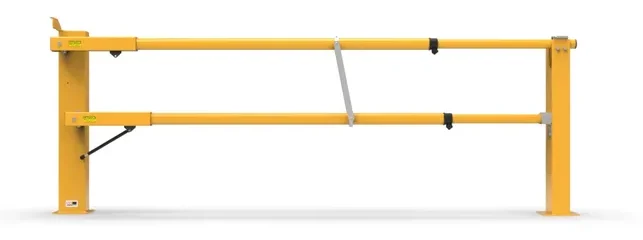

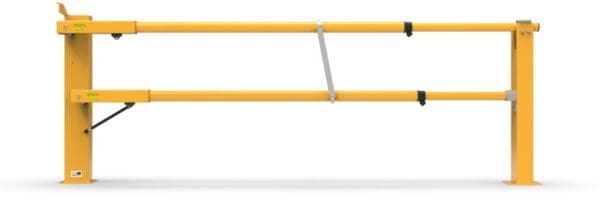

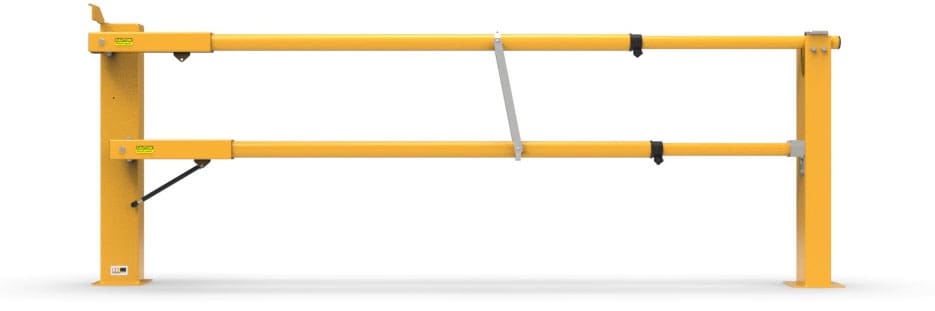

Telescopic Boom Gate Dual Rail

TBG3800DR $2,044.00

Dock-Safe Boom Gate Wall Mount Receiver

DSBG-WR $412.00
