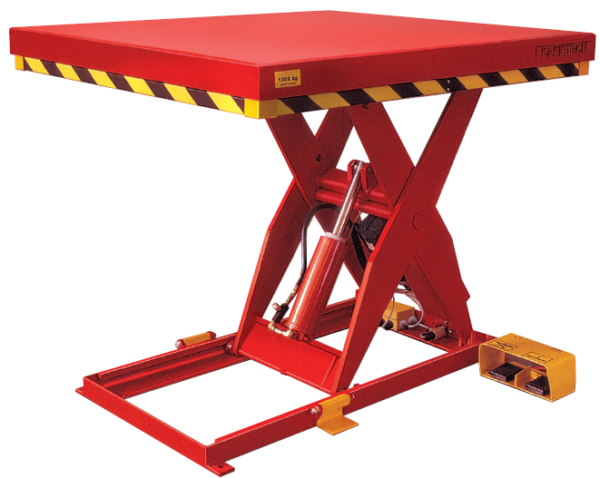

SmartLift – Scissor Lift Tables

+ Add to Quote Request

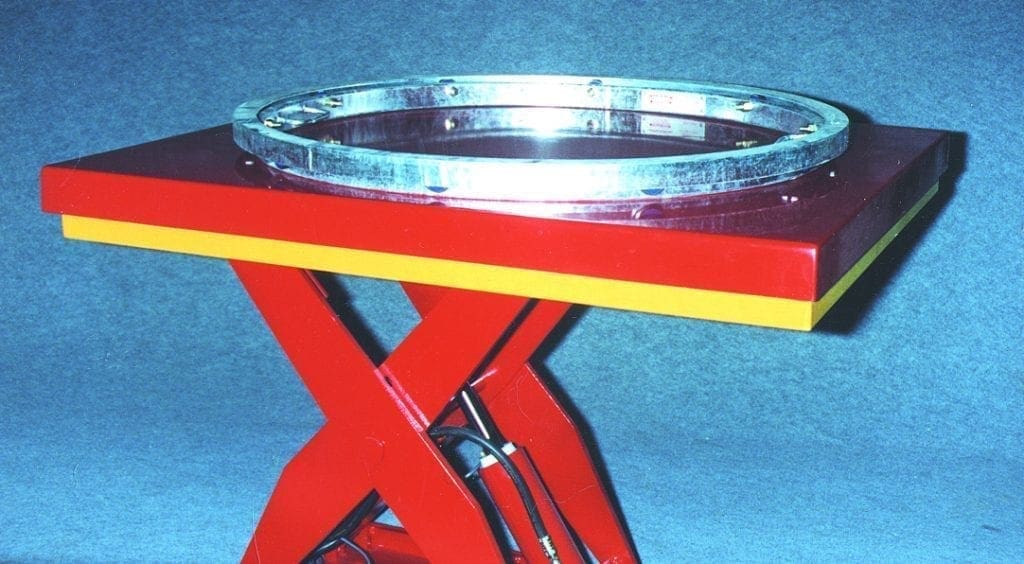

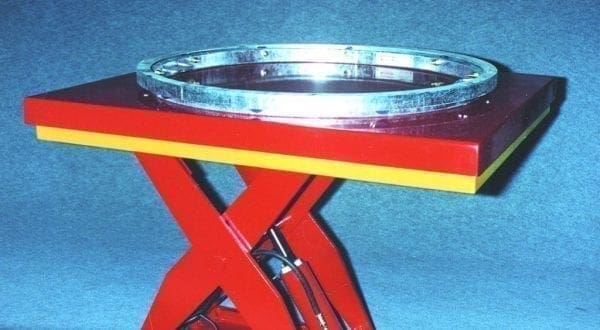

Bring down the cost of your Workers Compensation Insurance, lift your bottom line and reduce back injuries, during manual tasks, by bringing the handled product to an optimal level. Optionally they can be fitted with a Palring or Paldisc turntables to bring the product to you, not you to the product.

  • Increase production efficiency
  • Enhance safety
  • Reduce work-related fatigue
  • Improve product quality
  • Reduce physical and mental stress
  • Improve employee morale
  • Reduce direct costs for insurance, medical and sick leave
  • Reduce indirect costs for replacing skilled workers, downtime and loss of production

Clear

Additional Information

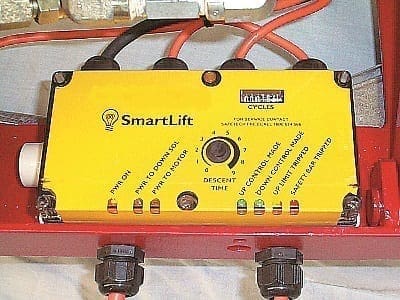

SmartLift Control

This control is functional, clever and provides maximum safety with a number of important features:

  • Diagnostic Function: In the unlikely event of a malfunction, indicator lights pinpoint the fault
  • Indexing Function: During loading the pallet can be programmed to drop a preset distance when another layer is loaded.
  • Safety Recoil: If the safety bar senses an obstruction it will instantly move away a short distance – ultimate safety.
  • Safety Bar Alarm: Sounds when the table comes into contact with an object or person. This provides added safety by alerting others nearby that there is a potential problem.
  • Cycle Counter: Lets you know when a service is programmed. This improves the working life and avoids breakdowns.

Choice of foot pedal, hand pendant or wall mount push button control.

SmartLift scissor tables exceed the 10 year design requirement of Australian Standards. Why would you even consider sourcing scissor lifts from suppliers that more than likely are unable to meet these high standards when a SmartLift lifting solution waits?

Non-standard platforms on request. We welcome your special applications!
Click here for custom table details.

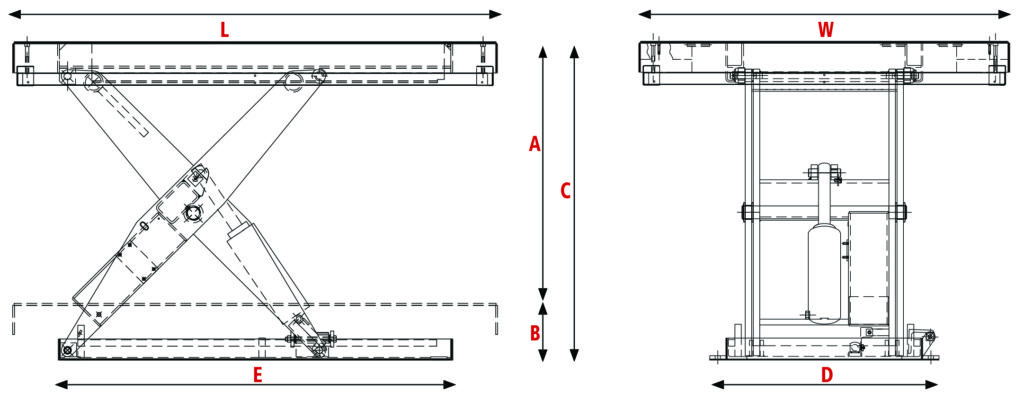

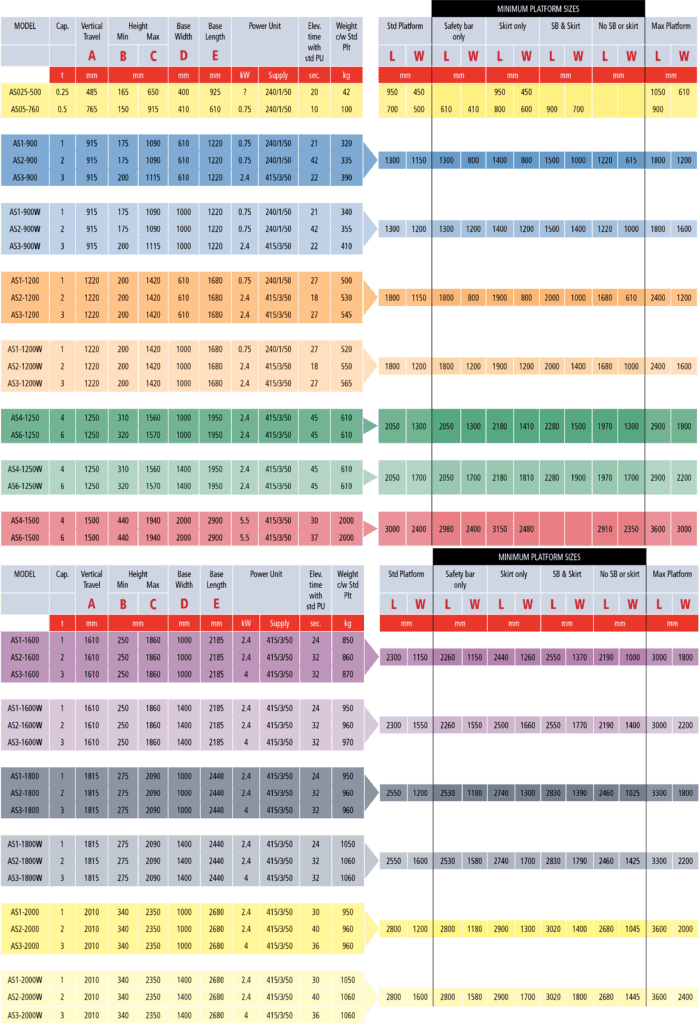

Product Variations

Image Description Product Code Price (excl. GST)

Capacity: 1000kg
Low Height: 175
Raised Height: 1090
Platform: 1300×1150
Voltage: 240v
Weight: 320kg

MAS1900

Capacity: 1000kg
Low Height: 175
Platform: 1300×1200
Voltage: 240v
Weight: 340kg
Raised Height: 1090

MAS1900W

Capacity: 1000kg
Low Height: 200
Platform: 1800×1150
Voltage: 240v
Weight: 500kg
Raised Height: 1420

MAS11200

Capacity: 1000kg
Low Height: 200
Platform: 1300×1200
Voltage: 240v
Weight: 520kg
Raised Height: 1420

MAS11200W

Capacity: 1000kg
Low Height: 250
Platform: 2350×1150
Voltage: 415v
Weight: 850kg
Raised Height: 1860

MAS11600

Capacity: 1000kg
Low Height: 252
Platform: 2300×1550
Voltage: 415v
Weight: 950kg

MAS11600W

Capacity: 1000kg
Low Height: 297
Platform: 2550×1600
Voltage: 415v
Weight: 1050kg

MAS11800W

Capacity: 2000kg
Low Height: 175
Platform: 1300×1150
Voltage: 240v
Weight: 335kg
Raised Height: 1090

MAS2900

Capacity: 2000kg
Low Height: 175
Platform: 1300×1200
Voltage: 240v
Weight: 355kg
Raised Height: 1090
Wide deck version

MAS2900W

Capacity: 2000kg
Low Height: 200
Platform: 1800×1150
Voltage: 240v
Weight: 520kg
Raised Height: 1420

MAS21200

Capacity: 2000kg
Low Height: 200
Platform: 1800×1200
Voltage: 415v
Weight: 520kg
Raised Height: 1420

MAS21200W

Capacity: 2000kg
Low Height: 250
Platform: 2300×1150
Voltage: 415v
Weight: 870kg
Raised Height: 1860

MAS21600

Capacity: 2000kg
Low Height: 297
Platform: 2550×1600
Voltage: 415v
Weight: 1060kg

MAS21800W

Capacity: 2000kg
Low Height: 362
Platform: 2800×1600
Voltage: 415v
Weight: 1300kg

MAS22000W

Capacity: 3000kg
Low Height: 200
Platform: 1300×1150
Voltage: 415v
Weight: 390kg
Raised Height: 1115

MAS3900

Capacity: 3000kg
Low Height: 200
Platform: 1800×1150
Voltage: 415v
Weight: 545kg
Raised Height: 1420

MAS31200

Capacity: 3000kg
Low Height: 200
Platform: 1300×1200
Voltage: 415v
Weight: 410kg
Raised Height: 1115

MAS3900W

Capacity: 3000kg
Low Height: 200
Platform: 1800×1200
Voltage: 415v
Weight: 565kg
Raised Height: 1420
Wide deck version

MAS31200W

Capacity: 3000kg
Low Height: 250
Platform: 2300×1150
Voltage: 415v
Weight: 960kg
Raised Height: 1860

MAS31600

Capacity: 4000kg
Low Height: 310
Platform: 2050×1300
Voltage: 415v
Weight: 610kg

MAS41250
