Electric Chain Hoists - Hitachi | Materials Handling

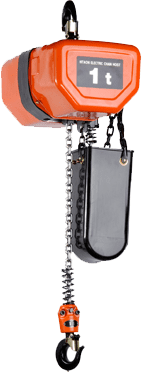

Electric Chain Hoists – Hitachi

The Hitachi Electric Chain Hoists are efficiently constructed. Their robust design makes them a first choice for many customers around the globe.

Every unit is equipped with a mechanical overload limit and an electromagnetic brake system. They operate proficiently and are extremely quiet.

Their rugged steel-plate construction ensures every unit is safe for use outdoors and in a variety of environments. Furthermore, the push-button pendant control benefits users with safe operation.

A range of hoist speeds is available. Wireless remote control technology can be included. Push, geared or electric trolleys can be coupled with these devices upon request.

These hoists are available in 415V three-phase or 240V single-phase power supply and a choice of single-speed or dual-speed lift.

Product Variation

Clear

Product Variations

Description	Product Code
250kg Chain Hoist Single Speed 10m/min 415v 50Hz	L14S	Add to Quote Request
250kg Chain Hoist Single Speed 5m/min 240v 50Hz	L14S1	Add to Quote Request
250kg Chain Hoist Two Speed 7.2 & 1.8m/min 415v 50Hz	L14SN	Add to Quote Request
500kg Chain Hoist Single Speed 7.2m/min 415v 50Hz	L12S	Add to Quote Request
500kg Chain Hoist Single Speed 3.6m/min 240v 50Hz	L12S1	Add to Quote Request
500kg Chain Hoist Two Speed 7.2 & 1.8m/min 415v 50Hz	L12SN	Add to Quote Request
1000kg Chain Hoist Single Speed 7.1m/min 415v 50Hz	L1F	Add to Quote Request
1000kg Chain Hoist Single Speed 4.6m/min 415v 50Hz	L1S	Add to Quote Request
1000kg Chain Hoist Single Speed 2.3m/min 240v 50Hz	L1S1	Add to Quote Request
1000kg Chain Hoist Two Speed 4.6 & 1.2m/min 415v 50Hz	L1SN	Add to Quote Request
2000kg Chain Hoist Single Speed 6.8m/min 415v 50Hz	L2F	Add to Quote Request
2000kg Chain Hoist Two Speed 6.8 & 1.7m/min 415v 50Hz	L2FN	Add to Quote Request
2000kg Chain Hoist Single Speed 2.3m/min 415v 50Hz	L2S	Add to Quote Request
2000kg Chain Hoist Single Speed 1.1m/min 240v 50Hz	L2S1	Add to Quote Request
2000kg Chain Hoist Two Speed 2.3 & 0.6m/min 415v 50Hz	L2SN	Add to Quote Request
3000kg Chain Hoist Single Speed 4.1m/min 415v 50Hz	L3F	Add to Quote Request
3000kg Chain Hoist Two Speed 4 & 1m/min 415v 50Hz	L3FN	Add to Quote Request
5000kg Chain Hoist Single Speed 2.8m/min 415v 50Hz	L5F	Add to Quote Request
5000kg Chain Hoist Two Speed 2.8 & 0.7m/min 415v 50Hz	L5FN	Add to Quote Request

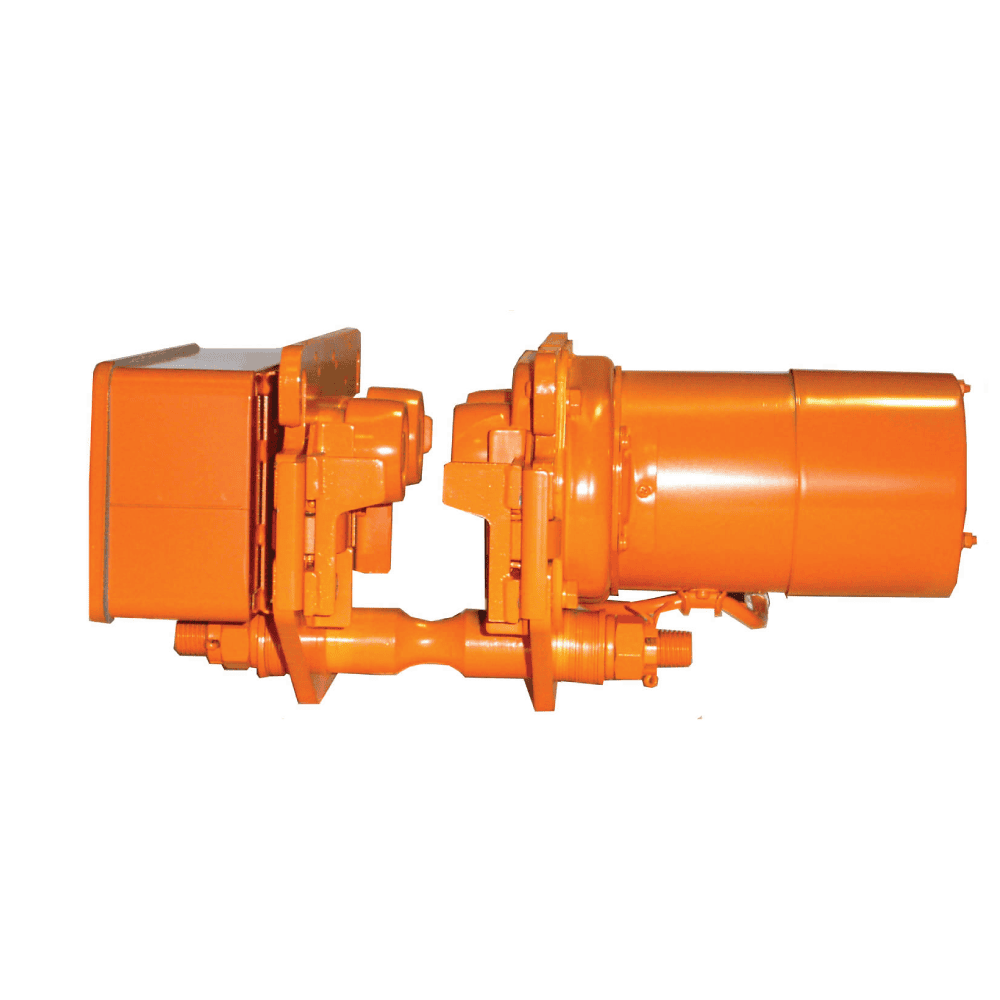

1 tonne Electric Trolley Single Speed 10.5m/min 415v 50Hz Suits 75 – 125mm width beams	L1ET	Add to Quote Request
1 tonne Electric Trolley Two Speed 21 & 5.3m/min 415v 50Hz Suits 75 – 125mm width beams	L1ETN	Add to Quote Request
2 tonne Electric Trolley Single Speed 10.5m/min 415v 50Hz Suits 100 -150mm width beams	L2ET	Add to Quote Request
2 tonne Electric Trolley Two Speed 21 & 5.3m/min 415v 50Hz Suits 100 -150mm width beams	L2ETN	Add to Quote Request
3 tonne Electric Trolley Single Speed 10.5m/min 415v 50Hz Suits 100 -150mm width beams	L3ET	Add to Quote Request
3 tonne Electric Trolley Two Speed 21 & 5.3m/min 415v 50Hz Suits 100 -150mm width beams	L3ETN	Add to Quote Request
5 tonne Electric Trolley Single Speed 10.5m/min 415v 50Hz Suits 125 -175mm width beams	L5ET	Add to Quote Request
5 tonne Electric Trolley Two Speed 21 & 5.3m/min 415v 50Hz Suits 125 -175mm width beams	L5ETN	Add to Quote Request
