Girder Clamps
+ Add to Quote Request

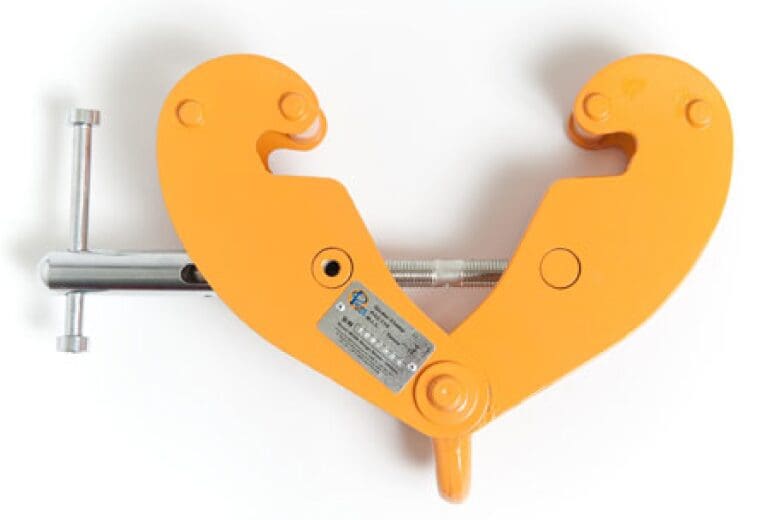

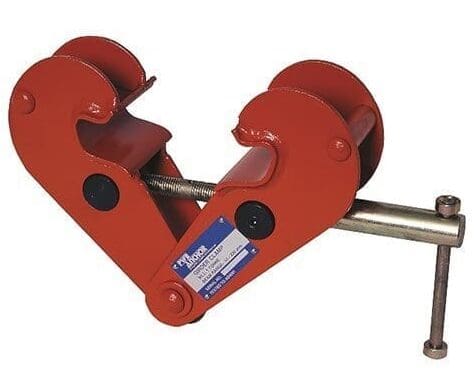

Girder Clamps allow a chain block or hoist to be suspended safely from a girder, large iron or steel beam. As an engineered clamping solution, they safely and conveniently attach components. This removes the need for drilling or on-site welding, as the clamps are quick to install and easy to reposition.
Complying to relevant Australian Standards, this type of hoisting equipment is ideal for maintenance tasks. Girder Clamps are used for a wide variety of applications – including construction, manufacturing, processing, fabrication, job shops, mining and general engineering. The clamp eliminates any potentially dangerous practice, like the use of a wire or rope when looped over the girder. Additionally, the jaws of the clamp shut over the girders flanges securely.
Additional Information
Girder Clamps are a great manual hoisting solution.
Simple and easy to install, these clamps are finished in a durable electrolastic enamel finish and high quality cast iron. They feature a single-threaded adjustment pin for simple and easy positioning. Girder Clamps support capacities up to 10 tonnes, and headroom decreases as beam width are increased.
Standard Features:
- Used in a variety of applications.
- Complies with relevant Australian Standards (AS 4991:2004).
- Easy and quick to install and reposition.
- Manufactured in a high quality cast iron, with electrolastic enamel finish.
- Features a single-threaded adjustment pin.
- Capacities of up to 10 tonnes.
- Headroom decreases as beam width are increased.
Technical Specifications:
| Capacity | Beam Range (mm) | Headroom (min./mm) | Headroom (max./mm) | Suspension pin dia. (mm) | Weight (kg) |
| 1 tonne | 65-230 | 78 | 135 | 20.3 | 4.8 |
| 2 tonne | 65-230 | 78 | 135 | 20.3 | 5.5 |
| 3 tonne | 100-250 | 100 | 160 | 22.1 | 11.8 |
| 5 tonne | 100-320 | 119 | 159 | 40.0 | 16.0 |
| 10 tonne | 130-320 | 150 | 205 | 53.0 | 31.0 |
Require an alternative lifting solution?
View our extensive range of Lifting Attachments and Clamps.
Product Variations
| Image | Description | Product Code | Price (excl. GST) | |
|---|---|---|---|---|
 |
Girder Clamp 10tonne |
LPGC390 | ||
|
Girder Clamp 5tonne |
LPGC350 | ||
|
Girder Clamp 3tonne |
LPGC330 | ||
|
Girder Clamp 2tonne |
LPGC320 | ||
|
Girder Clamp 1tonne |
LPGC310 |
