Davit Crane Aluminium T-Davit
+ Add to Quote RequestOur aluminium T-DAVIT is a lightweight and portable lifting solution.
The T-DAVIT is solid and versatile. Thanks to a sophisticated bearing system, it offers a lifting capacity of up to 600kg and 360° rotation.
The T-DAVIT is supplied ready for a winch to be integrated or suitable for use with a manual or electric hoist.
T DAVIT has several standard configurations, however, it can be customised to meet your application.
Additional Information

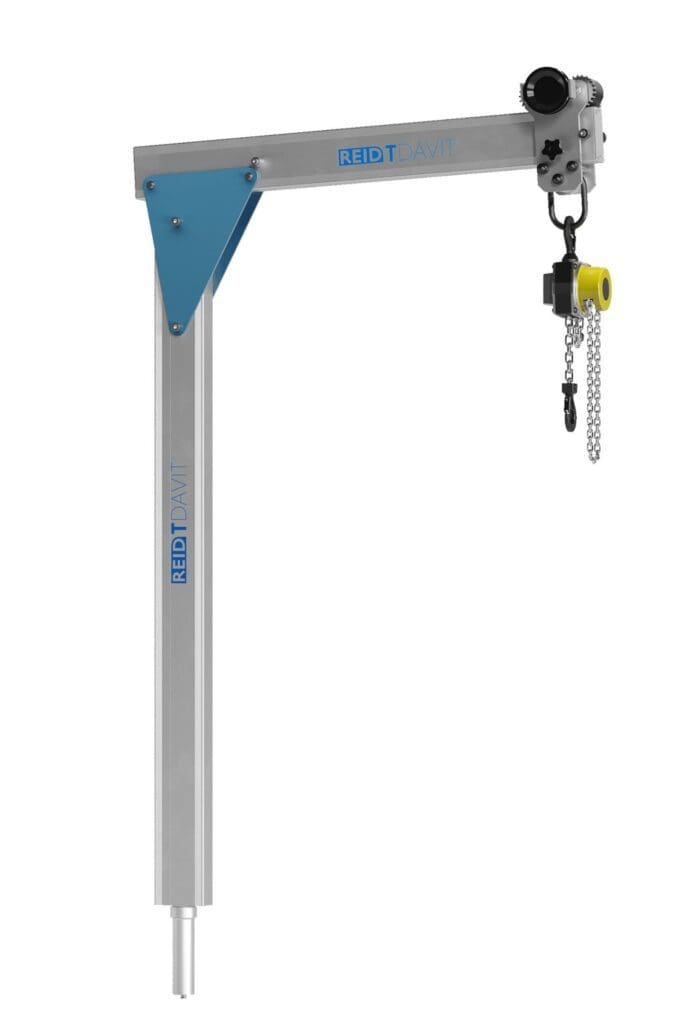

T DAVIT TDT Geared Trolley
The TDAVIT Geared Trolley offers a lifting capacity of up to 400kg in combination with a geared trolley that can traverse the beam, in addition to 360° rotation whilst under load.
This product is quick to assemble and can be operated by one person with no tools required.
The load trolley can be operated whilst under load from 865 to 1665mm. The davit can be slewed through 360 degrees while under load.

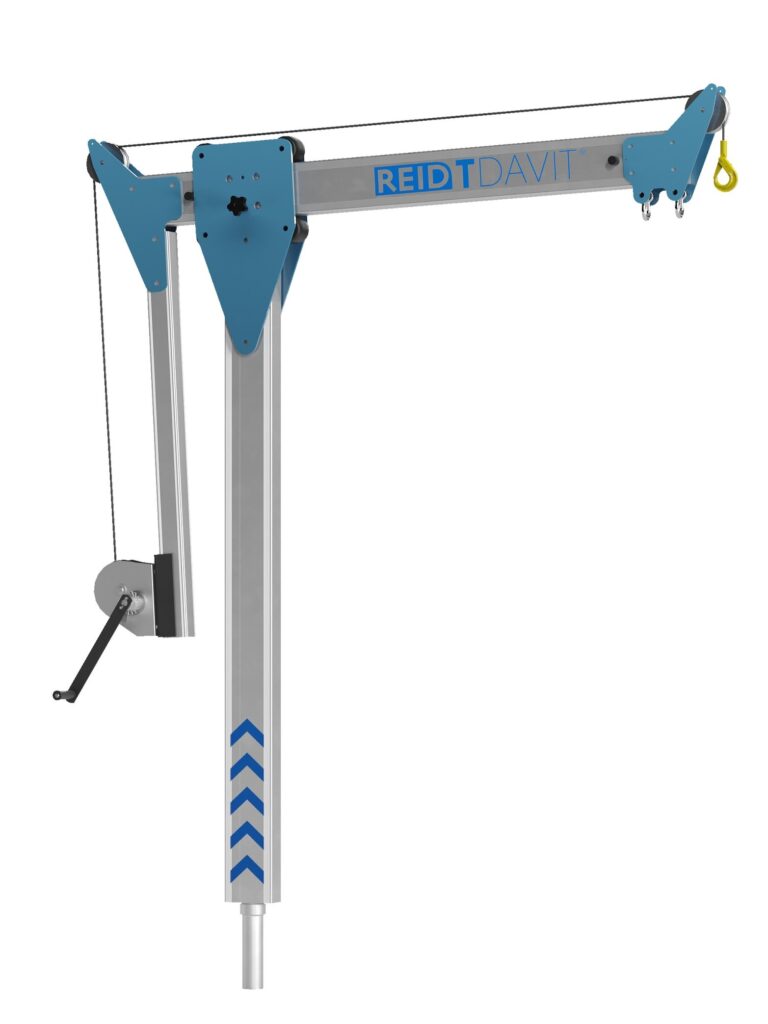

T DAVIT TDVW Variable Winch
The TDAVIT Variable Winch is lightweight and portable. It has been specifically designed for use in tight spaces where lifting and moving equipment is challenging.
The davit crane can be assembled and operated by a single person – no tools required.
This is an ideal davit for plant rooms, engine rooms and kiosks, where flexibility in moving loads is needed.
The davit beam can be adjusted while under load, from 726 to 1526mm.

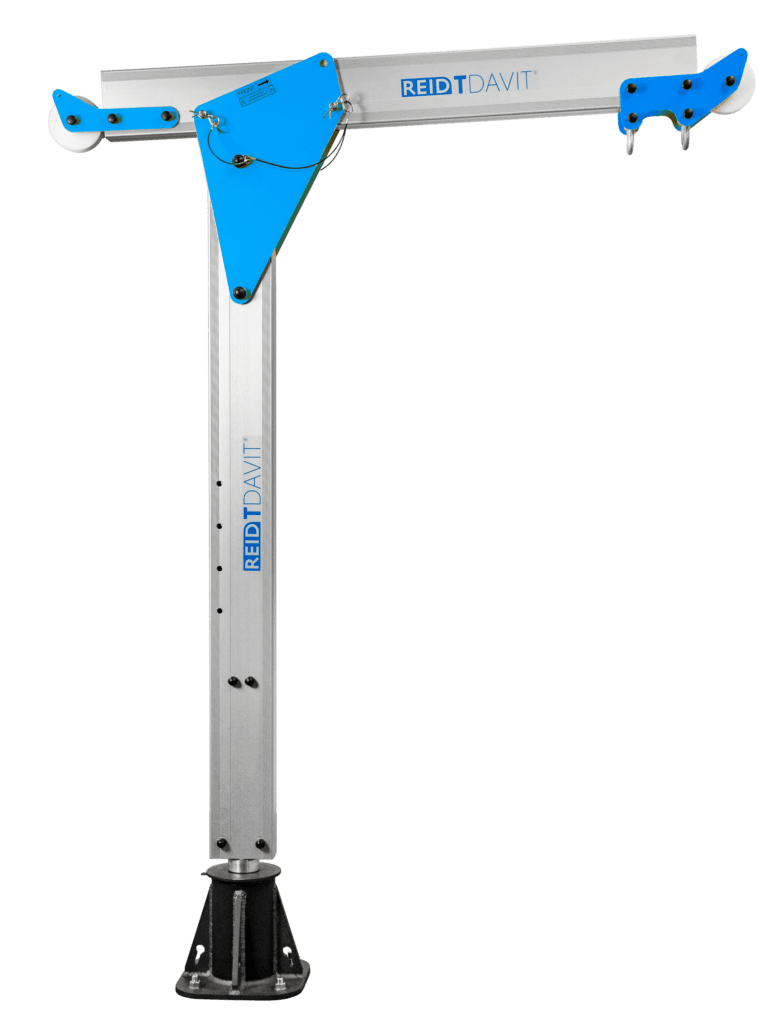

T DAVIT TDW Winched
The T-DAVIT Winched was designed primarily for goods and personnel lifting applications while also being tested as a fall protection anchor device.
It benefits from a sheave at the front and rear of the beam for winch rope or winch cable.
Fitted with a sheave at the front and rear of the beam for winch rope or cable.
A winch can be fitted to the mast of the davit or a hoist can be suspended from the shackle on the boom.

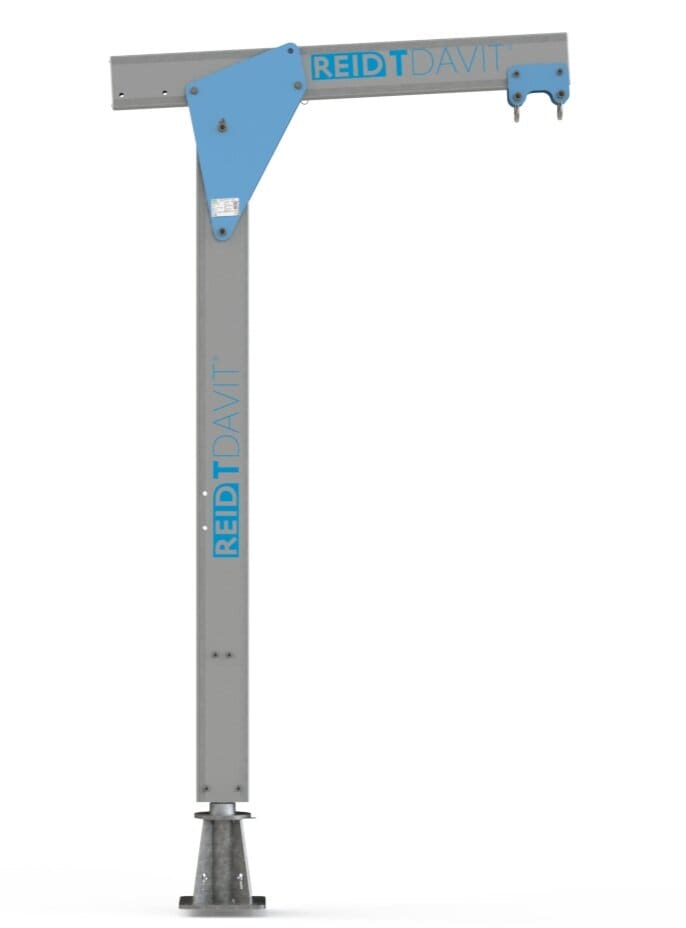

T DAVIT TDS Shackled
T-DAVIT Shackled is lightweight and portable whilst being available in a wide range of standard sizes.
The davit can be customised and manufactured to meet your application.
The tip of the davit is fitted with a double shackle head for attachment of accessories and/or hoists.

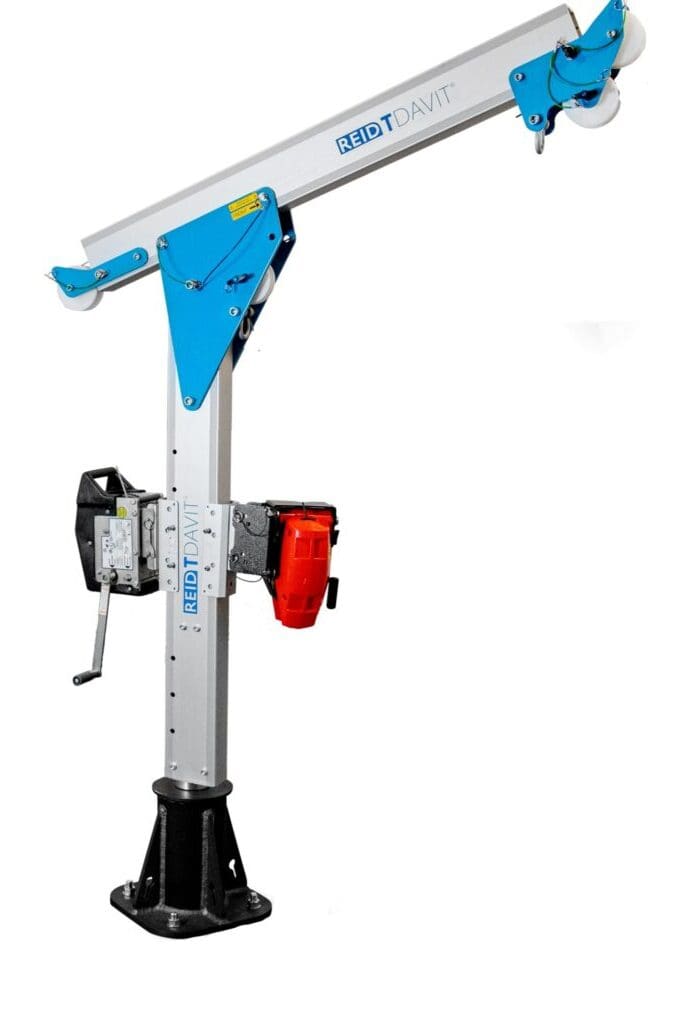

T DAVIT TDDW Double Winched
Our T-DAVIT Double Winched has been designed for fall protection applications, including confined space access and egress.
T-DAVIT Double Winched benefits from a personnel weight lifting capacity of up to 300kg and a good capacity of up to 600kg.
Fitted with a sheave at the front and rear of the beam for winch rope or cable.
Click the PDF button to learn more.
Product Variations
Image | Description | Product Code | Price (excl. GST) | |
---|---|---|---|---|
T-Davit Type S Column option 1 Beam option 0 WLL 600kg |
TDSA1A0TD2 | |||
T-Davit Type S Column option 1 Beam option 1 WLL 500kg |
TDSA1A1TD2 | |||
T-Davit Type S Column option 1 Beam option 2 WLL 500kg |
TDSA1A2TD2 | |||
T-Davit Type S Column option 1 Beam option 3 WLL 375kg |
TDSA1A3TD2 | |||
T-Davit Type S Column option 1 Beam option 4 WLL 300kg |
TDSA1A4TD2 | |||
T-Davit Type S Column option 2 Beam option 0 WLL 600kg |
TDSA2A0TD2 | |||
T-Davit Type S Column option 2 Beam option 1 WLL 500kg |
TDSA2A1TD2 | |||
T-Davit Type S Column option 2 Beam option 2 WLL 500kg |
TDSA2A2TD2 | |||
T-Davit Type S Column option 2 Beam option 3 WLL 375kg |
TDSA2A3TD2 | |||
T-Davit Type S Column option 2 Beam option 4 WLL 300kg |
TDSA2A4TD2 | |||
T-Davit Type S Column option 3 Beam option 0 WLL 600kg |
TDSA3A0TD2 | |||
T-Davit Type S Column option 3 Beam option 1 WLL 500kg |
TDSA3A1TD2 | |||
T-Davit Type S Column option 3 Beam option 2 WLL 500kg |
TDSA3A2TD2 | |||
T-Davit Type S Column option 3 Beam option 3 WLL 375kg |
TDSA3A3TD2 | |||
T-Davit Type S Column option 3 Beam option 4 WLL 300kg |
TDSA3A4TD2 | |||
T-Davit Type S Column option 4 Beam option 0 WLL 600kg |
TDSA4A0TD2 | |||
T-Davit Type S Column option 4 Beam option 1 WLL 500kg |
TDSA4A1TD2 | |||
T-Davit Type S Column option 4 Beam option 2 WLL 500kg |
TDSA4A2TD2 | |||
T-Davit Type S Column option 4 Beam option 3 WLL 375kg |
TDSA4A3TD2 | |||
T-Davit Type S Column option 4 Beam option 4 WLL 300kg |
TDSA4A4TD2 | |||
T-Davit Type S Column option 5 Beam option 0 WLL 600kg |
TDSA5A0TD2 | |||
T-Davit Type S Column option 5 Beam option 1 WLL 500kg |
TDSA5A1TD2 | |||
T-Davit Type S Column option 5 Beam option 2 WLL 500kg |
TDSA5A2TD2 | |||
T-Davit Type S Column option 5 Beam option 3 WLL 375kg |
TDSA5A3TD2 | |||
T-Davit Type S Column option 5 Beam option 4 WLL 300kg |
TDSA5A4TD2 | |||
T-Davit Type T Column 3 Radius 1200mm WLL400kg |
TDTA31200 | |||
T-Davit Type T Column 3 Radius 1500mm WLL400kg |
TDTA31500 | |||
T-Davit Type T Column 3 Radius 1700mm WLL200kg |
TDTA31700 | |||
T-Davit Type T Column 3 Radius 2000mm WLL200kg |
TDTA32000 | |||
T-Davit Type T Column 4 Radius 1200mm WLL400kg |
TDTA41200 | |||
T-Davit Type T Column 4 Radius 1500mm WLL400kg |
TDTA41500 | |||
T-Davit Type T Column 4 Radius 1700mm WLL200kg |
TDTA41700 | |||
T-Davit Type T Column 4 Radius 2000mm WLL200kg |
TDTA42000 | |||
T-Davit Type T Column 5 Radius 1200mm WLL400kg |
TDTA51200 | |||
T-Davit Type T Column 5 Radius 1500mm WLL400kg |
TDTA51500 | |||
T-Davit Type T Column 5 Radius 1700mm WLL200kg |
TDTA51700 | |||
T-Davit Type T Column 5 Radius 2000mm WLL200kg |
TDTA52000 | |||
T-Davit Type VW Column 3 Radius 1200mm WLL300kg |
TDVWA31200 | |||
T-Davit Type VW Column 3 Radius 1500mm WLL300kg |
TDVWA31500 | |||
T-Davit Type VW Column 3 Radius 1700mm WLL150kg |
TDVWA31700 | |||
T-Davit Type VW Column 3 Radius 2000mm WLL150kg |
TDVWA32000 | |||
T-Davit Type VW Column 4 Radius 1200mm WLL300kg |
TDVWA41200 | |||
T-Davit Type VW Column 4 Radius 1500mm WLL300kg |
TDVWA41500 | |||
T-Davit Type VW Column 4 Radius 1700mm WLL150kg |
TDVWA41700 | |||
T-Davit Type VW Column 4 Radius 2000mm WLL150kg |
TDVWA42000 | |||
T-Davit Type VW Column 5 Radius 1200mm WLL300kg |
TDVWA51200 | |||
