Drum Lifters Forklift Mounted Clamp Band

The Clamp Band Drum Lifter features an innovative locking system that allows operators to move 205-litre drums with the utmost precision. The device improves security and safety during drum handling activities and is incredibly easy to use. The attachment secures quickly to a drum and locks into place. From there, a forklift operator is ready to move heavy units around the workplace.

The Clamp Band Drum Lifter is designed to ergonomically lift and safely transport drums in an organisation. An added safety catch prevents accidental release and further movement. The standard DDL1000 model has a Working Load Limit (WLL) of 1000 kg and can be coupled with a Plastic Barrel Option (DDL1000PBO).

Product Variation

Clear

Additional Information

The Clamp Band Drum Lifter is one of the safest on the market!

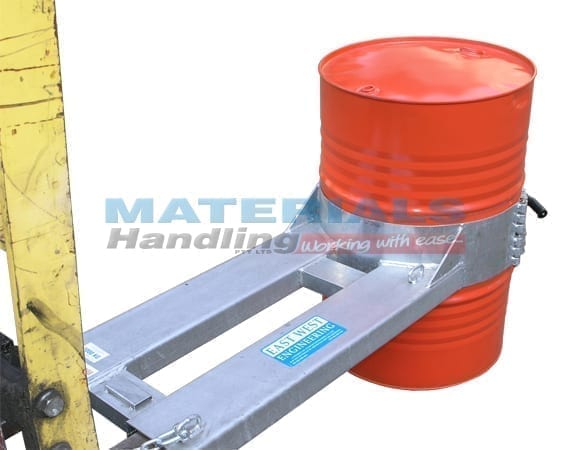

This device suits standard 205-litre steel drums and ensures they are safely transported. The slip-on attachment quickly connects to a forklift. A belly strap and eccentric locking system further secures drums into position. The Clamp Band Drum Lifter has a zinc finish and is available in two versions – DDL1000 or DDL1000PBO.

Specifications for DDL1000 Drum Lifter:

Safe Working Load (SWL) – 1000 kg
Load Centre – 1160 mm
Unit Weight – 60 kg
Pocket Size – 165 x 65 mm
Pocket Centres – 335 mm
HCG – 710 mm
VCG – 25 mm

Clamp Band Drum Lifter Plastic Band Option

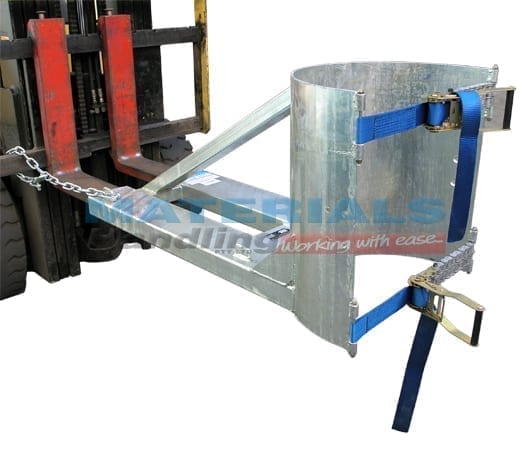

Replacing the belly strap of the device, allows for plastic drums and barrels to be handled. The dual woven and chain combination belly straps hold the drums/barrels into position. The PBO option is suitable for a Safe Working Load (SWL) of 350 kg.

Specifications for DDL1000-PBO Drum Lifter:

Safe Working Load (SWL) – 1350 kg
Load Centre – 1160 mm
Unit Weight – 75 kg
Pocket Size – 165 x 65 mm
Pocket Centres – 335 mm
HCG – 750 mm
VCG – 90 mm

Still searching for a Drum Handling solution?

Browse our range of Forklift Mounted Drum Lifters for some great handling alternatives.

Click the PDF button to learn more.

Product Variations

Image	Description	Product Code	Price (excl. GST)
	Clamp Band Drum Lifter	DDL1000	$1,920.00	Add to Quote Request
	Clamp Band Drum Lifter with Plastic Barrel Option	DDL1000-PBO	$2,580.00	Add to Quote Request
