Cam-lok Surface Mount Bollard

+ Add to Quote Request

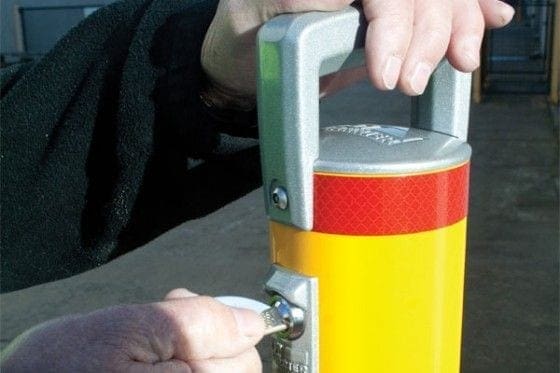

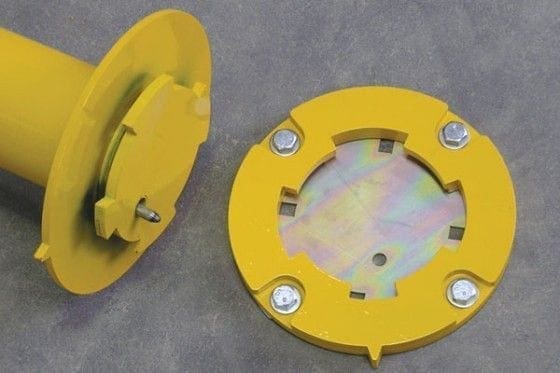

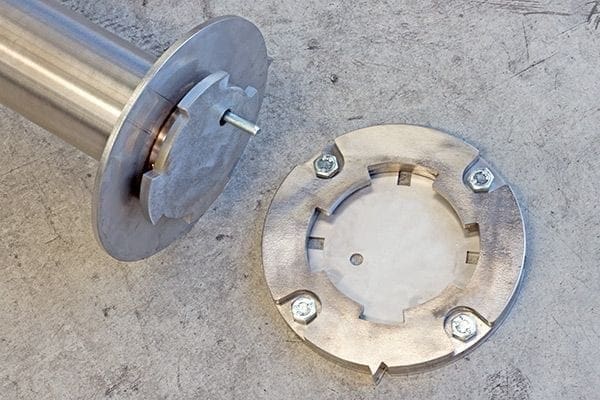

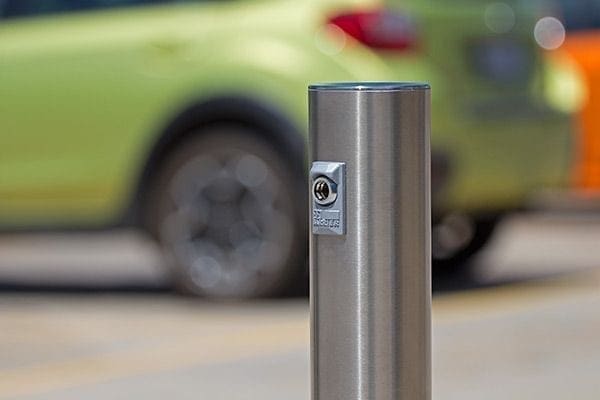

Our surface mount Cam-lok is a high security key operated removable bollard. The operation is similar to our other Cam-lok bollards except that it does not require core drilling into your slab floor. Surface mount Cam-lok is designed for applications where the floor cannot be core drilled or penetrated, such as suspended or pre-stressed slabs or clean areas such as food preparation or pharmaceutical processing. This heavy duty bollard locks into the surface mounted receiver shoe via an internal locking system using high security cam locks with registered keys.



Clear

Additional Information

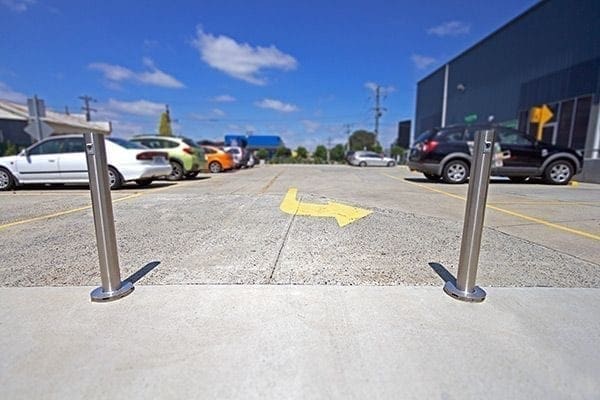

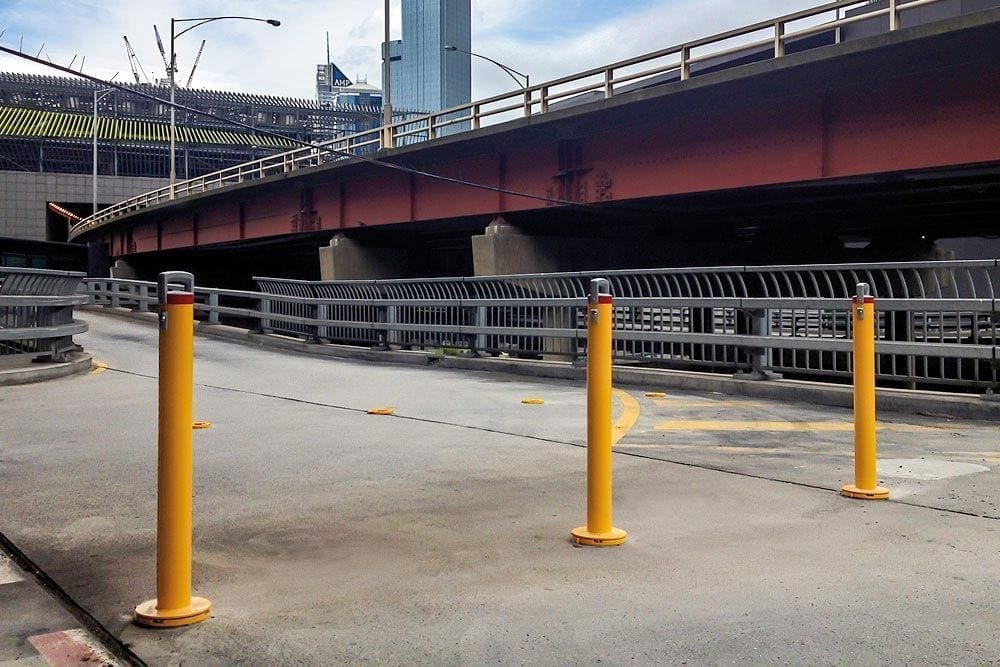

Surface mount Cam-lok is ideal where vehicle access needs to be denied and keyed security is an issue.

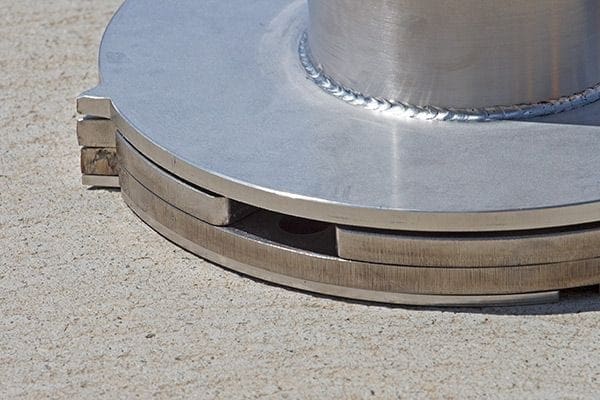

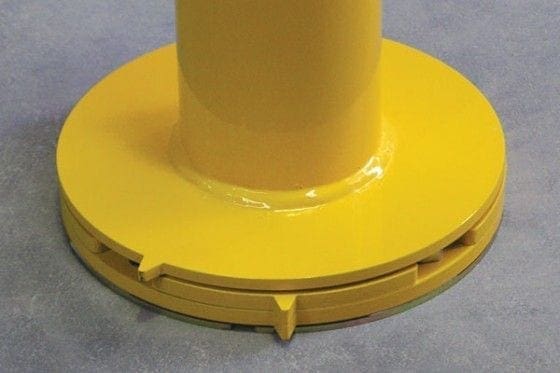

* Receiver shoe can be relocated or use multiple shoes for changing locations
* 25 mm reflective band around top of post
* Fixings for receiver shoe are inaccessible when post locked in

Specifications
Description: High security, key operated, surface mount removable barrier
Material: Steel post 90mm diam with 5mm wall
Finish: Powder-coated standard safety yellow
Height: 950 mm post height. Receiver shoe only 20 mm with post removed
Weight: Post 9.5 Kg. Receiver shoe 2.5 Kg
Installation: 4 off 12 x 75 mm sleeve anchors

Options
* Extra keys
* Additional receiver shoes

Product Variations

Image Description Product Code Price (excl. GST)

Cam-lok Additional Registered Key

BCLKEY

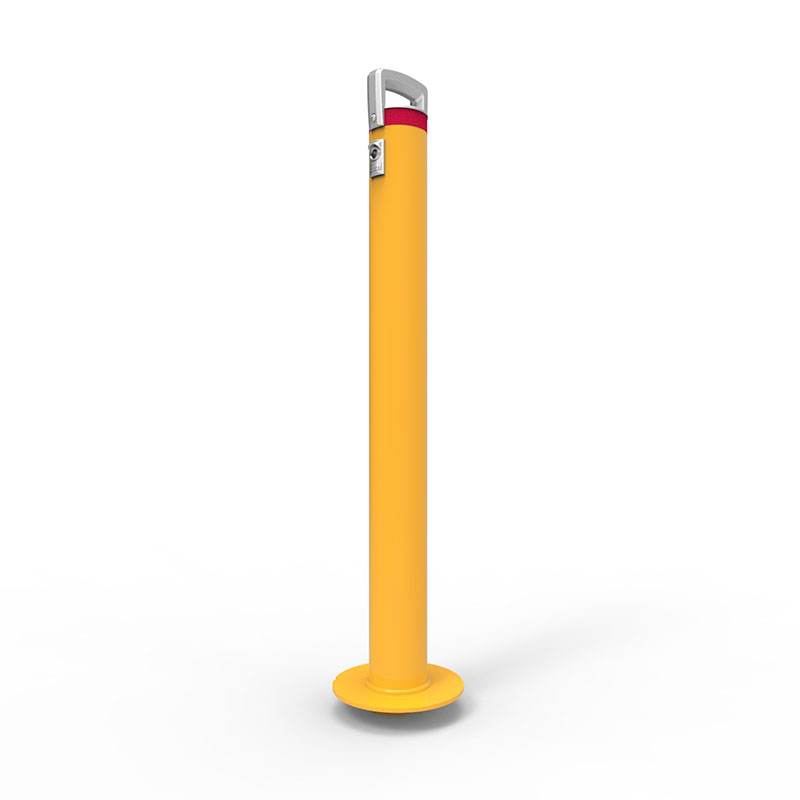

Cam-lok Surface Mounted Removable Bollard 90mm – Galvanised and Powder Coated

SMCL

Cam-lok/Tee-lok Receiver Shoe – Zinc Plated and Powder Coated Yellow

SMCLH

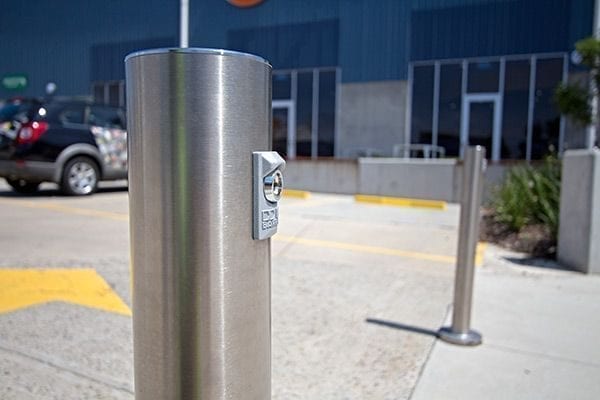

Cam-lok Surface Mounted Removable Bollard 90mm – Stainless Steel

SMCL-SS

Cam-lok/Tee-lok Receiver Shoe – 316 Stainless Steel

SMCLH-SS

Cam-lok/Tee-lok Receiver Shoe – Zinc Plated

SMCLH-Z

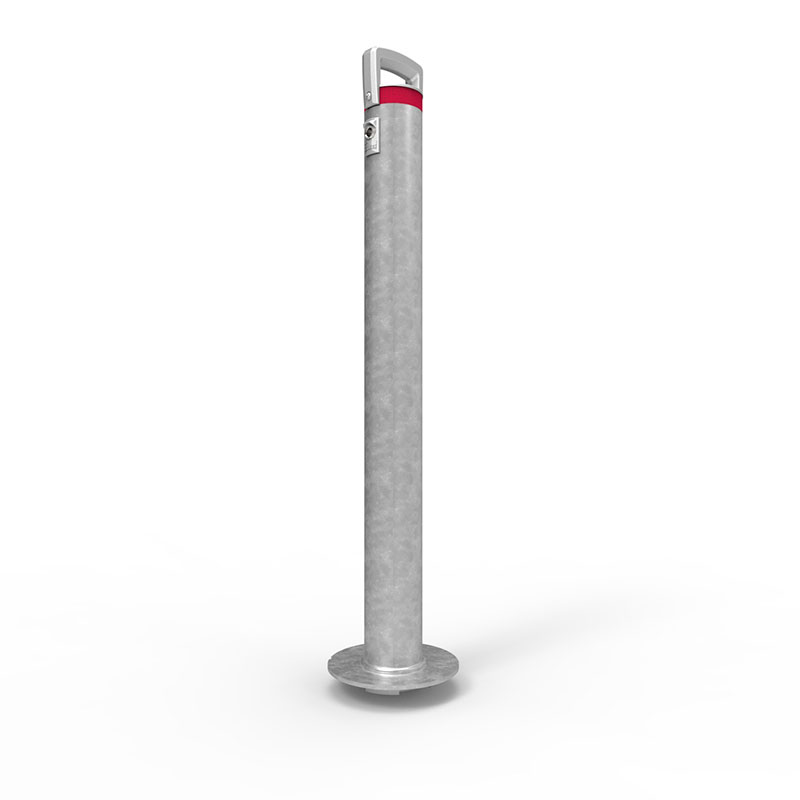

Cam-lok Surface Mounted Removable Bollard 90mm – Galvanised

SMCL-G

Cam-lok Surface Mounted Removable Economy Lock Bollard 90mm – Galvanised

SMCLE-G

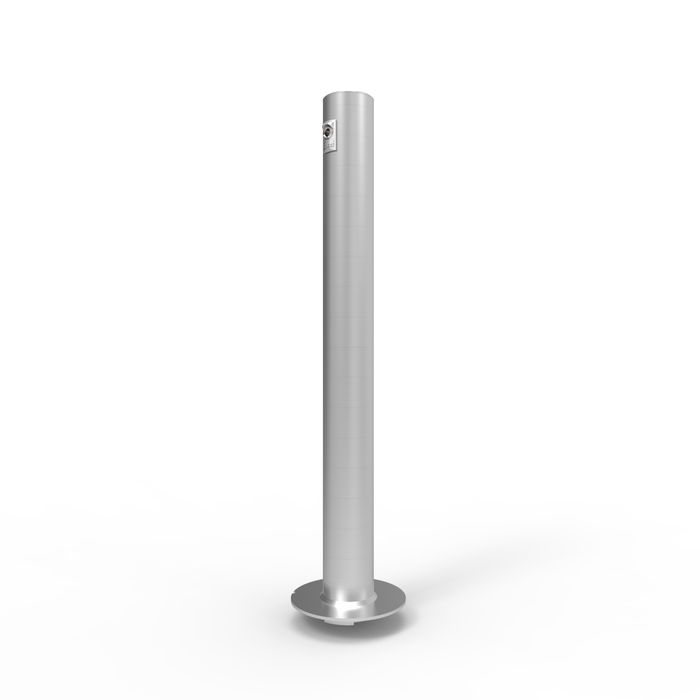

Cam-lok Surface Mounted Removable Economy Lock Bollard 90mm – Stainless Steel

SMCLE-SS

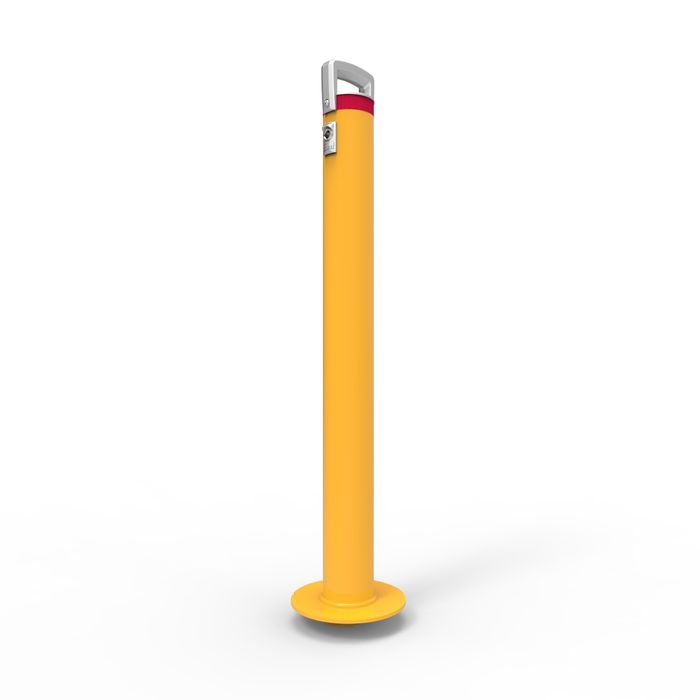

Cam-lok Surface Mounted Removable Economy Lock Bollard 90mm – Galv and Pow

SMCLE
