Powered Trolley Bolt On Drive Unit

+ Add to Quote Request

Create a powered materials handling solution with the Bolt On Drive Unit. This battery-powered motor can be attached to any trolley, turning it into an electrical machine! Keep your existing trolley and upgrade to the latest technology.

Using a power drive materials handling device improves staff capabilities and productivity. The Bolt On Drive Unit ensures that manual handling risks, physical exertion and worker fatigue are minimised. With long battery life, innovative design and a floating suspension system, the drive unit is strong, reliable and performs to a consistently high standard.

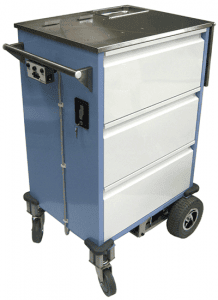

In the healthcare industry, any medication cart can be adapted to the drive pack with up to 20km distance coverage. Carers report injuries through the cumulative result of small strains and repetitive exertion from regular pushing and pulling beds, trolleys and medication carts.

Additional Information

Motorise your trolley with our Bolt On Drive Unit

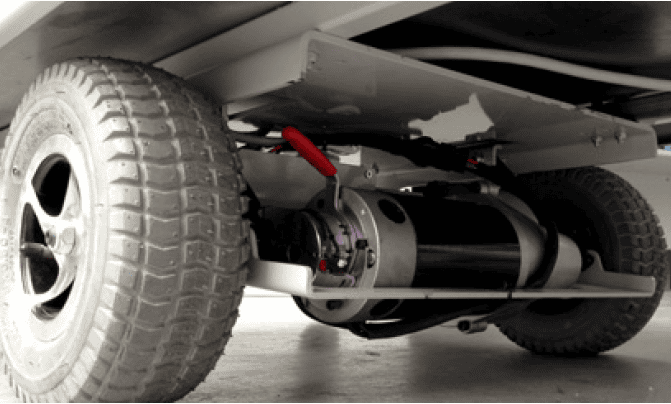

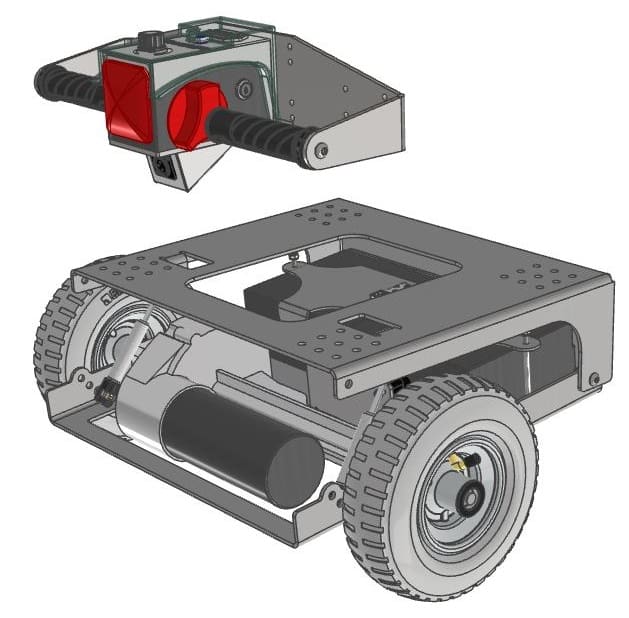

The Bolt On Drive Unit is a versatile solution designed to retrofit onto existing or new trolleys. The suspension ensures continuous traction with the floor and the drive wheels for smooth and simple operation. Featuring a safety brake and heavy-duty lithium batteries, the device can easily navigate tight spaces and will come to a safe and controlled stop should the operator release the controls. The drive unit ensures the operator remains in total control of the trolley at all times.

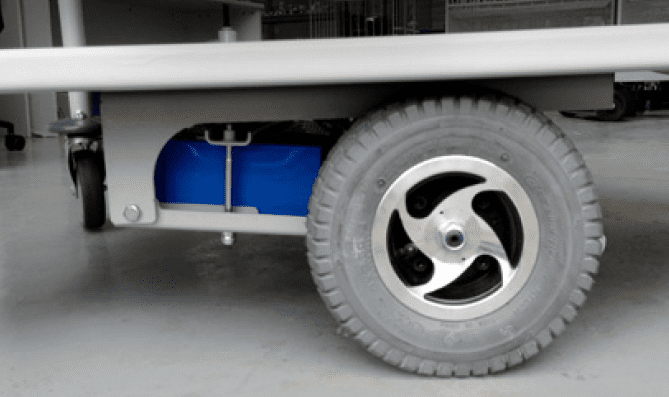

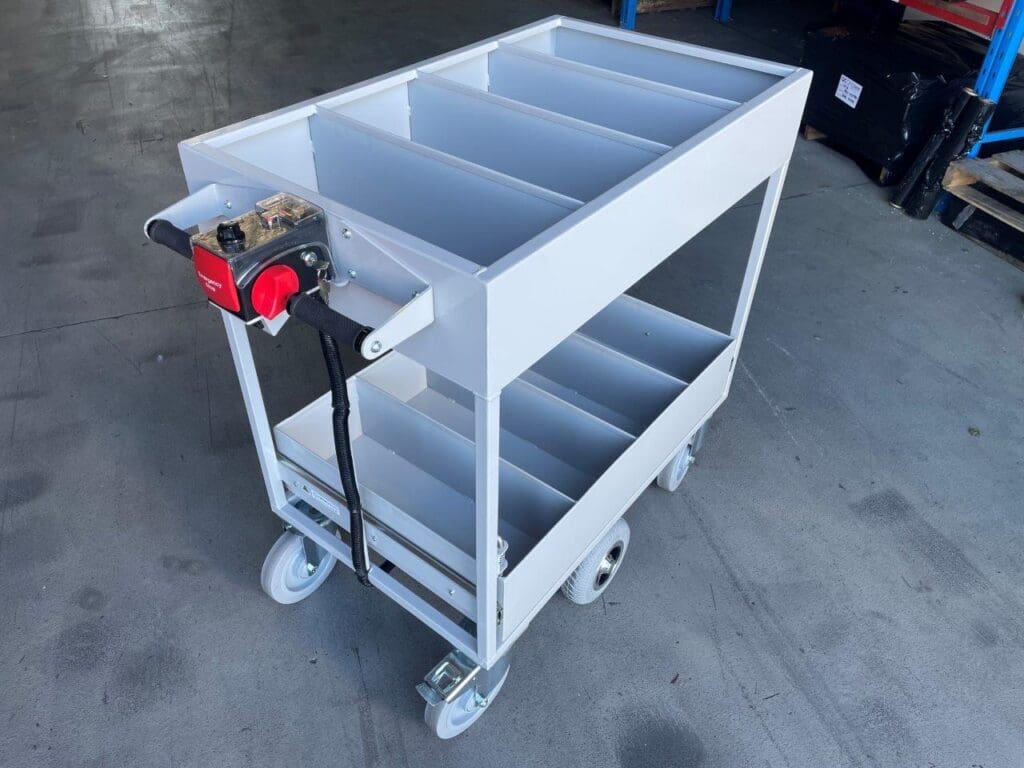

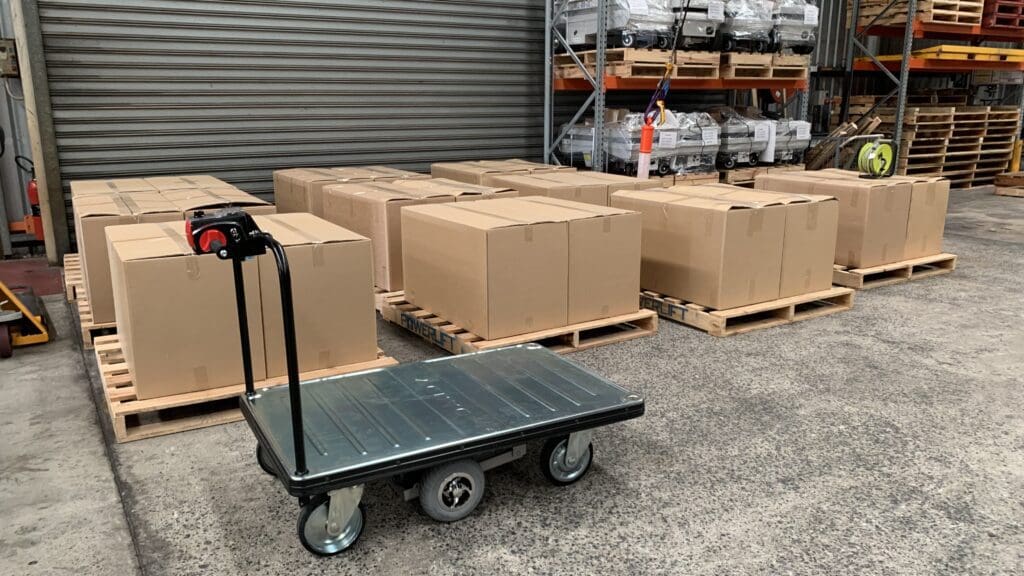

 Bolt on powered drive unit

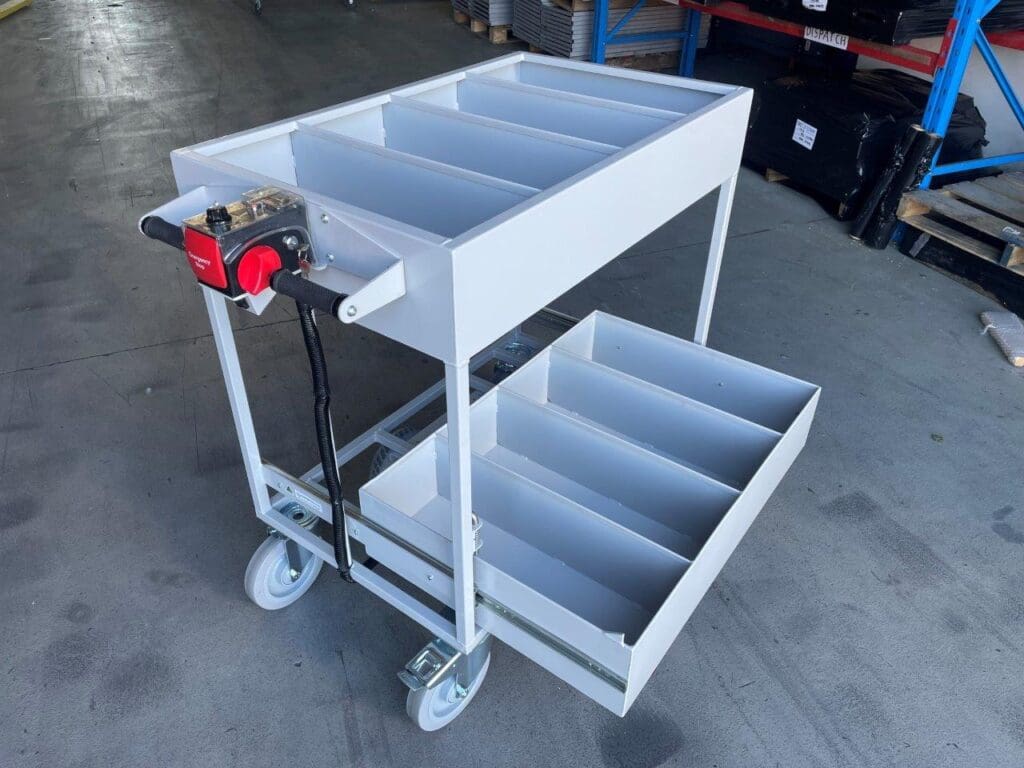

Ideal for many applications

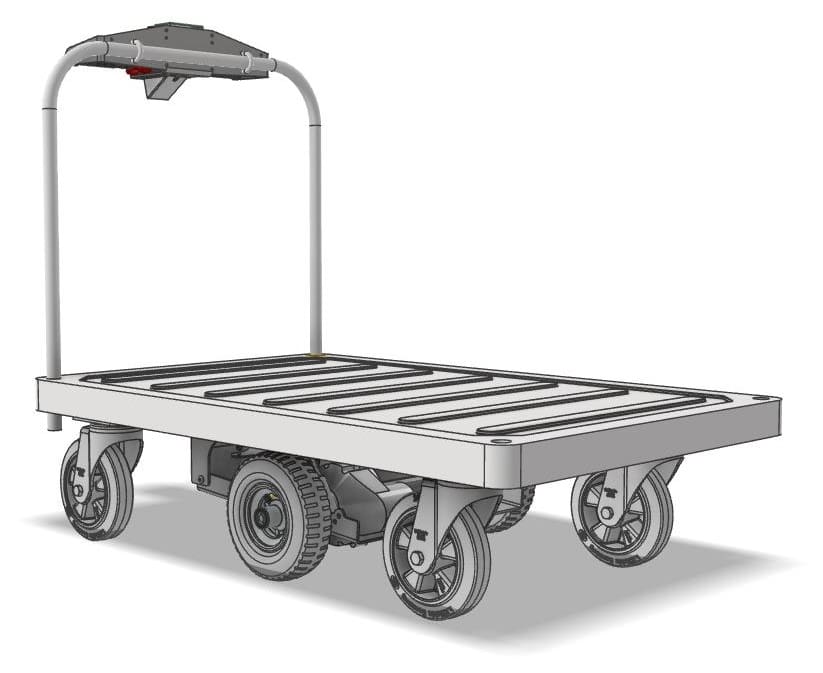

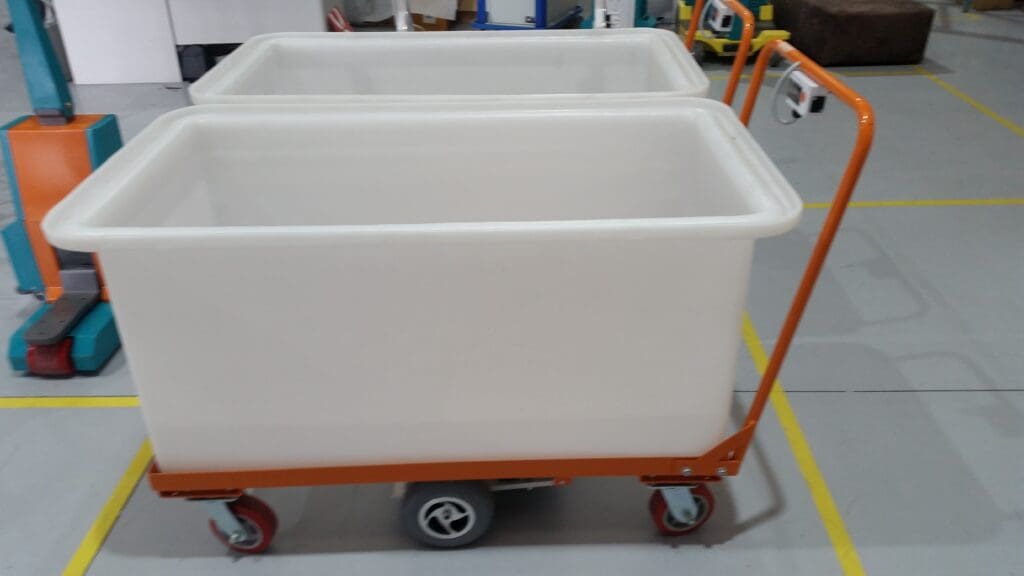

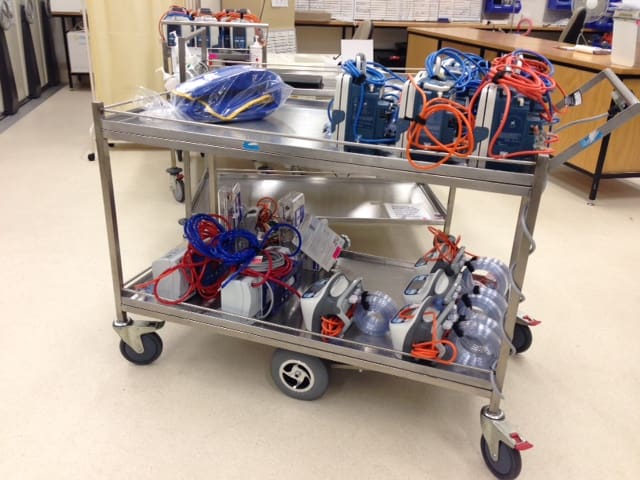

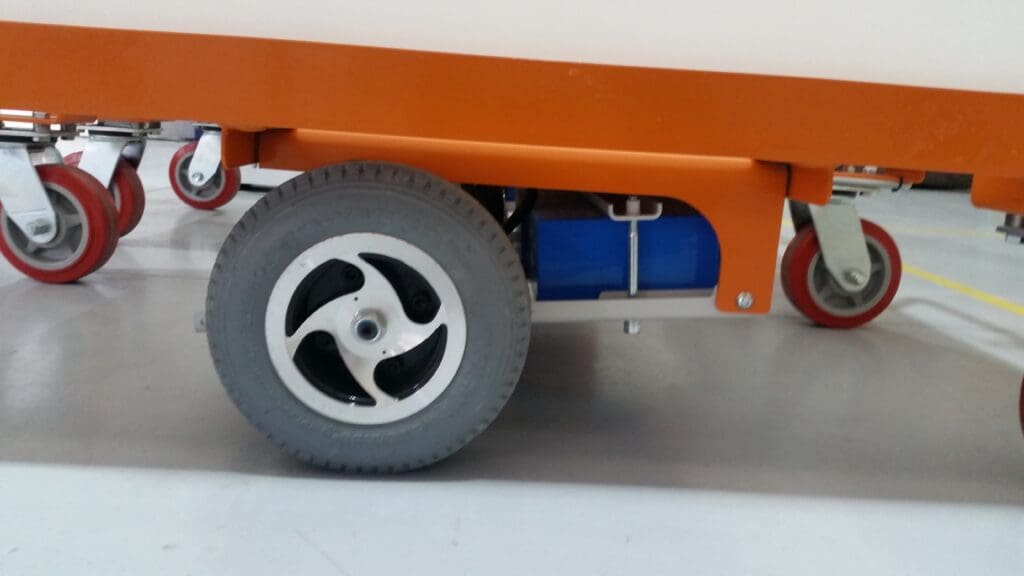

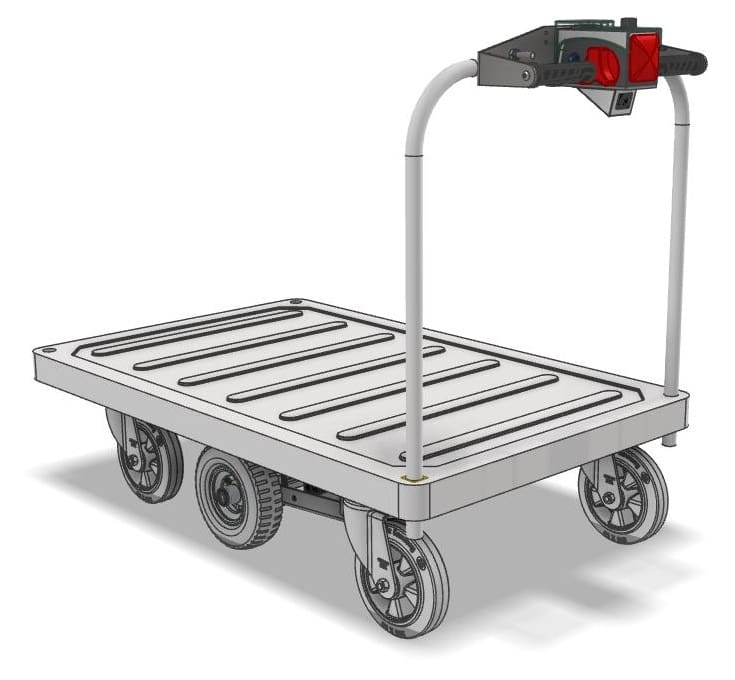

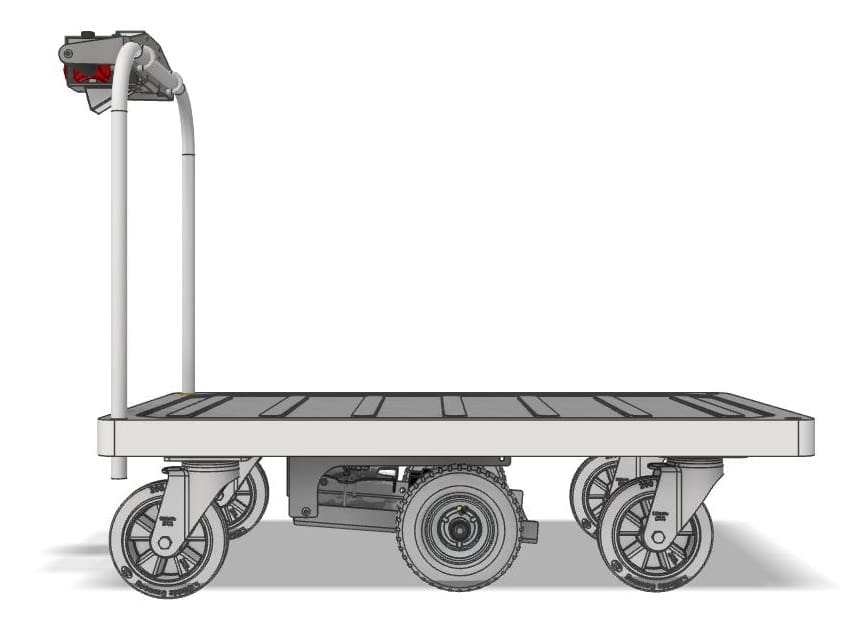

Bolt On Drive Unit Powered Trolley centre mount

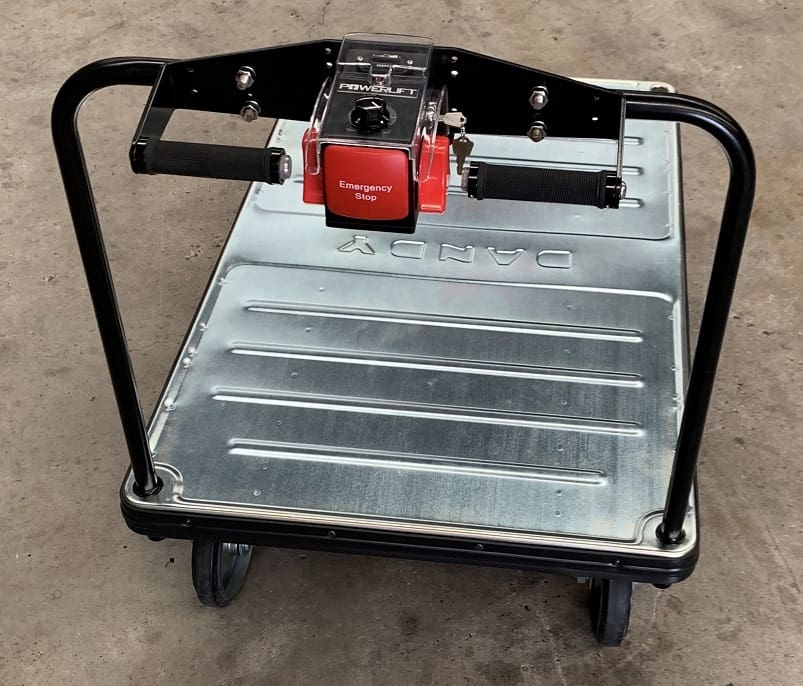

The Bolt On Drive Unit has a simple and intuitive human interface (control console) that any person can operate. Almost any trolley can be motorised, as the Bolt On Drive Unit is a compact enclosure designed to be fitted to a range of trolleys and carts. Applications include medication carts, linen tubs, stock trolleys, ergonomic lift trolleys, warehouse trolleys, distribution carts, food service trolleys, scissor lift trolleys and many more! The Bolt On Drive Unit has been adopted across a number of industries and applications including libraries, bank coins, stock and meal delivery, healthcare services and food/beverage.


  • Easy access battery charging socket
  • Digital battery gauge
  • Illuminated LED for system status and alerts
  • Adjustable maximum speed knob
  • Throttle for smooth control of speed both forward and reverse
  • Quiet operation and compact design
  • Virtually maintenance free
  • Drive motor fitted with electro-magnetic brake
  • Manual lever for brake disengage
  • A circuit breaker with push-button reset
  • Emergency stop back-off belly button
  • Lithium batteries with Bluetooth battery charger
  • Puncture-proof, non-marking grey rubber drive wheels

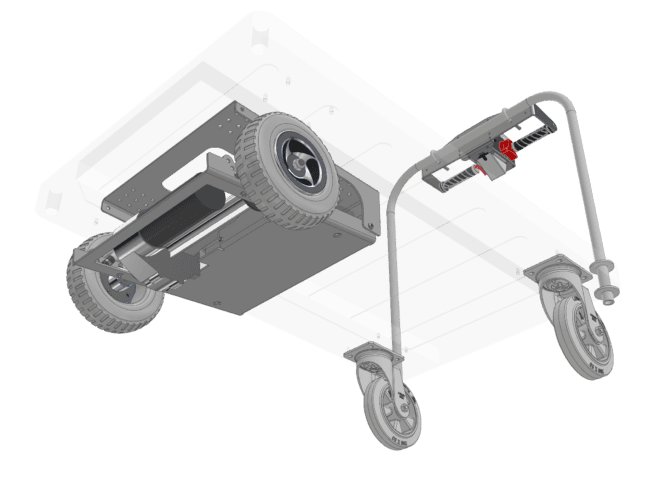

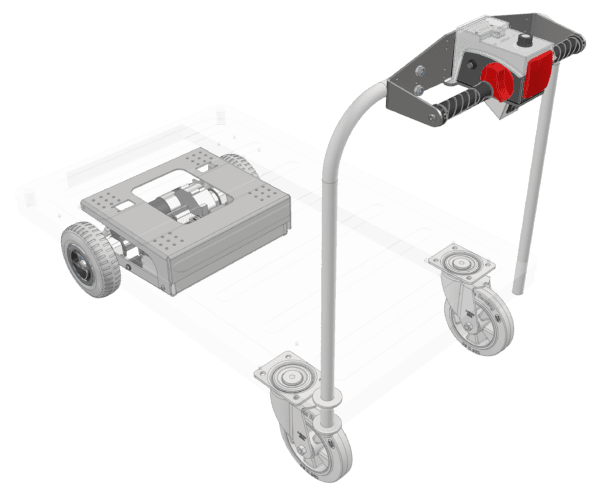

    Powered Trolley Bolt On Drive Unit end mount front corner below 2

    How will you mount it?

    You can mount the drive axle at one end of the trolley or in the centre of the trolley.

    An end-mounted solution will require two swivel castors at the opposite end. The drive axle will steer like two fixed wheels at the end of the trolley. The turning circle will be larger. This arrangement has no problem navigating ramps – especially the transition between flat and inclined surface.

    A centre-mounted solution will require four swivel castors at each trolley corner. The trolley will pivot about the centre of the drive axle. The turning circle is minimal (zero-turn) and excellent for handling in tight spaces. This arrangement may have problems navigating some ramps.

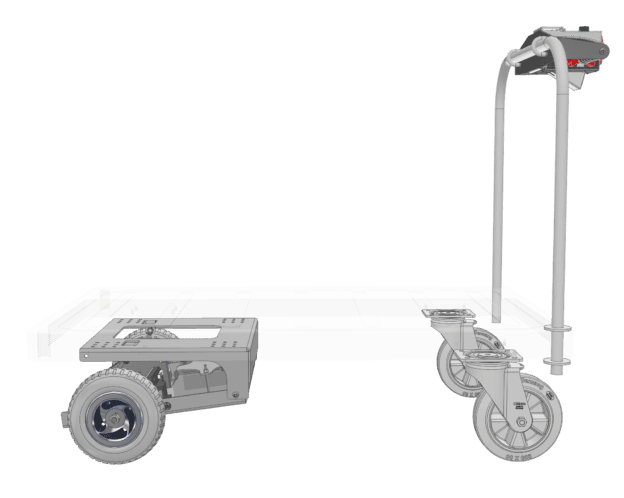

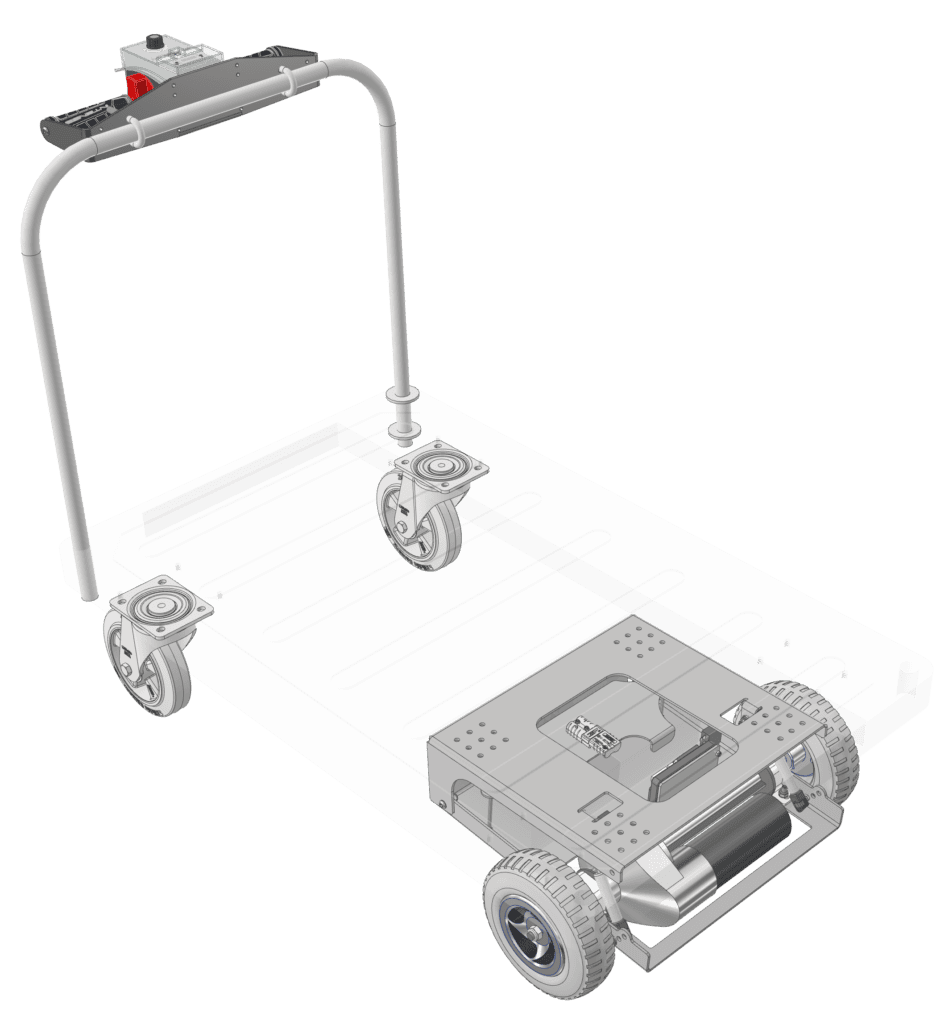

    Powered Trolley Bolt On Drive Unit end mount side 2

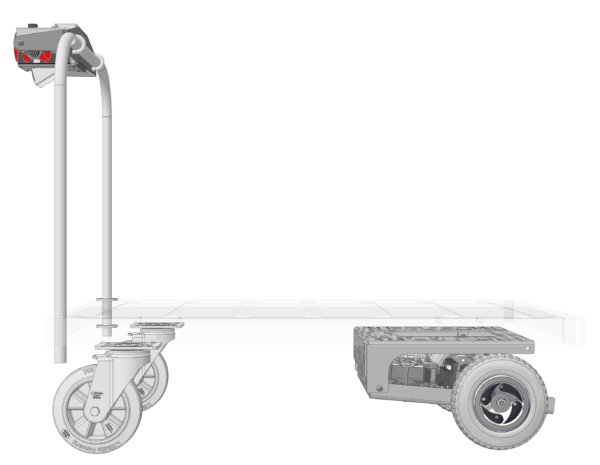

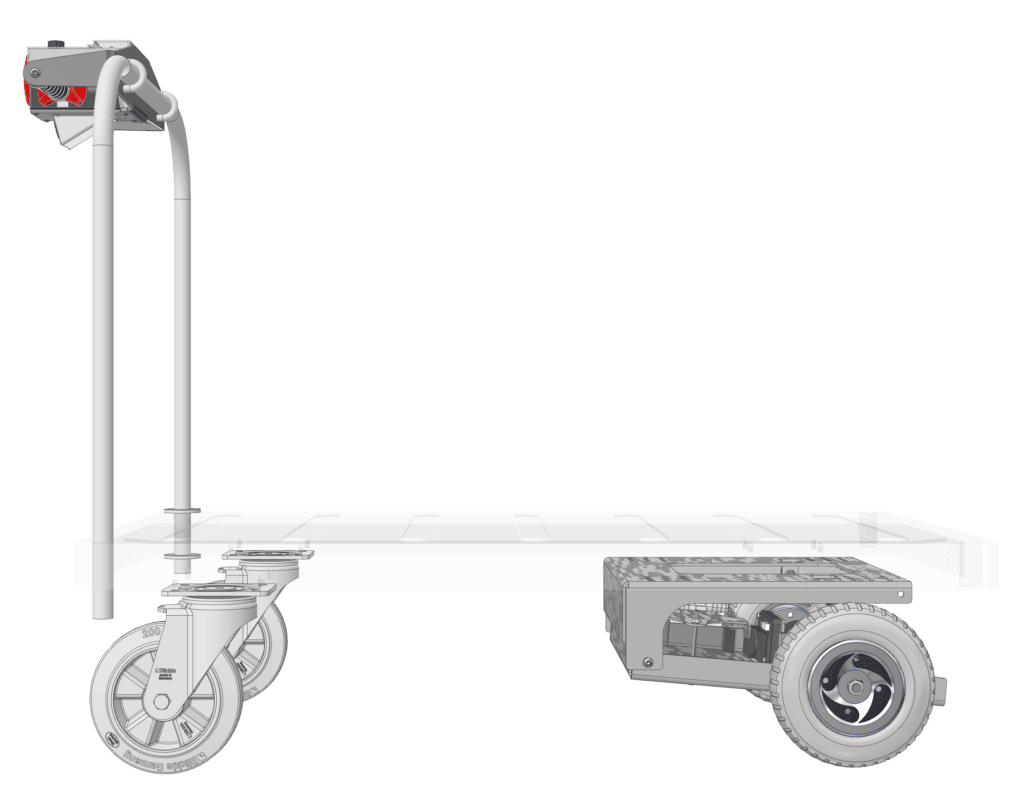

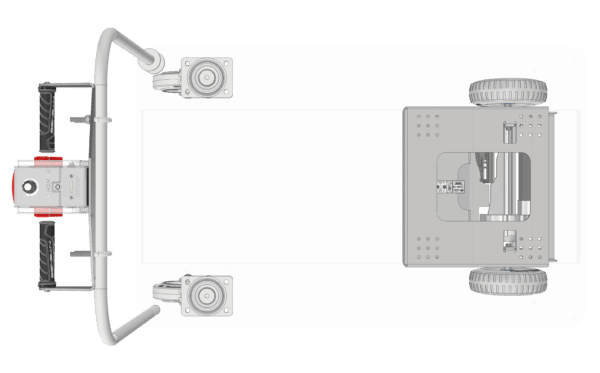

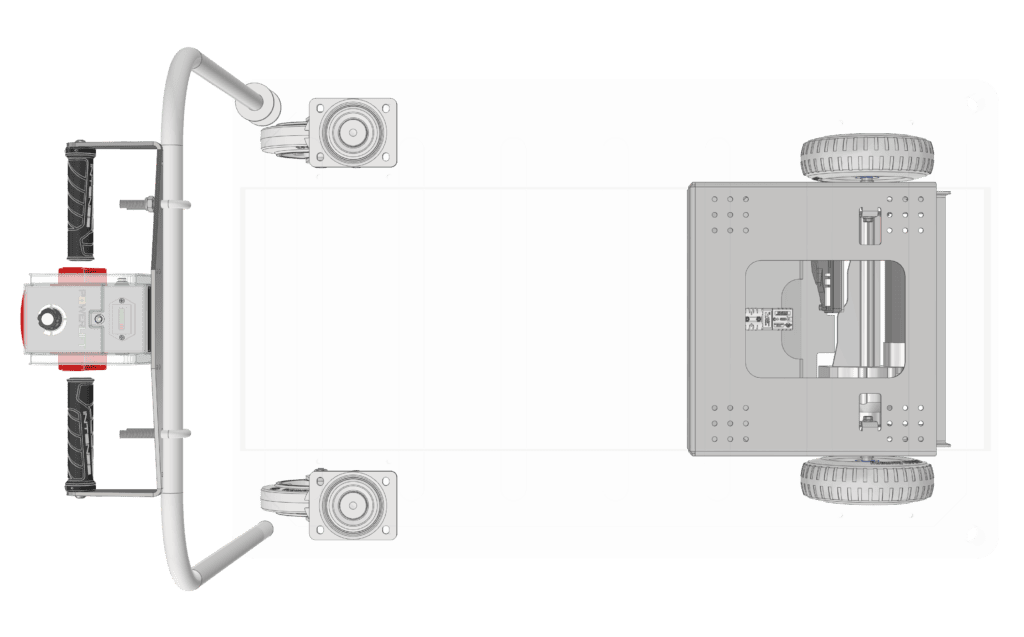

    Drive axle end mounted

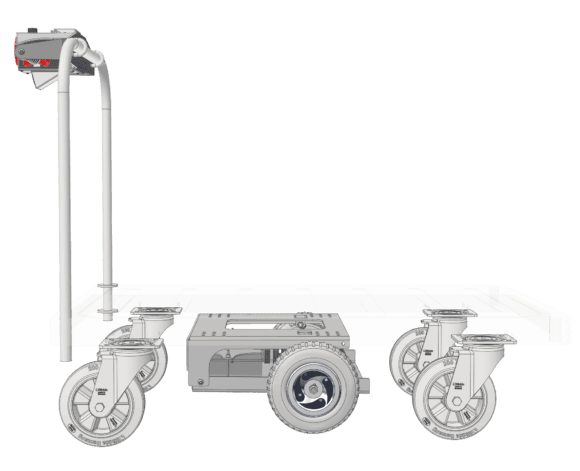

    Powered Trolley Bolt On Drive Unit centrre mount side

    Drive axle centre mounted

    Need some more options?

    Check out our wide range of Drive Units or alternatively browse some of our electric and powered movers.

    Click the PDF button to learn more.

    Product Variations

    Image Description Product Code Price (excl. GST)

    Bolt On Drive Unit – complete kit
