Dimensioning System iDimension PLUS

+ Add to Quote Request

The iDimension Plus static dimensioning system automatically measures parcels and irregular packages in less than 0.2 seconds. Using this device, accurate weight and measurements can be determined to avoid expensive shipping fees. It’s the quickest static desktop solution on the market for computing measurements of boxes, flats, polybags, and more. Has “Legal for Trade in Australia” certificate of approval NMI 13/1/35.

By delivering correct dimensional weight estimates, the iDimension PLUS can help to prevent revenue loss. With a small footprint, it’s easy to integrate the device into existing workstations, warehouses, or shipping desks in any shipping environment or retail counter. They can have one of our scales positioned below over one of our Elevated Load Cell Stands. These stands are a kit consisting of two stands, load cells, junction box, two adjustable stabilizing braces, levelling shims and hardware. Custom gravity or powered conveyors can be fitted to these Load Cell Stands. There are 18 sizes available. Just ask our sales facilitators for details.

The iDimension PLUS is supplied with a 1.5-metre pole assembly (Code: 204596) or an alternative model with a 1.2-metre pole assembly (Code: 204599). The measurement capabilities are: Code 204596 (1.5m pole) 1220 x 800 x 700mm and Code 204599 (1.2m pole) 1015 x 600 x 600 (L x W x H).

Additional Information

The iDimension PLUS uses innovative technology.

Add a whole new dimension to outbound shipping! The iDimension PLUS is one of the fastest static solutions on the market, quickly calculating the weight and measures of boxes, parcels and even irregular-shaped items. As an integral part of any packaging and weighing application, the device is easy to assemble, requires little operator training, and can be up and running in a short timeframe. The system plugs in and is ready to use – just open and assemble to instantly show dimensions.

Industry Leading Dimensioning in 0.2 seconds

With the iDimension Plus, you can dimension shipments faster and more accurately than by taking manual measurements. Parcels are automatically computed at 0.2 inches in an industry-leading 0.2 seconds, reducing the possibility of human mistakes. Packages having irregular forms, such as cylinders, spheres, tubes, polybags, and uneven shapes, are estimated to within +/-0.5 inch. It’s also NTEP approved for single irregular and cubic-shaped non-transparent items.

Uses Innovative and New Technology

By integrating several unique 3D imaging technologies with advanced algorithms, the iDimension Plus optimises time and efficiency for static outbound shipments. For items less than 1.2 inches, specific flat-detection technology is used to measure envelopes and small deliveries. Each dimension has an overhead image that may be used in conversations about package damage claims. A colour touchscreen display with rapid reaction, a live picture, measurements, weight, and operator duties are all common features.

Easy to install

Installation of the unit only takes approximately 30 minutes. After unpacking and set-up, you can start using the iDimension PLUS thanks to an easy-to-follow setup guide. Simply log in to the web-based interface to access additional settings and communication options. Click here for assembly and initial set up instructions.

A New Era of Shipping Dimensioning

This system reaps many benefits in any production line. Easily improve your workplace dimensioning applications with a unique device equipped with many safety features.

Standard Features:

  • Easy to assembly with limited operator training required, up and running within 30 minutes.
  • Displays dimensions in less than 200 ms.
  • Requires virtually no special alignment or special handling while placing a package to increase throughput with adjustable scan zone and area of interest.
  • Includes 180 mm USB Touch Screen Monitor:
    • Displays dimensions, image, status and weight if the scale is directly attached;
    • Initial set-up and configuration wizard;
    • Access to operator controls and functions.
  • Dimensions parcels at 5 mm legal for trade accuracy.
  • Dimensions irregular, shaped packages, polybags and uneven shapes to 1 cm legal for trade accuracy using automatic recognition.
  • Legal for trade measurements do not determine the minimum and maximum measurement capabilities available, see website for measurement capabilities.


  • Included low-resolution colour image captures an overhead photo of every item, available in .bmp or .jpg format through XML API integration.
  • High-resolution colour image, 2880 x 2160 pixels, available via the iDimension PLUS 4K with a 4K (ultra high definition) camera (Code: 204598) with 1.5 m pole and with 1.2m pole (Code: 204600). The 4K camera provides a high res colour image of the object measured, allowing more zoom in to see defects on a picture.


  • Optional powered USB Hub for use of more than one peripheral and UPS Worldship interface.
  • Optional USB barcode scanner with keyboard wedge emulation will manually trigger dimensioning.
  • Weighing Systems, 150 kg listed below but 30 kg and 75 kg versions with various size weigh platforms are also available.

Check out the entire range!

Have a look at the complete range of iDimension and Weighing products.

Continue browsing the Cubing and Weighing solutions for alternative options

Product Variations

Image Description Product Code Price (excl. GST)

iDimension Plus 4K high resolution 1.2M Pole Mount System


iDimension PLUS dimensioner with 1.2m pole assembly
For parcles less than 1015mm long


iDimension PLUS with 1.5m pole assembly
For parcles less than 1220mm long


iDimension Plus 4K high resolution 1.2M Pole Mount System


iDimension Plus 4K high resolution 1.5M Pole Mount System


75 x 0.02kg mild steel scale 450 x 450mm platform


75 x 0.02kg scale
450 x 450mm roller platform


150 x 0.05kg mild steel scale 510 x 510mm platform


150 x 0.05kg scale 510 x 510mm
Roller conveyor weigh platform


150 x 0.05kg mild steel scale 600 x 600mm platform


150 x 0.05kg scale 600 x 600mm
Roller conveyor weigh platform

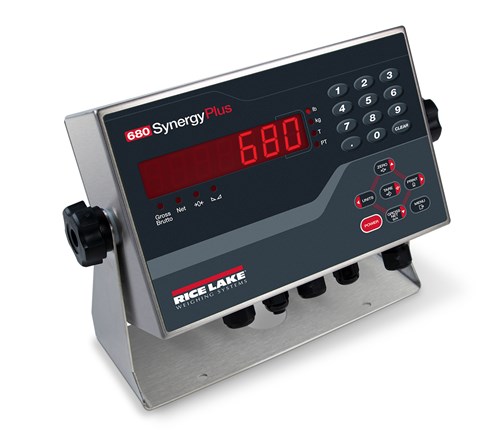

Digital Weight Indicator


QuickScan QD2131 KBW USB Wand Emulation RS-232 with USB cable

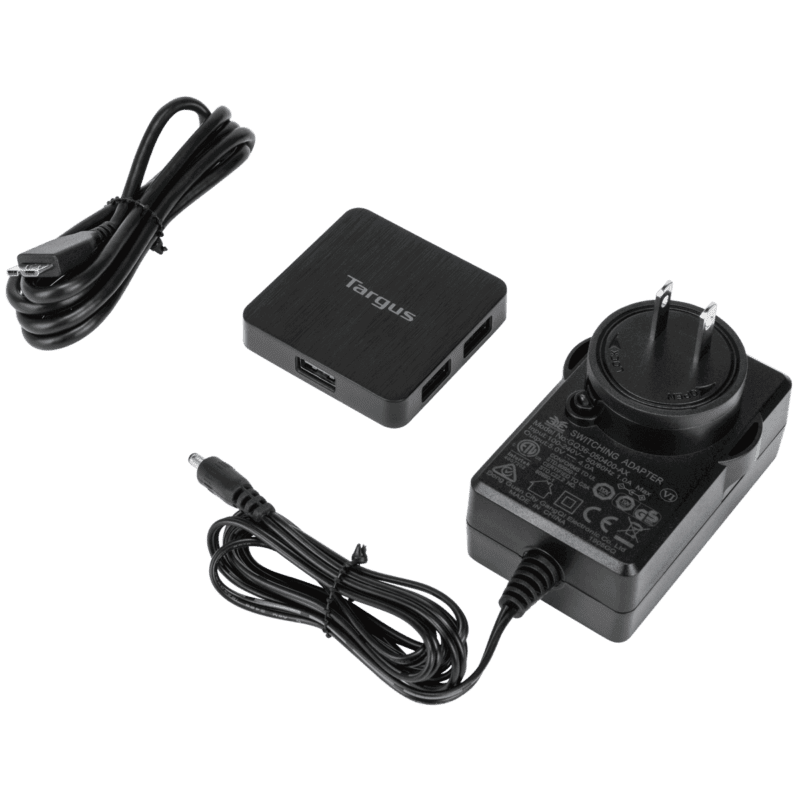

USB hub kit with 4 USB 3.0 ports for scanner
Includes 5V4A AC adapter & cable


Software – Webserver database collection and integration program
Add the software only if you are not at ease with collecting the data straight from the API which is also possible. The software just makes it easier.
