Handrails Aluminium

Aluminium Pedestrian Hand Rail System PR Rail

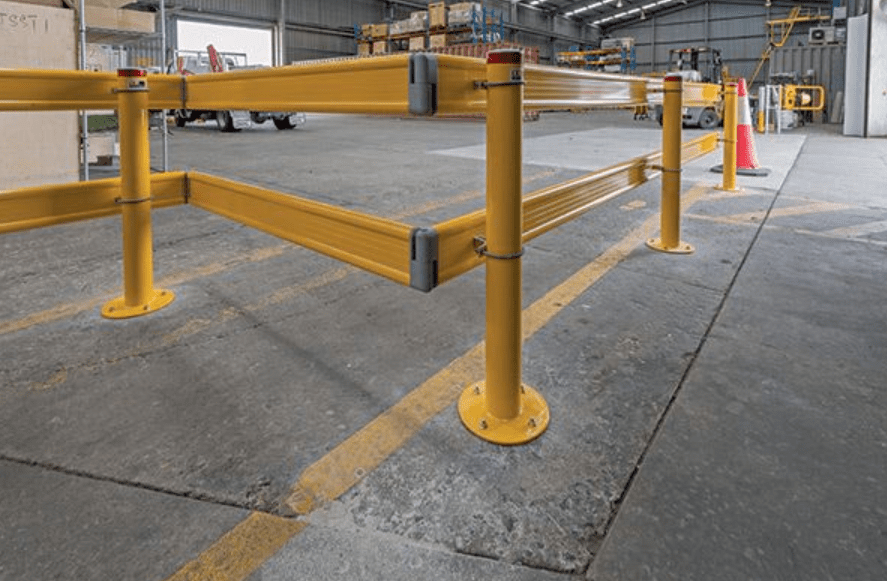

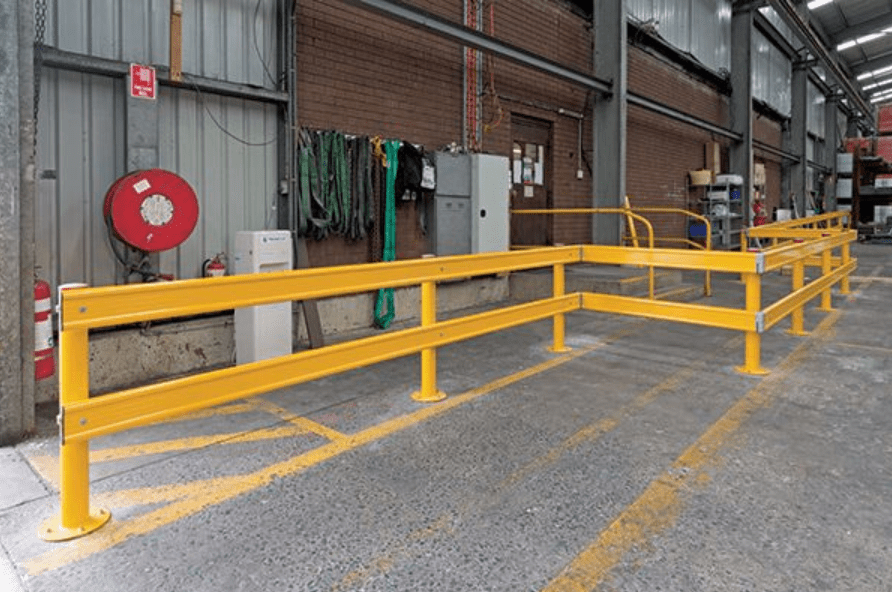

Our Aluminium Hand Rail System is a modular barrier construction that is commonly used across many industries. Some frequent applications include installation in carparks, factories, shopping centres, warehouses, and anywhere vehicle and pedestrian traffic needs to be segregated. The system can be easily and quickly set-up with minimum disruption. It is a heavy duty barrier suitable for either flat or sloping surfaces.

Steel surface mount posts (bollards) are 900 mm high. Aluminium rails are available in 2m, 3m, 4m, 5m or 6m lengths. The systems can be cut to any size with a power saw that’s fitted with an aluminium cutting blade.

The modular design of “Post & Rail” ensures barriers can be quickly installed. Rails are sold individually with optional surface mount or below ground posts, brackets (with fixings supplied) and accessories. Industrial gates and rails comply with relevant Australian standards of safety.

Product Variation

Clear

Additional Information

Aluminium Hand Rail Systems are modular and easy to install!

Our systems are manufactured from extruded aluminium with a powder-coated yellow finish. Rails are light strong and adaptable for various applications and environments.

Product Features:

Optional toe boards are available in two sizes.
Suitable for either flat or sloping surfaces.
Full range of accessories.
Adaptable to a wide range of applications and environments.
Rails can be cut to any length with a saw using an aluminium cutting blade.
Complies with AS 1657:2013.
Continuous rail lengths require fewer mounting posts, which reduces installation time and costs.

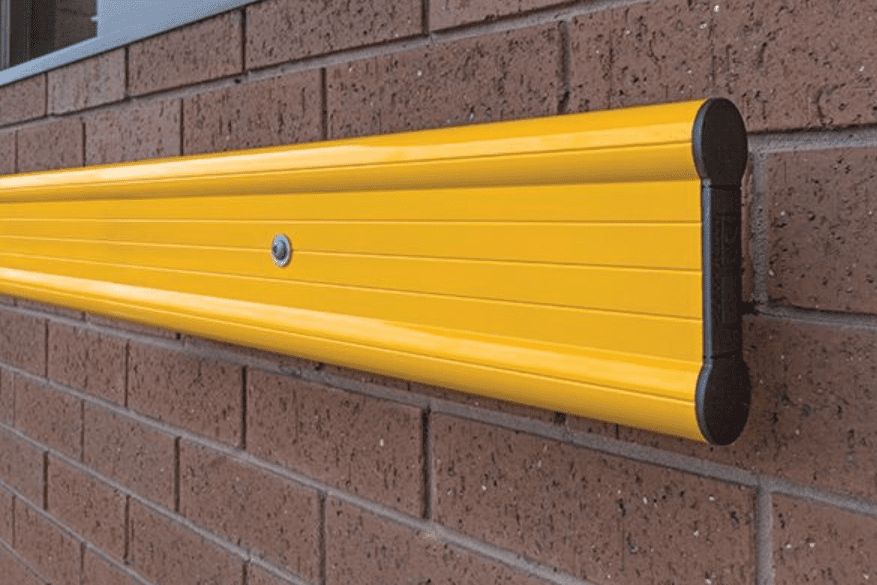

Surface mounted or wall mounted.
Industrial gates are also available.

Specifications:

Description: Modular Aluminium Hand Rail System
Materials: Extruded Aluminium Profile + Steel Bollards (posts)
Post centres: 2m – 2.5m (recommended)
Profile length: 2, 3, 4, 5 or 6 metres
Handrail profile: 145 x 40 mm with 2.5 mm wall
Weight: 2.6 kgs per metre

Continue browsing our range!

We have a variety of Safety Barriers to assist your workplace. View our range to see our Materials Handling can help you!

Click the PDF button to learn more.

Product Variations

Description	Product Code	Price (excl. GST)
PR-Rail 145 x 40mm x 2m with End Caps – Powder Coated Aluminium	PR14540-2PA	$172.00	Add to Quote Request
PR-Rail 145 x 40mm x 3m with End Caps – Powder Coated Aluminium	PR14540-3PA	$254.00	Add to Quote Request
PR-Rail 145 x 40mm x 4m with End Caps – Powder Coated Aluminium	PR14540-4PA	$330.00	Add to Quote Request
PR-Rail 145 x 40mm x 5m with End Caps – Powder Coated Aluminium	PR14540-5PA	$420.00	Add to Quote Request
PR-Rail 145 x 40mm x 6m with End Caps – Powder Coated Aluminium	PR14540-6PA	$507.00	Add to Quote Request

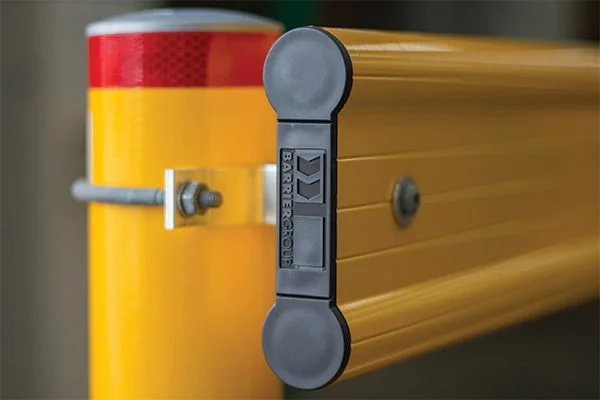

Cap to suit PR Rail 145 x 40mm – Black Plastic	CAP14540P	$12.00	Add to Quote Request
PR-Rail in-line gate adaptor kit (QTY 1 required to mount PR Gate)	PR-RAK	$32.00	Add to Quote Request

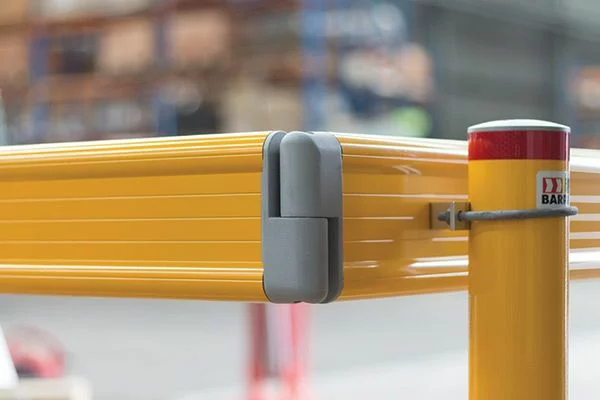

PR-Rail Knuckle Assembly – Powder Coated Aluminium	PRK-A	$70.00	Add to Quote Request
PR-Rail Slip Joiner (pair) – Zinc Plated	PRSJ32	$14.00	Add to Quote Request
Bollard 63mm Surface Mounted Economy – Galvanised and Powder Coated	C63SME	$102.00	Add to Quote Request
Bollard 90mm Surface Mounted – Galvanised and Powder Coated	C90SM	$227.00	Add to Quote Request

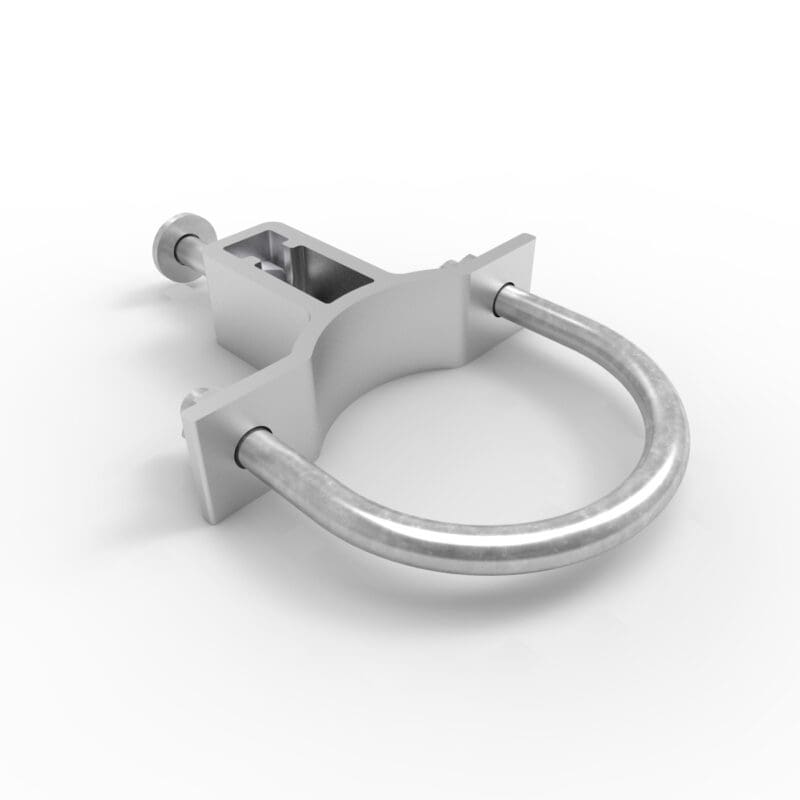

Rail Bracket to suit 63mm Post	RPB63-A	$17.00	Add to Quote Request
PR-Rail Bracket to suit 90mm Post	RPB90-A	$17.00	Add to Quote Request

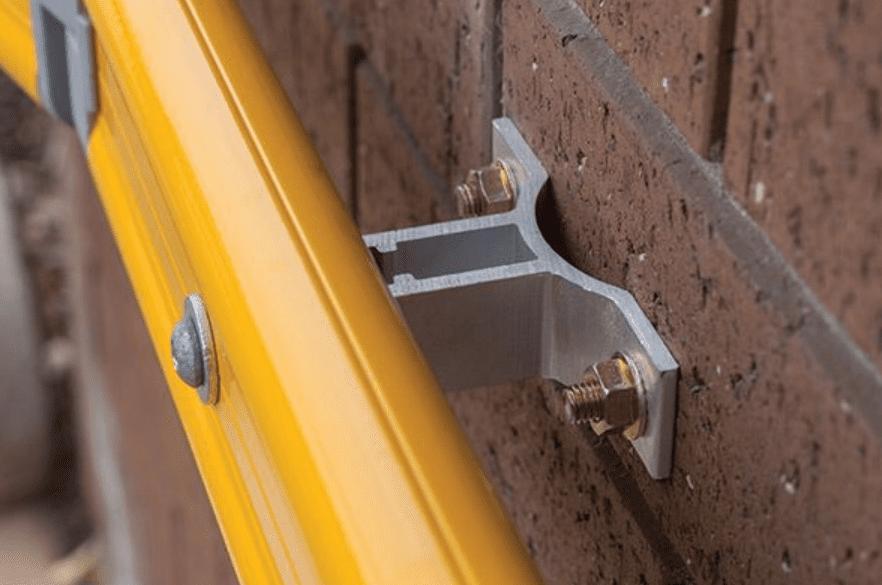

PR-Rail – Rail to Wall Mounting Mounting Bracket	RWB90-A	$12.00	Add to Quote Request
Toe Board 100mm 6 metres – Aluminium	TB100-A	$335.00	Add to Quote Request
Toe Board 150mm Heavy 6 metres – Aluminium	TB150-A	$742.00	Add to Quote Request

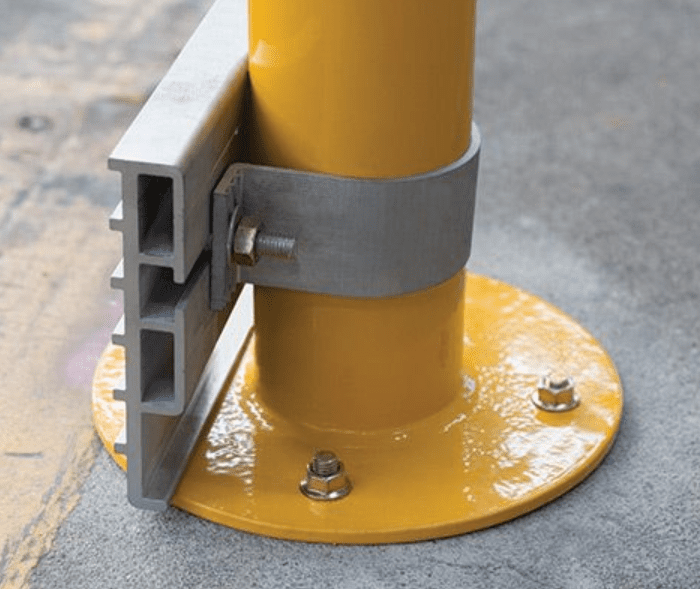

Toe-Board Clamp to suit 63mm Post	TBC63-A	$19.00	Add to Quote Request
Toe-Board Clamp to suit 90mm Post	TBC90-A	$20.00	Add to Quote Request
Toe-Board Joiner	TBJ200	$29.00	Add to Quote Request
PR-Rail Gate Assembly	PRG1500-PA	$352.00	Add to Quote Request
