Bulk Bins Transportable
+ Add to Quote RequestFeaturing a tough, one-piece polyethylene body and housed in a steel frame, Bulk Bins greatly reduce the need for packaging and handling, saving you time and money.
Efficient and cost-effective solution for storing and handling a wide range of produce such as granules, powders, food, dairy, oils, fluids, fertilisers, pharmaceuticals and more.

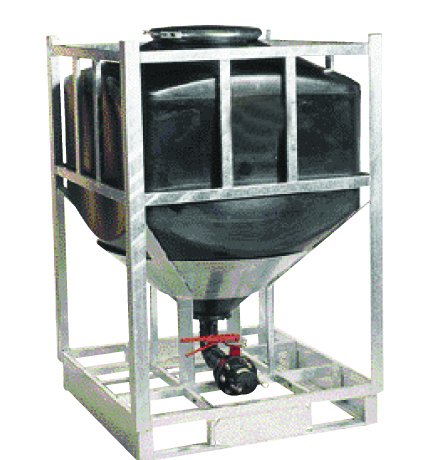

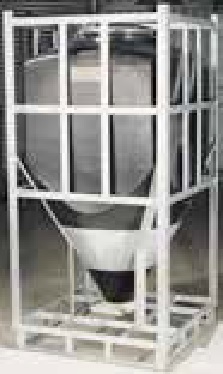

Bulk Bins are fully sealed and weatherproof. Not suitable for dangerous goods transport. The Bulk Bin is manufactured from a one-piece rotationally-moulded polyethylene body available in a variety of sizes up to 2800 litres.
Different cone angles, lid openings and valve systems are also on offer. Standard Bottom Opening (for dry bins) is 200mm with a manual slide valve and base with forklift access. The standard bottom openings for liquid applications are horizontal or vertical valves that range in size from 25mm up to 150mm.
Options Available:
- 60º cone or 40º cone
- Enclosed Fork Channels
- 75mm Liquid Discharge System
- 100mm Liquid Discharge System
- Elevated Frame
- Hot Dipped Galvanised Frame
- Colour Coded Bottles
Additional Information
Bulk Bins

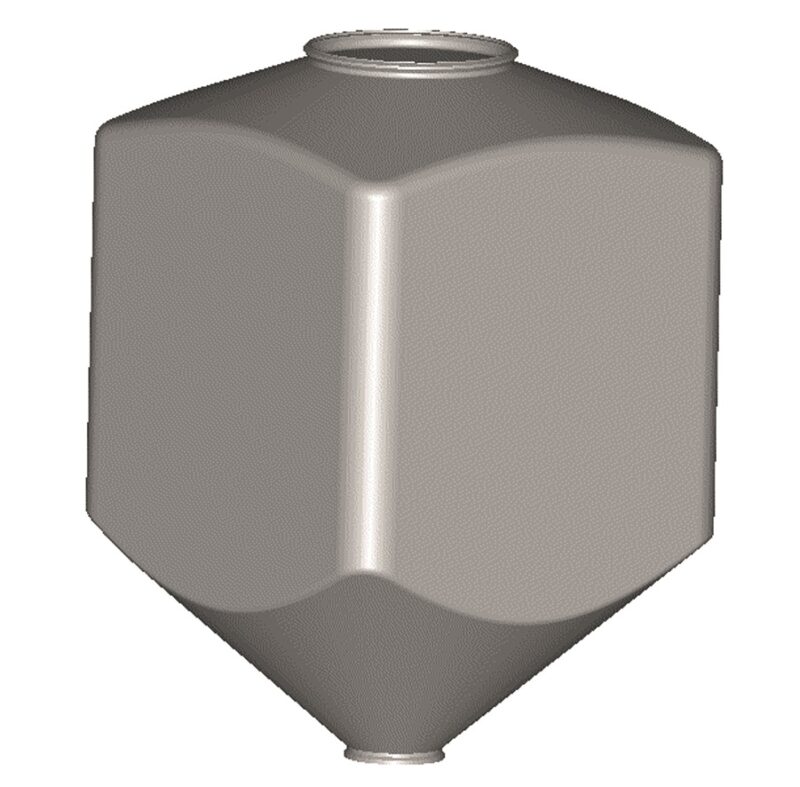

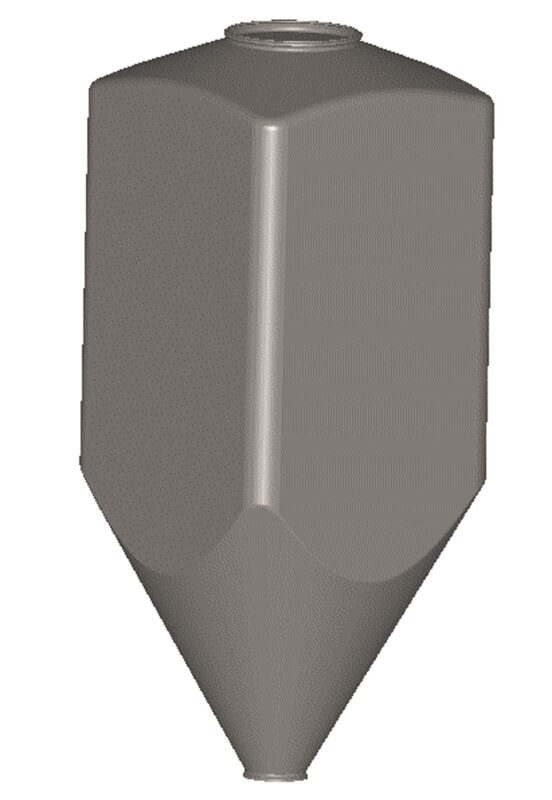

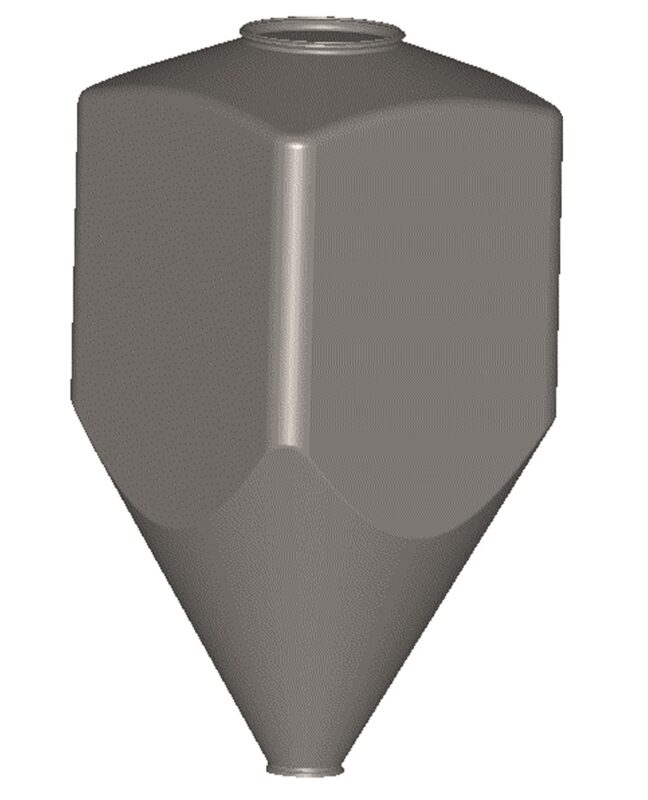

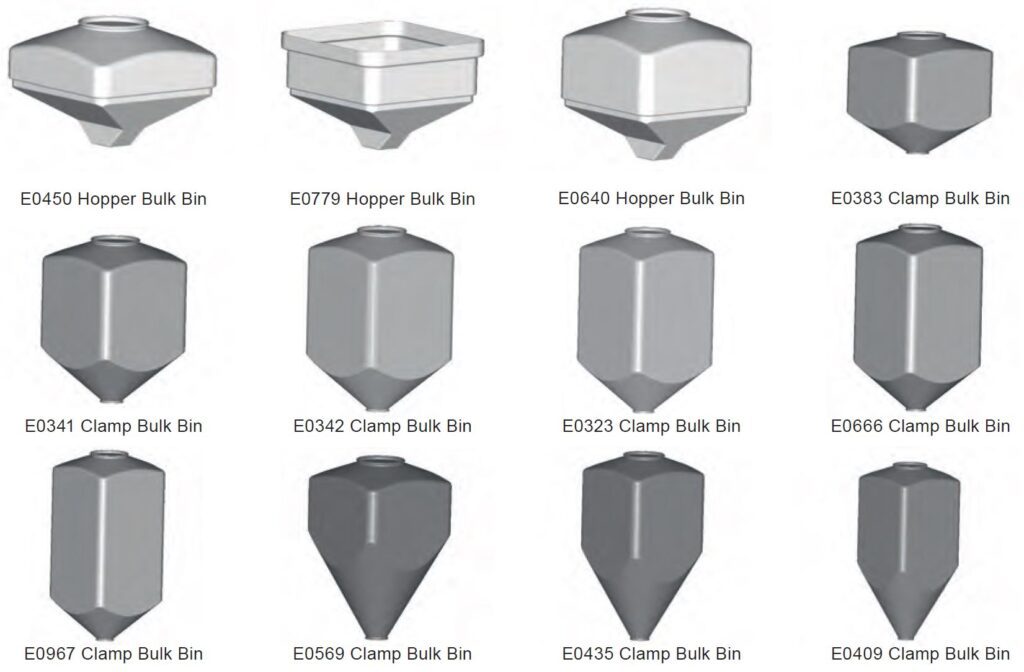

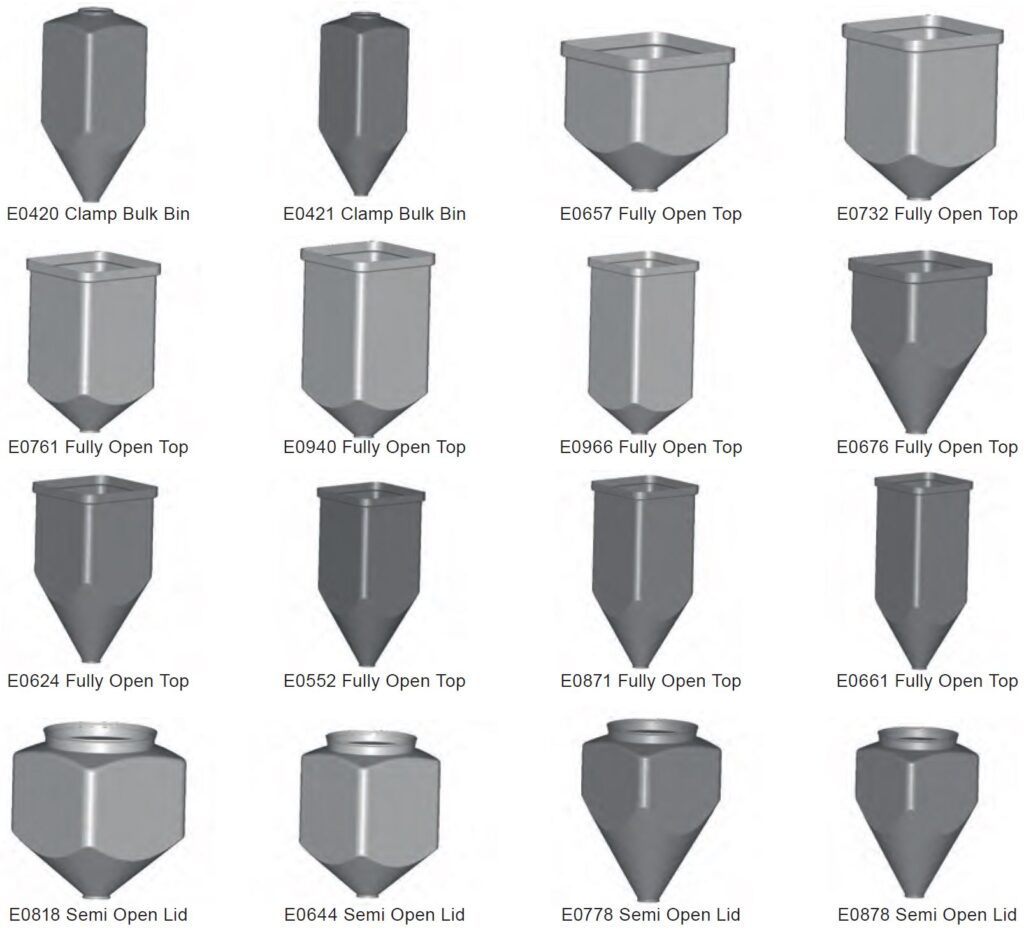

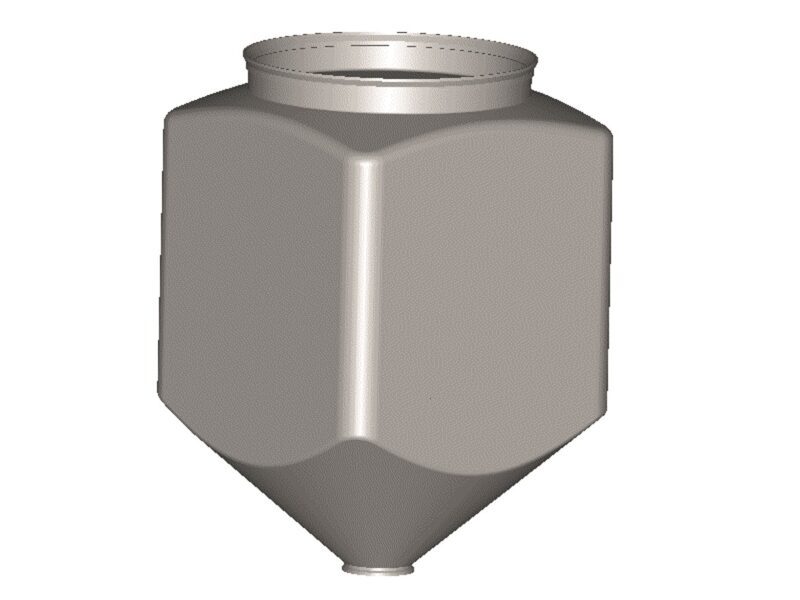

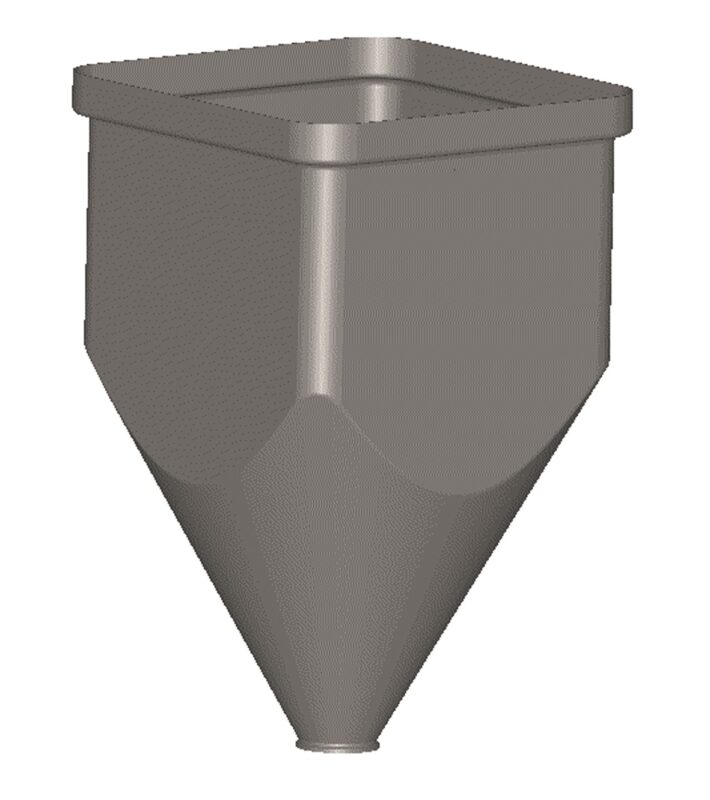

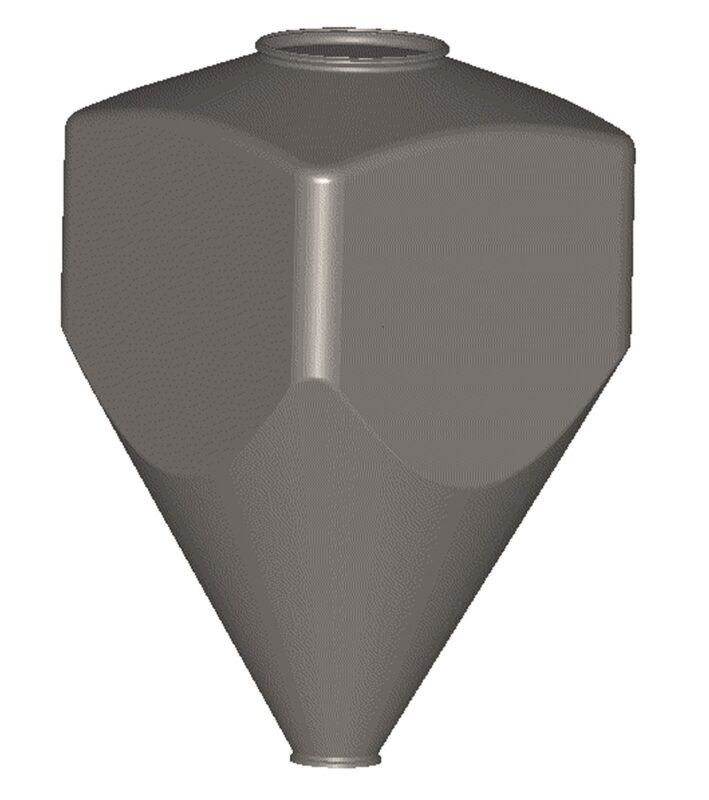

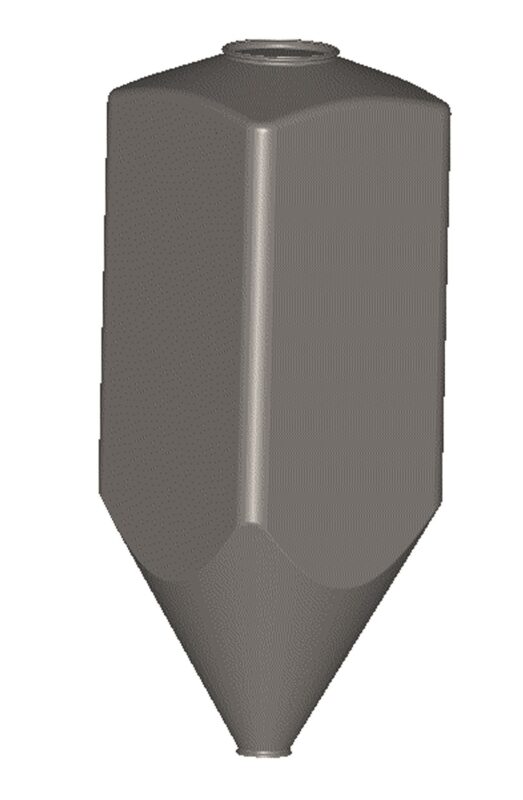

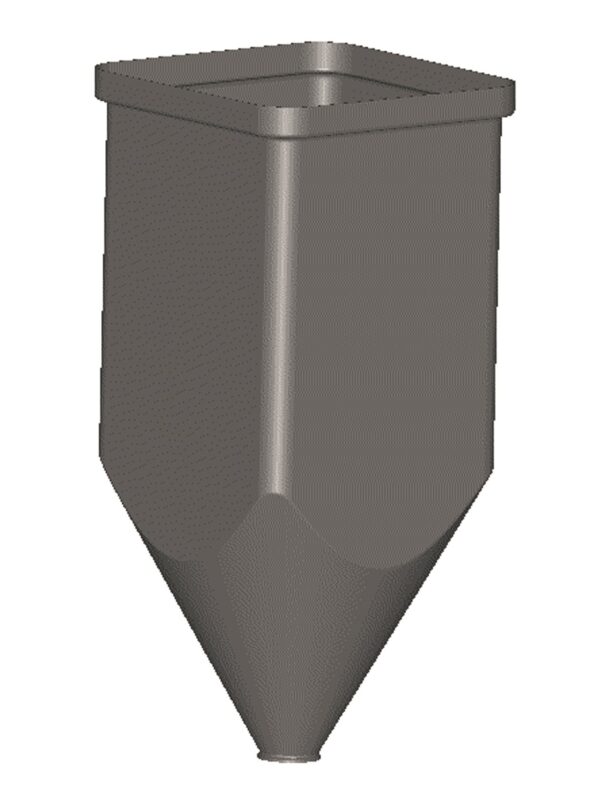

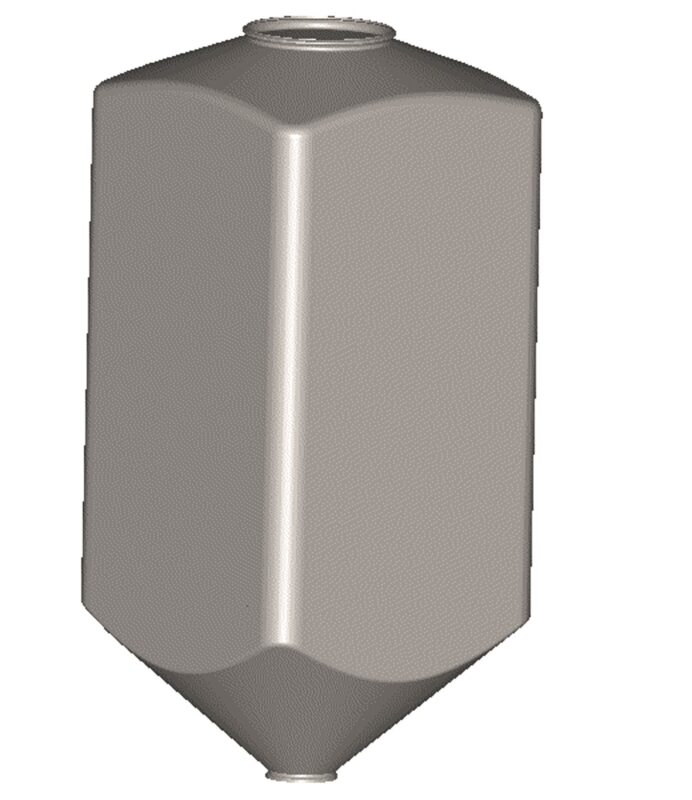

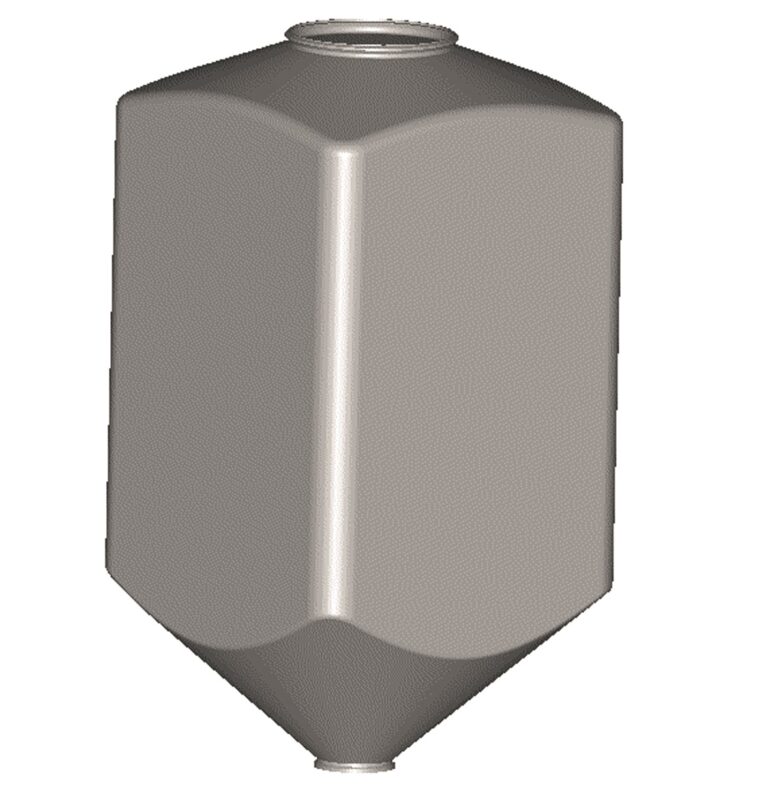

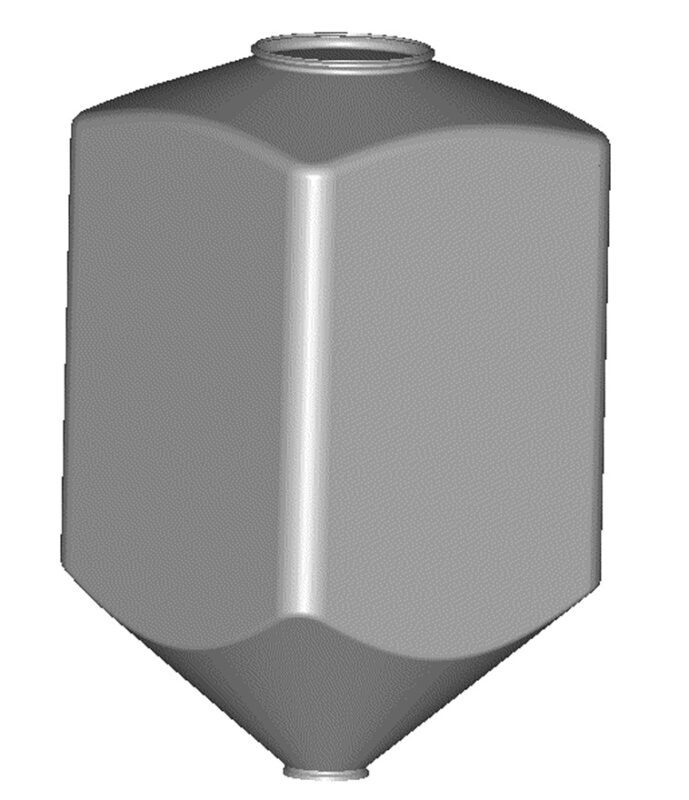

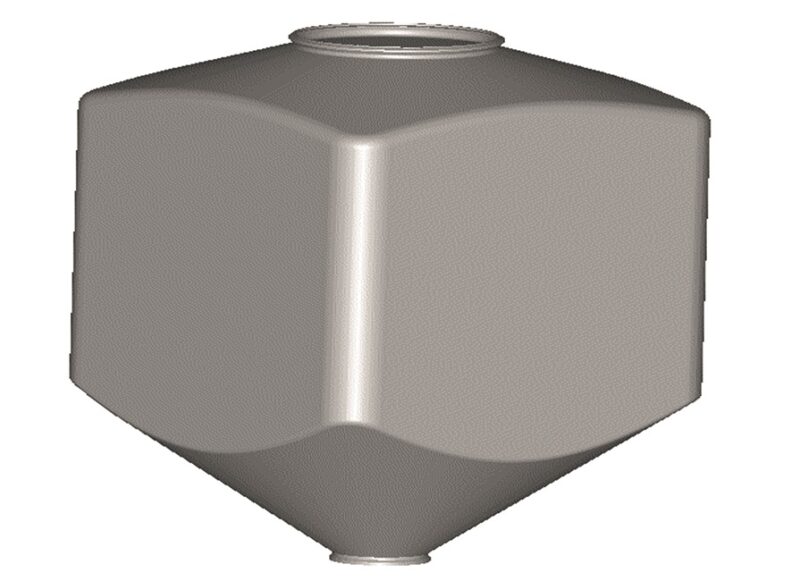

There is an extensive range of volume, lid, frame, cone angle and outlet options to build the Bulk Bin to meet your storage and materials handling requirements. Bulk Bins are designed to suit dry and liquid storage in a variety of applications; they can be colour-coded, dual skin coloured (black external or white internal) or you may choose from a range of stock colours. Select the Bulk Bin bottle style and capacity:
Bulk Bin Lid Configuration

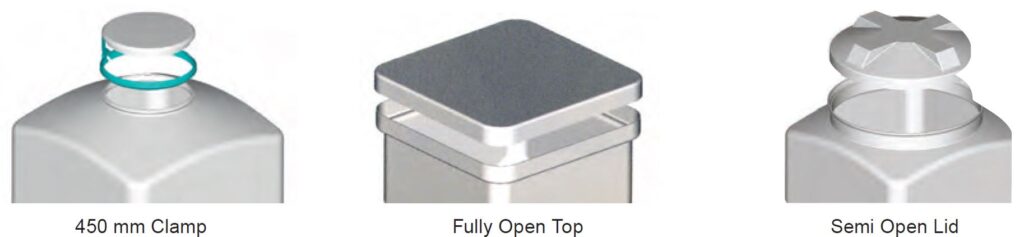

Choose the right lid for the job. Three functional options are available: 450 mm clamp lid, the fully open lid or the 900 mm semi-open lid.

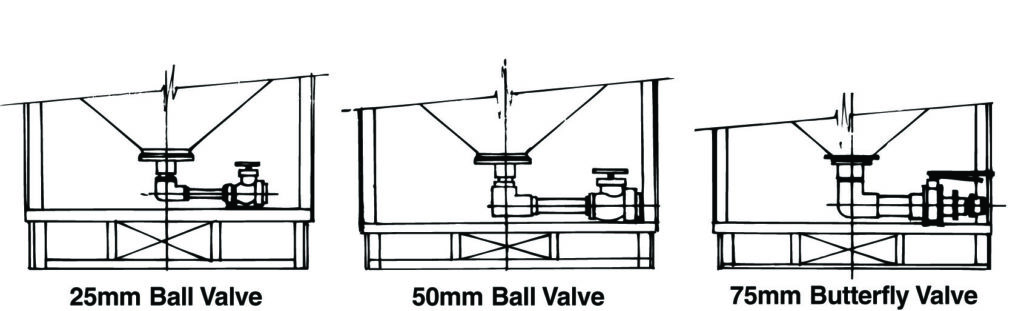

Outlet Configuration

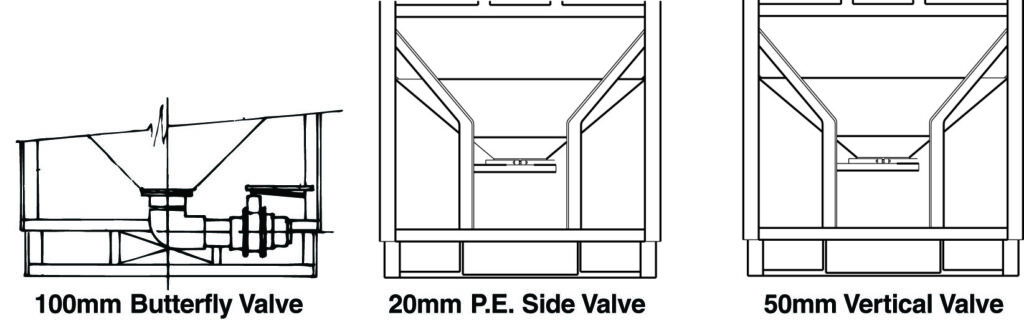

Two version of outlet systems are available for either dry or liquid storage. The dry valve systems feature a slide valve for powders and granules. For liquid applications, a horizontal or vertical valve system is used that range in size from 25 mm up to 150 mm.

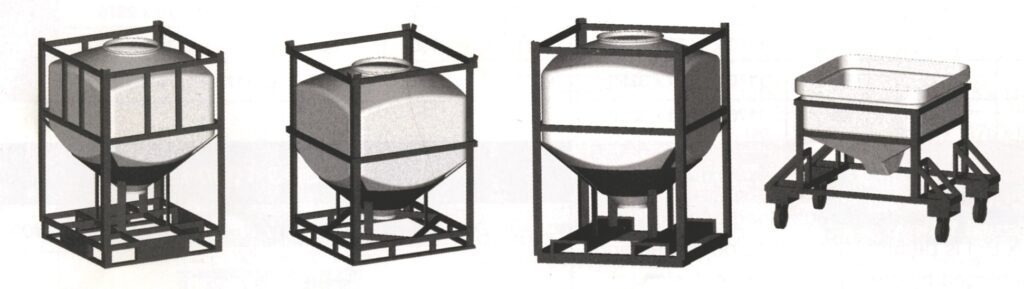

Frame Options

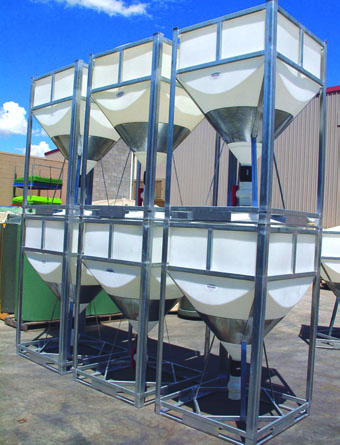

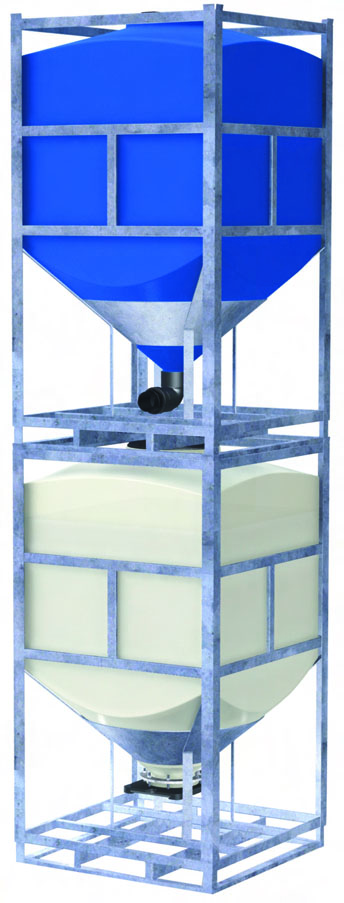

Frames can be built for easy stackability or with extended legs to elevate the outlet position above a bin, hopper or conveyor system. To further enhance strength and durability, Bulk Bin frames can be hot dip galvanised or painted as
required, and can provide a range of flexible options for transportation requirements. Each bin can also be customised to your own specific requirements.
