Powered Trolley Heavy Load Movers

Our Self Propelled Load Movers are the perfect solution for transporting large loads of up to 200 tonnes. As a mobile trolley, they consist of two parts. This includes a front rotating tractor and a pair of fixed rear trucks that perform a function similar to that of the rear axle of a truck. Such features allow the load mover to turn completely at 360º and reach a speed of 5 m/min.

Furthermore, these devices offer great movability in small spaces. With a small footprint, they are able to handle extremely large capacities and are user-friendly to operate. The Self Propelled Load Movers have polyamide wheels. This means they easily work across rough, dusty or uneven surfaces. They are also supplied with remote control and auxiliary cord control.

Additional Information

Our Self Propelled Load Movers handle great capacities!

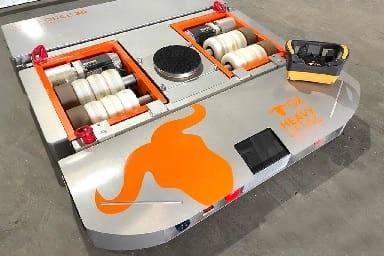

Also known as Load Skates, these motorised trolleys rotate 360-degrees and can handle loads from 60 tonnes to 200 tonnes. Available in two models – ST and TBC – all units in our range can be supplied with a battery pack for full remote control. The Load Movers move on polyamide wheels and have a speed range of 3-5 metres/minute. The 30 tonne ST30 and TBC30 versions are no longer in production. They are replaced by one model, the 30tonne MINIFORCE STB30 that operates either electric or batteries, but has not got the hydraulic lift capability.

Features:

Self-propelled trolleys turn 360º
Rotates under the machine being moved
Power: 415V, 3phase, 50 Hz or batteries
Chain and pinion drive in every wheel

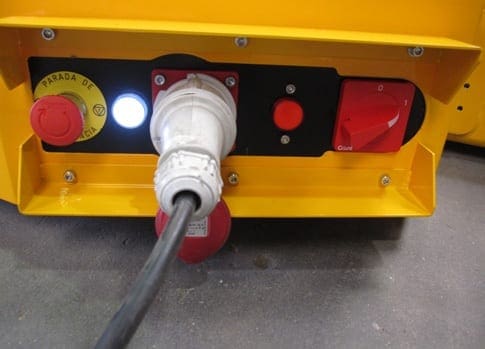

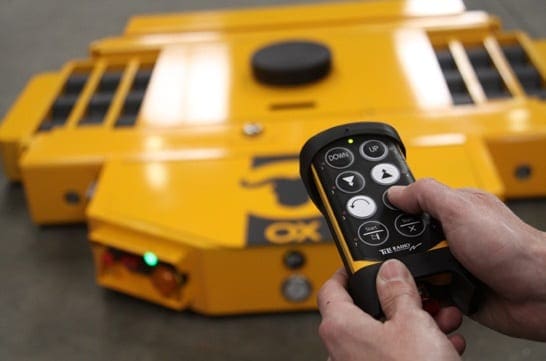

Supplied with remote control and auxiliary cord control
Speed 5 m/min with speed variation
Polyamide wheels
Great manoeuvrability in small spaces
Small footprint meets great capacity
Suitable for rough, dusty and uneven surfaces
Remote control incorporated
Easy and intuitive to drive
Reduced and economic maintenance required

Two models are available!

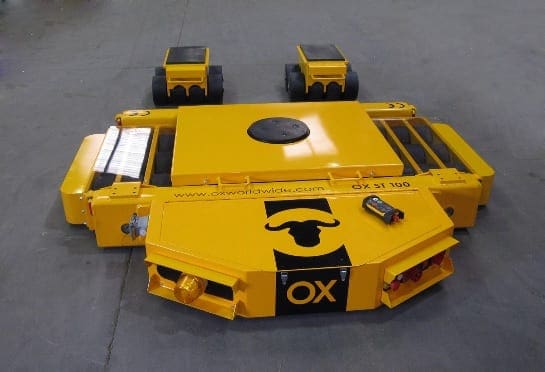

The ST models operate with three-phase (415 Vac) mains power and are the perfect solution for the transport of large loads (either 60,100,150 or 200 tonnes capacities). They are easily controlled with the battery-operated remote or an auxiliary cord. A power chain is in every wheel on each device.

Model	Capacity	Motorised Trolley Weight	Height	Width	Depth	Polyamide Wheels

ST60	60 tonnes	750 kg	290 mm	1800 mm	1300 mm	12 wheels 200 x 100 mm
ST100	100 tonnes	1000 kg	300 mm	2000 mm	1400 mm	18 wheels 200 x 100 mm
ST150	150 tonnes	1750 kg	390 mm	2600 mm	1700 mm	18 wheels 250 x 140 mm
ST200	200 tonnes	2600 kg	450 mm	2800 mm	1900 mm	18 wheels 300 x 155 mm

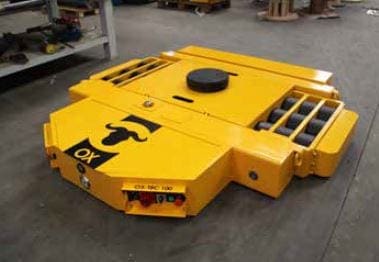

The TBC models can transport large loads of 60,100 or 150 tonnes. They are the most complete units as they can operate with three-phase (415Vac) mains power or with batteries. You can choose the type of power supply. They also come with a hydraulic pump that creates the 70 mm elevation of the central, rotating, lifting cylinder and the drive wheels by means of a geared motor.

Model	Capacity	Motorised Trolley Weight	Height	Width	Depth	Polyamide Wheels

TBC60	60 tonnes	900 kg	280 mm	1800 mm	1850 mm	12 wheels 200 x 100 mm
TBC100	100 tonnes	1350 kg	310 mm	2000 mm	1850 mm	8 wheels 200 x 100 mm
TBC150	150 tonnes	2000 kg	370 mm	2600 mm	2500 mm	18 wheels 250 x 140 mm

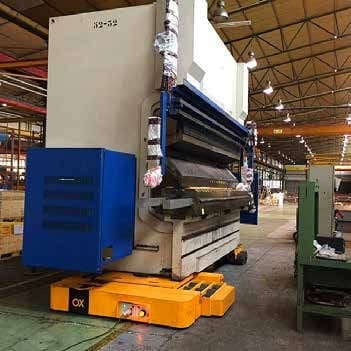

Check out the ST model in action!

In this particular application, the ST150 model was used for the placing of a press inside a warehouse with the help of a hydraulic lifter. The ST Load Mover was placed under it and the total load weight was 80 tonnes.
