Powered Trolleys

Additional Information

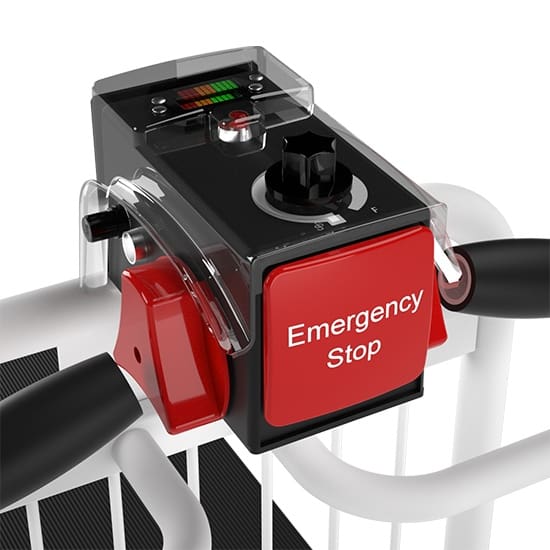

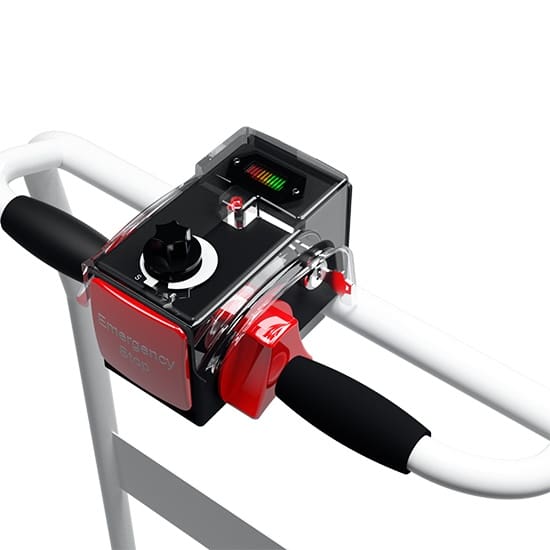

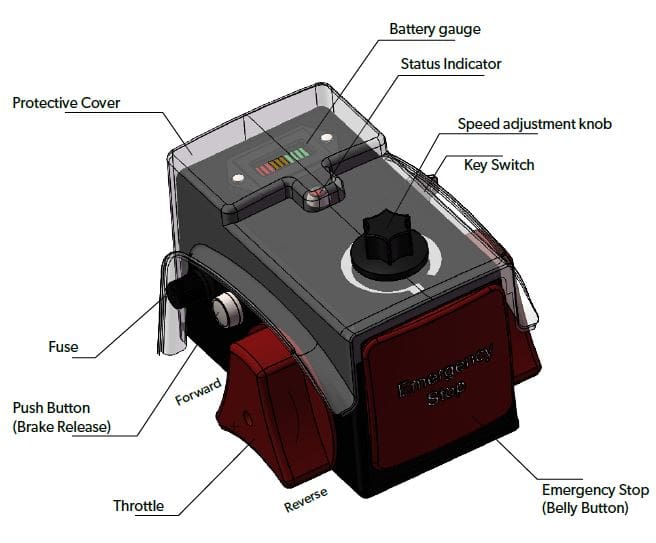

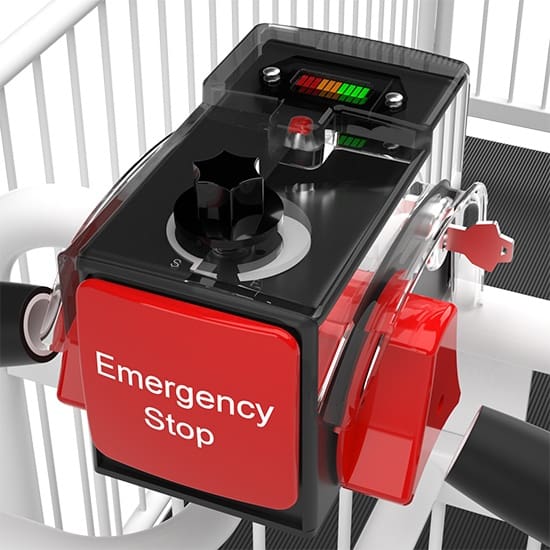

All functions are actioned from the control console mounted on the handle. The controls include a key switch that allows the device to be turned off and locked to prevent unwanted operation. A battery gauge allows the operator to constantly monitor the battery level.

The trolley is fitted with an intelligent electronic controller that monitors all the device signal inputs and operator control signals. The controller is always monitoring the connection of all items in the circuit and is capable of self-diagnosing any faulty components. A red LED is illuminated in the centre of the console to confirm the power is on and that no faults are present.

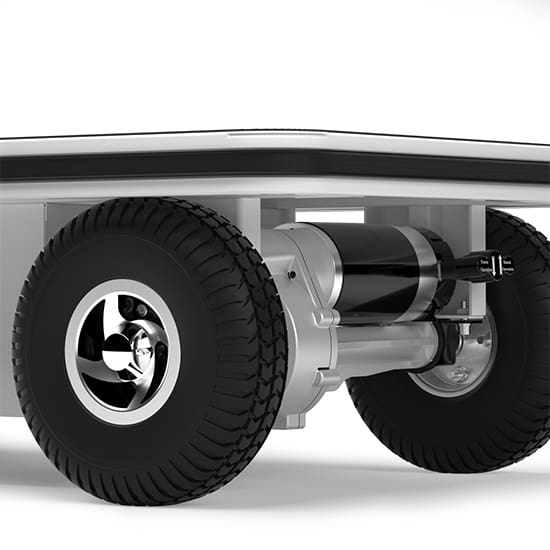

The trolley remains still and parked when the trolley is switched off or the battery power is disconnected (charging for example). This is due to the electronic braking feature that is always applied in a safety scenario. It is possible to release the electronic brake using a small lever fitted to the drive axle.

This allows the trolley to be manually pushed as opposed to using the power drive function. It is possible to manually push the trolley for short periods by pushing a button on the side of the control console. This is an electronic release of the brake and allows the operator the opportunity to push the trolley manually when required (precise positioning for example).

The forward and reverse drive functions are controlled using the red ‘thumb wheel’ throttle controls while the maximum speed can be adjusted using the speed limit dial on the top face.

The maximum speed is equal to a brisk walking pace. The operator always has control over the speed due to the throttle design. If the operator lets go of the throttle the trolley will come to a stop quickly but not abruptly.

The electric brake will then be applied and the trolley will remain stationary for complete safety. The front face of the console is fitted with a large red E-stop that serves as a belly-button for safety.

Should the operator find themselves wedged between the trolley and an object (a wall for example) the belly-button will stop the reverse travel and prevent the operator from being pinned by the trolley.
