Pneumatic Scissor Lift

+ Add to Quote Request

Our Pneumatic Scissor Lift is the perfect lifting and work positioning solution. Utilising constant shop air, it seamlessly allows an operator to position a load for loading/unloading.

Equipped with ergonomic technology, is extremely easy to use and reduces the risk of worker fatigue or injury. The streamlined design ensures it can be integrated into a number of working environments. It is built to handle goods and move products without risk of damage.

The Pneumatic Scissor Lift is ideal for activities where operator control is required and shop air is available.

Clear

Additional Information

How does it work?

The machine uses shop air to lift and position loads.  Featuring an integral rotator ring, it turns heavy loads effortlessly, eliminating the need to reach for or walk around the pallet.  Pneumatic Scissor Lifts contain no electrical or hydraulic components, therefore it’s virtually maintenance free.

Easy operation, convenient rotation and simple positioning!

Constructed from high quality steel, the Pneumatic Scissor Lift positions pallets in a general working position, bringing work closer to an operator. The unit is incredibly easy to operate as it’s completely pneumatic (no electrical or hydraulic components). The platform is controlled by a lever that moves the load to the workers desired height. Ball bearing centre pivots ensure smooth rotation.

These devices are most suited for applications in any manufacturing, processing or warehousing locations. They can be integrated into a variety of environments. Examples of existing customers using them in clean rooms, paint stations and food processing facilities.

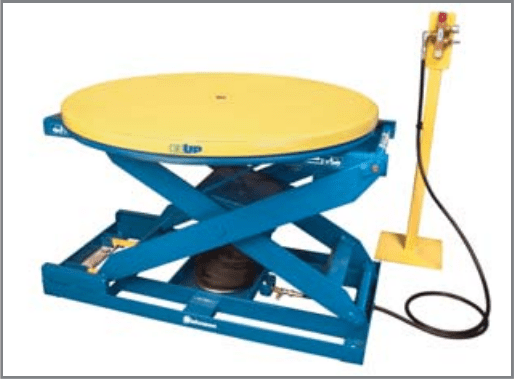

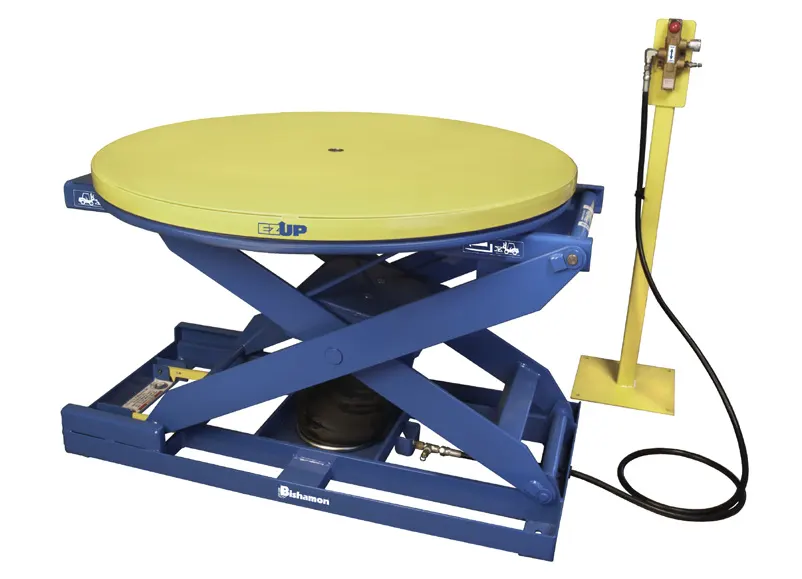

Pneumatic Scissor Lift

Pictured above with Optional Valve Stand.

Comes complete with a range of standard features!

  • Firestone Airstroke Actuator raises and lowers table platform to vertically position load at desired height.

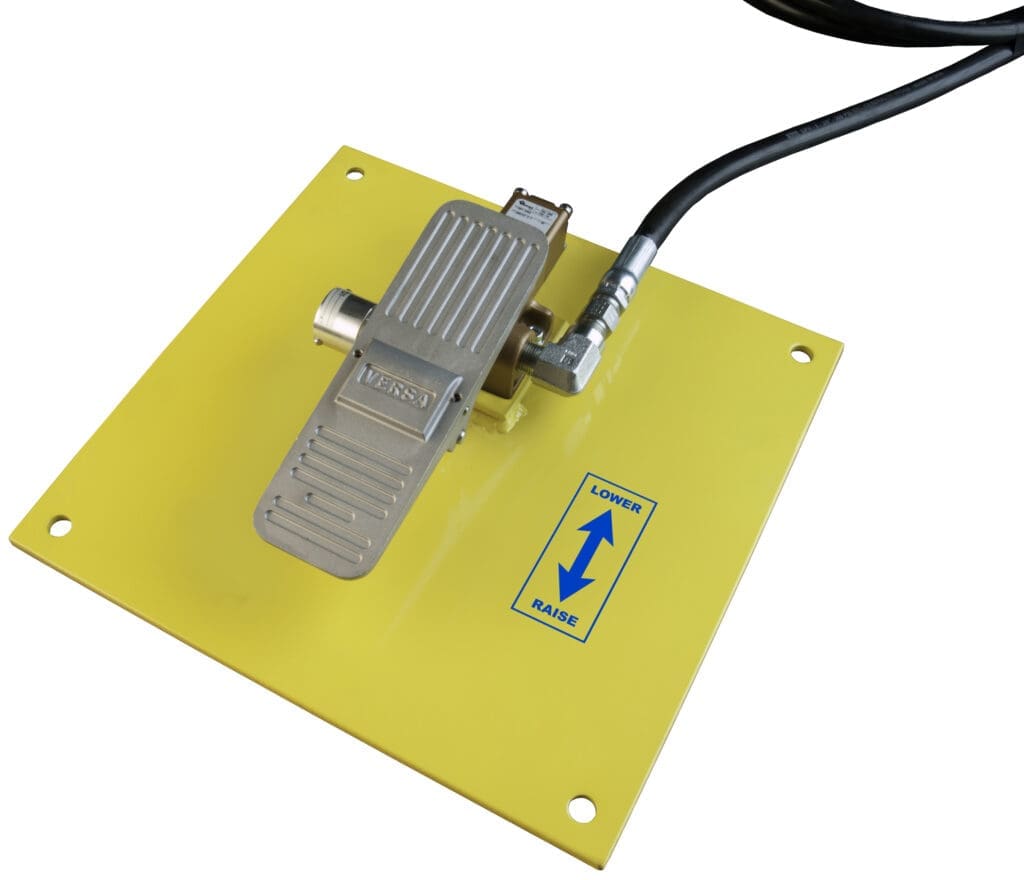

  • Hand or foot controlled.
  • Extremely durable and corrosion resistant thanks to polyester power coating finish.
  • Heavy-duty structural steel construction with rugged base frame.
  • Entrapped rollers on base and platform for stability and to lock device into position.
  • Hinged maintenance bars for support.
  • Secured centre pivot with ball bearing provides smooth and even rotation.

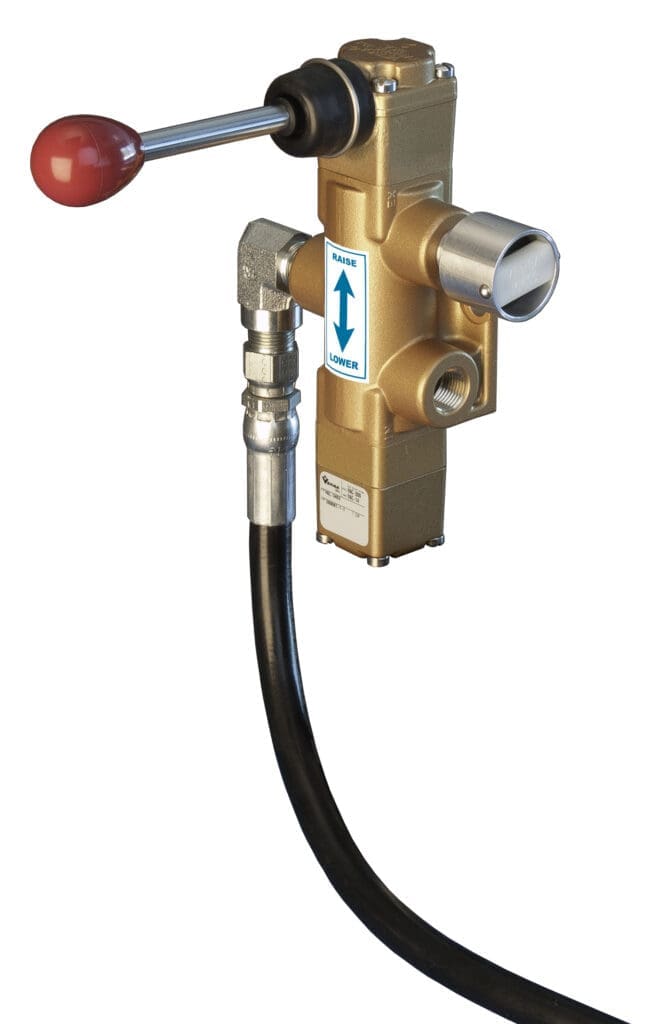

  • High quality hand lever with 3 position control for easy operation.
  • Little maintenance required due to clean design.
  • Easily relocated and moved with a fork truck.

Technical Data and Specifications

  • Travel – 500 mm
  • Capacity – 770 kg (100PSI)
  • Lowered Height – 243 mm
  • Raised Height – 751 mm
  • Platform Size – 711 mm x 1219 mm
  • Ship Weight – 217 kg
Pneumatic Scissor Lift Specifications

Shown with Solid Rectangular Platform

  • Travel – 500 mm
  • Capacity – 770 kg (100PSI)
  • Lowered Height – 269 mm
  • Raised Height – 777 mm
  • Platform Size – 1092 mm diameter
  • Ship Weight – 238 kg

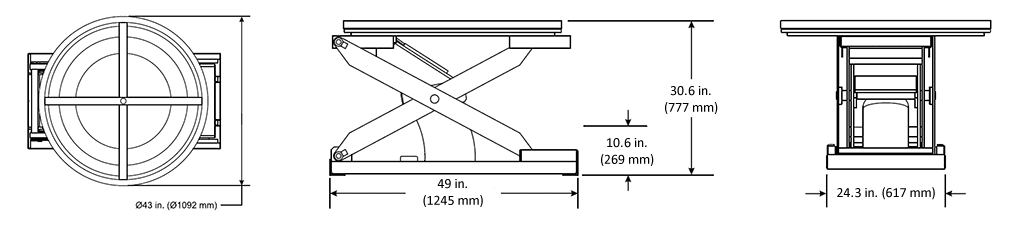

Pneumatic Scissor Lift Specifications

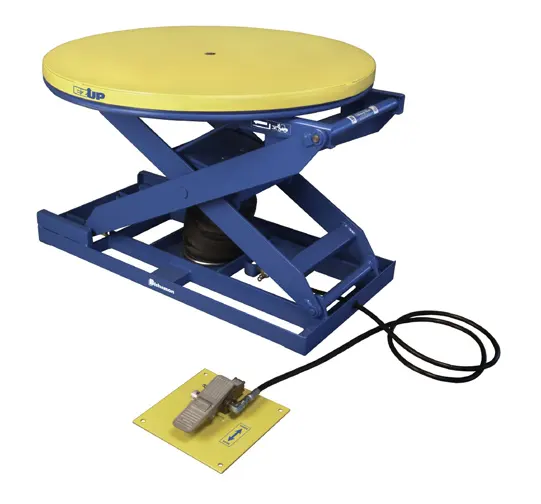

Round Platform
(Stainless Steel also available)

Add your additional options.

There are number of accessories available for this device including rotator ring brake, accordion bellows skirt, semi-live portability, rotating platform (solid rectangular) and pedestal valve stand for hand control. Please mention your requirements to our sales representatives and we can help you identify the best option for your needs.

Need something else?

Try our Auto Pallet Positioners for an automatic model, that will provide effortless movement of loads.

Product Variations

Image Description Product Code Price (excl. GST)

Pneumatic scissor lift platform
900kg capacity
1100mm diameter rotating top

MEZ31
