Lifting Beams – Cable Drum
+ Add to Quote Request
Our Lifting Beams support heavy loads during overhead lifting applications.

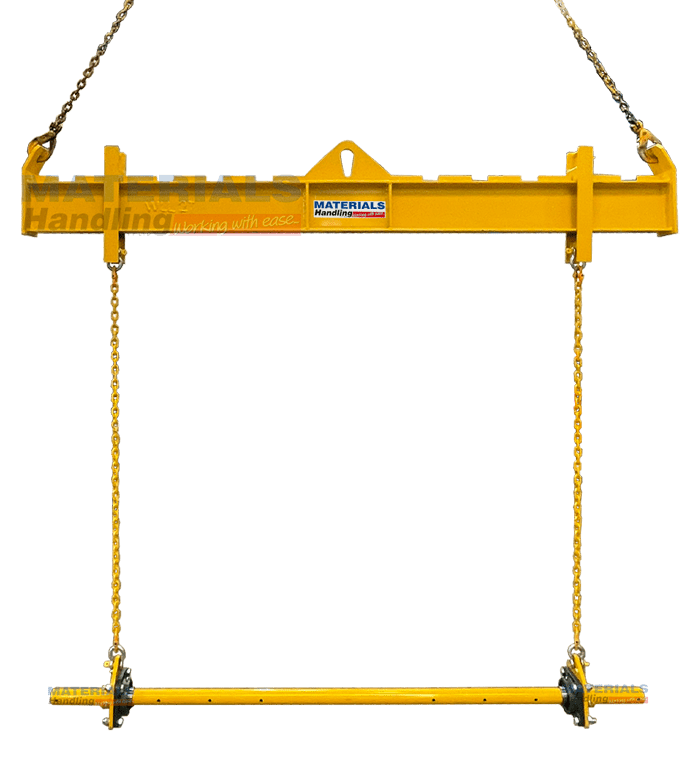

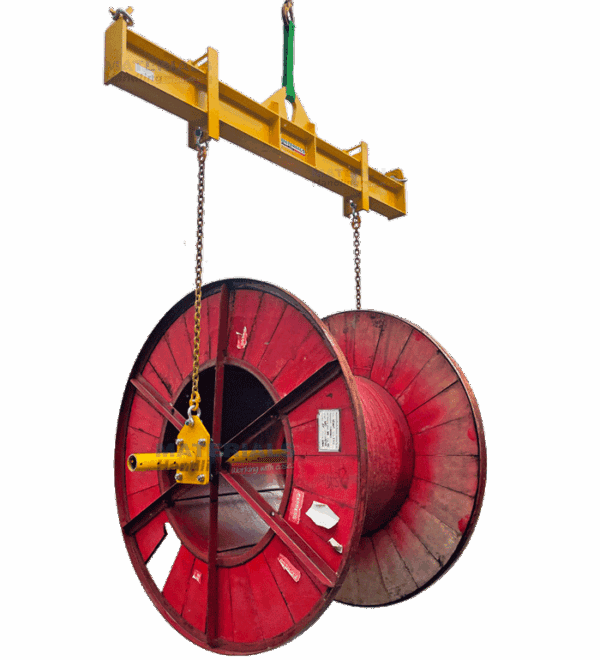

The Cable Drum Spreader Beam is designed for the safe transport of cable drums. It is particularly helpful for unwinding during installation.

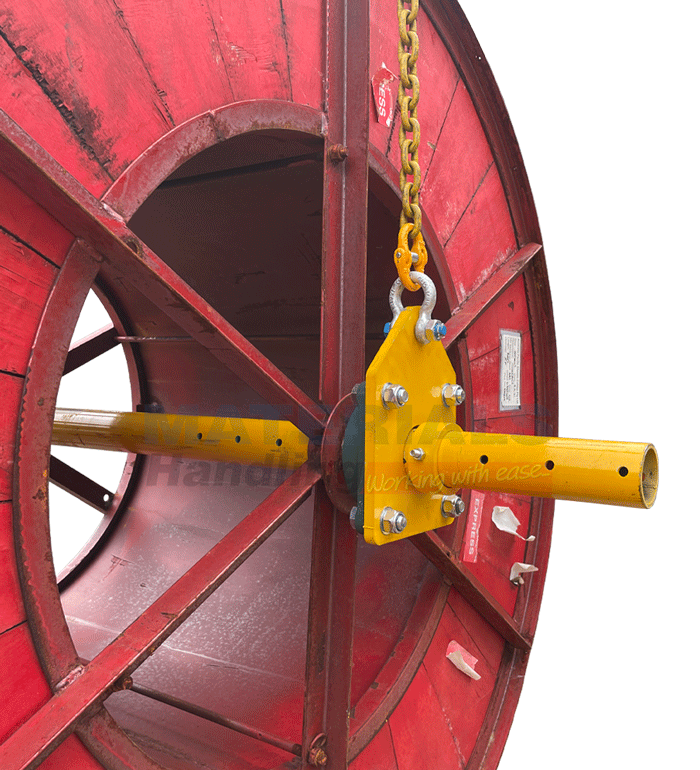

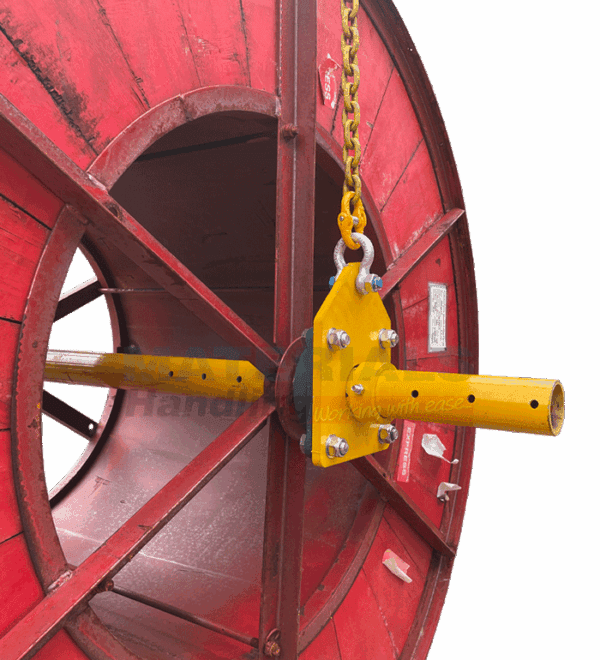

A shaft runs through the centre of the drum and is connected at both ends to a spreader beam via two chains.
The cable drum rotates freely on bearings for smooth unwinding.
Available in two standard sizes. We can customise to any length or capacity to suit your application.
These devices are multi-tasking with use for crane and overhead lifting. Constructed in accordance with relevant Australian Standards, Lifting Beams are supplied with a user manual and certificate of conformity.
Additional Information
- Designed for lifting and dispensing cables from a drum
- Adjustable lift positions to suit varying drum sizes
- Bearings fitted for the smooth rotation of cable drums
- Lightweight steel spindle allows easy placement through the centre of the drum
- Beam to spindle link chain supplied
- 2T and 6T capacity models available
| Model | Working Load Limit (WLL) kg | Drum Width (mm) | Max. Drum Diameter (mm) | Min. Drum Hole Diameter (mm) | Spindle Weight (kg) | Unit Weight (kg) |
|---|---|---|---|---|---|---|
| CDS2X2 | 2000 | 400-1800 | 2500 | 55 | 12 | 95 |
| CDS6X2 | 6000 | 400-1800 | 2500 | 80 | 20 | 175 |
Require an alternative lifting solution?
View our Spreader Beams for Crane and Forklift use.
Product Variations
| Image | Description | Product Code | Price (excl. GST) | |
|---|---|---|---|---|
 |
Cable Drum Spreader Lifting Beam (2T) |
CDS2X2 | $4,710.00 | |
|
Cable Drum Spreader Lifting Beam (6T) |
CDS6X2 | $7,850.00 |
