Gates Mezzanine Safety

+ Add to Quote Request

The Mezzanine Safety Gate provides controlled and safe access to elevated mezzanine levels and work areas. Utilising a gas strut lift, this pallet loading gate protects workers from falls and ensures the safety of operations in any loading dock area. With a lightweight and high-strength aluminium design, this gate restricts danger zones and eases processes.

Each Safety Gate is finished in a high-alert safety yellow for optimum visibility. Supplied in a modular, flat-packed kit, the gate structure can be rapidly assembled and quickly installed.

The Mezzanine Safety Gate provides effective fall protection for all personnel and ensures safe loading/loading of palletised components on mezzanine levels.

Additional Information

Protect workers in your loading dock area with the Mezzanine Safety Gate.

This safe loading gate structure protects employees and workers against potential falls. The system includes gas strut operation and a toe board attachment if required. Side protection guardrails can also be combined with the gate to provide further protection along the edges or either side of the safety gate. All components have been designed in accordance with relevant Australian Standards and OHS Codes of Practice/Guidelines.

Features:

  • Swing gate design with toe board and supports.
  • Ensures a high level of safety and fall protection for workers operating in danger areas.
  • Lightweight, aluminium design that is durable and strong.
  • Modular construction; supplied as a flat-pack kit that can be quickly assembled and installed (also ensures economical transport).
  • Finished in a safety yellow colour for optimum visibility.
  • Innovative gas strut lift that is easy to operate and can be locked into place via a locking pin.
  • Two models are available to suit requirements including a single 2000 mm wide model and a dual pallet 3000 mm wide option.
  • Designed to conform with Australian Standard (AS1657 Fixed Platforms, Walkways, Stairways and Ladders) and relevant statutory OHS Codes of Practice/Guidelines.

Click the PDF button to learn more.

Product Variations

Image Description Product Code Price (excl. GST)

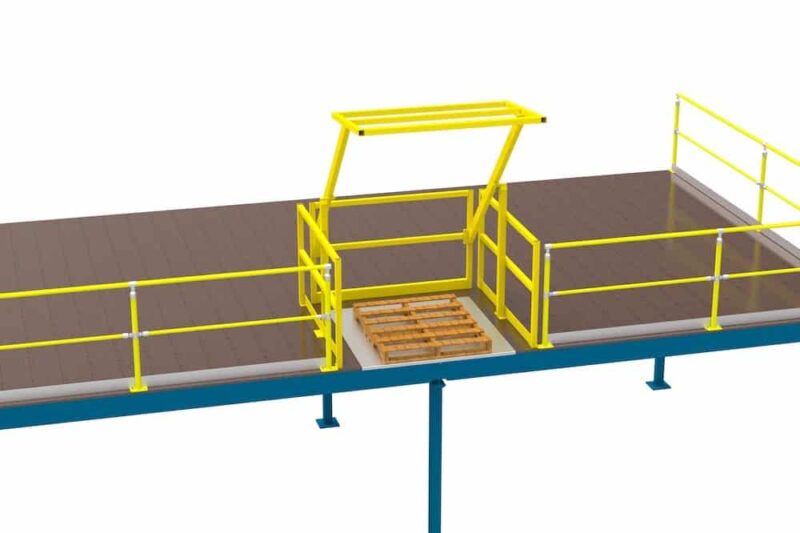

Mezzanine Rollover Gate
1925 wide x 2300mm high
Pallet Size 1400 wide x 1250 deep x 1800mm high

DV201

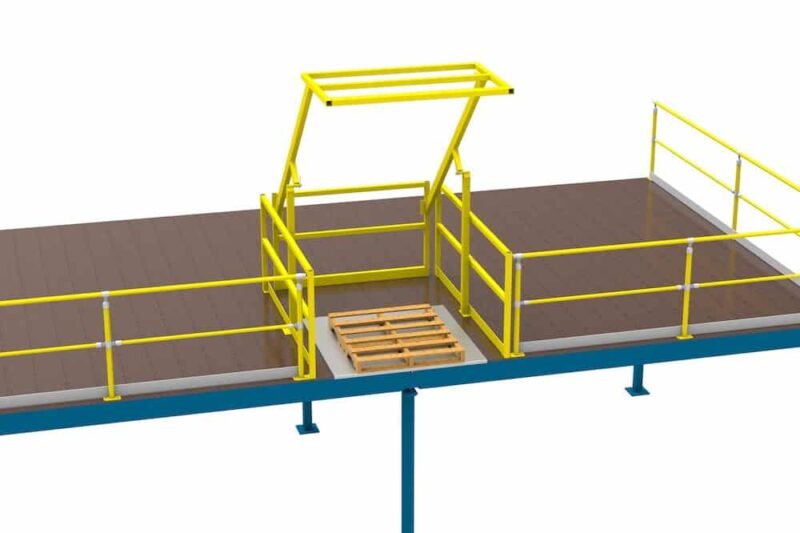

Mezzanine Rollover Gate
1925 wide x 2650mm high
Pallet Size 1400 wide x 1250 deep x 2400mm high

DV202

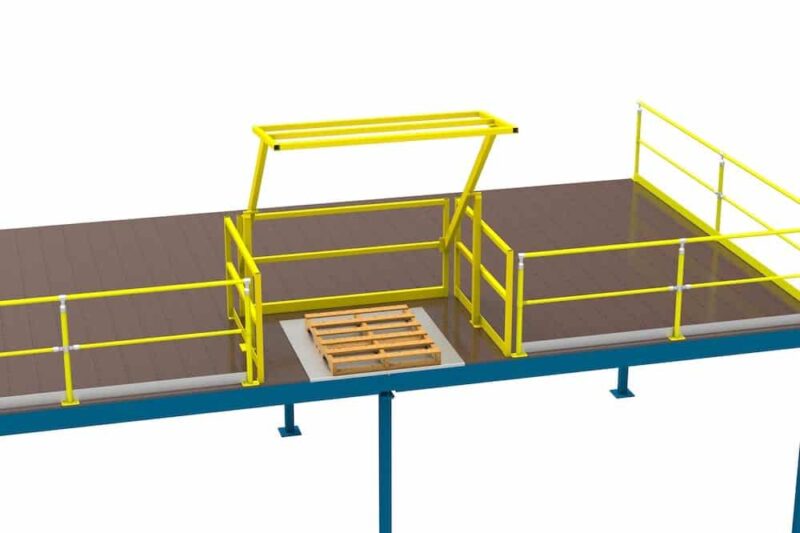

Mezzanine Rollover Gate
2400 wide x 2300mm high
Pallet Size 1950 wide x 1250 deep x 1800mm high

DV203

Mezzanine Rollover Gate
2400 wide x 2650mm high
Pallet Size 1950 wide x 1250 deep x 2400mm high

DV204

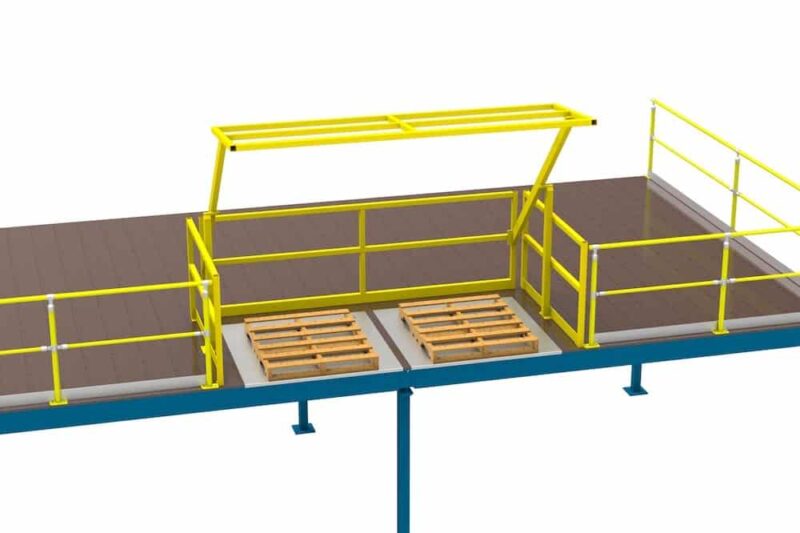

Mezzanine Rollover Gate
3475 wide x 2300mm high
Pallet Size 3025 wide x 1250 deep x 1800mm high

DV205

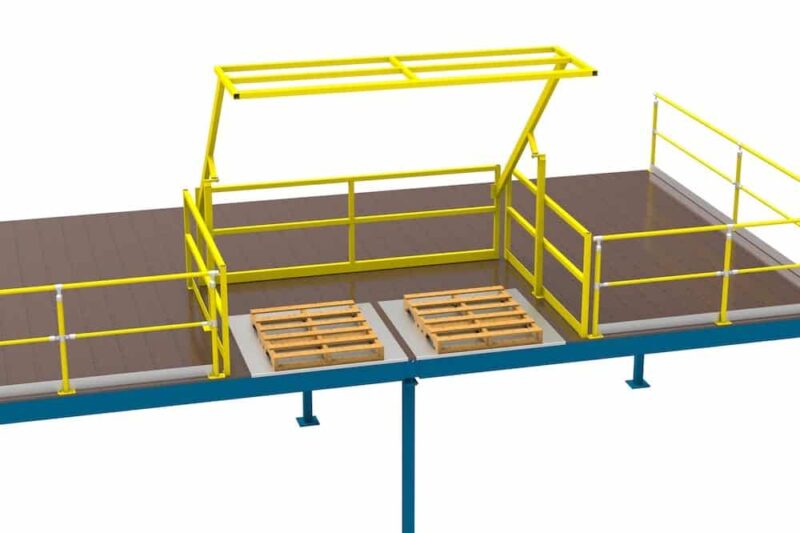

Mezzanine Rollover Gate
3475 wide x 2650mm high
Pallet Size 3025 wide x 1250 deep x 2400mm high

DV206

Mezzanine Rollover Gate Low-Profile
1925 wide x 1900mm high
Pallet Size 1400 wide x 1250 deep x 1450mm high

DV207

Mezzanine Rollover Gate Low-Profile
2405 wide x 1900mm high
Pallet Size 1950 wide x 1250 deep x 1450mm high

DV208

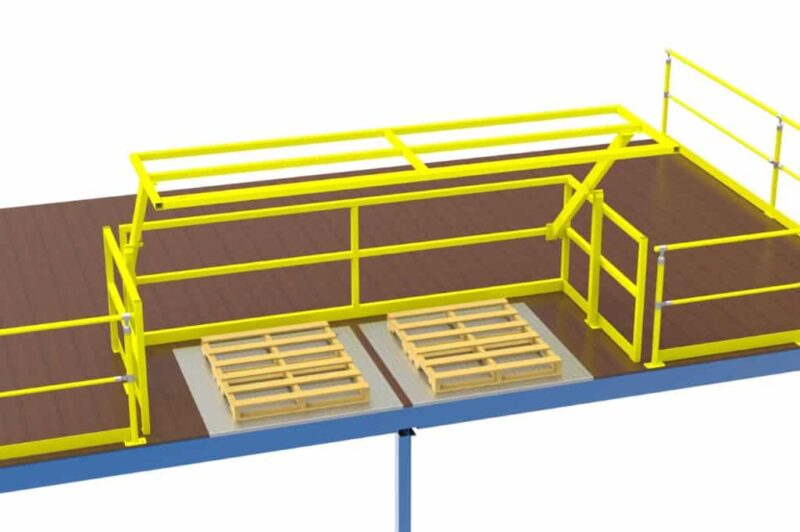

Mezzanine Rollover Gate Low-Profile
3475 wide x 1900mm high
Pallet Size 3025 wide x 1250 deep x 2400mm high

DV209
agg.5
