Concrete Washout Bin

The MCPC Concrete Washout Bin range are a great solution when using boom and line concrete pumps. Featuring a heavy-duty construction, the bin ensures waste intake via its pipe and air vent. This innovative build removes risks of injuries often caused by blow-outs during line cleaning. They make an effective on-site solution and are manufactured in galvanised steel.

The Concrete Washout Bin contains hazards and offers a number of safety benefits. Complying with EPA requirements, the bin prevents pollution and cleanly stores cement waste. Crane lugs and fork pockets ensure the bin can be transported around a worksite. This makes it flexible when using in different locations around a warehouse.

One disposable plastic liner is included with each of the MCPC Concrete Washout Bins to assist with easy, fast and cost-effective waste management. They are also available for reorder.

Product Variation

Clear

Additional Information

Improve your processes with a durable Concrete Washout Bin!

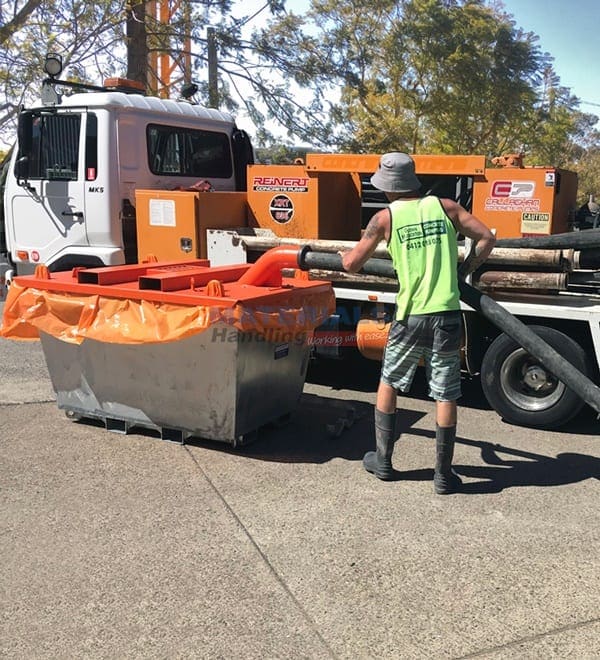

These bins are a great tool for concrete applications and waste management. It is used to control, capture and contain concrete washout and run-off, so excess materials can be disposed of effectively. They are commonly used on construction and warehouse industries. The portable and flexible nature of our bins makes them a leading choice for safe handling processes.

Overall Features:

For use with boom and line concrete pumps.
Can safely be used with compressed air and water line cleans.
Easily removable exhaust air vent for sponge recovery.
The lid has been fitted with crane lugs and fork pockets for fit-up and removal.
The lid is secured to bin via safety chains in four points.
Washout Bin is fitted with crane lugs for lifting and upending load.
Washout Bin also has four-way entry fork pockets.
125 mm NB waste intake pipe for quick and safe connection.
Option reducers are available to suit 100 mm, 80 mm or 50 mm pipelines.
Disposable plastic liners are available for fast and safe waste management.
Lid finished with enamel paint.
Bin manufactured with a galvanised finish.

Select the right Concrete Washout Bin for your applications!

Three models are available to suit your workplace requirements. With varying Bin Volume Capacities and Working Load Limits, a range of options are available to assist concrete handling and management.

Concrete Washout Bins Specifications:

Model	Bin WLL (kg)	Capacity (m³)	Overall Dimensions (mm)	Unit Weight (kg)

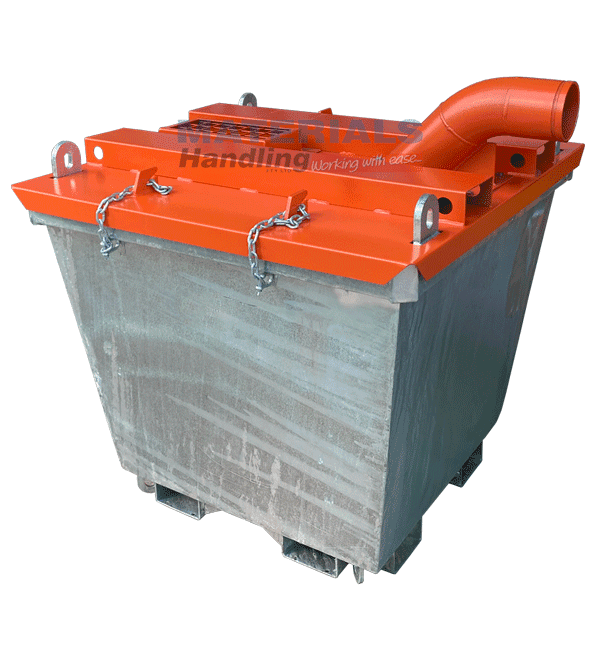

MCPC11	2000	0.85	1290 x 1180 x 1350	242

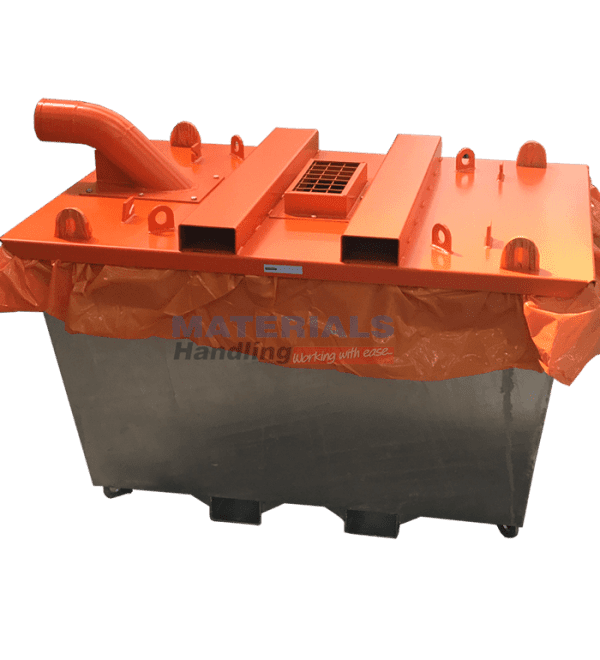

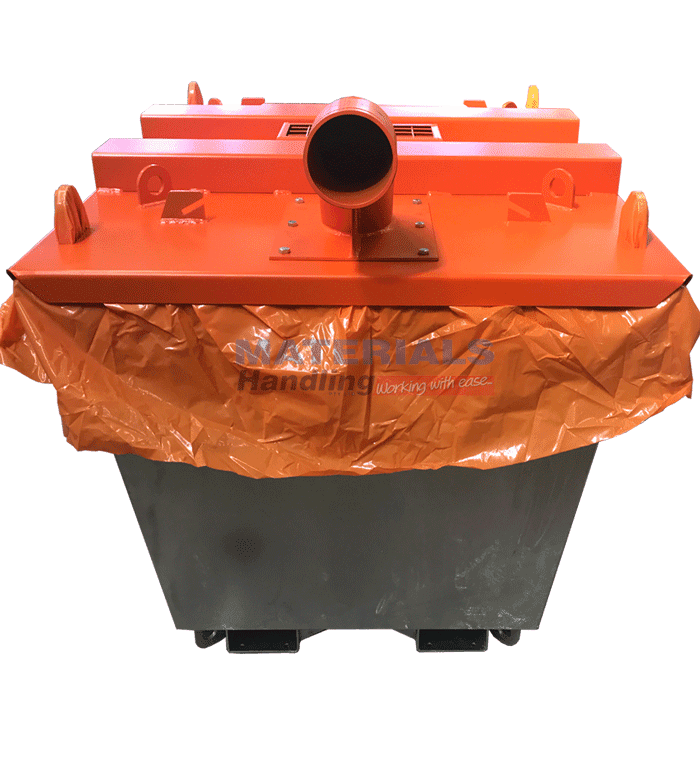

MCPC17	2000	1.3	1830 x 1185 x 1285	380

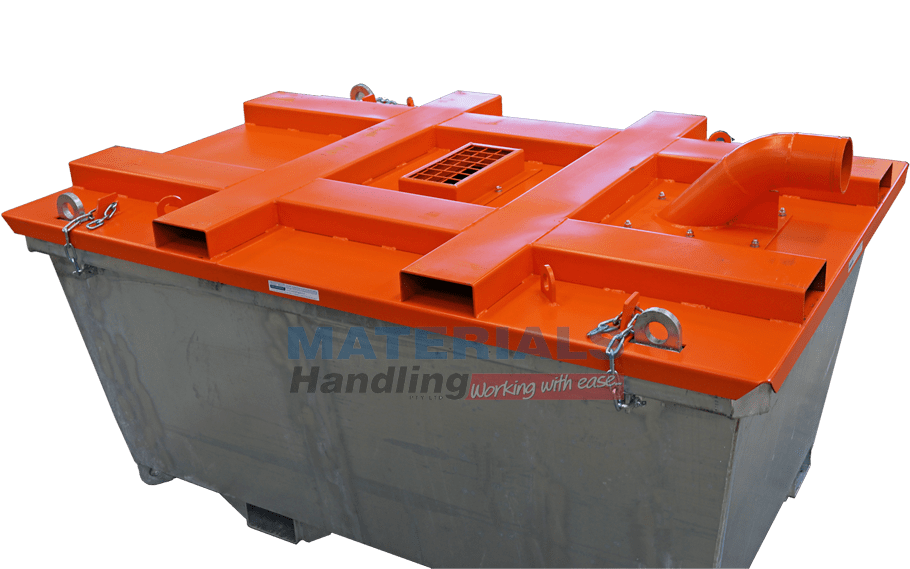

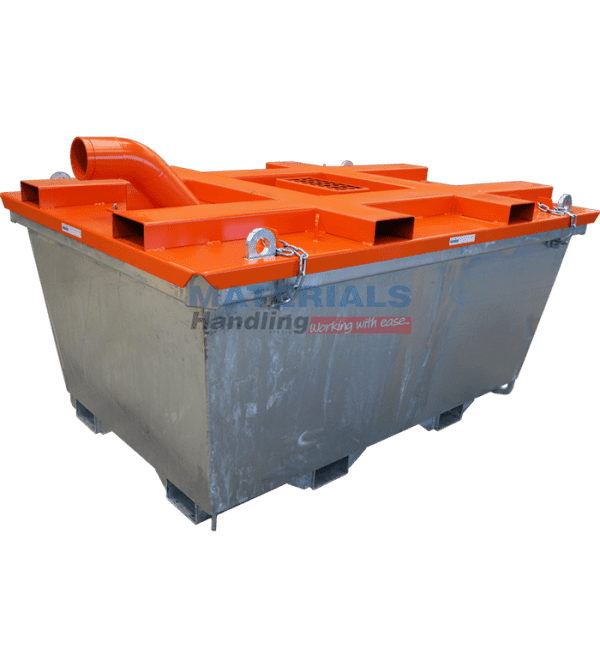

MCPC23	2000	2.5	2330 x 1545 x 1320	600
MCPC23H	5000	2.4	2330 x 1545 x 1325	850

Disposable Bin Liners are supplied with each bin and are also optionally available. Code MCPC17DPL suits MCPC17 bins and code MCPC23DPL suits MCPC23 and MCPC23H bins.

Looking for other Materials Handling solutions?

View our wide range of Skips, Tippers, Kibbles and Bulk Bags!

Click the PDF button to learn more.

Product Variations

Description	Product Code	Price (excl. GST)
Concrete Washout Bin WLL (kg) 2000 Weight (kg) 242	MCPC11	$2,370.00	Add to Quote Request
Concrete Washout Bin WLL (kg) 2000 Weight (kg) 380	MCPC17	$3,330.00	Add to Quote Request
Concrete Washout Bin WLL (kg) 2000 Weight (kg) 600	MCPC23	$4,900.00	Add to Quote Request
Concrete Washout Bin WLL (kg) 5000 Weight (kg) 850	MCPC23H	$6,740.00	Add to Quote Request
Disposable plastic liner for MCPC17	MCPC17DPL	$30.00	Add to Quote Request

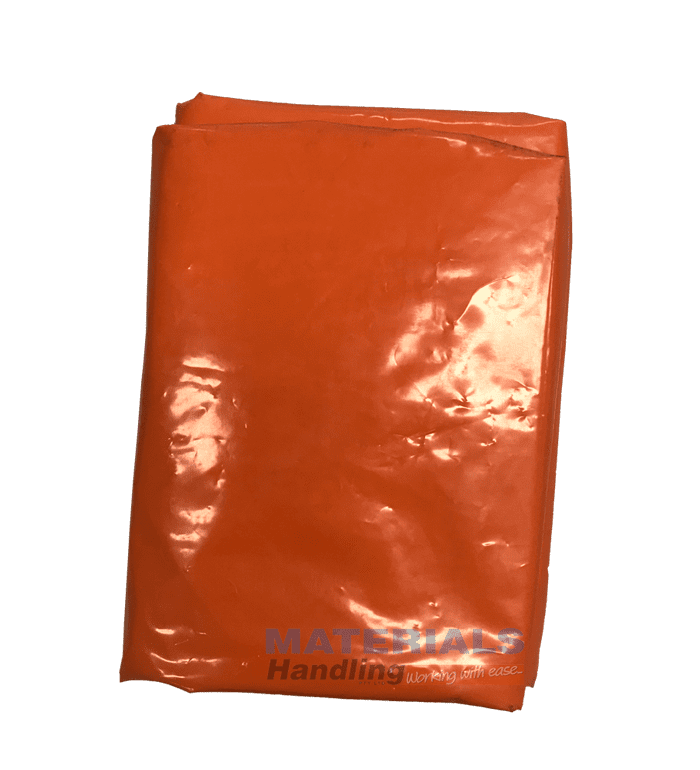

Disposable plastic liner for MCPC23 & 23H	MCPC23DPL	$30.00	Add to Quote Request
