Concrete Mould
+ Add to Quote Request
Concrete Mould MCWM12- Concrete Mould MCWMH insert for smaller blocks

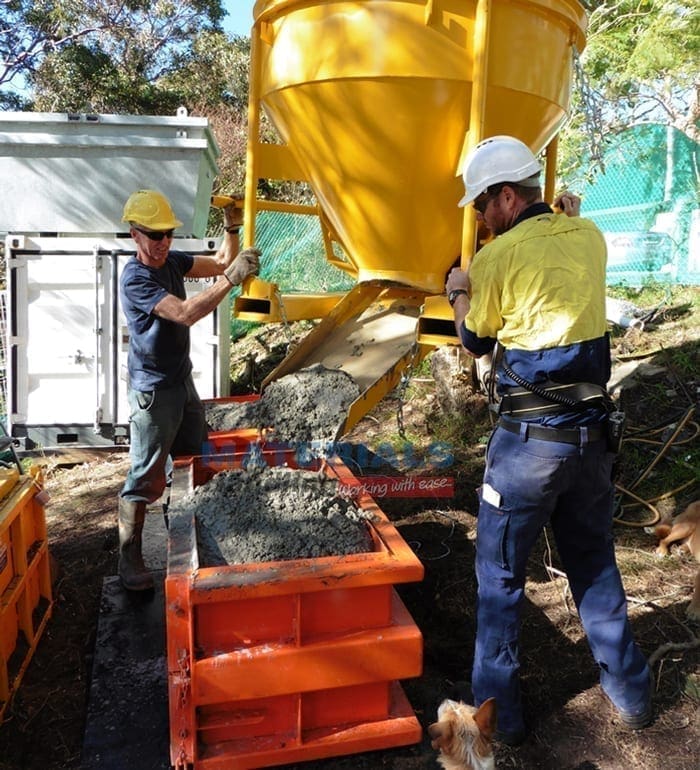

- Concrete Mould partnered with Concrete Kibble

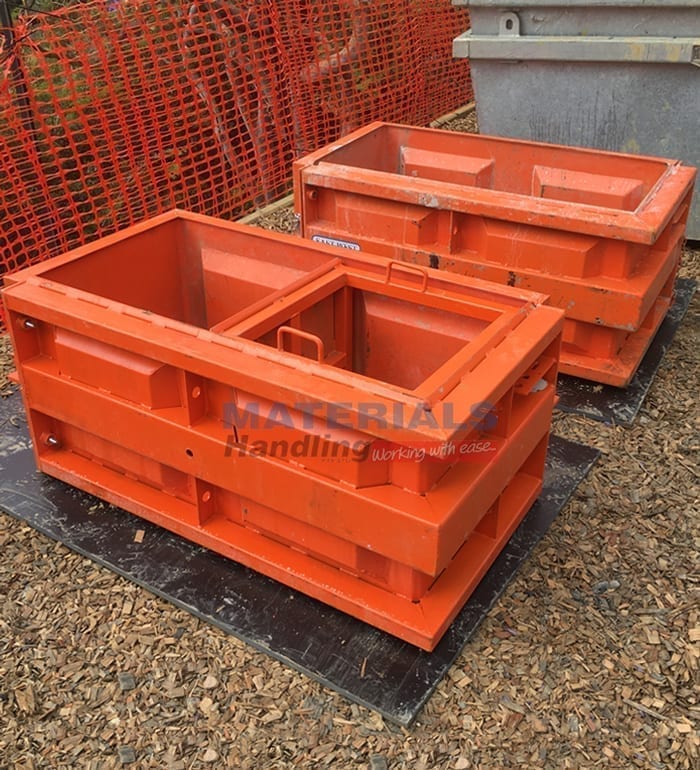

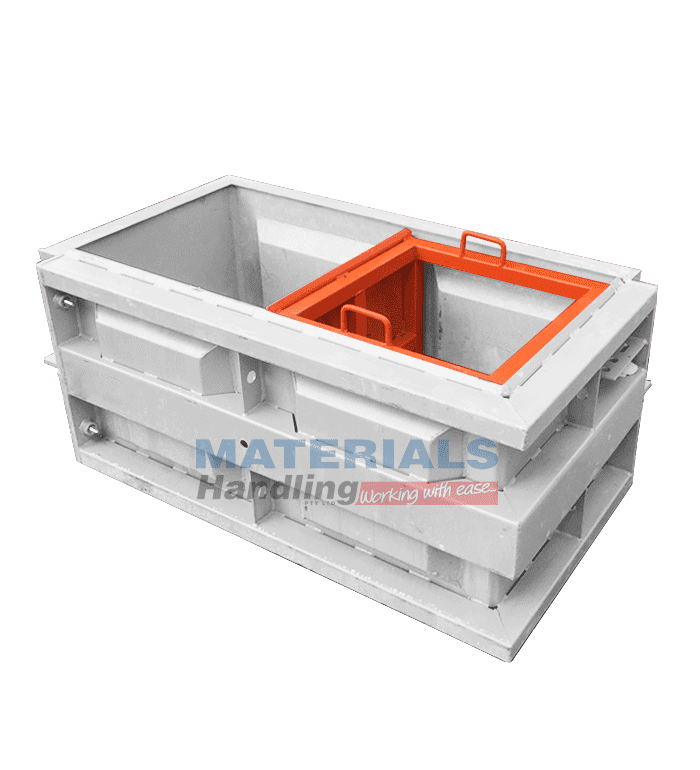

- MCWM12 Frame with MCWMH insert

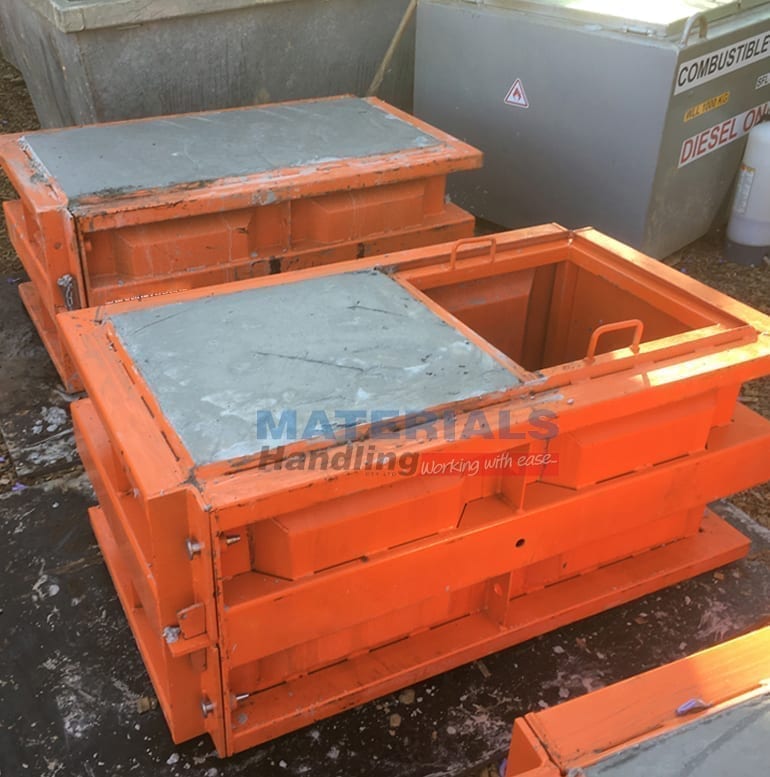

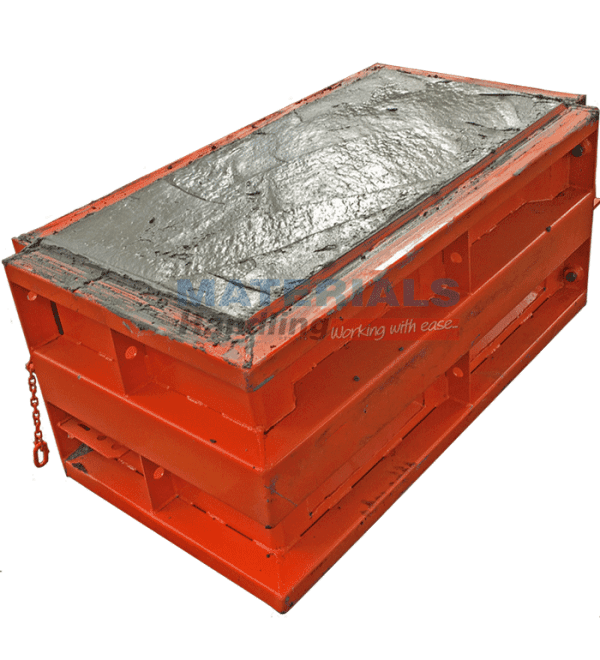

- Concrete Setting in Mould

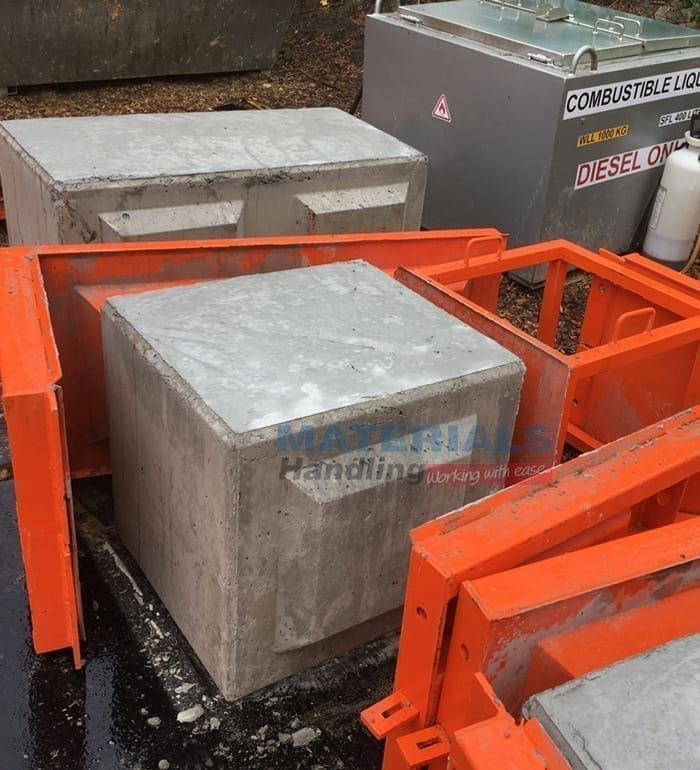

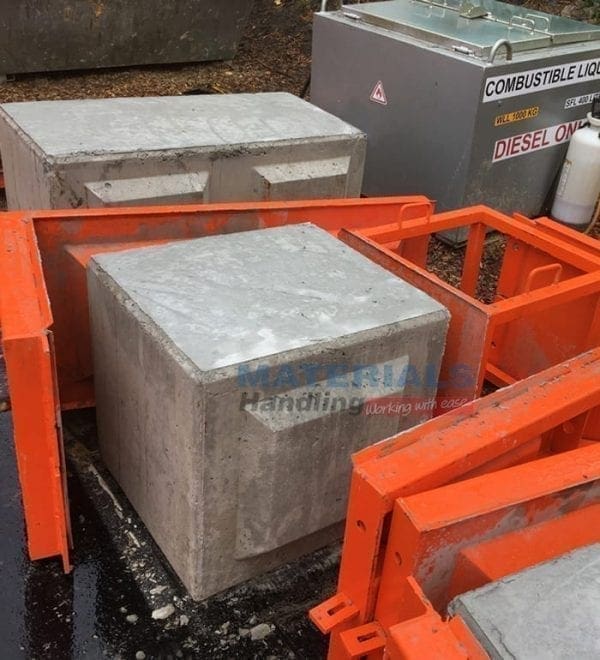

- Finished Half Blocks
- 1200 x 600 x 600mm blocks

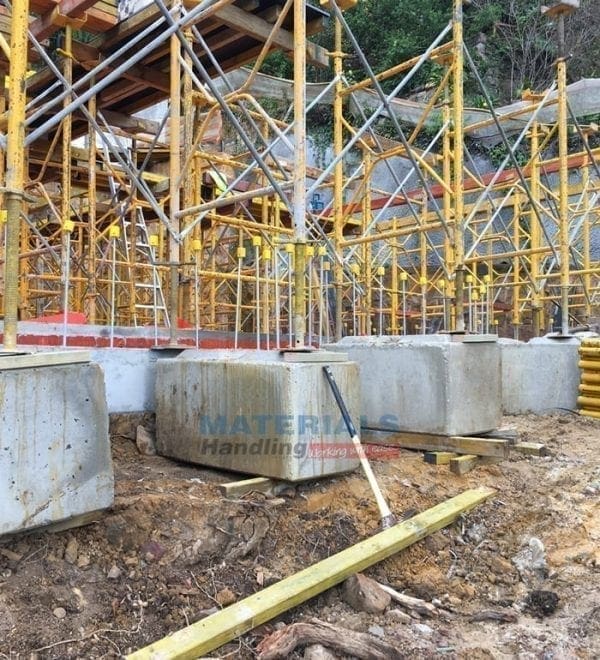

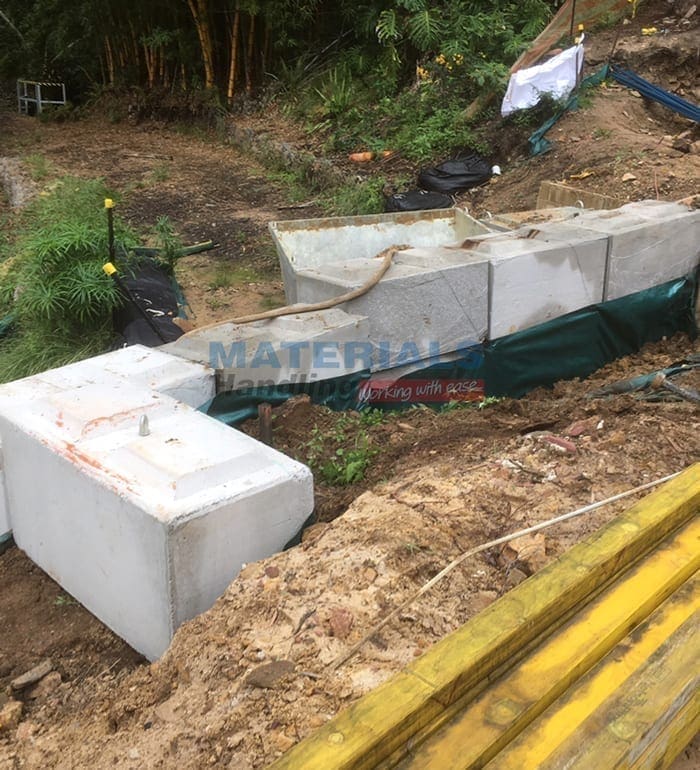

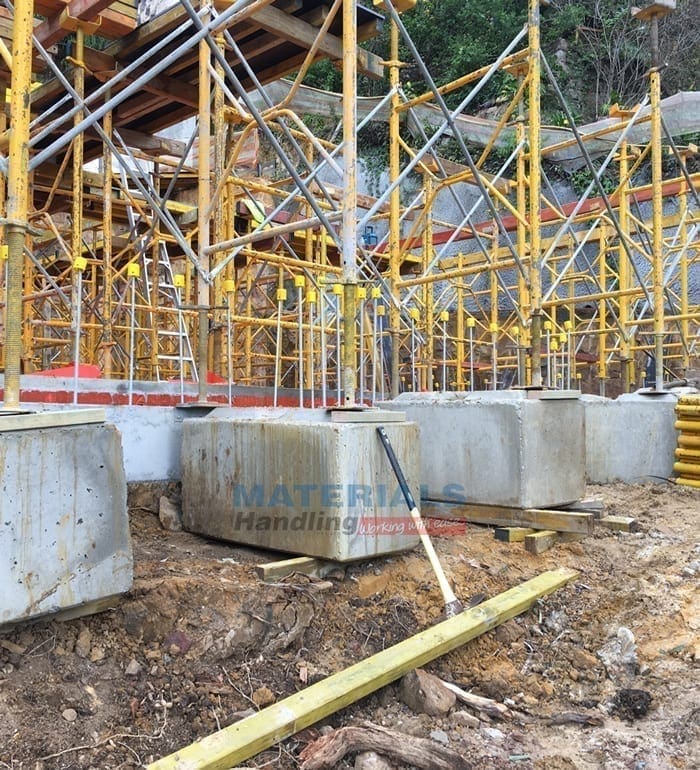

- Blocks used for retention

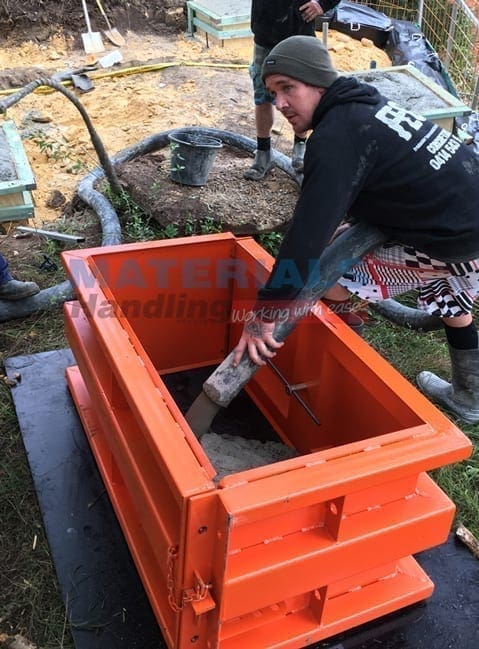

- Emptying concrete pump into MCWM12 mould
The Concrete Mould is a perfect solution for recycling leftover concrete. Designed to assist with excess materials, the frame allows surplus stock to be processed into blocks. This reduces wastage of oversupply and lowers workplace expenses.
Commonly used in a range of onsite applications, the Mould features a simple construction that is lightweight and stackable.
It can be easily transported to site or between jobs, and is a great tool for disposing of materials at the end of a concrete pour.
The blocks can be used for retaining walls, anchors or other security requirements.
Additional Information
The Concrete Mould is a great waste management system!
The mould is fast to assemble and easy to use. Materials can be poured into the frame to form temporary foundation blocks. Provisions are in place to prevent spillage and provide reinforcements. An optional Half Mould Insert is also available to create smaller blocks.
MCWM12 Specifications:
- Capacity – 0.432 m3
- Overall Dimensions (mm) – 1405 x 950 x 600
- Finished Block Dimensions (mm) – 1200 x 600 x 600
- Unit Weight – 165 kg
- Enamel Paint Finish – Orange Colour
Features:
- Lightweight, stackable and simple to construct
- Finished block weight is approx 1000 kg
- Provision for cast in ferrule (suits 12 mm reinforcing bar)
- Ferrule and M20 eyebolt supplied
- Half mould insert (MCWMH) is available
MCWM215 Specifications:
- Capacity – 0.432 m3
- Overall Dimensions (mm) – 1700 x 950 x 750
- Finished Block Dimensions (mm) – 1500 x 750 x 750
- Unit Weight – 270 kg
- Enamel Paint Finish – Orange Colour
Features:
- Lightweight, stackable and simple to construct
- Finished block weight is approx 1850 kg
- Provision for cast in ferrule (suits 12 mm reinforcing bar)
- Ferrule and M20 eyebolt supplied
- Half mould insert (MCWMH-75) is available
The concrete blocks produced using these moulds are not designed to be a precision fit.
Need other Concrete Solutions?
Browse our wide range of Concrete Equipment to see what is available for your workplace.
Product Variations
| Image | Description | Product Code | Price (excl. GST) | |
|---|---|---|---|---|
 |
Ferrule Kit |
MCWM-FK | $30.00 | |
|
M20 eye bolt |
SC44121-005 | ||
|
Concrete Mould |
MCWM12 | $1,710.00 | |
|
Concrete Half Mould Insert for MCWM12 |
MCWMH | $450.00 | |
|
Concrete Mould |
MCWM215 | $2,970.00 | |
|
Concrete Half Mould Insert for MCWM215 |
MCWMH-75 | $380.00 |
