Grip Lifter – flexiLifter

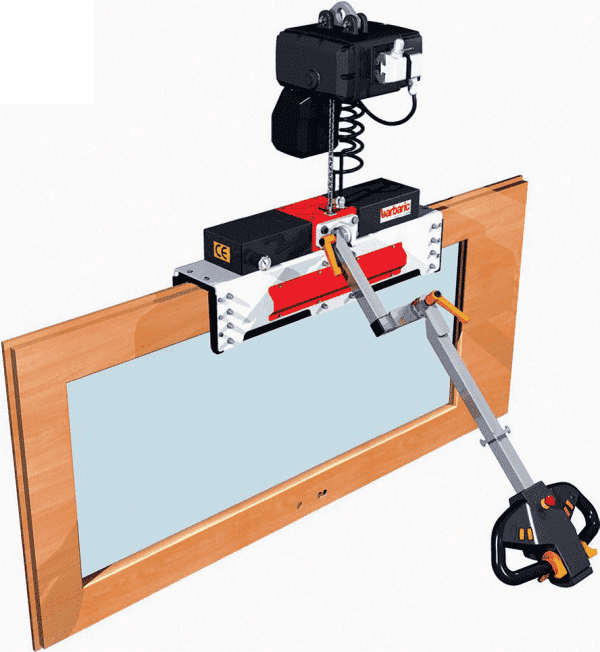

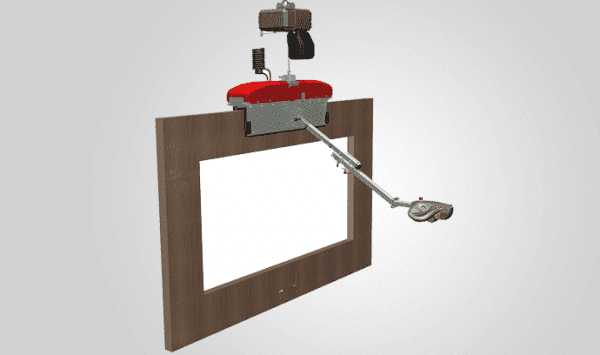

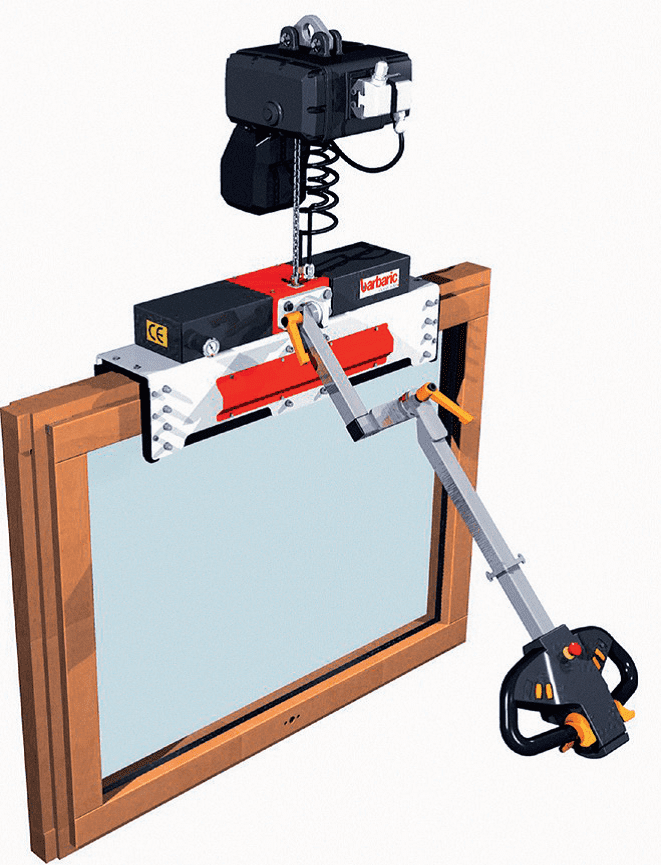

The flexiLifter is a unique device that utilises innovative lifting design without vacuum technology. The unit can easily clamp onto the work piece and handle parts as it locks into the outer surface of the product. This ensures damage, often caused by rough manipulation, is prevented.

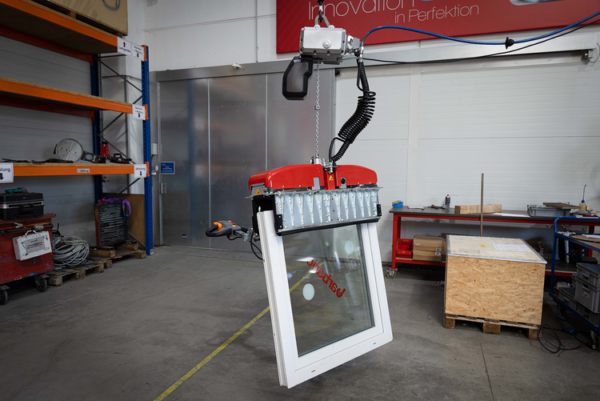

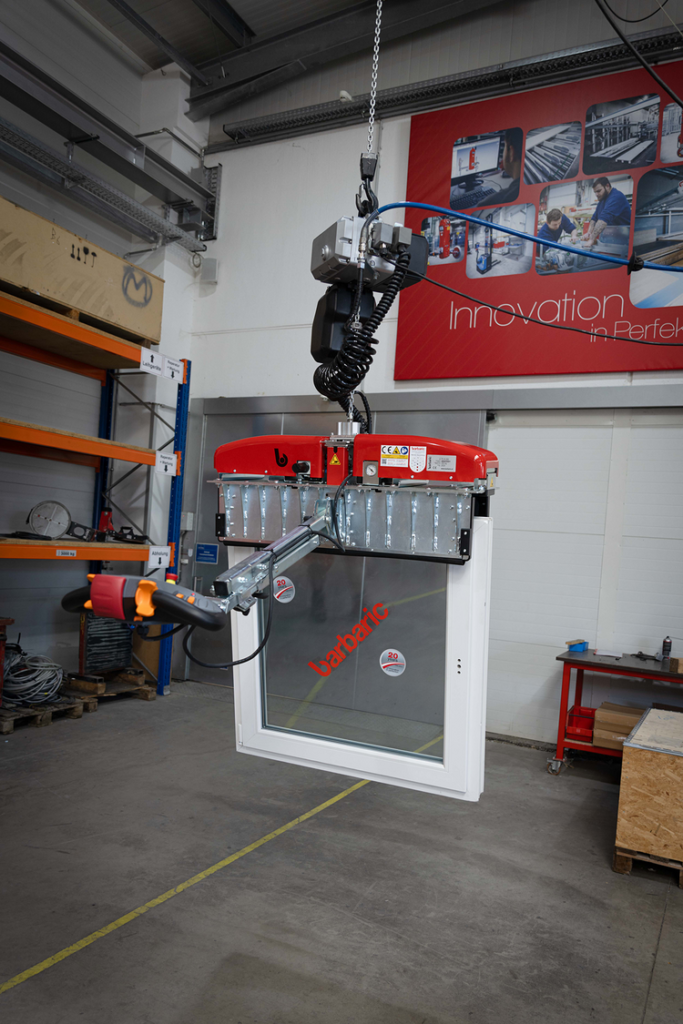

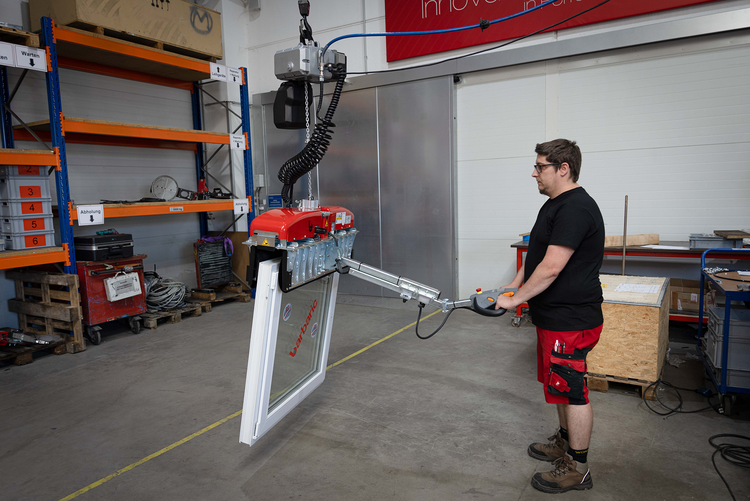

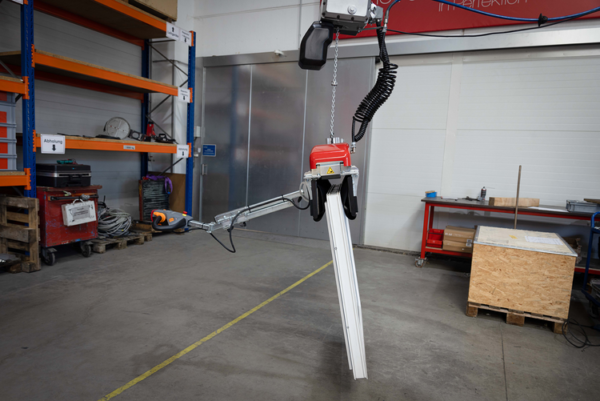

The flexiLifter is ideal for handling doors, complete window frames, glass panels, metal frames, cladding parts, stone panels, slabs, packed goods and a variety of similar materials. Depending on the product needing to be lifted and moved, the clamping pressure is adjustable to ensure safe handling.

As a unique clamping, gripping mechanism integrated with a smart hoist, this device features a variable lifting speed and a capacity of 500 kg.

Additional Information

The flexiLifter features a patented frame mounting system for special manipulation and control of suitable products. The unit is versatile universal system to suit many lifting applications. It is available in a standard design with a maximum lifting load of 500 kg.

Specifications:

For lifting applications only
Lifting Speed – 0-10 m/min infinitely variable
Operating Voltage – 240 V / 50 Hz
Clamping Width 50-100 mm
Part Sizes –
- Minimum: 500 mm x 500 mm
- Maximum: 3000 mm x 3000 mm
Load Capacity – 500 kg
Gripping Function – secures to the outside frame by clamp mechanism with adjustable gripping force

Browse the Barbaric range!

Barbaric develop intelligent lifting solutions to assist in handling and lifting applications. View their wide range of Vacuum Lifting devices to identify an alternative option for your requirements.

Product Variations

Image	Description	Product Code	Price (excl. GST)
	flexiLifter gripLifter 250 kg Unique clamping grip system Clamping range 50-150 mm pressure is adjustable	99110		Add to Quote Request
	flexiLifter capacity upgrade 500kg	99634		Add to Quote Request
