Electric Hoists Builders Wire Rope

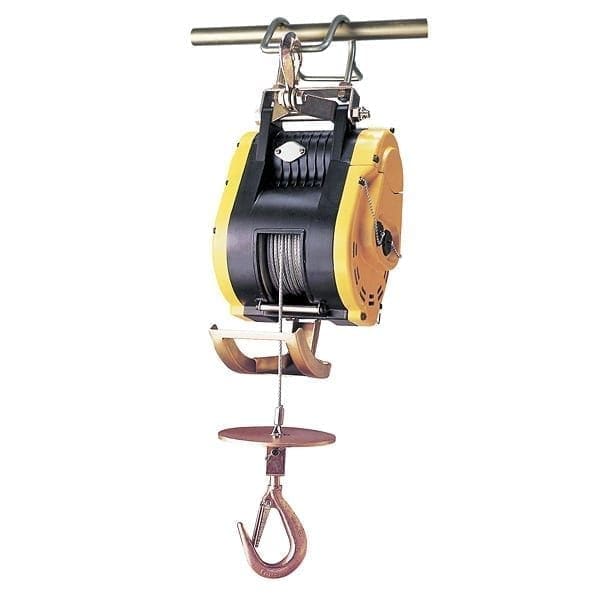

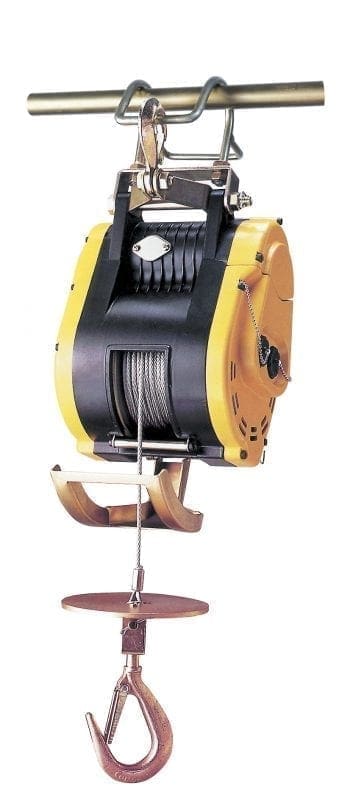

An electric wire rope hoist that is suitable for a wide range of lifting applications in workshops, storage areas, factories and building sites.

Due to its lightweight design, it is perfect when a quick and easy installation is needed.

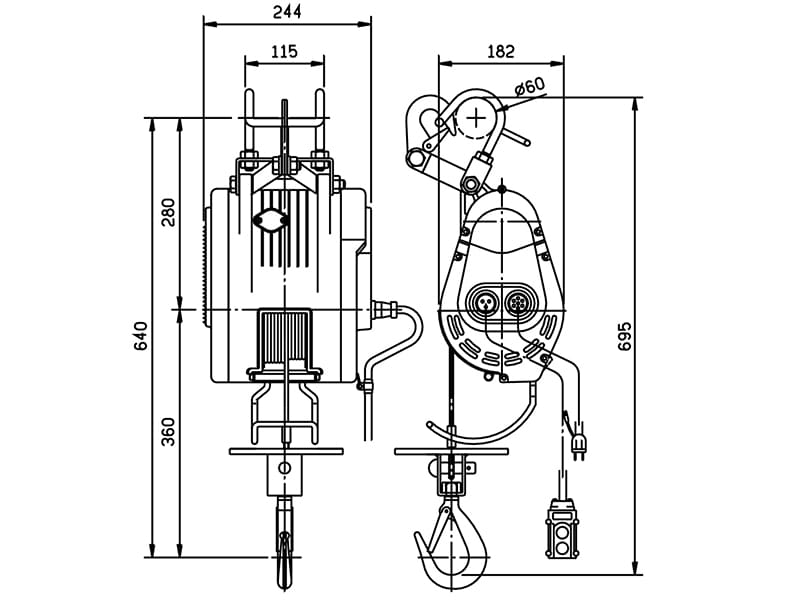

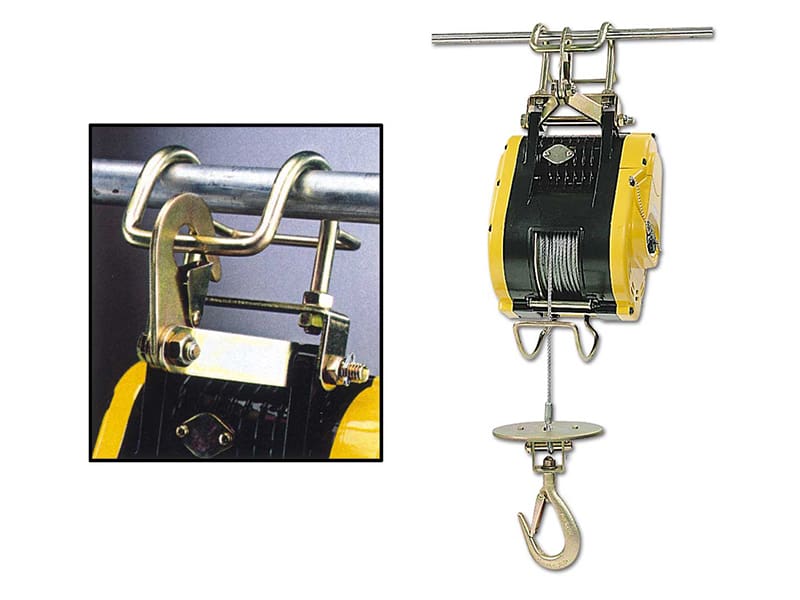

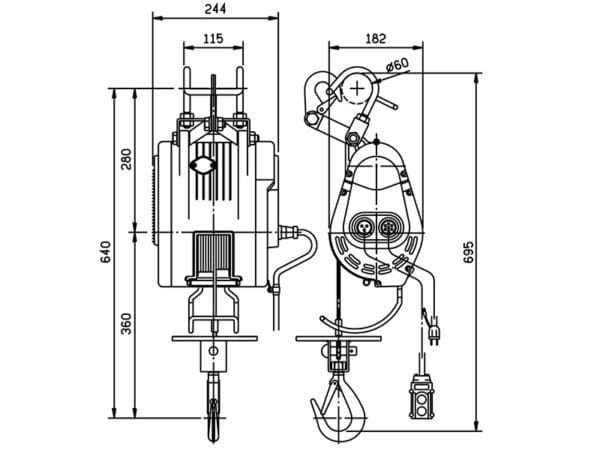

The compact wire rope hoists are designed with a rigid frame, light in weight and have many features such as 240 Volt single-phase operation, 3m power lead complete with a standard 3-pin plug, waterproof pendant control with cable, fail-safe electromagnetic disc brake, top and bottom safety hooks and automatic upper limit switch.

An optional davit arm with mounting clamps is available (not available for model LCWS300).

Product Variation

Clear

Additional Information

Automatic upper limit switch – when the rope disc touches the limit, hoisting is automatically stopped
A dynamic, mechanical brake that provides instant, safe braking
Convenient 240VAC single-phase power supply
A mechanical sensor activates the lower limit switch to stop the motor if the rope is unwound too far

Product Variations

Description	Product Code	Price (excl. GST)
Compact electric wire rope hoist 80kg capacity 35m height of lift	LCWS080	$1,400.00	Add to Quote Request
Compact electric wire rope hoist 160kg capacity 40m height of lift	LCWS160	$1,671.00	Add to Quote Request
Compact electric wire rope hoist 230kg capacity 24m height of lift	LCWS230	$2,050.00	Add to Quote Request
Compact electric wire rope hoist 300kg capacity 24m height of lift	LCWS300	$2,427.00	Add to Quote Request

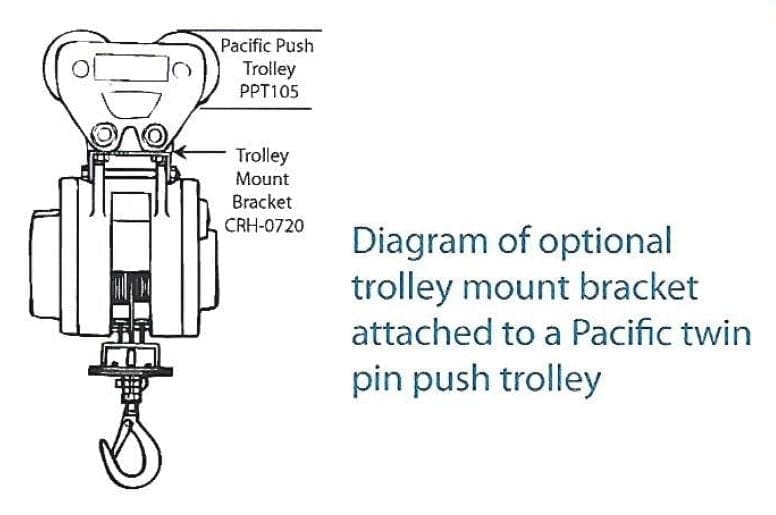

Trolley Coupler to Suit LCWS80	L666110	$288.00	Add to Quote Request
Trolley Coupler to Suit LCWS160 – 300 hoist	L666111	$277.00	Add to Quote Request

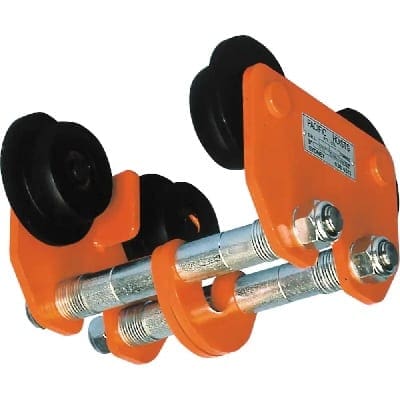

Girder Trolley Push Type Twin Pin 0.5T 62-172mm Beam Width	LPPT105		Add to Quote Request

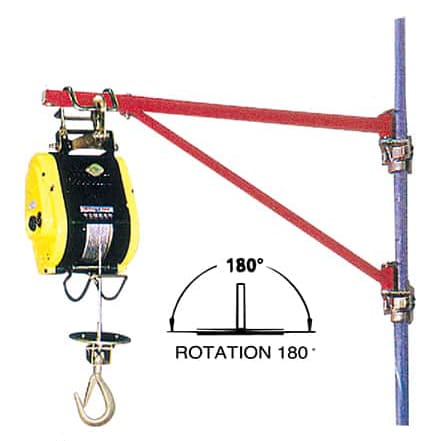

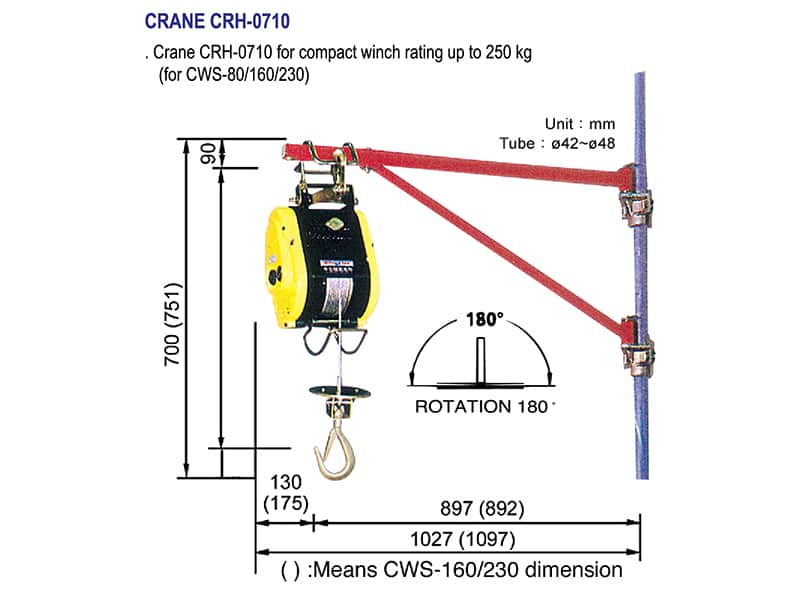

Swivel arm assembly for LCWS Max capacity 250kg	LCRH071	$370.00	Add to Quote Request

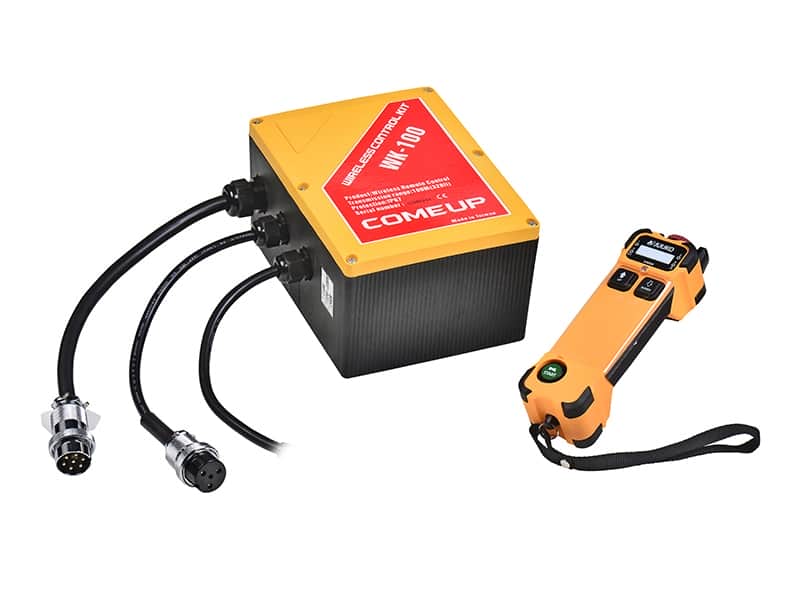

JUUKO wireless remote control	WK-100S	$1,100.00	Add to Quote Request
