Winch Hand Operated with Safety Brake

The safety brake winches are suitable for lifting and lowering applications and are designed and tested to Australian Standards.

They are safe, secure load brake winches with machined gears, heavy-duty friction pads and self-actuated brake mechanism.

The capacities shown are safe for lifting with the relevant safety factor already applied.

Select from one of three different gear ratios. Then choose to have the winch fitted with steel wire rope, fibre rope or no rope at all.

Product Variation

Clear

Product Variations

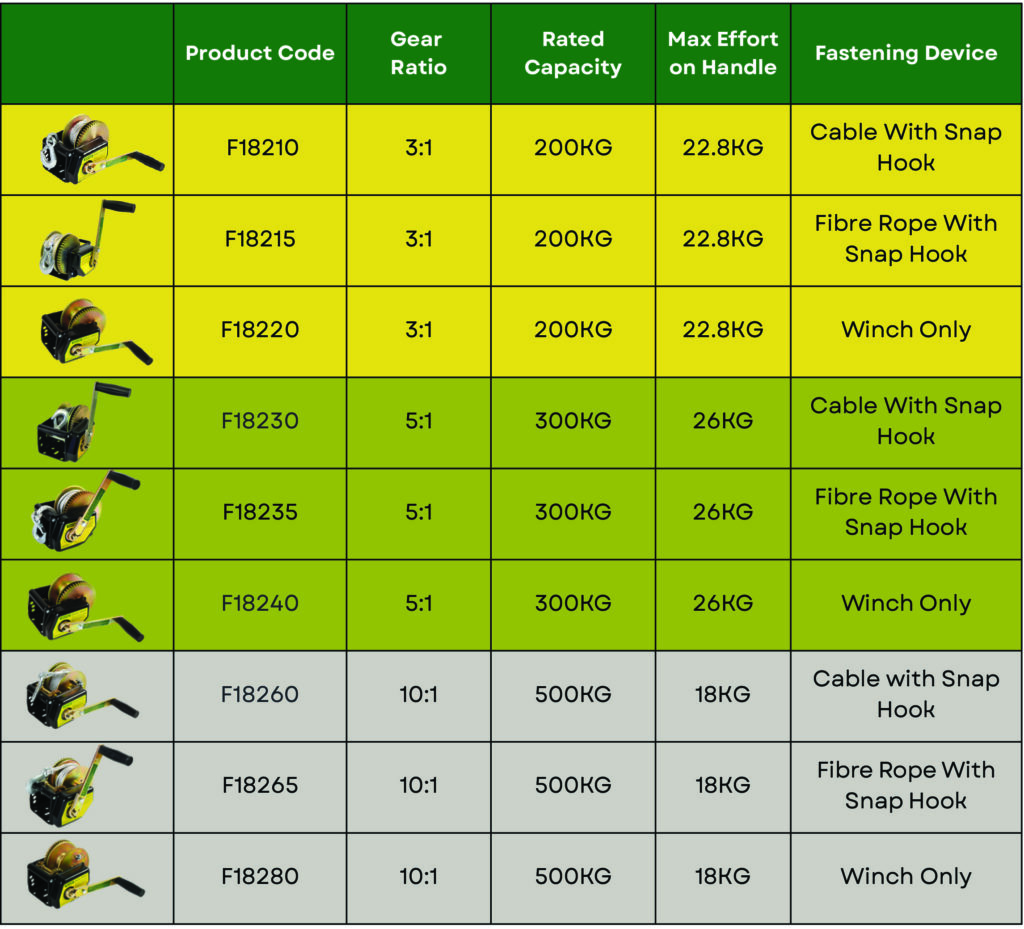

Description	Product Code

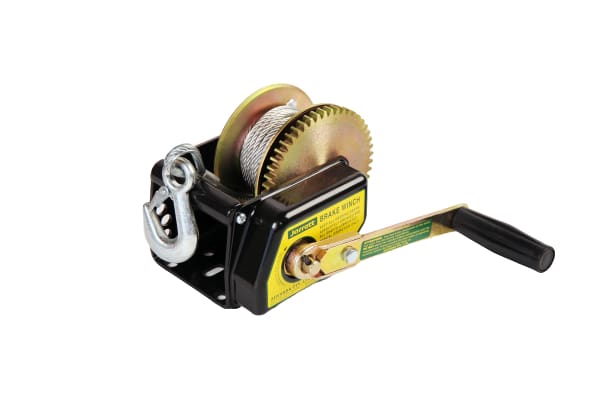

Capacity (kg) 200 Ratio Rope Dia (mm x length m) 3:1 5 x 7.5	LF18210	Add to Quote Request
Brake Winch Manual 200kg rated capacity 7.5m x 6mm fibre rope and snap hook	F18215	Add to Quote Request
Brake Winch Manual (winch only)	F18220	Add to Quote Request

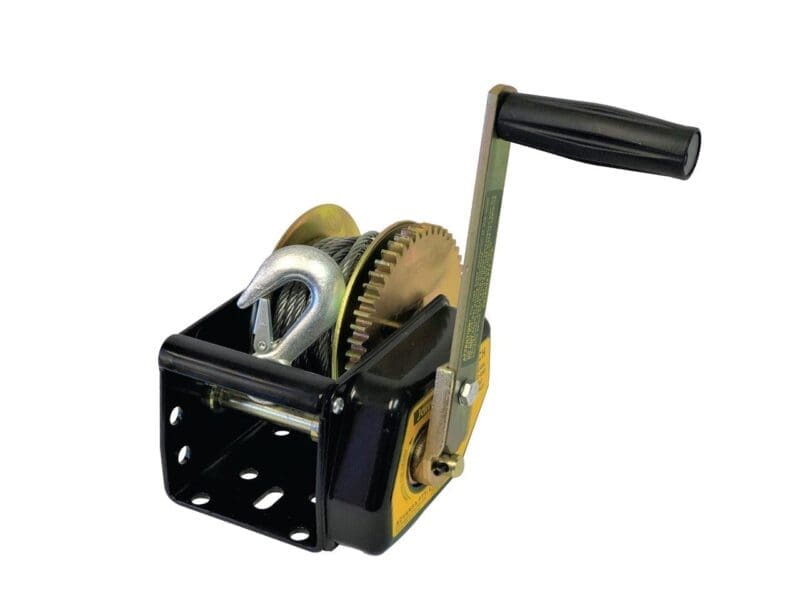

Capacity (kg) 300 Ratio Rope Dia (mm x length m) 5:1 7.5 x 5	LF18230	Add to Quote Request
Brake Winch Manual 300kg rated capacity 7.5m x 6mm fibre rope and snap hook	F18235	Add to Quote Request

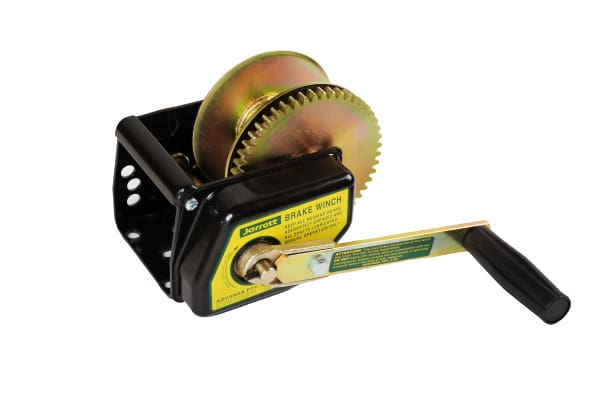

Brake Winch Manual (winch only)	F18240	Add to Quote Request

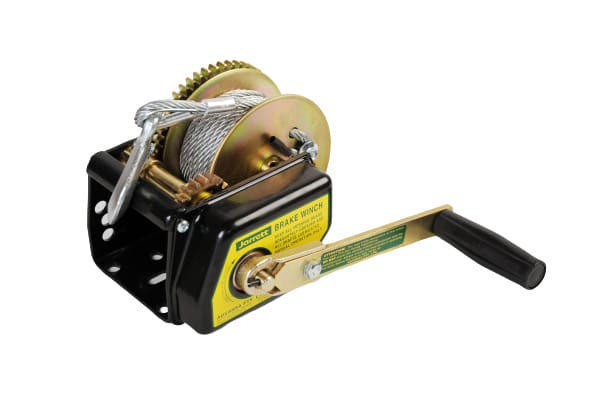

Capacity (kg) 500 Ratio Rope Dia (mm x length m) 10:1 6 x 7.5	LF18260	Add to Quote Request
Brake Winch Manual 500kg rated capacity 7.5m x 6mm fibre rope and snap hook	F18265	Add to Quote Request
Brake Winch Manual (winch only)	F18280	Add to Quote Request
